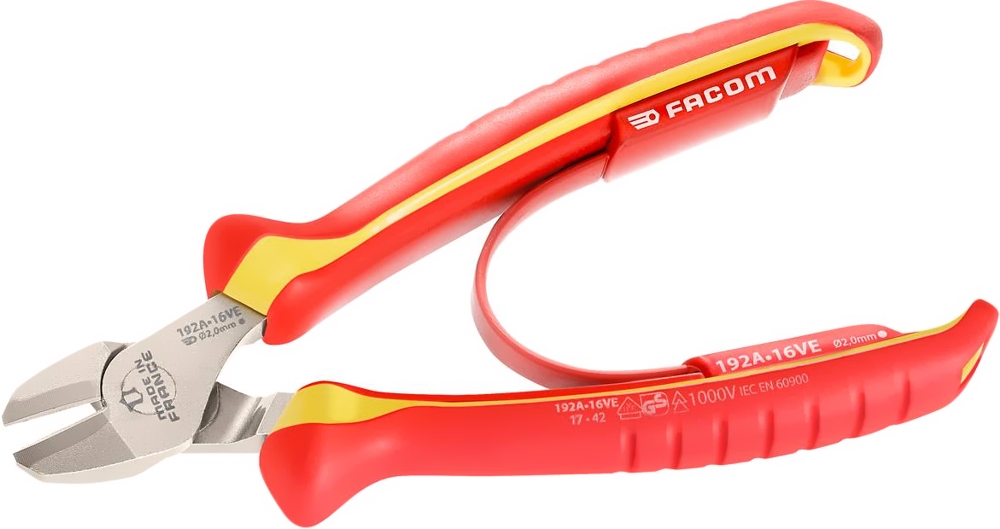

Castor Trading - FACOM 1000V Insulated Pliers

Learn more

Standards: NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500, NF EN 60900, EN 60900, DIN EN 60900
For your safety, all pliers are tested individually at 10,000 Volt for 10 seconds, at the end of the manufacturing cycle.
New head design to increase durability and cutting capacity
Cutting edges designed to cleanly cut all types of wire.
Soft wires and modern materials to a maximum piano wire specification of:

		L (mm)	B (mm)	C (mm)	E (mm)	Max piano wire cutting diameter (mm)	Max CU wire cutting diameter (mm)	Weight (g)
FACOM 192A.16VE		160	24	18	10	2	0.7 - 4.0	200
FACOM 192A.18VE		180	26	20	11	2.2	0.7 - 4.5	260

Learn more

Standards: NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500, NF EN 60900, EN 60900, DIN EN 60900
For your safety, all pliers are tested individually at 10,000 Volt for 10 seconds, at the end of the manufacturing cycle.
Snipe nose for confined space (electrical cabinets, wiring).
Cutting edges designed to cleanly cut all types of wire.
Soft wires and modern materials to a maximum piano wire specification of:

		L (mm)	B (mm)	C (mm)	E (mm)	Max piano wire cutting diameter (mm)	Max CU wire cutting diameter (mm)	Weight (g)
FACOM 391A.14VE		145	21.5	15.5	9.5	1.4	0.7 - 3.0	190
FACOM 391A.16VE		165	23.5	21	10	1.6	0.7 - 3.0	225

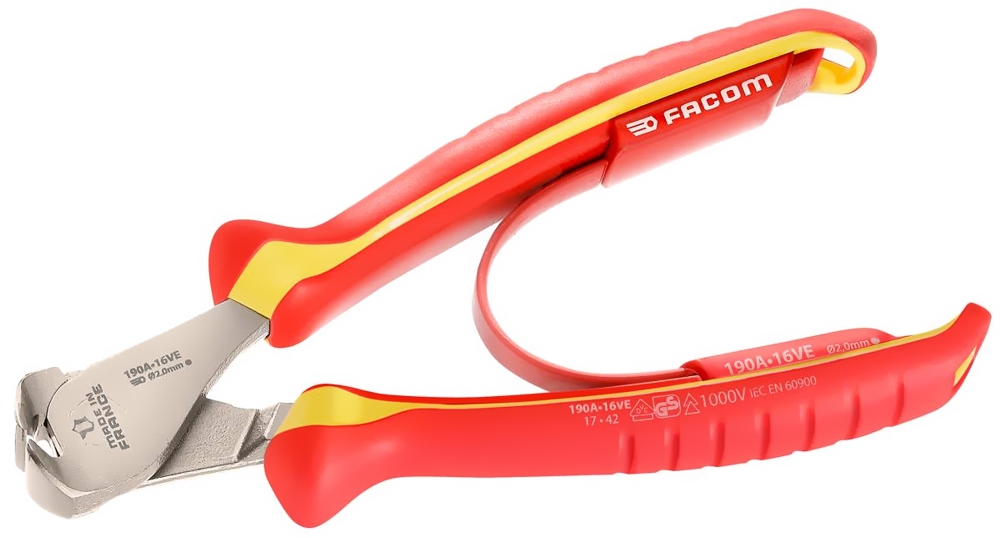

HIGH-PERFORMANCE 1000V INSULATED END CUTTERS

Learn more

Standards: NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500, NF EN 60900, EN 60900, DIN EN 60900
For your safety, all pliers are tested individually at 10,000 Volt for 10 seconds, at the end of the manufacturing cycle.
Cutting edges designed to cleanly cut all types of wires.
Soft wires and modern materials to a maximum piano wire specification of:

INSULATED 1000V HALF-ROUND NOSE PLIERS

Learn more

Standards: NF ISO 5745, ISO 5745, DIN ISO 5745, ASME B107.500, NF EN 60900, EN 60900, DIN EN 60900
For your safety, all pliers are tested individually at 10,000 Volt for 10 seconds, at the end of the manufacturing cycle.
Narrow, finely serrated tips with side cutting edges.
Cutting edges designed to cleanly cut all types of wires.
Soft wires and modern materials to a maximum piano wire specification of:

		L (mm)	B (mm)	C (mm)	d (mm)	E (mm)	E1 (mm)	Weight (g)
FACOM 193A.16VE		160	17	50	2.5	3	9	177
FACOM 185A.20VE		200	18	75	2.9	3.6	9	192

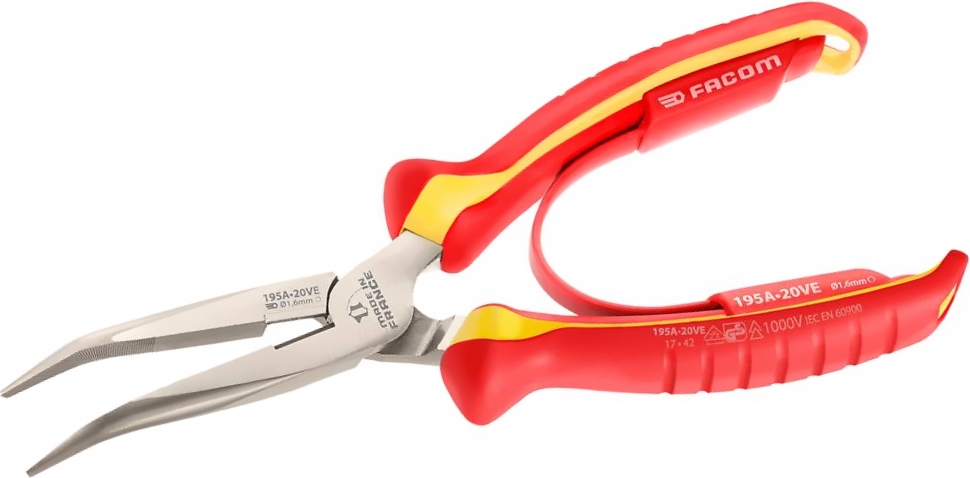

INSULATED 1000V HALF-ROUND BENT NOSE PLIERS

Learn more

Standards: NF ISO 5745, ISO 5745, DIN ISO 5745, ASME B107.500, NF EN 60900, EN 60900, DIN EN 60900
For your safety, all pliers are tested individually at 10,000 Volt for 10 seconds, at the end of the manufacturing cycle.
Narrow, finely serrated tips with side cutting edges.
Cutting edges designed to cleanly cut all types of wires.
Soft wires and modern materials to a maximum piano wire specification of:

		L (mm)	B (mm)	C (mm)	d (mm)	E (mm)	E1 (mm)	Weight (g)
FACOM 195A.16VE		160	17	50	2.5	3	9	177
FACOM 195A.20VE		200	18	69	2.9	3.6	9	192

INSULATED 1000V COMBINATION PLIERS

Learn more

Standards: NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500, NF EN 60900, EN 60900, DIN EN 60900
For your safety, all pliers are tested individually at 10,000 Volt for 10 seconds, at the end of the manufacturing cycle.
Serrated flat and and oval pipe/cable gripping surfaces combined with a high perfomance cutting edges.
Cutting edges designed to cleanly cut all types of wire.
Soft wires and modern materials to a maximum piano wire specification of:

		L (mm)	B (mm)	C (mm)	E (mm)	Max piano wire cutting diameter (mm)	Weight (g)
FACOM 187A.16VE		165	21	34	9.5	1.8	195
FACOM 187A.18VE		185	23	36	10	2.0	225

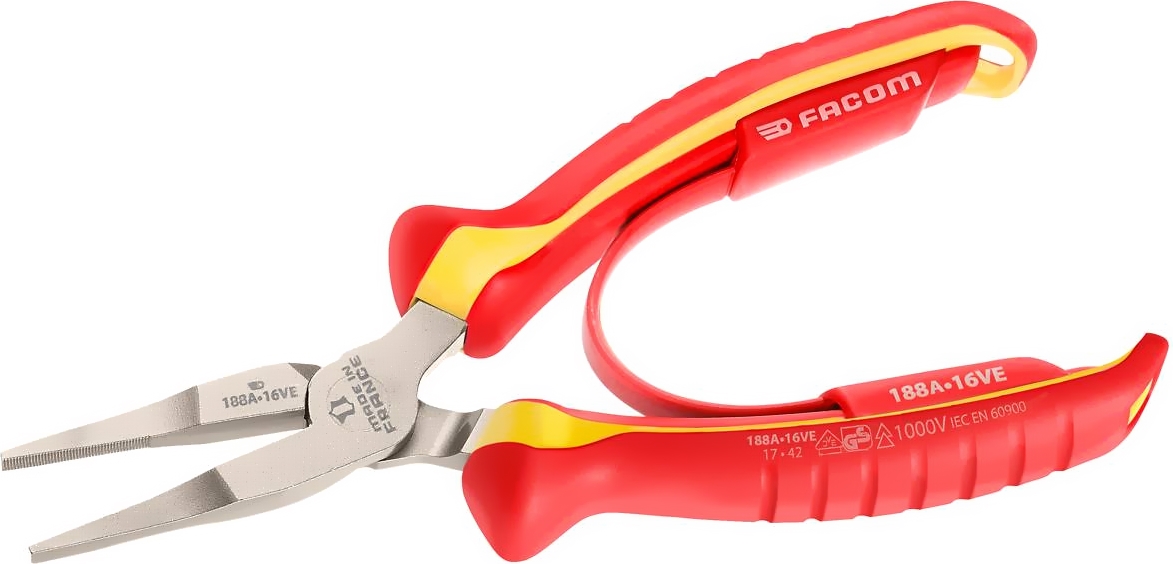

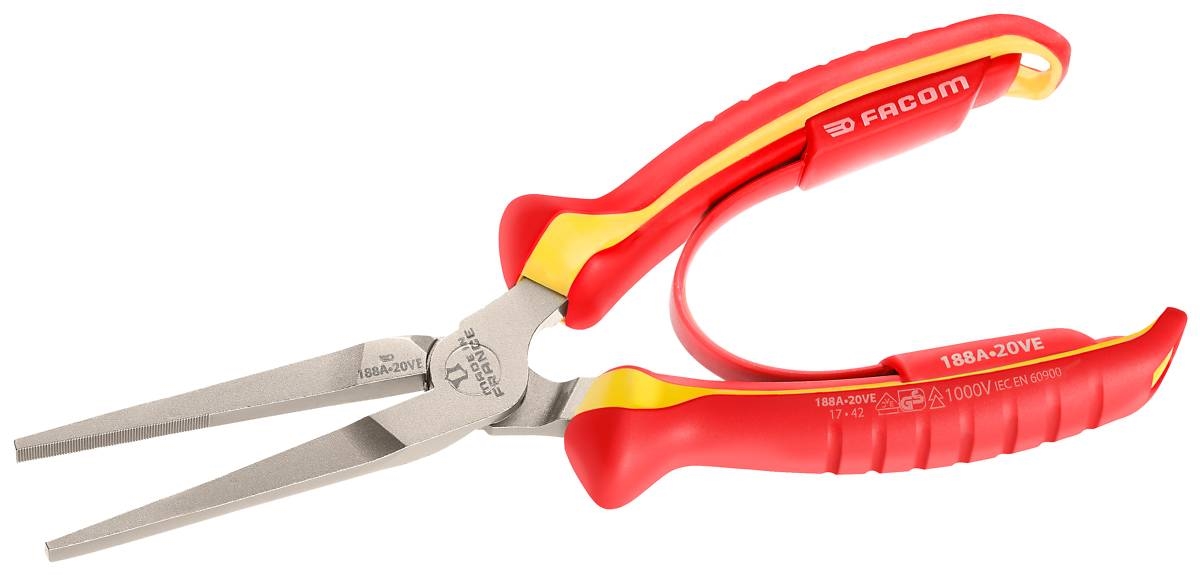

INSULATED 1000V FLAT NOSE PLIERS

Learn more

Standards: NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500, NF EN 60900, EN 60900, DIN EN 60900
For your safety, all pliers are tested individually at 10,000 Volt for 10 seconds, at the end of the manufacturing cycle.
Narrow flat shaped and finely serrated nose for a firm grip and accessibility.

			L (mm)	B (mm)	E (mm)	E1 (mm)	E2 (mm)	L1 (mm)	Weight (g)
FACOM 188A.16VE			168	46	4	18	9	6.5	140
FACOM 188A.20VE			200	75	4	18	9	6.5	200

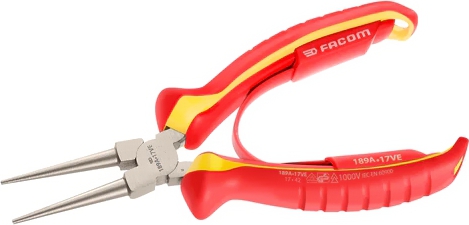

INSULATED 1000V ROUND NOSE PLIERS

Learn more

Standards: NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500, NF EN 60900, EN 60900, DIN EN 60900
For your safety, all pliers are tested individually at 10,000 Volt for 10 seconds, at the end of the manufacturing cycle.
For shaping loops, bends or rings.

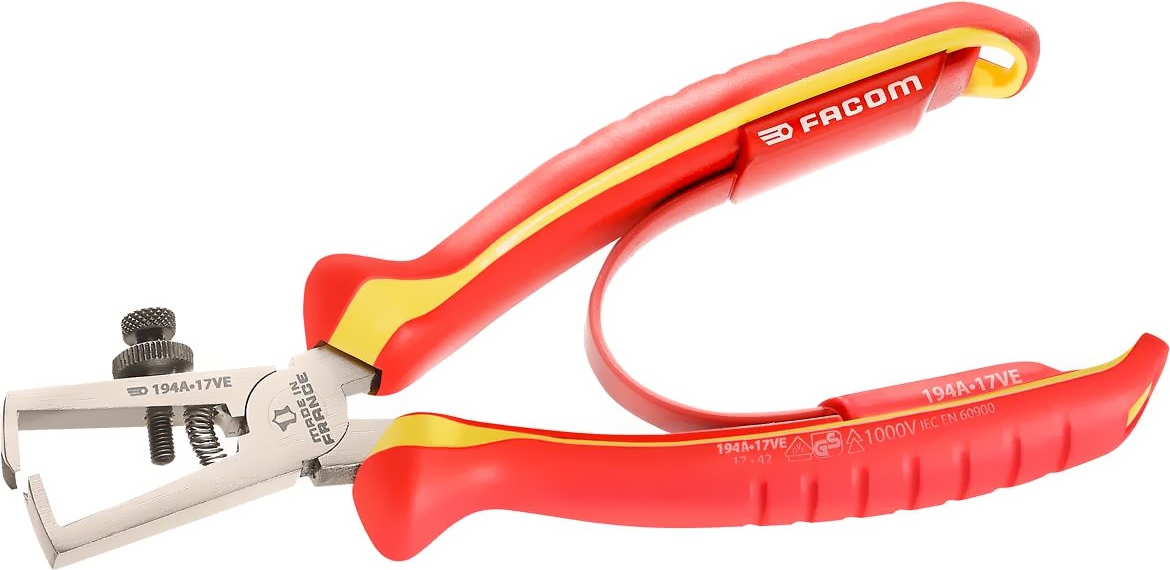

INSULATED 1000V WIRE STRIPPING PLIERS

Learn more

Standards: NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500, NF EN 60900, EN 60900, DIN EN 60900
For your safety, all pliers are tested individually at 10,000 Volt for 10 seconds, at the end of the manufacturing cycle.
For single and multi-core wires 0.5 to 6 mm².
