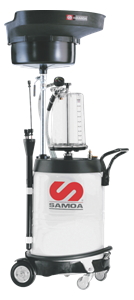

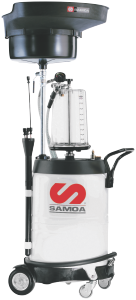

100 LITERS CAPACITY
Mobile units that allow the collection of waste oil by gravity and by suction.
100 l (26 gallons) capacity, with side level gauge.
360 positionable oversized extension for wider reach.
Anti splash grid that can hold used filters for draining.
One piece moulded spoiler for securing the discharge hose.
Large tray for tools, washers, filters, etc. on top of the tank, with special holders for suction connectors.

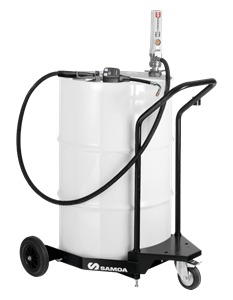

Includes:

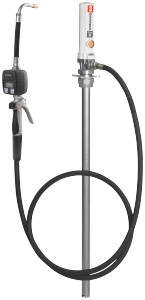

354120: 3:1 pressure ratio oil pump for 200 l drums.
362103: 3 m x 1/2" oil hose.

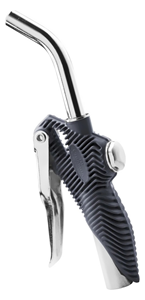

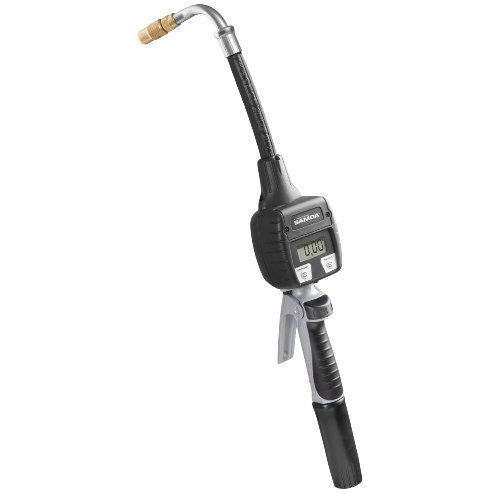

365535: Hose end meter with semi automatic non drip nozzle.
432000: 200 l drum trolley.
Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.
For dispensing high viscosity lubricants.
Medium pressure lever action pump.
Oval shaped container with carrying handle and large opening for filling.
For lubricant suction, discharge, loading or refilling of transmissions, gear boxes, filters, etc.
Capacity: 500 cc.
Hose type: PVC.
Hose length: 290 mm.

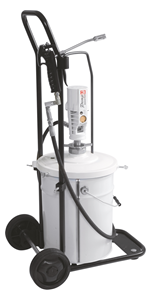

404100: PumpMaster 3 - 55:1 grease pump with bung adaptor.
418013: 310 mm drum cover for 20 kg grease containers.
741602: Carrying handle
412102: 2 m x 1/4" high pressure grease hose.
413080: High pressure grease control gun with z swivel.
431001: Two wheel trolley with base.
Not included options:
417001: Follower plate

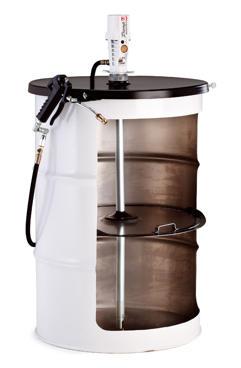

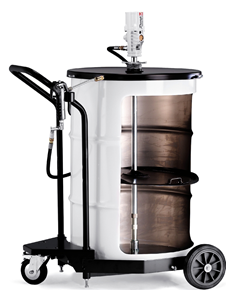

Assembly for high pressure greasing with a PumpMaster 3 - 55:1 pressure ratio pump for 185 Kg drums.
409200: PumpMaster 3 - 55:1 grease pump with bung adaptor.
418006: 610 mm drum cover for 180 Kg drums.
417004: 590 - 550 mm follower plate for 180 Kg drums.
412104: 4 m x 1/4" high pressure hose.
413080: High pressure grease control gun with "Z" swivel.
360125: Grease control gun holder.
432000: 180 kg drum trolley.
Capacity: 500 cc

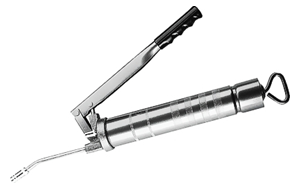

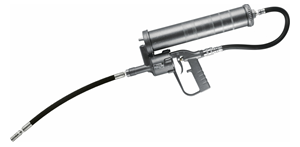

Universal pumps to be used with 400 gr / 14 oz grease cartridges or with bulk grease.
Bulk grease loading by suction, or using a filler pump.
Heavy duty cast iron head with precision fit piston.
Maximum working pressure above 300 bar.
Barrel manufactured with heavy gauge precision steel tube.
Large barrel threads for fast and easy reloading.
Follower plate fastening by ratchet.
lever action grease pump
Includes Filler valve 128 003 and rigid stem with a four jaw hydraulic type connector (710 214).
High pressure, 60:1 pressure ratio, air operated grease pumps.
They can be connected to a compressed air line or to the air brake circuit of a commercial vehicle.
Delivery: 1 cc each time the trigger is pressed.
Maximum air pressure: 10 bar, Air connection thread 1/4" BSP (F).
Includes a 1000 cc barrel with an air driven grease follower.
Recommended for high viscosity grease and low temperatures.
Supplied with 400 mm double steel braid reinforced outlet hose with 4 jaw connector (PN 141 040) and filler nipple.
Bulk grease loading using a grease filler pump.

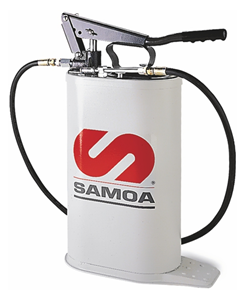

Heavy duty high capacity grease pump with 3 alternative lever positions
Can be used under any operating conditions and with all type of lubricants (winter/summer, high or low viscosity grease, oil).
Maximum pressure range between 175 to 350 bar (2500 to 5000 psi)
With a delivery of 20 gr, 15 gr or 10 gr per stroke depending on the position of the lever chosen.
Steel and leak proof 16 Kg container with oval shape for easy handling and stability.
Pump includes 1.5 m high pressure hose with a 3-jaw hydraulic connector.
ACCURACY, DURABILITY AND HIGHER PERFORMANCE
Extensively and rigorously field tested. Reliable performance.
High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
Sealed battery compartment and isolated electronic register for extended life.
Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions.
Rough TPE boot surrounds the entire meter for even greater durability.
FEATURES
High pressure grease control guns with ergonomic body and trigger designed to reduce operator hand fatigue.
Manufactured in aluminium with steel high pressure section.
Z-swivel (PN 414 300) equipped with ball bearings for easy articulation even at high pressure.
Maximum working pressure: 10 bar
Connection thread: 1/4" BSP (F)
EEC approved, certified by MICHELIN

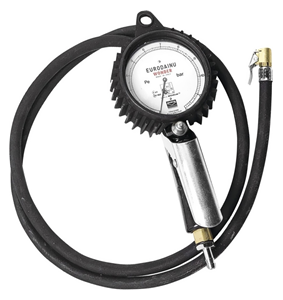

Tyre inflator with trigger filling and pressure release button.
Built in reliable and very robust pressure gauge, officially approved and verified in accordance with directive 86/217 EEC.
Temperature range: -60>80°C (-76>176°F)

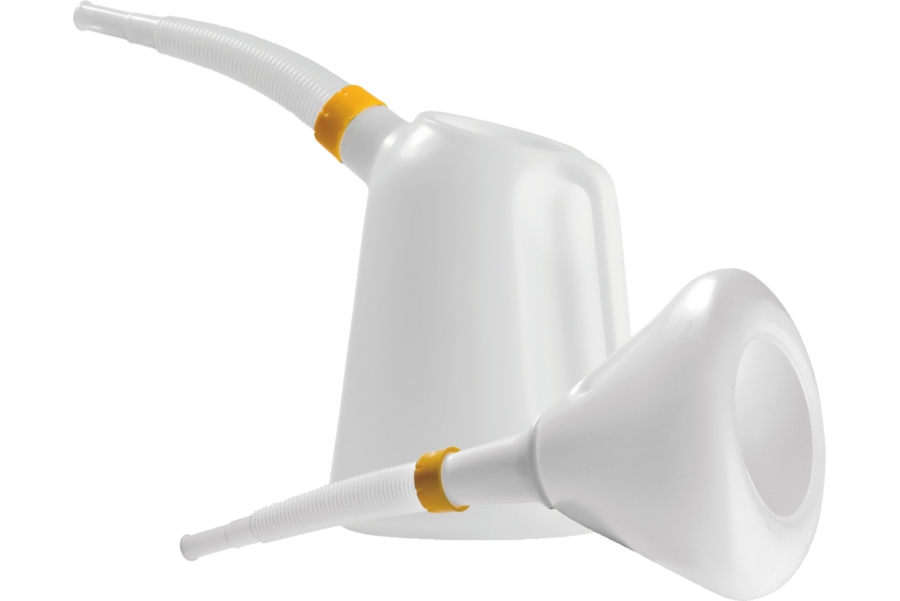

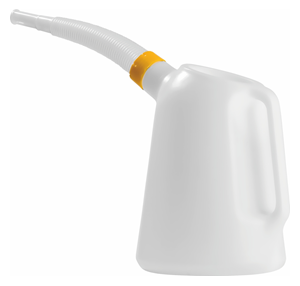

Capacity: 3 liter
Width: 155mm
Length: 240mm
Diameter: 230mm
Capacity: 3.5 liters
