Castor Trading - FACOM Circlips® pliers

Learn more

Standards: NF E 73-130, DIN 5256, ASME B107.500
Colour coded, quicker identification
Narrow head and tips for easy access
Piano wire tips: Resistant to deformation
Recessed spring: Protects the spring. Reduces the risk of spring loss or ejection.
Extended tips, angled at 10 °: Better clip retention, reduces the risk of twisting or dropping circlips.
Textured, non-slip PVC grips.
For inside circlips.

References:

	Diameter (mm)	Capacity (mm)	Length (mm)	Weight (g)
FACOM 179A.9	0.9	8 - 13	140	115
FACOM 179A.13	1.3	12 - 25	140	115
FACOM 179A.18	1.8	19 - 60	185	215
FACOM 179A.23	2.2	40 - 100	215	300
FACOM 179A.32	3.2	85 - 200	310	565

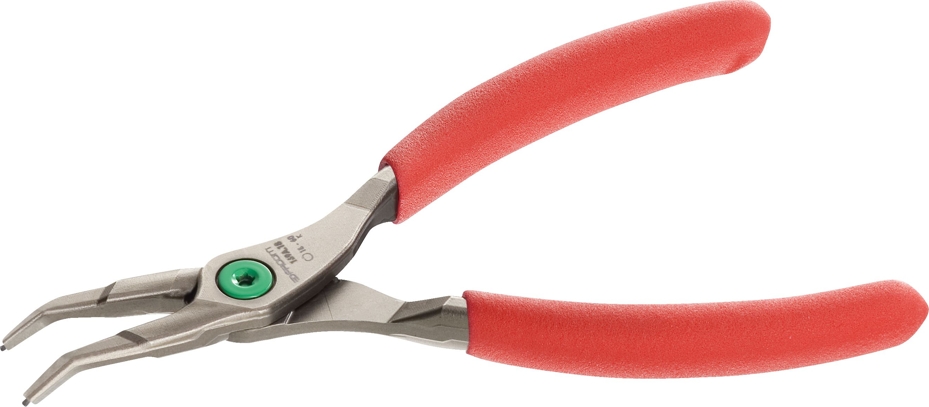

45° ANGLED NOSE INSIDE CIRCLIPS® PLIERS

Learn more

Standards: NF E 73-130, ASME B107.500
Colour coded, quicker identification
Narrow head and tips for easy access
Piano wire tips: Resistant to deformation
Recessed spring: Protects the spring. Reduces the risk of spring loss or ejection.
Extended tips, angled at 10 °: Better clip retention, reduces the risk of twisting or dropping circlips.
Textured, non-slip PVC grips.
For inside circlips.

References:

	Diameter (mm)	Capacity (mm)	Length (mm)	Weight (g)
FACOM 169A.9	0.9	8 - 13	140	115
FACOM 169A.13	1.3	12 - 25	140	115
FACOM 169A.18	1.8	19 - 60	180	215
FACOM 169A.23	2.2	40 - 100	215	300

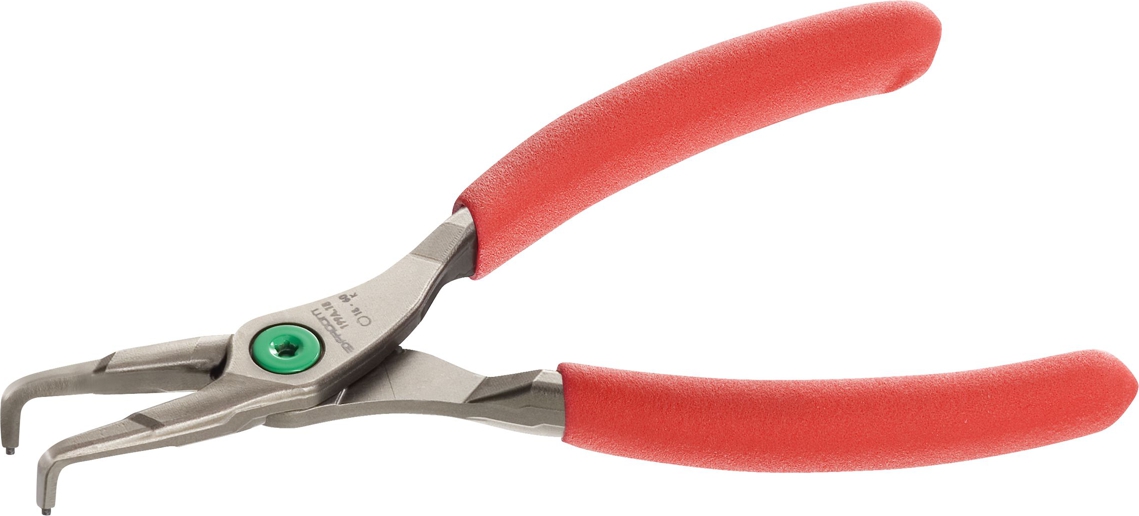

90° ANGLED NOSE INSIDE CIRCLIPS® PLIERS

Learn more

Standards: DIN 5256, NF E 73-130, ASME B107.500
Colour coded, quicker identification
Narrow head and tips for easy access
Piano wire tips: Resistant to deformation
Recessed spring: Protects the spring. Reduces the risk of spring loss or ejection.
Extended tips, angled at 10°: Better clip retention, reduces the risk of twisting or dropping circlips.
Textured, non-slip PVC grips.
For inside circlips.

References:

	Diameter (mm)	Capacity (mm)	Length (mm)	Weight (g)
FACOM 199A.9	0.9	8 - 13	130	115
FACOM 199A.13	1.3	12 - 25	130	115
FACOM 199A.18	1.8	19 - 60	170	215
FACOM 199A.23	2.2	40 - 100	205	300
FACOM 199A.32	3.2	85 - 200	290	565

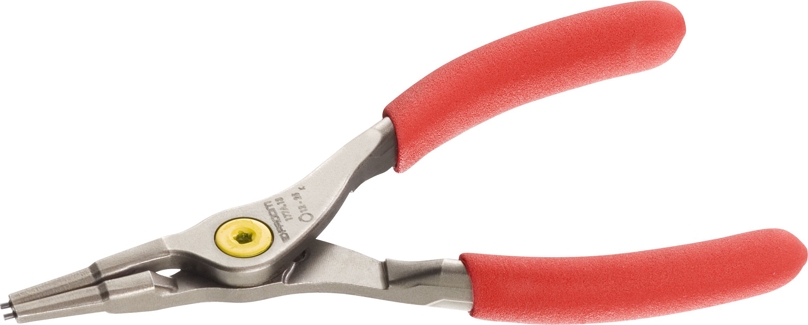

STRAIGHT NOSE OUTSIDE CIRCLIPS® PLIERS

Learn more

Standards: DIN 5254, NF E 73-130, ASME B107.500
Colour coded, quicker identification
Narrow head and tips for easy access
Piano wire tips: Resistant to deformation
Recessed spring: Protects the spring. Reduces the risk of spring loss or ejection.
Extended tips, angled at 10 °: Better clip retention, reduces the risk of twisting or dropping circlips.
Textured, non-slip PVC grips.
For outside circlips.

References:

	Diameter (mm)	Capacity (mm)	Length (mm)	Weight (g)
FACOM 177A.9	0.9	3 - 10	150	105
FACOM 177A.13	1.3	10 - 25	150	130
FACOM 177A.18	1.8	19 - 60	180	175
FACOM 177A.23	2.2	40 - 100	215	280
FACOM 177A.32	3.2	85 - 200	310	600

45° ANGLED NOSE OUTSIDE CIRCLIPS® PLIERS

Learn more

Standards: DIN 5254, NF E 73-130, B107.500
Colour coded, quicker identification
Narrow head and tips for easy access
Piano wire tips: Resistant to deformation
Recessed spring: Protects the spring. Reduces the risk of spring loss or ejection.
Extended tips, angled at 10 °: Better clip retention, reduces the risk of twisting or dropping circlips.
Textured, non-slip PVC grips.
For outside circlips.

References:

	Diameter (mm)	Capacity (mm)	Length (mm)	Weight (g)
FACOM 167A.9	0.9	3 - 10	145	105
FACOM 167A.13	1.3	10 - 25	145	105
FACOM 167A.18	1.8	19 - 60	175	175
FACOM 167A.23	2.2	40 - 100	215	280

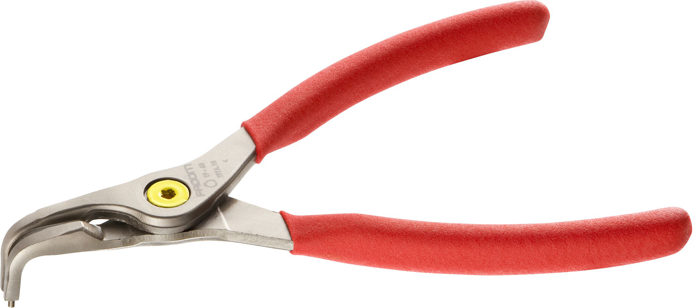

90° ANGLED NOSE OUTSIDE CIRCLIPS® PLIERS

Learn more

Standards: DIN 5254, NF E 73-130, ASME B107.500
Colour coded, quicker identification
Narrow head and tips for easy access
Piano wire tips: Resistant to deformation
Recessed spring: Protects the spring. Reduces the risk of spring loss or ejection.
Extended tips, angled at 10 °: Better clip retention, reduces the risk of twisting or dropping circlips.
Textured, non-slip PVC grips.
For outside circlips.

References:

	Diameter (mm)	Capacity (mm)	Length (mm)	Weight (g)
FACOM 197A.9	0.9	3 - 10	140	105
FACOM 197A.13	1.3	10 - 25	140	105
FACOM 197A.18	1.8	19 - 60	170	175
FACOM 197A.23	2.2	40 - 100	200	280
FACOM 197A.32	3.2	85 - 200	290	600

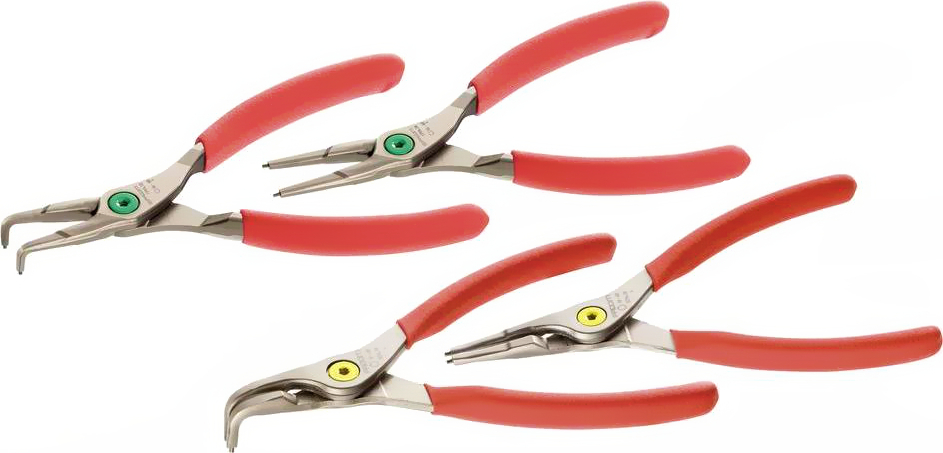

SET OF 4 STRAIGHT AND 90° ANGLED NOSE CIRCLIPS® PLIERS

Learn more

Colour coded, quicker identification
Narrow head and tips for easy access
Piano wire tips: Resistant to deformation
Recessed spring: Protects the spring. Reduces the risk of spring loss or ejection.
Extended tips, angled at 10°: Better clip retention, reduces the risk of twisting or dropping circlips.
Textured, non-slip PVC grips.
Inside / outside Circlips® pliers
Straight and 90° angled tips.
For circlips 18 - 60 mm.

SET OF 4 STRAIGHT NOSE CIRCLIPS® PLIERS

Learn more

Colour coded, quicker identification
Narrow head and tips for easy access
Piano wire tips: Resistant to deformation
Recessed spring: Protects the spring. Reduces the risk of spring loss or ejection.
Extended tips, angled at 10°: Better clip retention, reduces the risk of twisting or dropping circlips.
Textured, non-slip PVC grips.
Inside / outside Circlips® pliers
For circlips 10 - 60 mm.

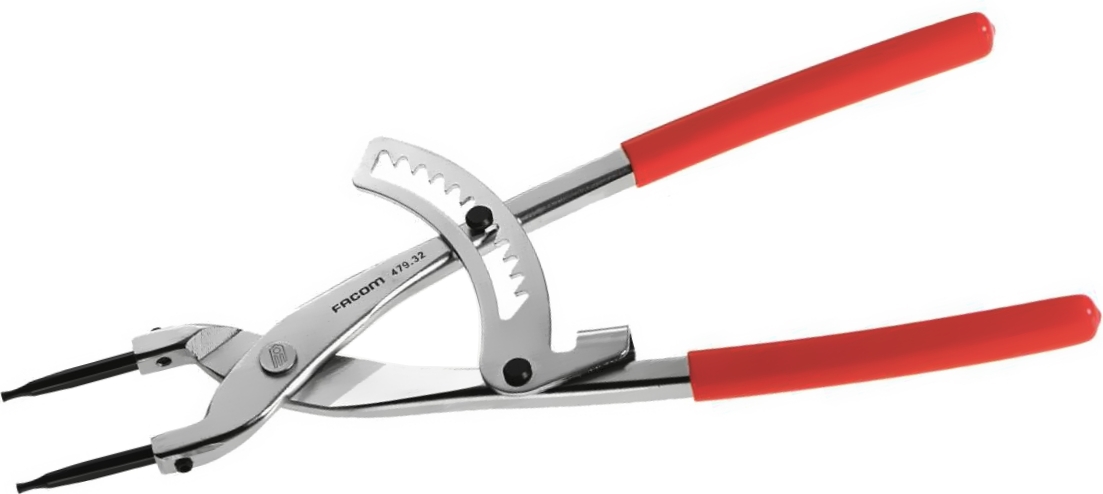

RACK-TYPE COMPRESSION PLIERS FOR INSIDE CIRCLIPS® STRAIGHT TIP

Learn more

Standards: ASME B107.500
Interchangeable tip.
Rack holds circlips® compressed for easy fitting and removal (with release trigger).
Finish: chrome finish, red PVC grips.

RACK-TYPE COMPRESSION PLIERS FOR INSIDE CIRCLIPS® BENT TIP

Learn more

Standards: ASME B107.500
Interchangeable tip.
Rack holds circlips® compressed for easy fitting and removal (with release trigger).
Finish: chrome finish, red PVC grips.

RACK-TYPE EXPANSION PLIERS FOR OUTSIDE CIRCLIPS® PLIERS STRAIGHT TIP

Learn more

Standards: ASME B107.500
Interchangeable tip.
Rack holds circlips® compressed for easy fitting and removal (with release trigger).
Finish: chrome finish, red PVC grips.

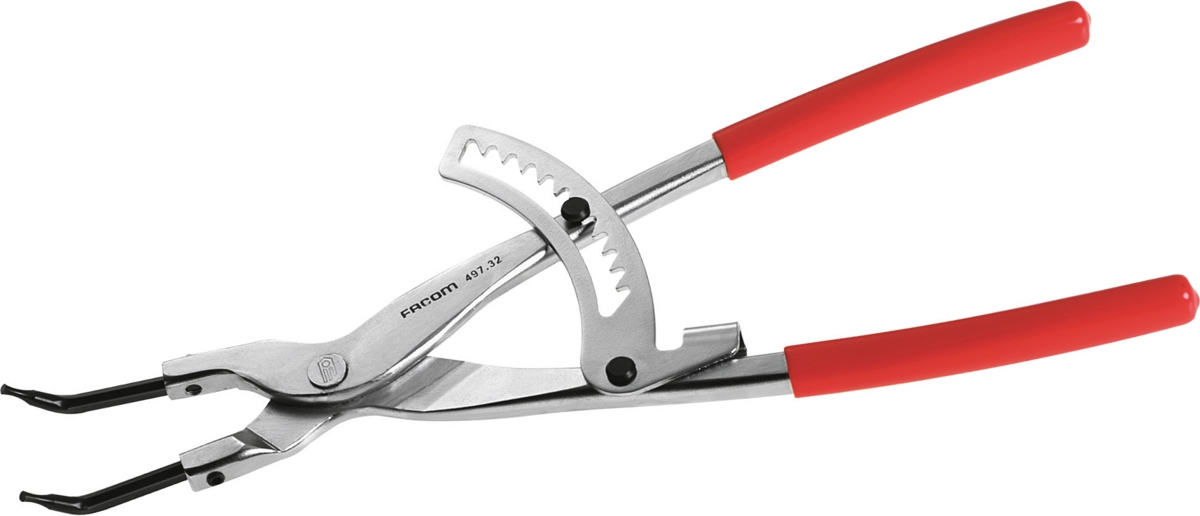

RACK-TYPE EXPANSION PLIERS FOR OUTSIDE CIRCLIPS® PLIERS BENT TIP

Learn more

Standards: ASME B107.500
Interchangeable tip.
Rack holds circlips® compressed for easy fitting and removal (with release trigger).
Finish: chrome finish, red PVC grips.

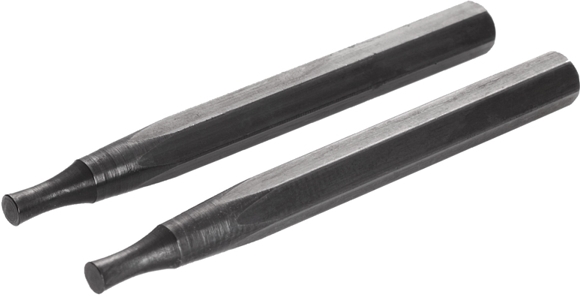

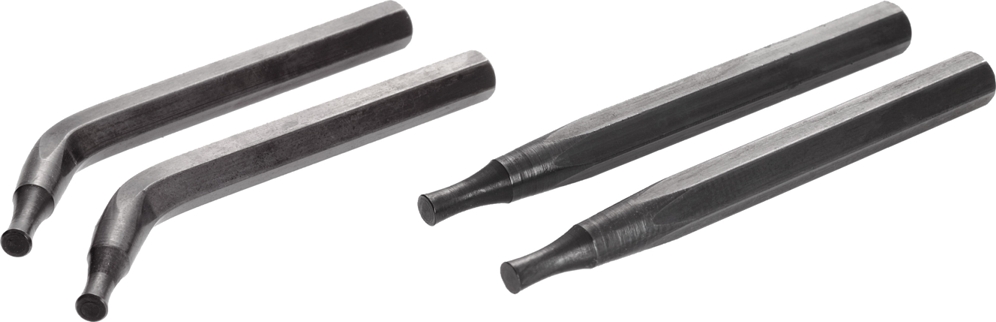

SPARE TIPS FOR CIRCLIP PLIERS 477 TO 499

Learn more

Includes 2 tips and 2 screws.

References:

	Diameter (mm)	Capacity (mm)	Type	Weight (g)
FACOM 490.SE28-1	2.8	65 - 120	Straight	10
FACOM 490.SE32-1	3.2	85 - 200	Straight	10
FACOM 490.SE38-1	3.8	120 - 200	Straight	10
FACOM 490.SE28-2	2.8	65 - 120	45°	10
FACOM 490.SE32-2	3.2	85 - 200	45°	10
FACOM 490.SE38-2	3.8	120 - 200	45°	10

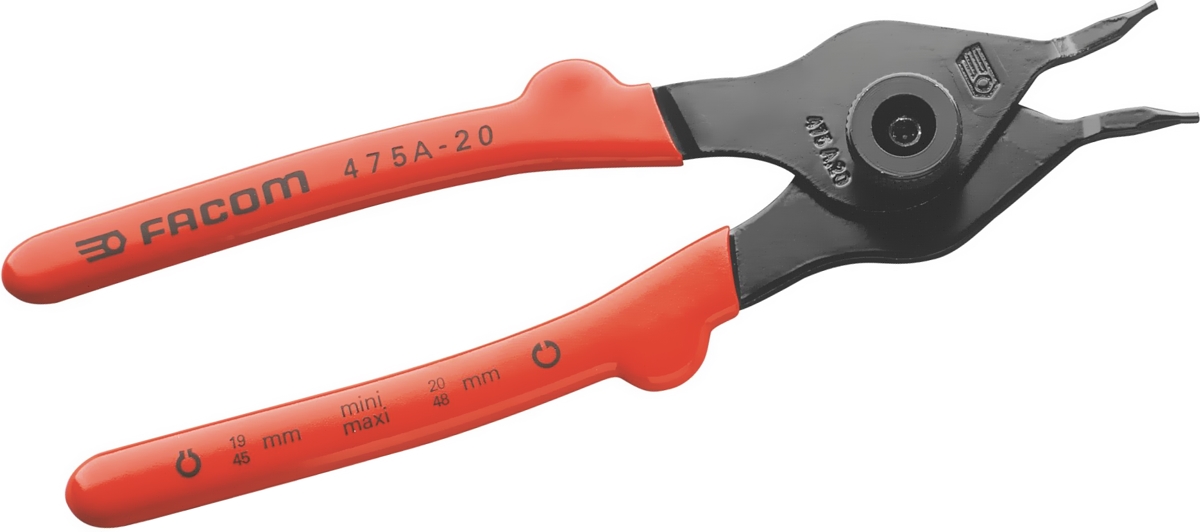

REVERSIBLE INSIDE AND OUTSIDE CIRCLIPS® PLIERS

Learn more

Single tool for both inside and outside circlips.
Quick thumbscrew position setting.
Burnished finish. PVC grips.

References:

		Diameter (mm)	Capacity Inside / Outside (mm)	Length (mm)	Weight (g)
FACOM 475A.15		1	10 - 30 / 10 - 18	150	75
FACOM 475A.20		1.8	20 - 48 / 19 - 45	200	155

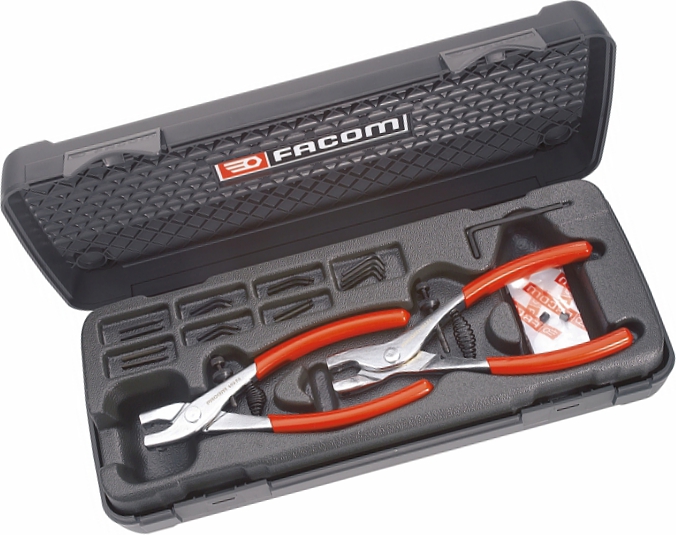

INSIDE AND OUTSIDE REMOVABLE TIP CIRCLIP® PLIERS

Learn more

Interchangeable tips for:

diameter 8 - 63 mm, for inside Circlips®.
diameter 3 - 63 mm, for outside Circlips®.

Including:

469.PA: Inside Circlips® pliers.
467.PA: Outside Circlips® pliers.
82H.2.5: Key.
Set of 18 removable tips.

Supplied in a plastic case.

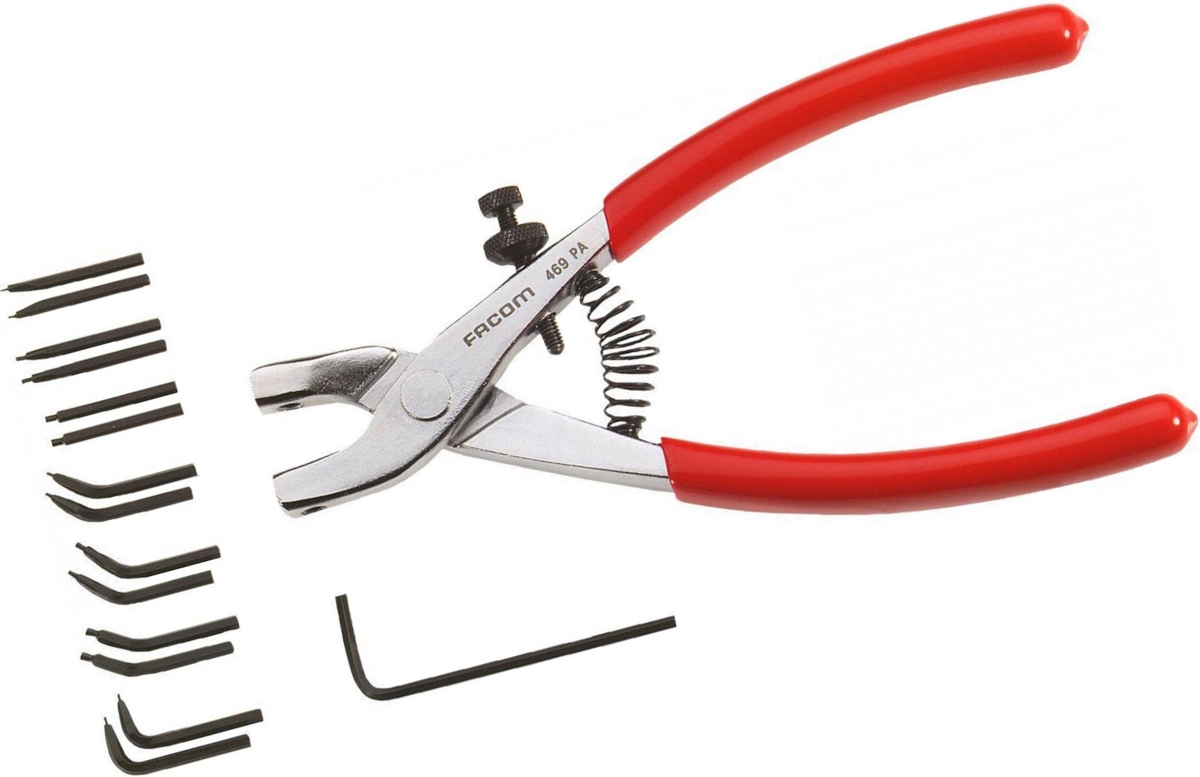

INSIDE REMOVABLE TIP CIRCLIP® PLIERS

Learn more

Interchangeable tips for a capacity of diam. 8 - 63 mm.
Thumbscrew position setting.
Opening return spring.
Finish: chrome finish, red PVC grips.
Supplied in a case with key and set of bits E1 - E2 - E3 - E5 - E6 - E8 - E9.
Weight: 160g.

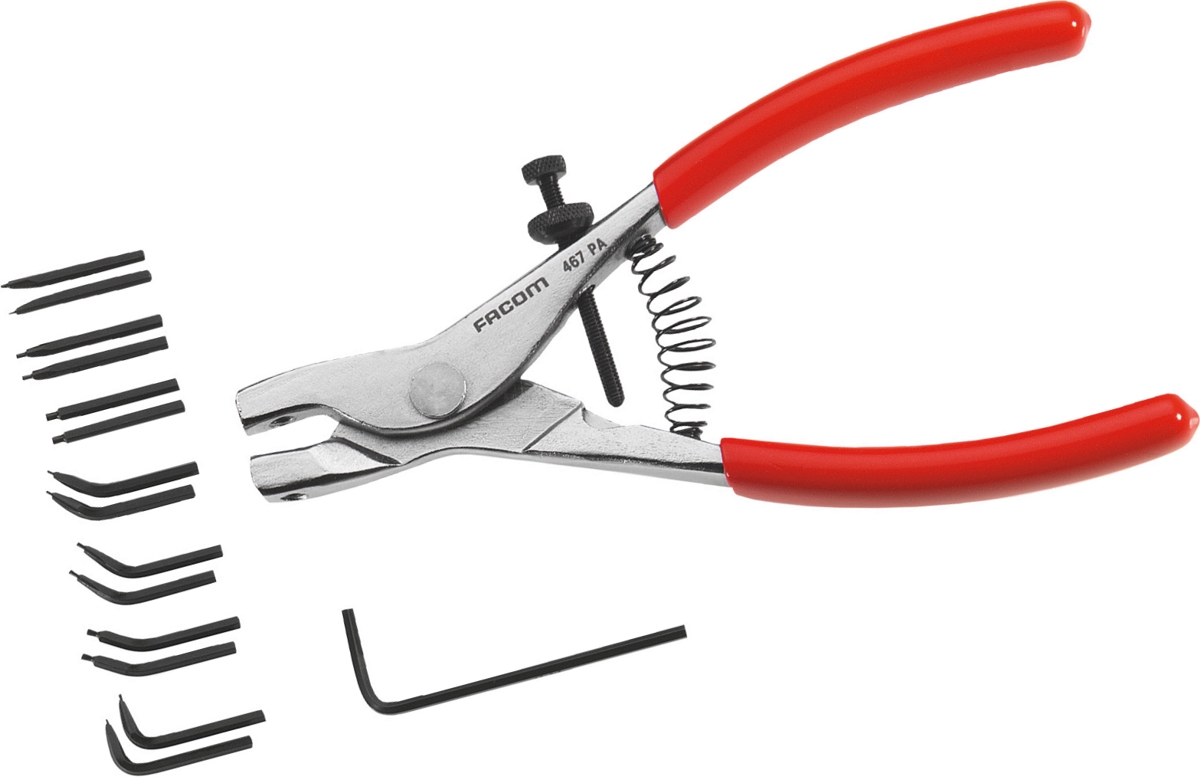

OUTSIDE REMOVABLE TIP CIRCLIP® PLIERS

Learn more

Interchangeable tips for a capacity of diam. 3 - 63 mm.
Thumbscrew position setting.
Opening return spring.
Finish: chrome finish, red PVC grips.
Supplied in a case with key and set of bits E1 - E2 - E3 - E5 - E6 - E8 - E9.
Weight: 160g.

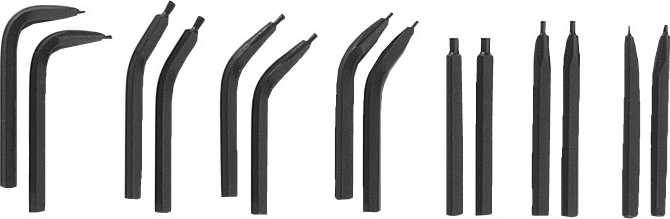

SPARE TIPS FOR CIRCLIPS® PLIERS 467 AND 469

Learn more

Available as straight, 45° and 90° tip.
Each reference includes a set of 2 tips.

References:

	Diameter (mm)	Capacity Inside (mm)	Capacity Outside (mm)
FACOM 470.E1	0.9	8 - 12	3 - 10
FACOM 470.E2	0.9	8 - 12	3 - 10
FACOM 470.E3	0.9	8 - 12	3 - 10
FACOM 470.E5	1.3	12 - 25	10 - 25
FACOM 470.E6	1.3	12 - 25	10 - 25
FACOM 470.E7	1.3	12 - 25	10 - 25
FACOM 470.E8	1.8	19 - 63	19 - 63
FACOM 470.E9	1.8	19 - 63	19 - 63
FACOM 470.E10	1.8	19 - 63	19 - 63

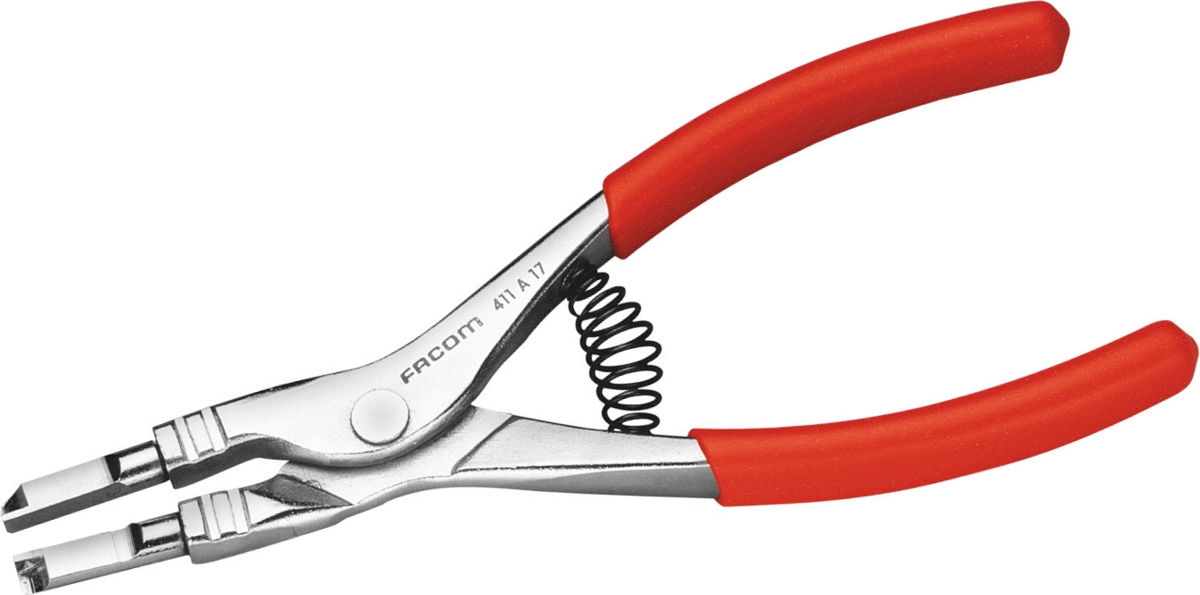

OUTSIDE SNAP-RING PLIERS

Learn more

Standards: ASME B107.500
Special tips for snap-rings and spring clips.
Chrome finish, PVC grips.

References:

		Capacity (mm)	Length (mm)	Weight (g)
FACOM 411A.17		15 - 62	150	190
FACOM 411A.20		60 - 160	190	275
