Castor Trading - FACOM G Series Pliers

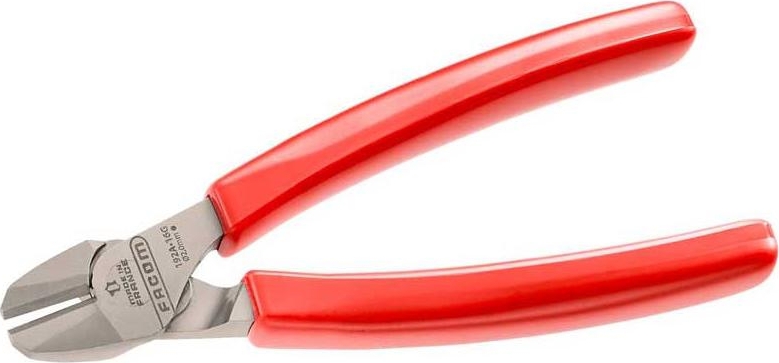

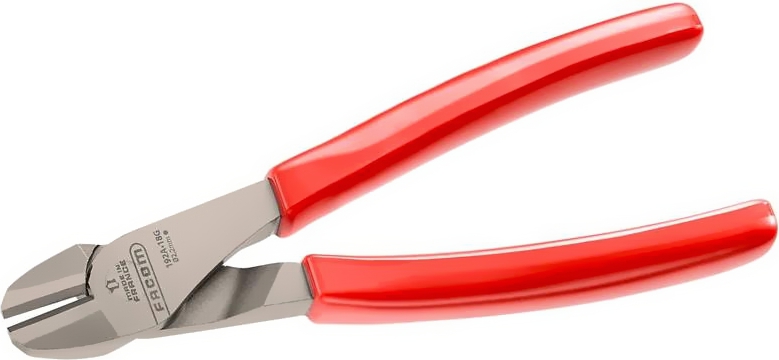

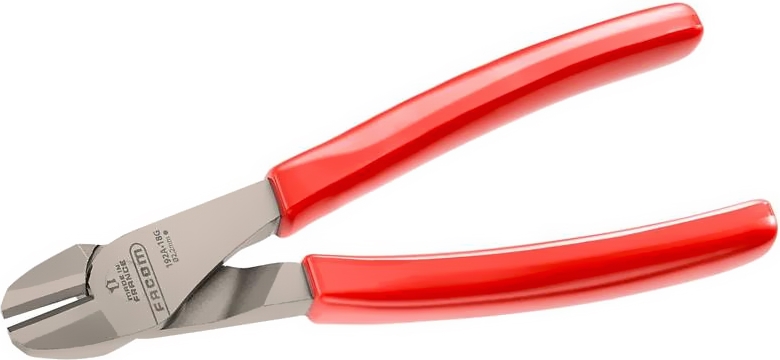

HIGH-PERFORMANCE DIAGONAL CUTTERS

Learn more

Standards: NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500
New head design to increase durability and cutting capacity.

References:

			B (mm)	C (mm)	Piano wire cutting capacity (mm)	E (mm)	L (mm)	Weight (g)
FACOM 192A.16G			24	18	2	10	160	170
FACOM 192A.18G			26	20	2.2	11	180	230
FACOM 192A.20G			28	22	2.5	11.5	200	290

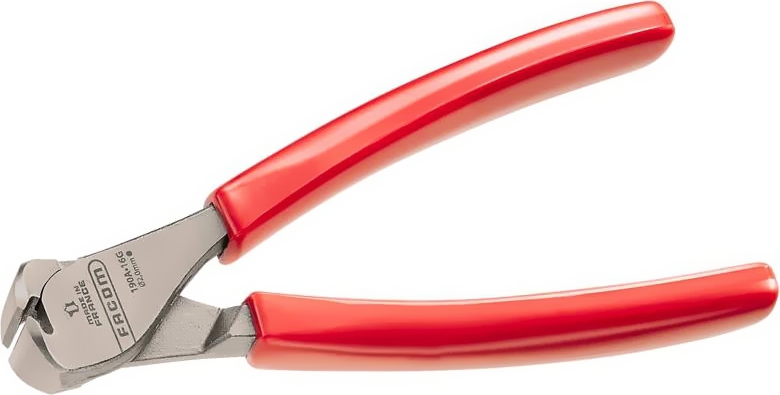

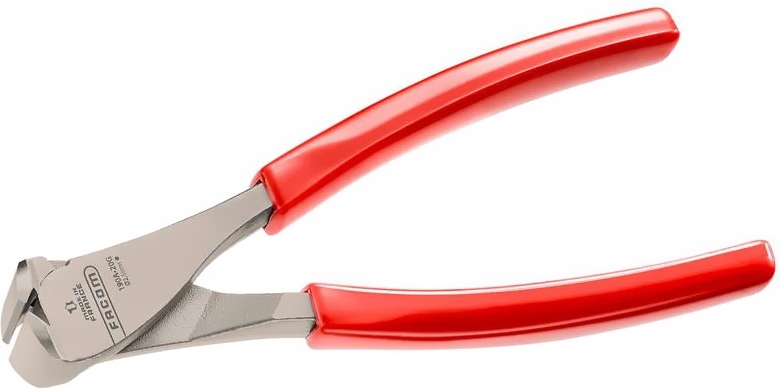

HIGH-PERFORMANCE END CUTTERS

Learn more

Standards: NF ISO 5748, ISO 5748, DIN ISO 5748, ASME B107.500
Cutting edges designed to cleanly cut all types of wires.

References:

			B (mm)	C (mm)	Piano wire cutting capacity (mm)	E (mm)	L (mm)	Weight (g)
FACOM 190A.16G			28	6.5	2	11.5	160	170
FACOM 190A.20G			31	7.5	2.5	13.5	200	310

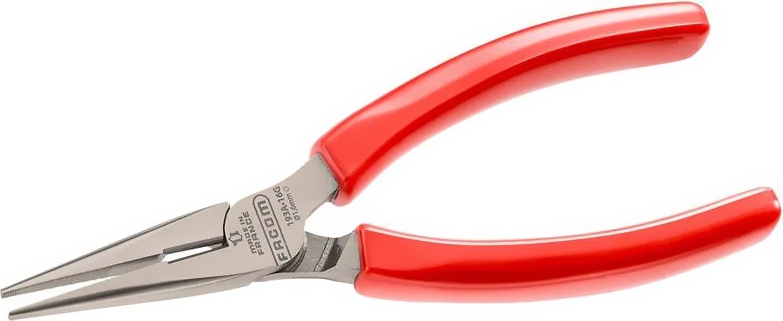

LONG HALF-ROUND STRAIGHT NOSE PLIERS

Learn more

Standards: NF ISO 5745, ISO 5745, DIN ISO 5745, ASME B107.500
Narrow, finely serrated tips with side cutting edges.

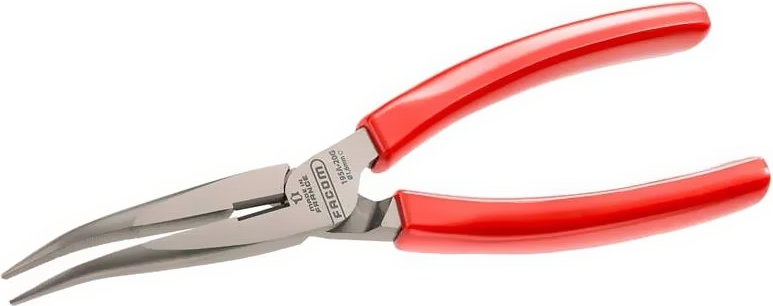

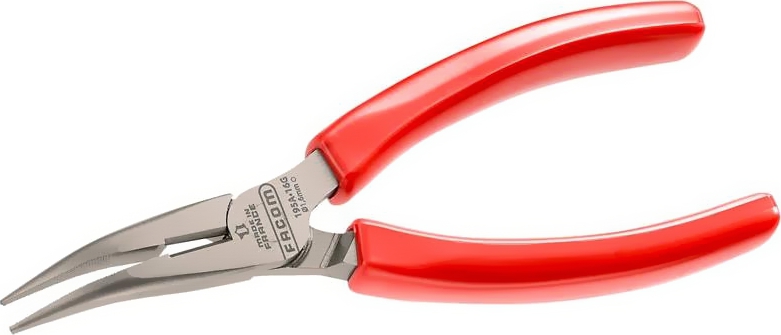

LONG HALF-ROUND BENT NOSE PLIERS

Learn more

Standards: NF ISO 5745, ISO 5745, DIN ISO 5745, ASME B107.500
Narrow, finely serrated tips with side cutting edges.

References:

			B (mm)	C (mm)	d (mm)	E (mm)	E1 (mm)	L (mm)	Weight (g)
FACOM 195A.16G			17	50	2.5	3	9	160	177
FACOM 195A.20G			18	69	2.9	3.6	9	200	192

SHORT HALF-ROUND NOSE PLIER

Learn more

Standards: NF ISO 5745, ISO 5745, DIN ISO 5745, ASME B107.500
Narrow, finely serrated tips with side cutting edges.

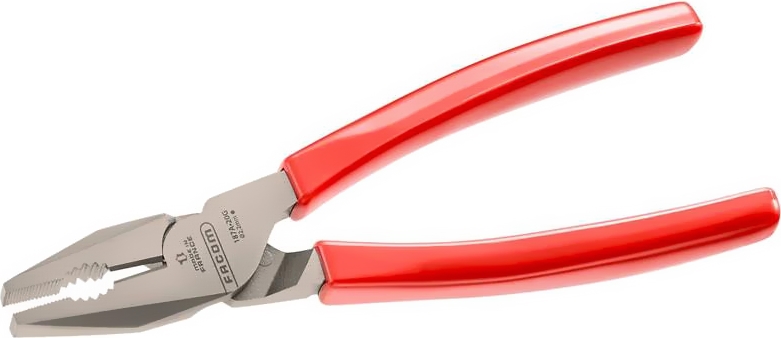

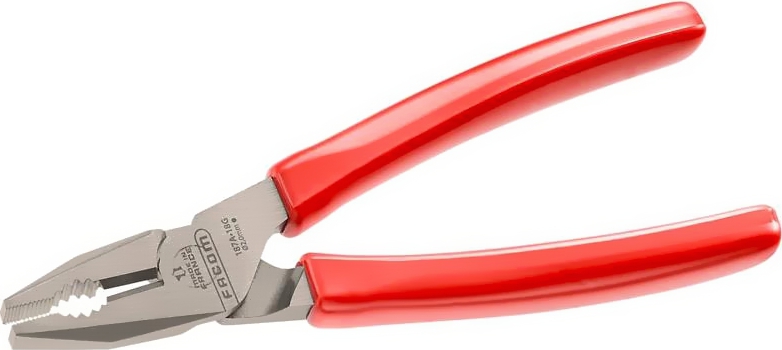

COMBINATION PLIERS

Learn more

Standards: NF ISO 5746, ISO 5746, DIN ISO 5746, ASME B107.500
Serrated flat and and oval pipe/cable gripping surfaces combined with a high perfomance cutting edges.

References:

			B (mm)	C (mm)	E (mm)	E1 (mm)	L (mm)	Weight (g)
FACOM 187A.16G			21	34	21	9.5	165	195
FACOM 187A.18G			23	36	23	10	185	225
FACOM 187A.20G			26	42	26	11.5	205	300

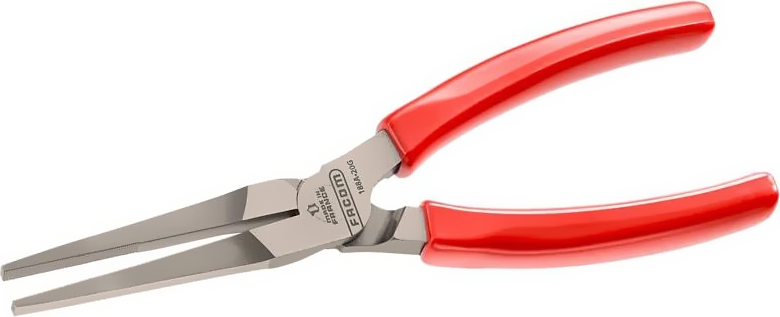

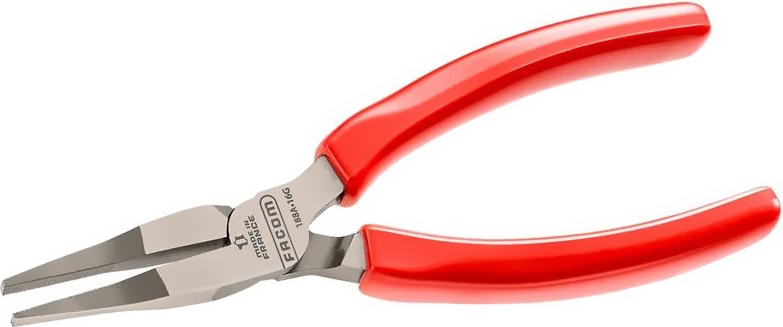

FLAT NOSE PLIERS

Learn more

Standards: NF ISO 5745, ISO 5745, DIN ISO 5745, ASME B107.500
Narrow flat shaped and finely serrated nose for a firm grip and accessibility.

References:

			C (mm)	E (mm)	E1 (mm)	E2 (mm)	L (mm)	L1 (mm)	Weight (g)
FACOM 188A.16G			46	4	18	9	168	6.5	140
FACOM 188A.20G			75	4	18	9	200	6.5	200
