Castor Trading - FACOM Special Pliers

DOUBLE JOINTED EXTRA LONG HALF-ROUND NOSE PLIERS

Learn more

Length 340 mm.
Double joint and slim profile, for working in awkward zones, even single-handed.
Serrated nose for good grip.
Ergonomic handle for easy grip.
Polished with plastic sheath finish.

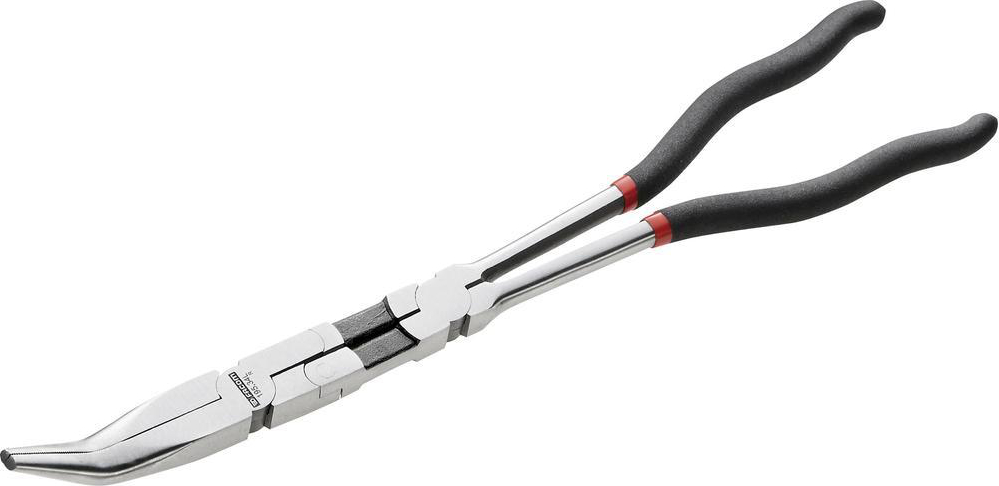

DOUBLE JOINTED EXTRA LONG HALF-ROUND NOSE PLIERS - 45° ANGLE

Learn more

Length 340 mm.
45° angle for better accessibility.
Double joint and slim profile, for working in awkward zones, even single-handed.
Serrated nose for good grip.
Ergonomic handle for easy grip.
Polished with plastic sheath finish.

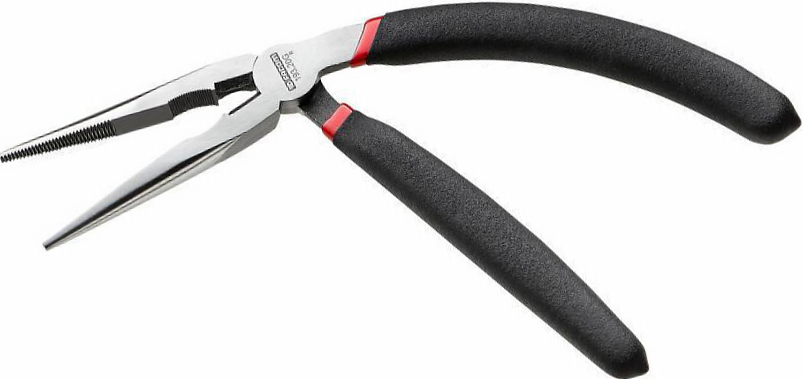

ANGLED COMBINATION PLIER

Learn more

Angled 45° semi-round noses to work in awkward zones.
The plier angle provides good visibility on the part and prevents muscle pain in the wrist.
3-in-1 combination pliers: tube clamp, grip, cutting.
Long slim noses for better access.
Ergonomic handle for easy grip.
Polished with plastic sheath finish.

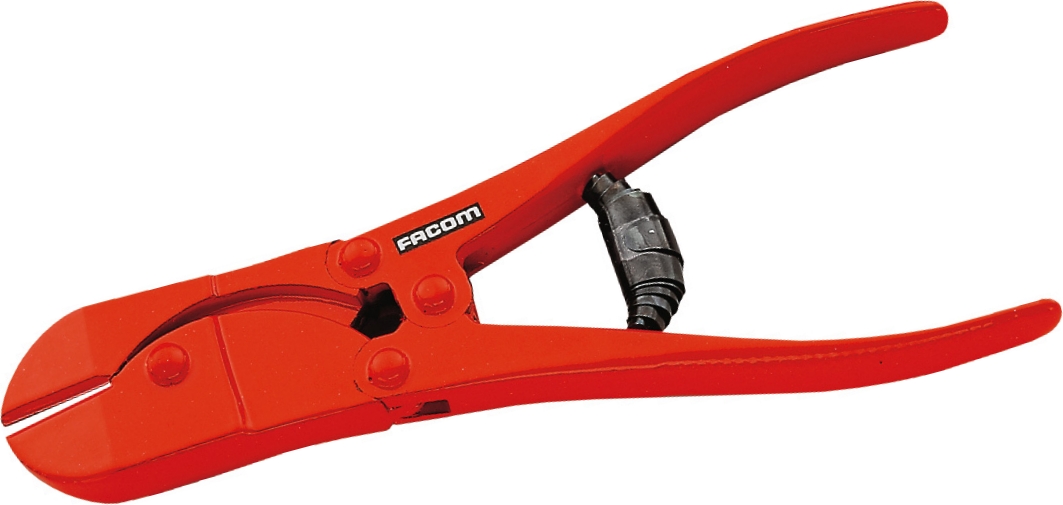

DIAGONAL CUTTERS

Learn more

Standards: NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500
Demultiplication system for increased capacity with minimum cutting effort. Piano wire 200 kg/mm²: diameter 2.5mm.
Red paint finish.

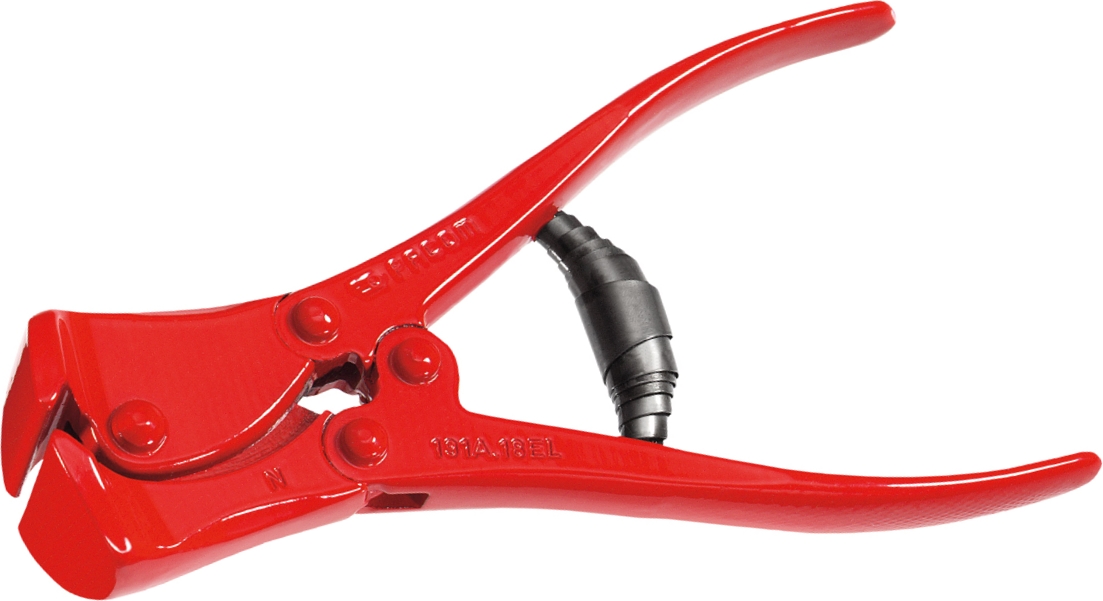

END-CUTTERS

Learn more

Standards: NF ISO 5748, ISO 5748, DIN ISO 5748, ASME B107.500
Compound leverage for increased capacity with minimum cutting effort.
piano wire 200 kg/mm², diameter 2.5mm.
Red paint finish.

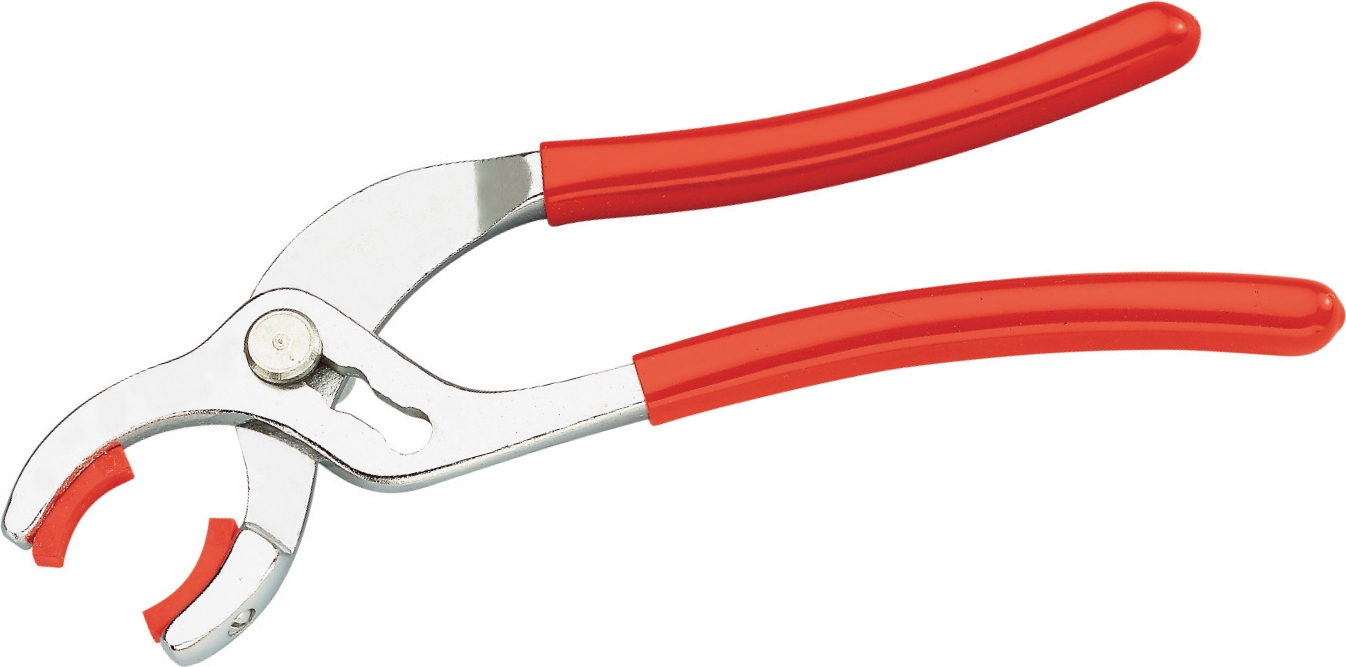

CONNECTOR PLIERS

Learn more

Standards: ASME B107.500
For handling fragile round components, e.g. screwed connector sleeves,
tubes, lamps or wire looms, etc.
Wide capacity from 3-position slip joint: max. diameter 55 mm.
Replaceable plastic jaws available in 2 jaw hardness options:

410: hard jaws - 70 shore B.
410.S: soft jaws - 55 shore B.

Finish: polished chrome, red PVC grips.

References:

		L (mm)	E (mm)	C (mm)	B (mm)	Jaw hardness (shore B)	Weight (g)
FACOM 410		230	10	47	68	70	320
FACOM 410.S		230	10	47	68	55	320
