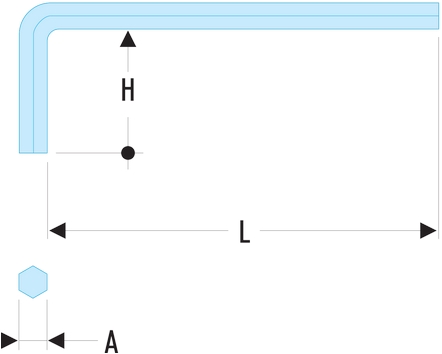

A (mm) |
H (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|
0.9 |
12 |
38 |
0.3 |
||
1.3 |
13 |
45 |
0.7 |
||
1.5 |
13 |
45 |
0.9 |
||
2 |
16 |
50 |
2 |
||
2.5 |
17 |
62 |
3 |
||
3 |
20 |
65 |
5 |
||
3.5 |
22 |
66 |
8 |
||
4 |
25 |
70 |
10 |
||
4.5 |
26 |
75 |
15 |
||
5 |
28 |
80 |
20 |
||
6 |
32 |
90 |
30 |
||
7 |
34 |
95 |
45 |
||
8 |
36 |
100 |
60 |
||
9 |
38 |
105 |
80 |
||
10 |
40 |
112 |
100 |
||
11 |
42 |
118 |
130 |
||
12 |
45 |
125 |
165 |
||
13 |
50 |
135 |
205 |
||
14 |
55 |
140 |
260 |
||
15 |
58 |
150 |
310 |
||
16 |
60 |
154 |
370 |
||
17 |
63 |
160 |
440 |
||
18 |
66 |
170 |
540 |
||
19 |
70 |
180 |
640 |
||
22 |
80 |
200 |
950 |
||
23 |
85 |
210 |
1100 |
||
24 |
90 |
224 |
1300 |
||
27 |
100 |
250 |
1300 |
||
32 |
125 |
315 |
1400 |
A (") |
H (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|
0.5 |
12 |
38 |
0.4 |
||
3/64 |
12 |
38 |
0.5 |
||
1/16 |
13 |
45 |
0.7 |
||
5/64 |
16 |
50 |
2 |
||
3/32 |
17 |
62 |
3 |
||
7/64 |
18 |
60 |
4 |
||
1/8 |
20 |
65 |
6 |
||
9/64 |
22 |
66 |
8 |
||
5/32 |
25 |
70 |
10 |
||
3/16 |
28 |
80 |
16 |
||
7/32 |
32 |
90 |
24 |
||
1/4 |
32 |
90 |
33 |
||
5/16 |
36 |
100 |
59 |
||
3/8 |
40 |
112 |
90 |
||
7/16 |
42 |
118 |
135 |
||
1/2 |
45 |
125 |
200 |
||
9/16 |
55 |
140 |
273 |
||
5/8 |
60 |
160 |
383 |
||
11/16 |
63 |
170 |
540 |
||
3/4 |
70 |
175 |
623 |
||
7/8 |
80 |
200 |
955 |
||
1 |
90 |
235 |
1500 |
A (mm) |
H (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|
1.5 |
14 |
62 |
1 |
||
2 |
16 |
75 |
2 |
||
2.5 |
18 |
85 |
4 |
||
3 |
20 |
90 |
7 |
||
3.5 |
25 |
95 |
10 |
||
4 |
25 |
100 |
15 |
||
4.5 |
26 |
110 |
18 |
||
5 |
28 |
115 |
24 |
||
6 |
32 |
135 |
42 |
||
7 |
34 |
140 |
57 |
||
8 |
36 |
150 |
80 |
||
9 |
38 |
160 |
110 |
||
10 |
40 |
170 |
140 |
||
11 |
42 |
180 |
180 |
||
12 |
45 |
190 |
225 |
||
13 |
50 |
200 |
286 |
||
14 |
56 |
215 |
361 |
||
15 |
58 |
225 |
435 |
||
16 |
60 |
235 |
515 |
||
17 |
63 |
245 |
602 |
||
18 |
66 |
255 |
713 |
||
19 |
70 |
265 |
830 |
||
22 |
80 |
275 |
1010 |
||
23 |
85 |
285 |
1160 |
||
24 |
90 |
299 |
1310 |
||
27 |
100 |
315 |
1380 |
||
32 |
125 |
64 |
1470 |
A (") |
H (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|
3/64 |
14 |
58 |
1 |
||
1/16 |
13 |
62 |
2 |
||
5/64 |
16 |
75 |
3 |
||
3/32 |
17 |
85 |
4 |
||
7/64 |
18 |
90 |
5 |
||
1/8 |
20 |
90 |
7 |
||
9/64 |
22 |
95 |
10 |
||
5/32 |
25 |
100 |
13 |
||
3/16 |
28 |
115 |
22 |
||
7/32 |
32 |
135 |
34 |
||
1/4 |
32 |
140 |
46 |
||
5/16 |
36 |
150 |
80 |
||
3/8 |
38 |
170 |
128 |
||
7/16 |
42 |
180 |
186 |
||
1/2 |
45 |
190 |
263 |
||
9/16 |
56 |
215 |
376 |
A (mm) |
H (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|
1.5 |
14 |
62 |
1 |
||
2 |
16 |
75 |
2 |
||
2.5 |
18 |
85 |
4 |
||
3 |
20 |
90 |
7 |
||
4 |
25 |
100 |
15 |
||
5 |
28 |
115 |
24 |
||
6 |
32 |
135 |
42 |
||
7 |
34 |
140 |
57 |
||
8 |
36 |
150 |
80 |
||
9 |
38 |
160 |
110 |
||
10 |
40 |
170 |
140 |
||
12 |
45 |
190 |
225 |
ISO 2936, DIN ISO 2936, NF ISO 2936
Silicon steel.

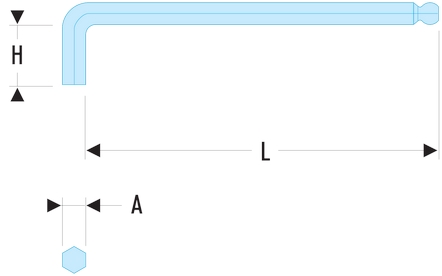

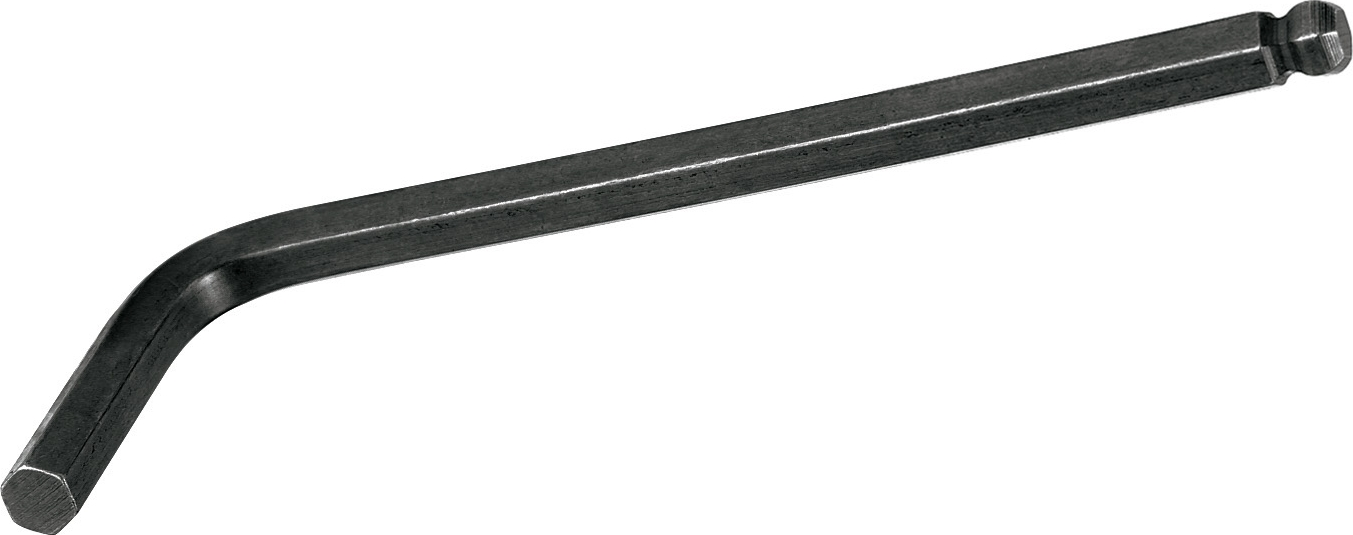

Spherical head gives a working angle of up to 30° which allows recessed fasteners to be driven off-centre.
Phosphate finish.
A (") |
H (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|
3/32 |
17 |
86 |
4 |
||
1/8 |
19 |
95 |
7 |
||
5/32 |
21 |
105 |
13 |
||
3/16 |
24 |
114 |
22 |
||
7/32 |
26 |
124 |
34 |
||
5/16 |
32 |
152 |
80 |
||
3/8 |
35 |
172 |
128 |
A (mm) |
H (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|
2 |
16 |
100 |
4 |
||
2.5 |
18 |
111 |
6 |
||
3 |
20 |
124 |
10 |
||
4 |
25 |
138 |
20 |
||
5 |
28 |
159 |
36 |
||
6 |
32 |
179 |
58 |
||
8 |
36 |
198 |
115 |
||
10 |
40 |
221 |
200 |
