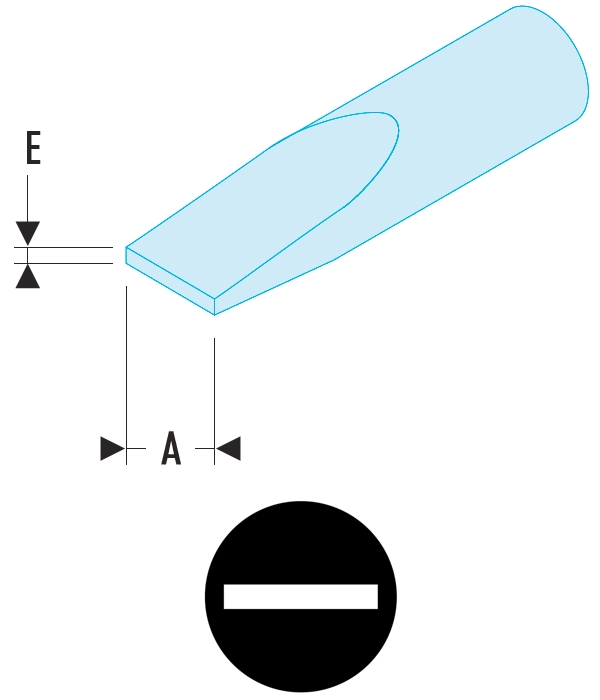

A (mm) |
E (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|
5.5 |
0.8 |
41 |
10 |
||
6.5 |
1.2 |
41 |
12 |
||
8 |
1.2 |
41 |
14 |
||
10 |
1.6 |
41 |
19 |
||
12 |
2 |
41 |
22 |
||
14 |
2.5 |
41 |
28 |
A (mm) |
E (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|
12 |
2 |
50 |
40 |
||
14 |
2.5 |
50 |
46 |
||
16 |
2.5 |
50 |
59 |

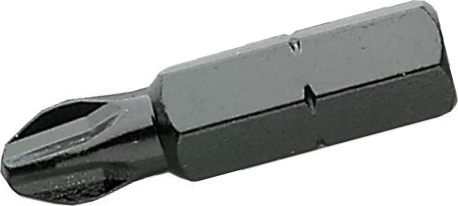

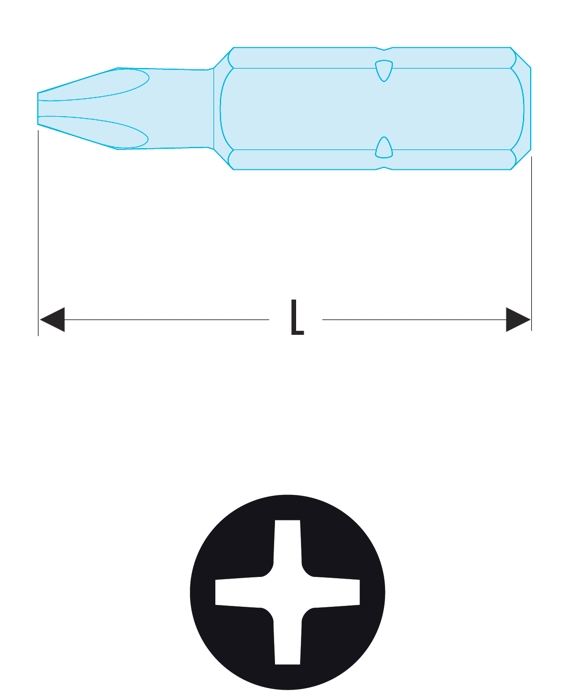

PHILLIPS (no) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|
PH1 |
32 |
14 |
||
PH2 |
32 |
14 |
||
PH3 |
32 |
14 |
||
PH4 |
32 |
14 |

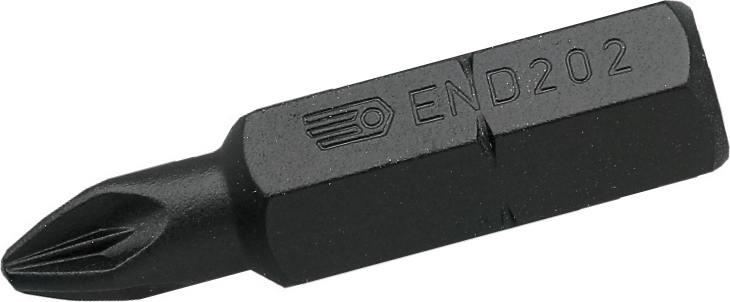

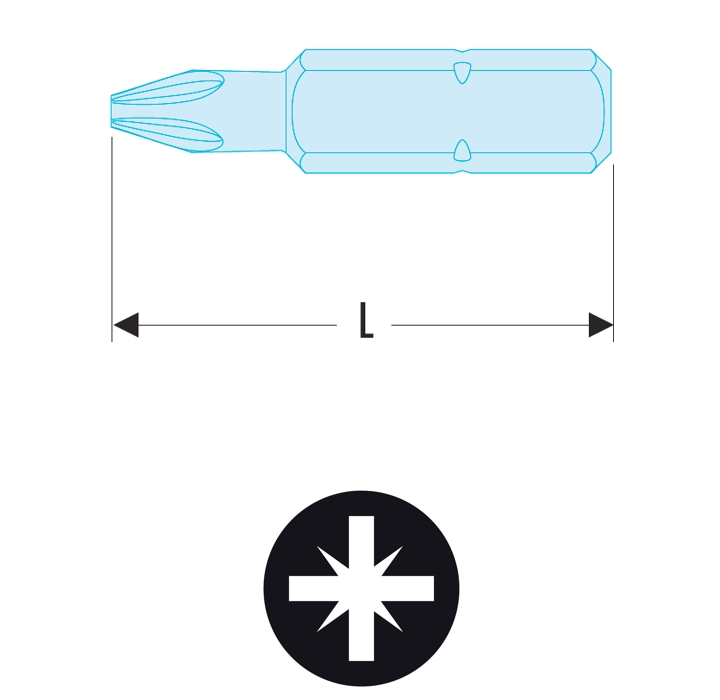

POZIDRIV (no) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|
PZ1 |
32 |
10 |
||
PZ2 |
32 |
10 |
||
PZ3 |
32 |
11 |
||
PZ4 |
32 |
12 |

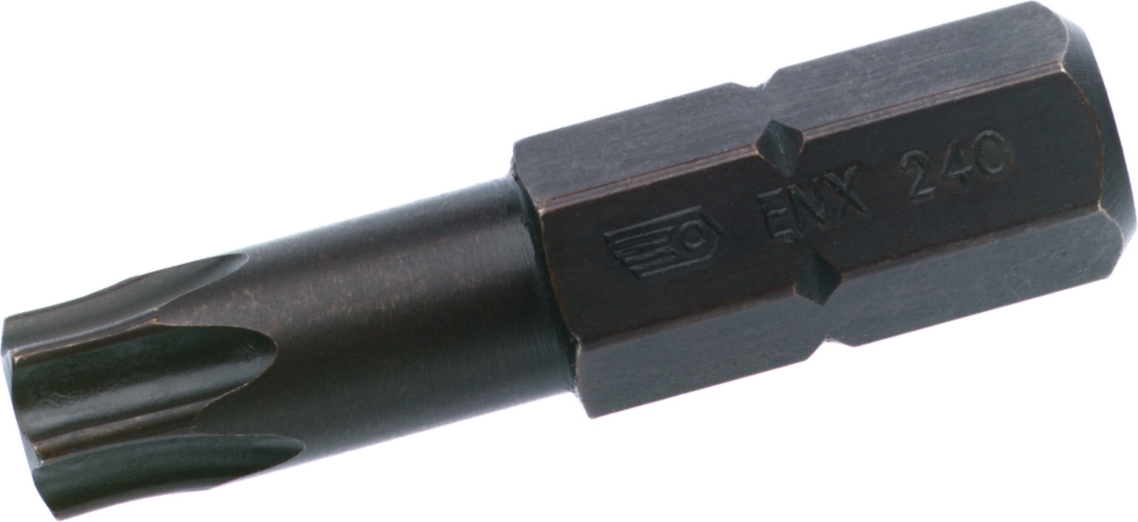

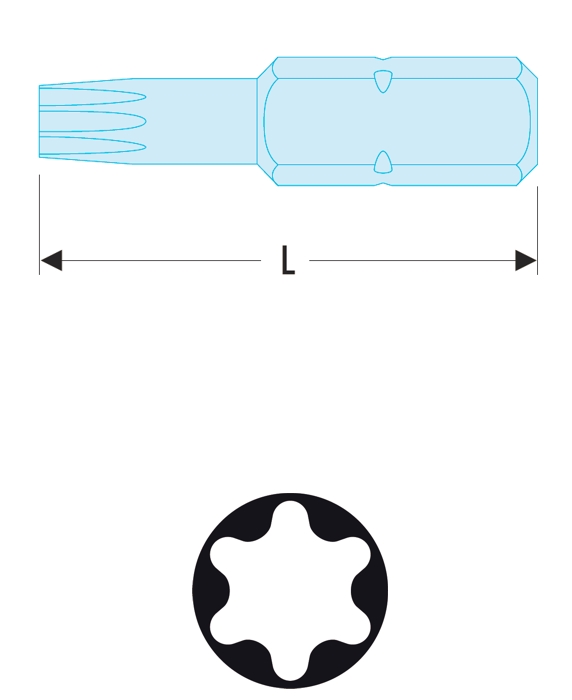

TORX (no) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|
T20 |
35 |
13 |
||
T25 |
35 |
13 |
||
T27 |
35 |
13 |
||
T30 |
35 |
15 |
||
T40 |
35 |
15 |
||
T45 |
35 |
15 |
||
T50 |
35 |
18 |
||
T55 |
35 |
31 |

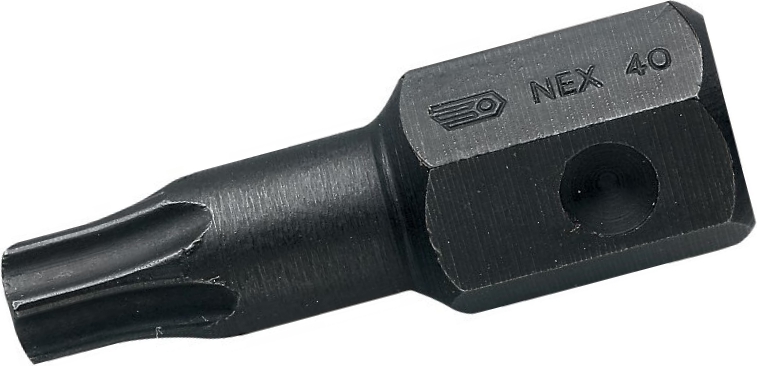

TORX (no) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|
T25 |
50 |
18 |
||
T27 |
50 |
18 |
||
T30 |
50 |
20 |
||
T40 |
50 |
25 |
||
T45 |
50 |
25 |
||
T50 |
50 |
30 |
||
T55 |
50 |
38 |
||
T.60 |
50 |
45 |
||
T70 |
50 |
55 |

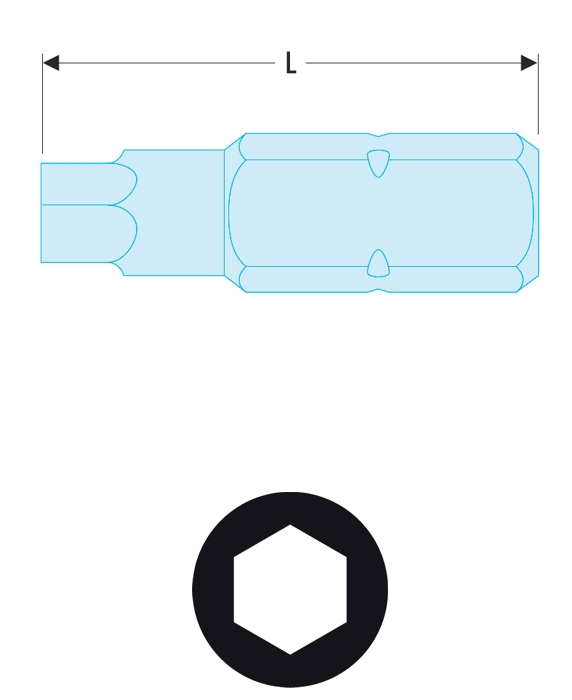

SIZE (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|
4 |
30 |
9 |
||
5 |
30 |
10 |
||
6 |
30 |
11 |
||
8 |
30 |
13 |
||
10 |
30 |
17 |
Size (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|
3 |
50 |
20 |
||
4 |
50 |
22 |
||
5 |
50 |
22 |
||
6 |
50 |
24 |
||
7 |
50 |
24 |
||
8 |
50 |
24 |
||
10 |
50 |
30 |
||
11 |
50 |
40 |
||
12 |
50 |
45 |
||
14 |
50 |
55 |
||
17 |
50 |
73 |
||
19 |
50 |
86 |
Size (") |
L (mm) |
Weight (g) |
||
---|---|---|---|---|
7/16 |
50 |
40 |
||
1/2 |
50 |
48 |
||
9/16 |
50 |
57 |
||
5/8 |
50 |
65 |
||
3/4 |
50 |
86 |
Standards: NF ISO 1711-2, ISO 1711-2, DIN 3121
Safety first: always use locking rings and pins.

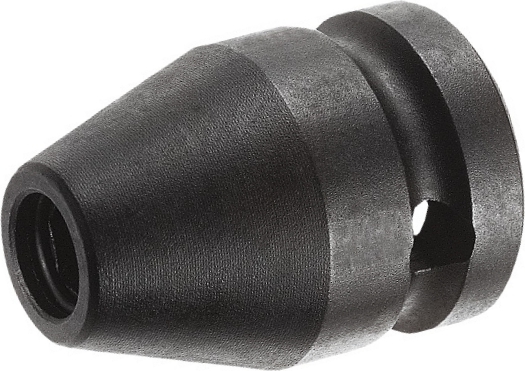

For 1/2" - 12.7 bits.
Weight: 45g.
