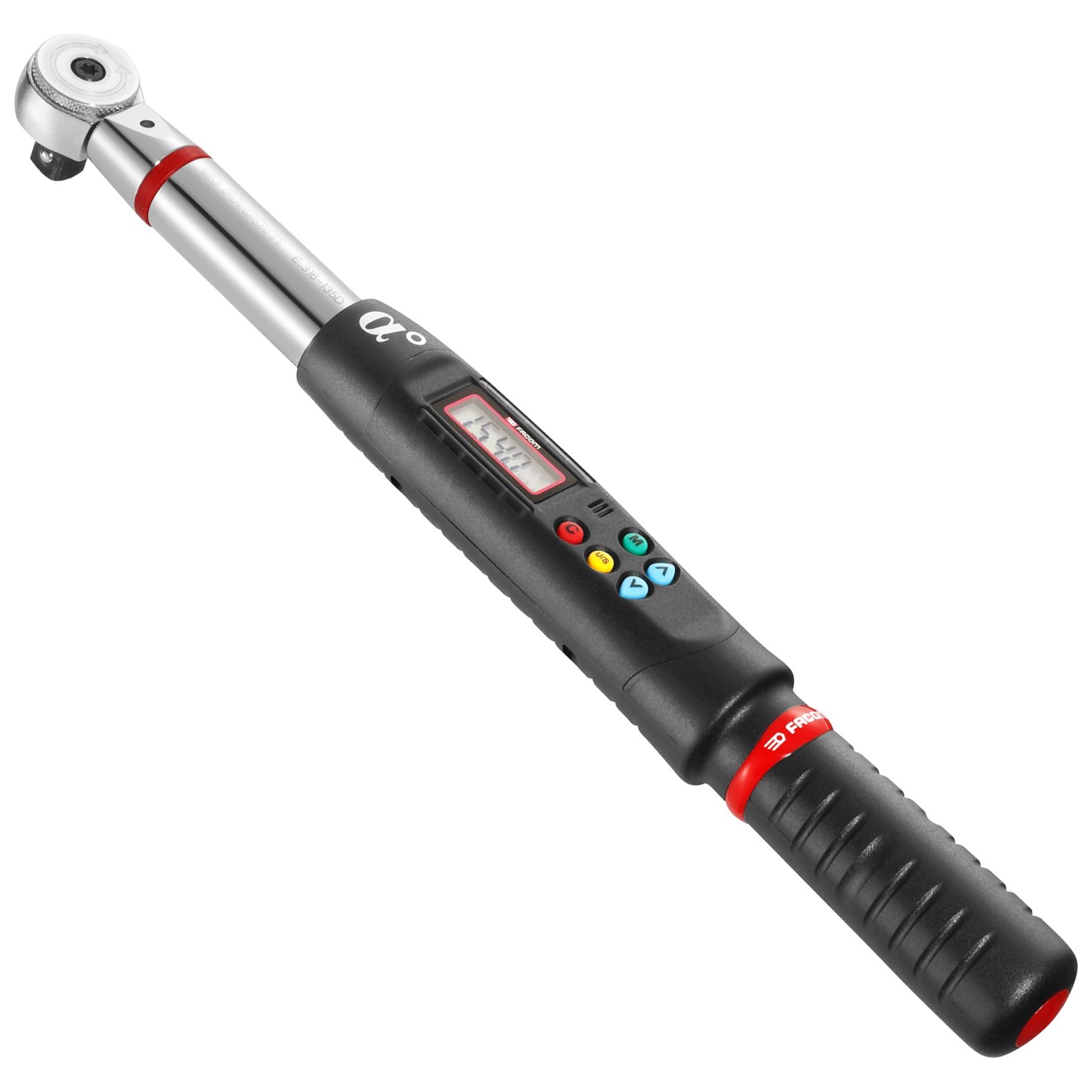

FACOM ELECTRONIC TORQUE / ANGLE WRENCHES WITH RATCHET

ELECTRONIC TORQUE / ANGLE WRENCHES WITH RATCHET

Standards: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789
Accuracy:
Torque: ± 2% between 20% and 100% wrench capacity.
Angle: ± 2°.
End fitting: 9 x 12 and 14 x 18 mm.
Measuring mode: peak or follower.
Locking keypad (the operator has access only to program choices and result memorising).
Measuring unit: N.m, lbf.ft, lbf.in, kg.cm and deg.
Presetting possible of 9 torque and/or angle values.

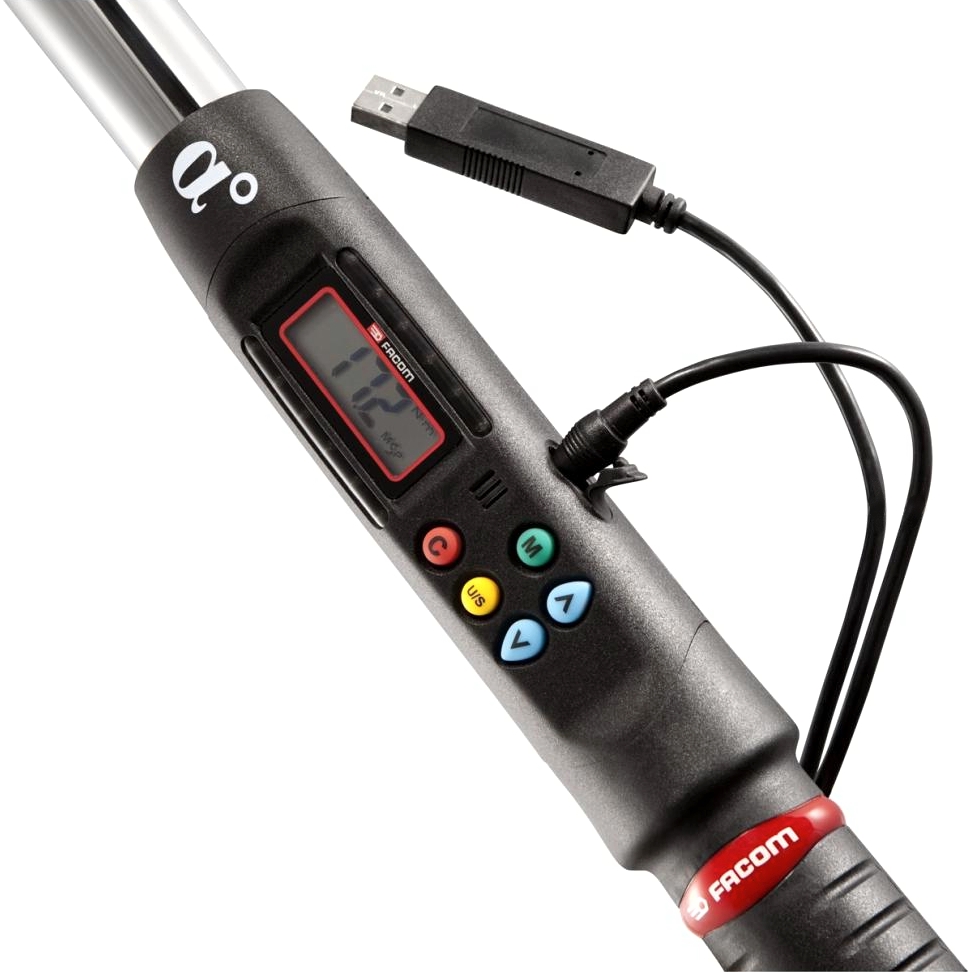

Memory 250 values with PC USB link.
Supplied with calibration certificate.
Supplied in plastic case and foam module.

	Length (mm)	Capacity (Nm)	Drive (")	Ratchet	Dimensions (mm)	Weight (g)
FACOM E.316A30R	390	1.5 - 30.0	1/4	R.372	575 x 73 x 115	1.6
FACOM E.316A135J	415	6.7 - 135.0	3/8	J.372V	575 x 73 x 115	1.7
FACOM E.316A135S	415	6.7 - 135.0	1/2	S.372V	575 x 73 x 115	1.7
FACOM E.316A200S	530	10 - 200	1/2	S.382V	810 x 80 x 125	2.7
FACOM E.316A340S	650	17 - 340	1/2	S.382V	810 x 80 x 125	2.9
