Castor Trading - FACOM Torque screwdrivers

Learn more

NF EN ISO 6789, ISO 6789, DIN EN ISO 6789
Lightweight and compact screwdriver for low torque load.
Right-hand torquing.
Female hex output for use with bits series 0 - 4 mm (1 /411 output with ECR.O drive optionally).
82H.4: Adjustement key 4 mm.
Supplied with calibration certificate and adjustment key.

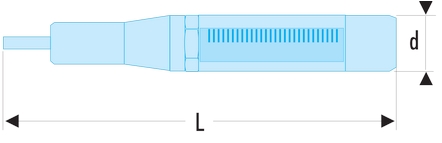

		Capacity (cNm)	D (mm)	L (mm)	Graduation	Bit holder	Weight (g)
FACOM A.300MT		4 - 20	21	96.5	0.05	4 mm	75
FACOM A.301MT		15 - 75	23	130	0.5	1/4"	130

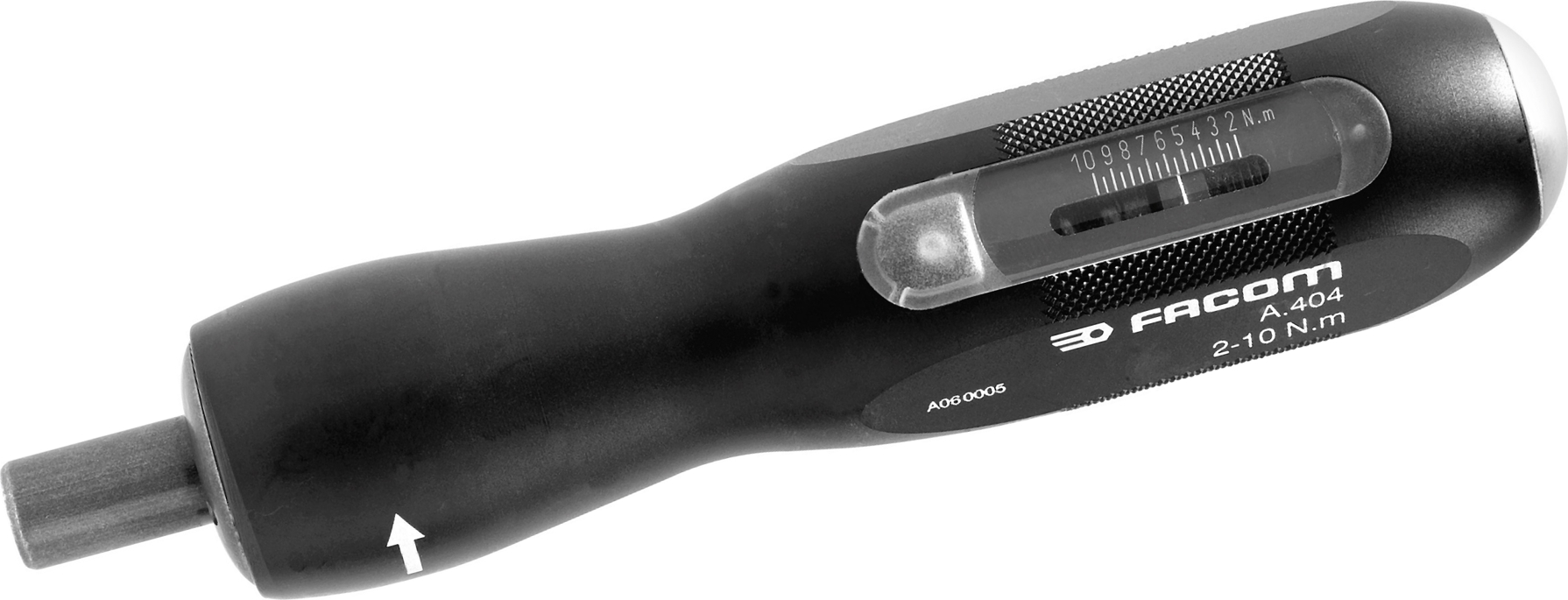

TORQUE SCREWDRIVER WITH VERNIER ADJUSTMENT

Learn more

		Capacity (cNm)	Length (mm)	Graduation (Nm)	Weight (g)
FACOM A.402		0.5 - 2.5	147	0.1	280
FACOM A.404		2 - 10	147	0.5	400

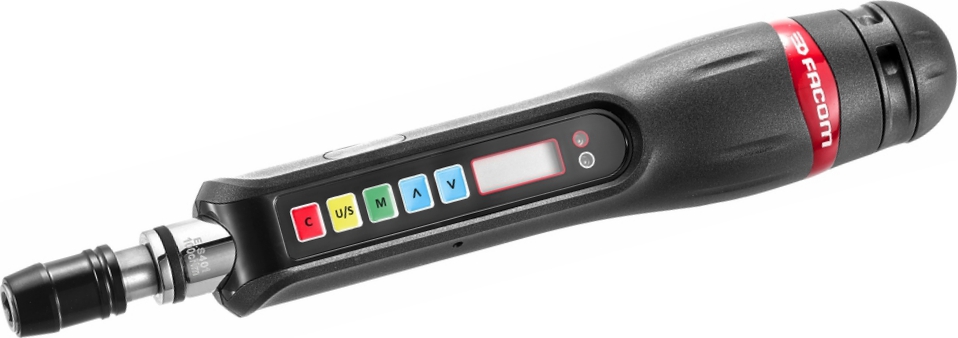

ELECTRONIC TORQUE SCREWDRIVER

Learn more

Standards: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789
Accuracy: ± 2% clockwise (± 3% counter clockwise) between 20% and 100% screwdriver capacity.
Resolution: 0.1 cN.m.
Measurement mode: tip or follower.
1/4" outlet with auto-locking system for series 1 and series 6 bits.
Measurement unit: cN.m, in.lb, Kg.cm.
9 torque presets available.
Memory 250 values with PC USB link.
Locking keypad (program selection and result log only accessible to the operator).
Hole in the handle for strapping when working in high places.
Supplied with 1 AAA-LR03 1.5V battery.
Supplied with an ISO6789 calibration certificate.
Supplied in plastic case and foam module
Dimensions (LxWxH): 570x100x70 mm.
USB cable E.S404-USB and plugs E.S404-KIT set available as spares.

		Capacity (Nm)	Length (mm)	Bit holder	Weight (g)
FACOM E.S401		0.1 - 1	215	1/4"	630
FACOM E.S404		0.4 - 4	215	1/4"	630

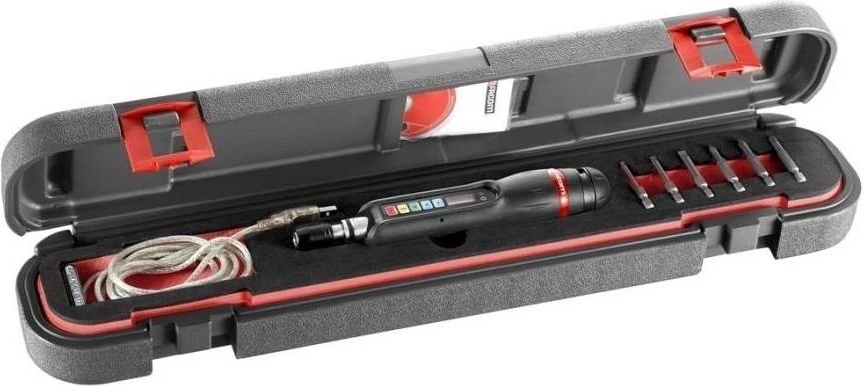

ELECTRONIC TORQUE SCREWDRIVER

Learn more

Standards: NF EN ISO 6789, ISO 6789, DIN EN ISO 6789
Accuracy: ± 2% clockwise (± 3% counter clockwise) between 20% and 100% screwdriver capacity.
Resolution: 0.1 cN.m.
Measurement mode: tip or follower.
1/4" outlet with auto-locking system for series 1 and series 6 bits.
Measurement unit: cN.m, in.lb, Kg.cm.
9 torque presets available.
Memory 250 values with PC USB link.
Locking keypad (program selection and result log only accessible to the operator).
Hole in the handle for strapping when working in high places.
Supplied with 1 AAA-LR03 1.5V battery.
Supplied with an ISO6789 calibration certificate.
Torque screwdriver length 215 mm.
6 series 6 bits with 1/4" groove length 50 mm:
slotted head 3 - 4 - 5.5
Phillips® High Perf' 1 - 2 - 3.
Supplied in plastic case and foam module
Dimensions (LxWxH): 570x100x70 mm.
USB cable E.S404-USB and plugs E.S404-KIT set available as spares.

		Capacity (Nm)	Height (mm)	Width (mm)	Length (mm)	Screwdriver	Weight (g)
FACOM E.S401J1		0.1 - 1	70	100	570	E.S401	1200
FACOM E.S404J1		0.4 - 4	70	100	570	E.S404	1200

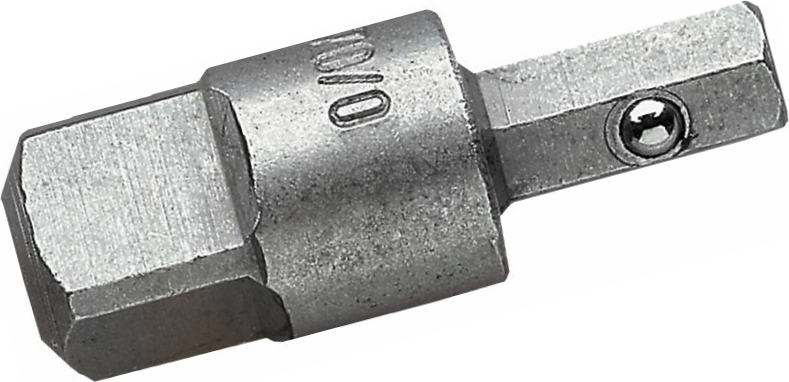

HEXAGON DRIVE SOCKET ADAPTOR

Learn more

HEXAGON DRIVE SOCKET ADAPTOR

Learn more
