Castor Trading - FACOM Accessories 20 x 7mm

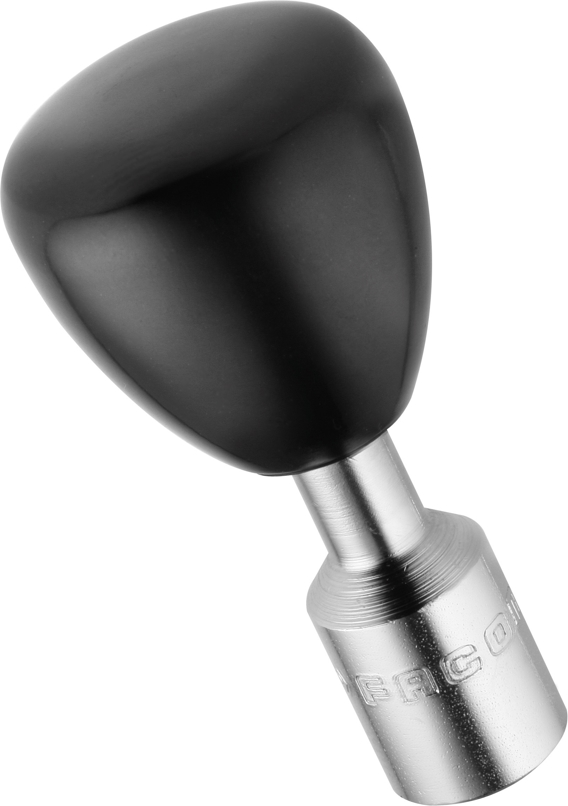

PIVOTING KNOB

Learn more

Allows to maintain the wrench parallel with the tightening plane and contribute to tightening accuracy.
Used with torque wrench ref. R.203 DA.

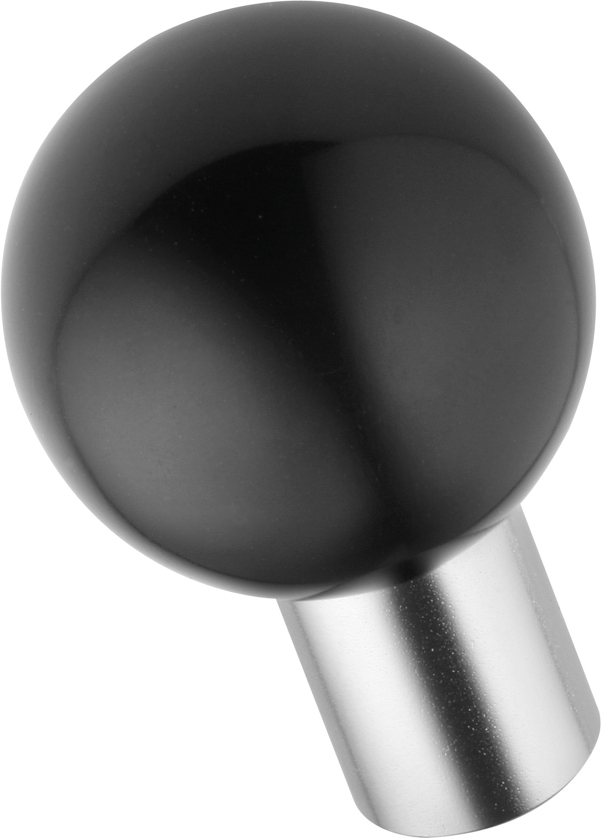

PIVOTING KNOB

Learn more

Allows to maintain the wrench parallel with the tightening plane and contribute to tightening accuracy.
Used with square bits Ref J.203E - S.203E

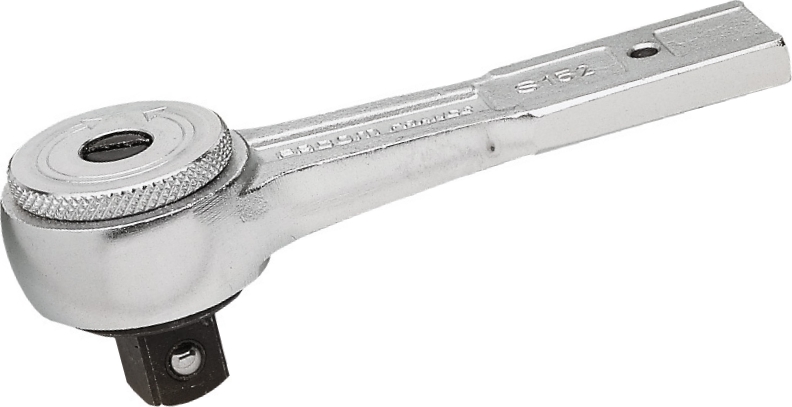

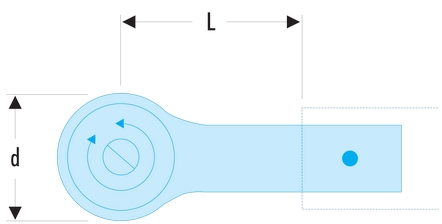

TORQUE WRENCH RATCHET

Learn more

Fitting size 20x7mm.
5° increment.

References:

		Drive (")	D (mm)	E (mm)	L (mm)	Wrench	Weight (g)
FACOM J.152		3/8	38	25	55	J.203DA	274
FACOM S.152		1/2	38	25	55	S.203DA - S.306-100R - S.306-350R - S.306-200R	275

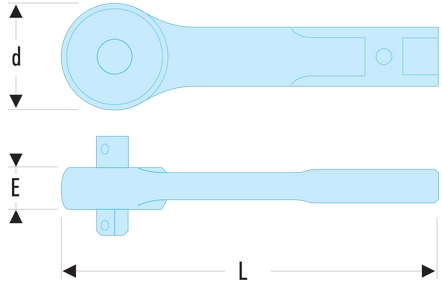

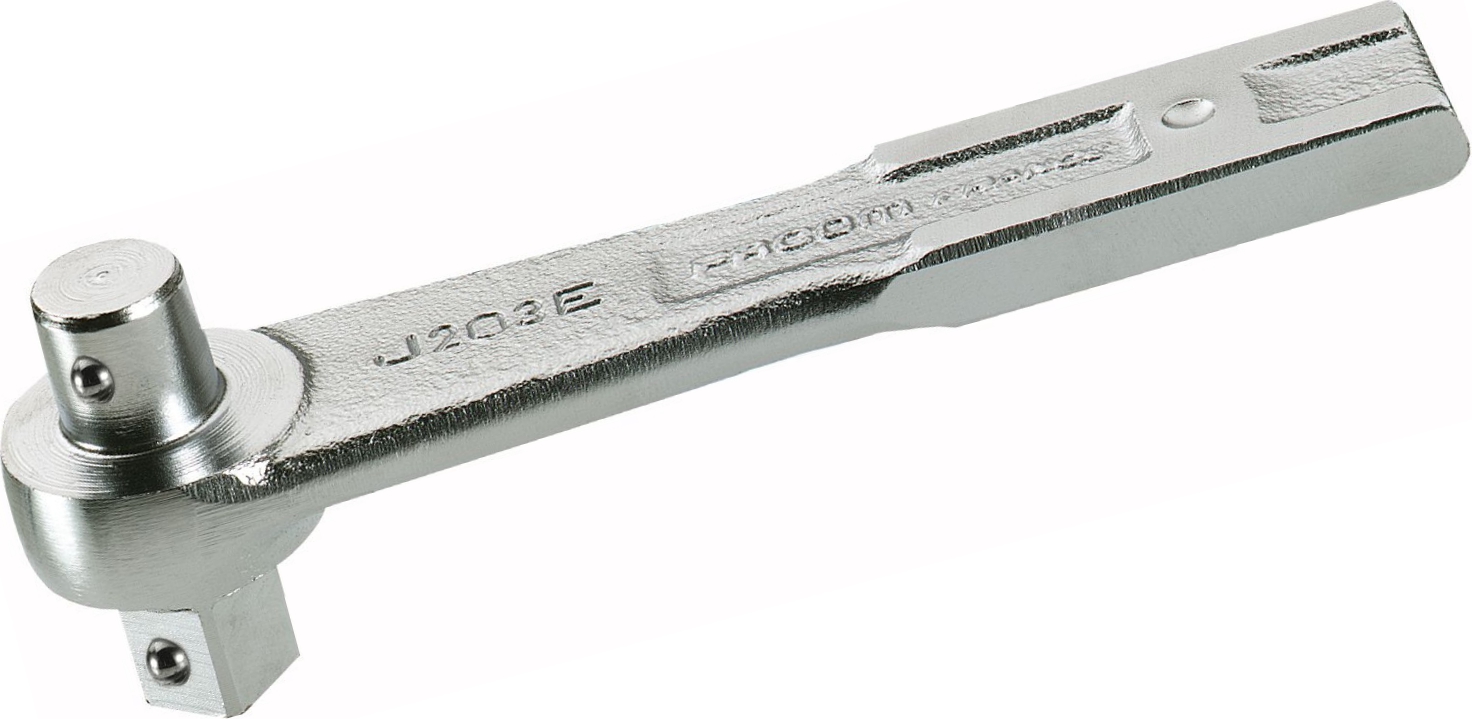

TORQUE WRENCH SQUARE DRIVE WITH PIVOT KNOB ADAPTOR

Learn more

Fitting size 20x7mm

References:

		Drive (")	D (mm)	E (mm)	L (mm)	Weight (g)
FACOM J.203E		3/8	25	11	56	140
FACOM S.203E		1/2	25	11	56	150

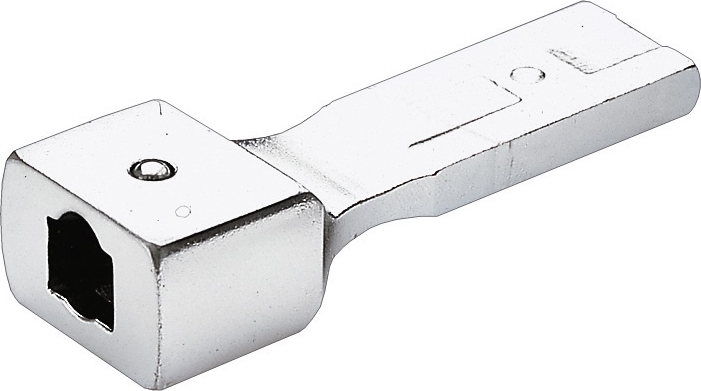

TORQUE WRENCH ADAPTOR

Learn more

Fitting size 20x7mm

End fitting size 9x12mm

End fitting size 14x18mm

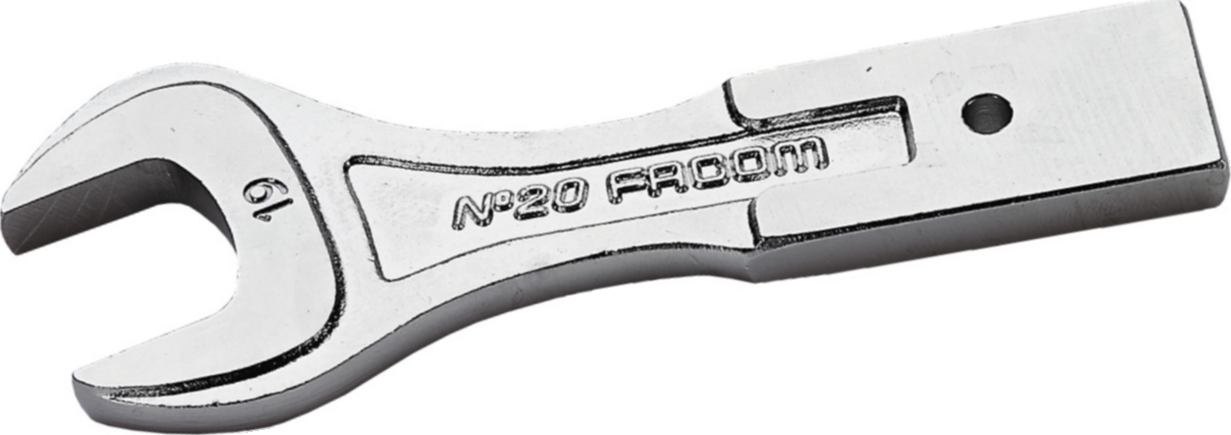

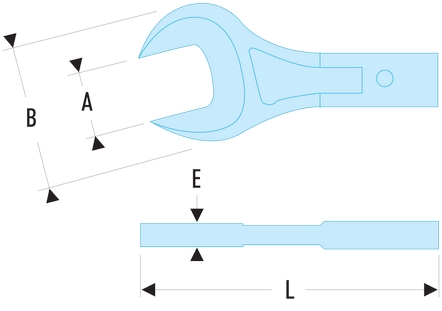

OPEN ENDS FOR TORQUE WRENCHES

Learn more

Fitting size 20 x 7mm.
For use on 203, 306R and 446 series wrenches.

References:

		Size (mm)	B (mm)	E (mm)	L (mm)	Weight (g)
FACOM 20.10		10	24	6	105	60
FACOM 20.11		11	24	6	105	60
FACOM 20.12		12	29	6	106	60
FACOM 20.13		13	29	6	106	60
FACOM 20.14		14	29	6	106	65
FACOM 20.15		15	40	7.5	109	105
FACOM 20.16		16	40	7.5	109	105
FACOM 20.17		17	40	7.5	109	105
FACOM 20.18		18	40	7.5	109	100
FACOM 20.19		19	40	7.5	109	100
FACOM 20.21		21	53	8	112	145
FACOM 20.22		22	53	8	112	145
FACOM 20.23		23	53	8	112	145
FACOM 20.24		24	53	8	112	140
FACOM 20.27		27	66	9	115	185
FACOM 20.30		30	66	9	115	185
FACOM 20.32		32	66	9	115	180
FACOM 20.36		36	74	10	118	220
