Castor Trading - FACOM Short series

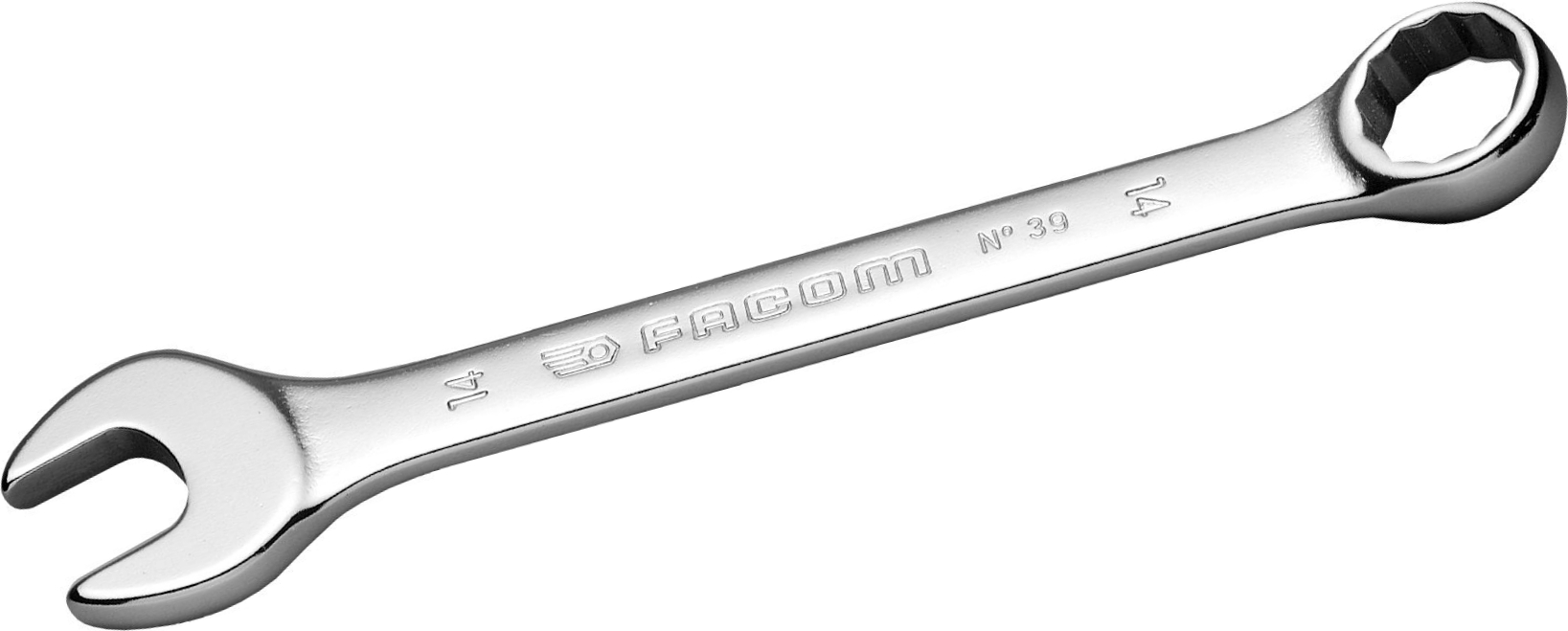

METRIC SHORT COMBINATION WRENCHES

Learn more

Standards: NF ISO 691, NF ISO 7738, NF ISO 3318, NF ISO 1711-1, E74-306, ISO 691, ISO 7738, ISO 3318, ISO 1711-1, DIN ISO 691, DIN 1711-1, ASME B107.100
Short handle and compact head allow for high handiness.
Ideal for confined access.
OGV® profile with 12-point ring for powerful tightening while protecting the nut. H suffix = 6-point ring.
Open end and ring head angled at 15°.
Presentation: satin chrome finish.

References:

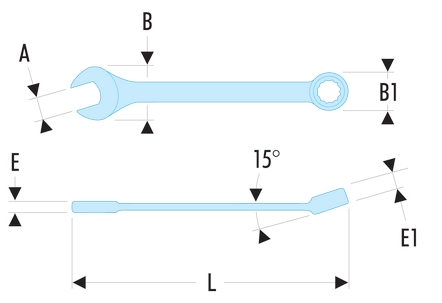

		Size (mm)	B x B1 (mm)	E (mm)	E1 (mm)	L (mm)	Weight (g)
FACOM 39.3.2H		3.2	10.0 x 7.0	3.1	3.1	77	10
FACOM 39.4H		4	10.0 x 8.0	3.1	3.1	77	10
FACOM 39.5H		5	11.8 x 9.0	3.5	4	82	10
FACOM 39.5.5H		5.5	11.8 x 9.5	3.5	4	84	10
FACOM 39.6		6	15.0 x 10.4	4.1	5	90	15
FACOM 39.7		7	15.0 x 11.5	4.1	5	90	15
FACOM 39.8		8	17.2 x 12.5	4.5	5.8	94	20
FACOM 39.9		9	19.4 x 14.0	4.8	6	98	25
FACOM 39.10		10	21.5 x 15.3	5.1	6.4	103	30
FACOM 39.11		11	23.7 x 16.8	5.3	6.8	109	35
FACOM 39.12		12	26.0 x 18.0	5.5	7.5	127	50
FACOM 39.13		13	28.0 x 19.5	5.8	8	141	55
FACOM 39.14		14	30.2 x 20.8	6	8.5	147	70
FACOM 39.15		15	32.3 x 22.1	6.4	9	152	80
FACOM 39.16		16	34.4 x 23.6	6.7	9.6	158	90
FACOM 39.17		17	36.5 x 25.0	6.9	10	165	100

INCH SHORT COMBINATION WRENCHES

Learn more

Standards: ASME B107.100
Short handle and compact head allow for high handiness.
Ideal for confined access.
OGV® profile with 12-point ring for powerful tightening while protecting the nut. H suffix = 6-point ring.
Open end and ring head angled at 15°.
Presentation: satin chrome finish.

References:

		Size (")	B x B1 (mm)	E (mm)	E1 (mm)	L (mm)	Weight (g)
FACOM 39.1/8H		1/8	10.0 x 7.0	3.1	3.1	77	10
FACOM 39.5/32H		5/32	10.0 x 8.0	3.1	3.1	77	10
FACOM 39.3/16H		3/16	11.8 x 9.0	3.5	4	82	10
FACOM 39.7/32H		7/32	11.8 x 9.5	3.5	4	84	10
FACOM 39.1/4		1/4	15.0 x 10.4	4.1	5	90	15
FACOM 39.9/32		9/32	15.0 x 11.5	4.1	5	90	15
FACOM 39.5/16		5/16	17.2 x 12.5	4.5	5.8	94	20
FACOM 39.11/32		11/32	19.4 x 14.0	4.8	6	98	25
FACOM 39.3/8		3/8	21.5 x 15.3	5.1	6.4	103	30
FACOM 39.7/16		7/16	23.7 x 16.8	5.3	6.8	109	35
FACOM 39.1/2		1/2	28.0 x 19.5	5.8	8	141	50
FACOM 39.9/16		9/16	30.2 x 20.8	6	8.5	147	70
FACOM 39.5/8		5/8	34.4 x 23.6	6.7	9.6	158	90
FACOM 39.11/16		11/16	36.5 x 25.0	6.9	10	165	100

METRIC SHORT COMBINATION WRENCHES

Learn more

Standards: NF ISO 691, NF ISO 7738, NF ISO 3318, NF ISO 1711-1, E74-306, ISO 691, ISO 7738, ISO 3318, ISO 1711-1, DIN ISO 691, DIN 1711-1, ASME B107.100
Short handle and compact head allow for high handiness.
Ideal for confined access.
OGV® profile with 12-point ring for powerful tightening while protecting the nut. H suffix = 6-point ring.
Open end and ring head angled at 15°.
Presentation: satin chrome finish.

References:

			Size (mm)	Case	Qty	Weight (g)

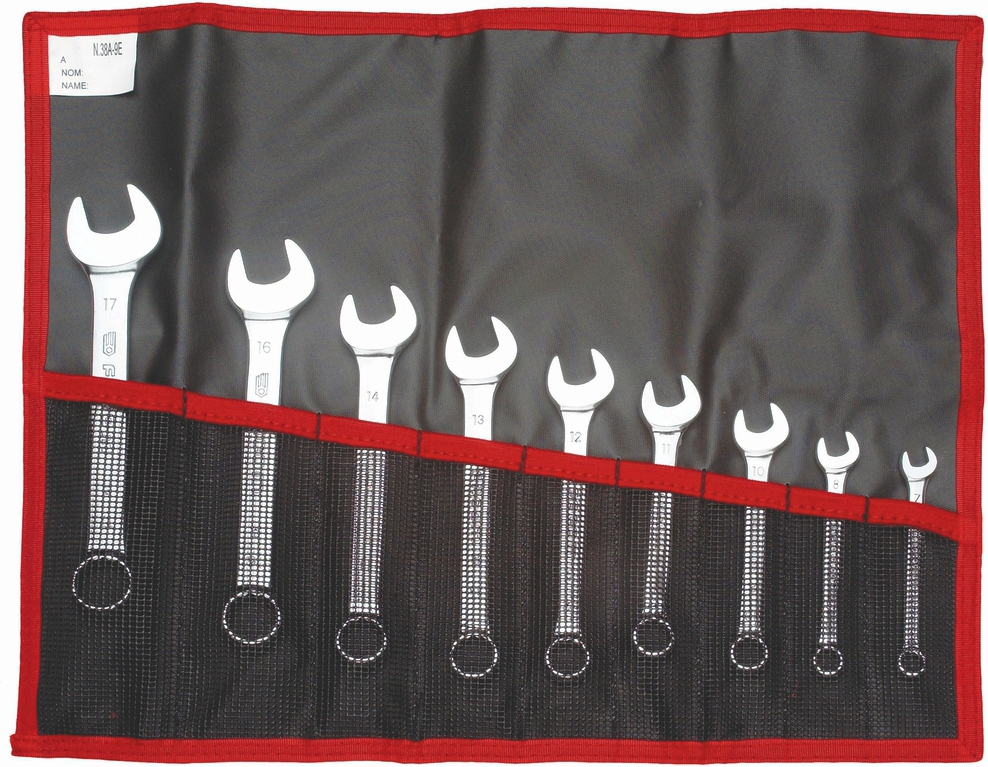

FACOM 39.JE9T			7, 8, 10, 11, 12, 13, 14, 16, 17	N.38A-9E	9	557

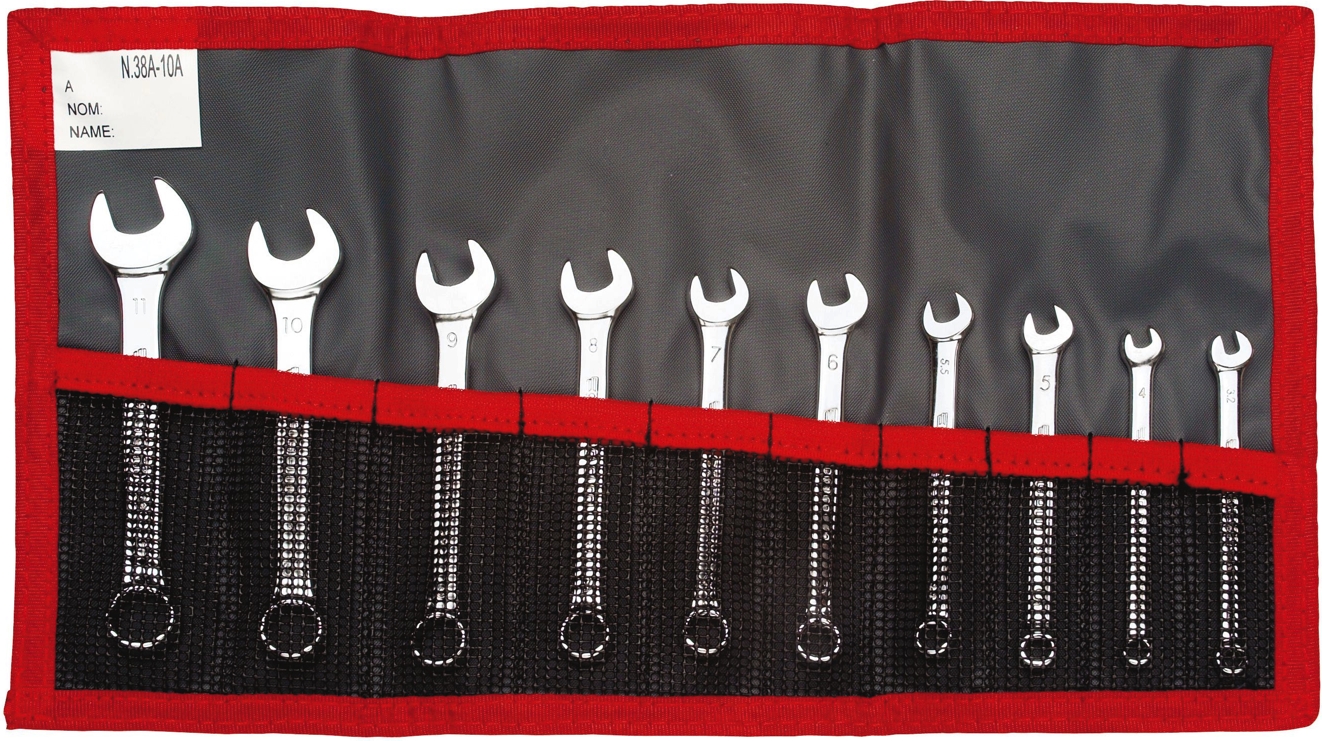

FACOM 39.JE10T			3.2, 4, 5, 5.5, 6, 7, 8, 9, 10, 11	N.38A-10A	10	223

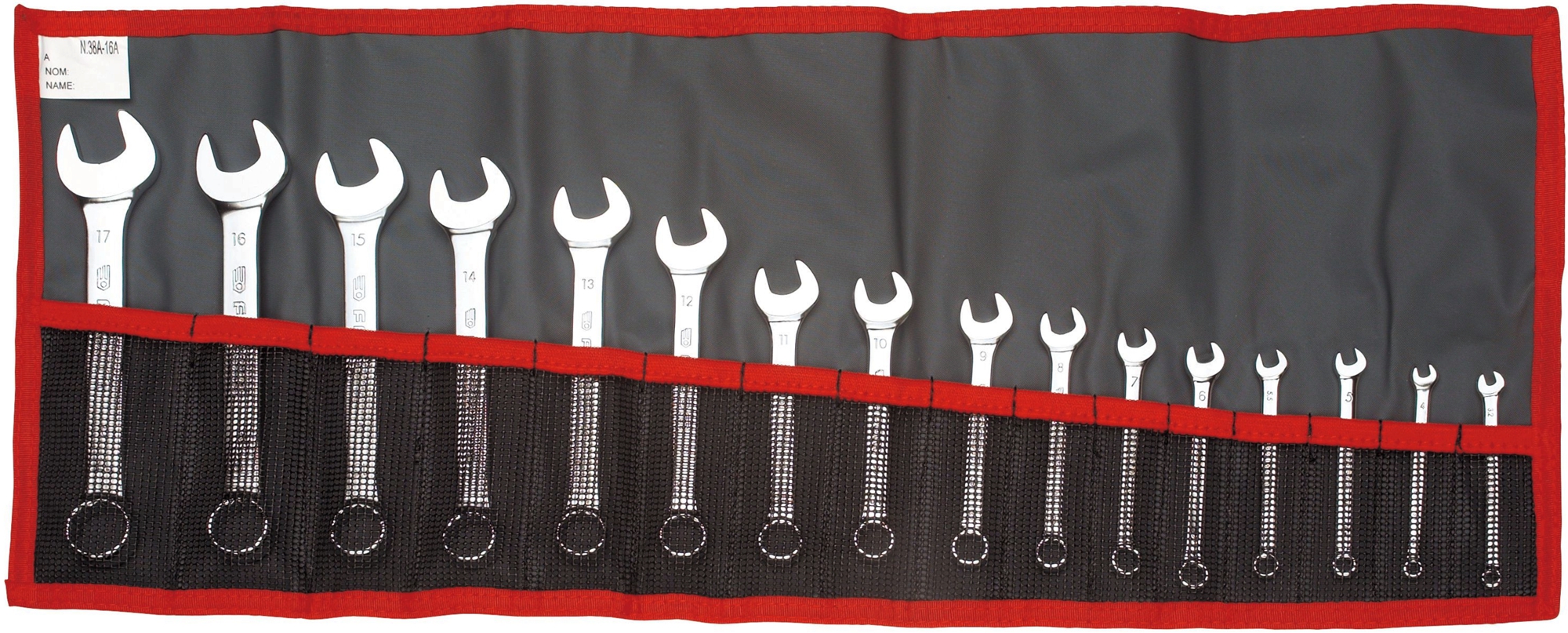

FACOM 39.JE16T			3.2, 4, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17	N.38A-16A	16	761

INCH SHORT COMBINATION WRENCHES

Learn more

Standards: ASME B107.100
Short handle and compact head allow for high handiness.
Ideal for confined access.
OGV® profile with 12-point ring for powerful tightening while protecting the nut. H suffix = 6-point ring.
Open end and ring head angled at 15°.
Presentation: satin chrome finish.

References:

			Size (")	Case	Qty	Weight (g)

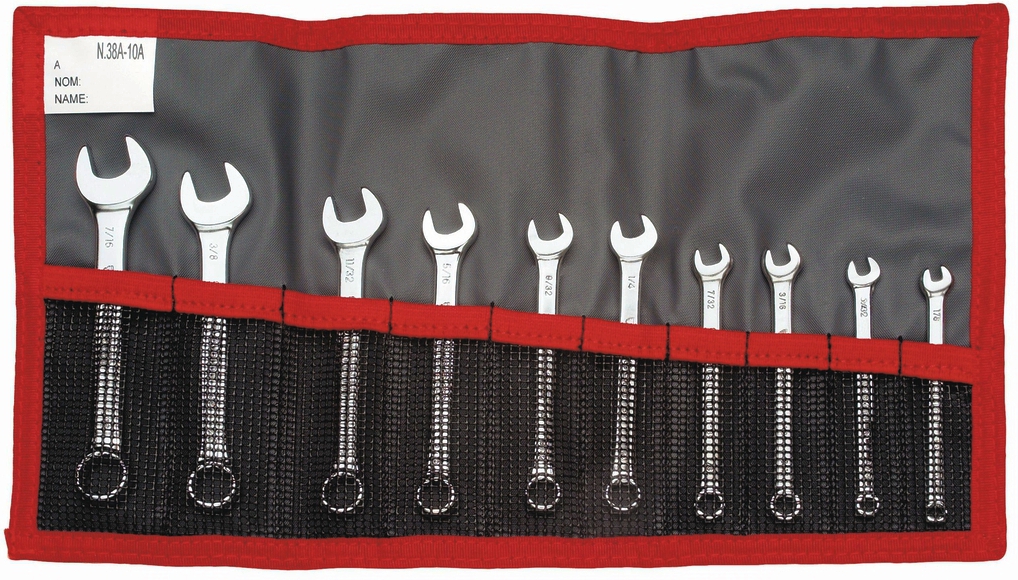

FACOM 39.JU10T			1/8, 5/32, 3/16, 7/32, 1/4, 9/32, 5/16, 11/32, 3/8, 7/16	N.38A-10A	10	224
