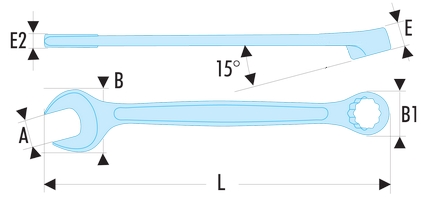

Size (mm) |
B (mm) |
B1 (mm) |
E (mm) |
E2 (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|---|---|
4 |
10 |
7.8 |
2.1 |
3 |
106 |
10 |
||
5 |
13.3 |
9.2 |
3.1 |
3.6 |
115 |
16 |
||
5.5 |
13.3 |
9.2 |
3.1 |
3.8 |
115 |
15 |
||
6 |
14.1 |
10 |
3.1 |
3.8 |
115 |
20 |
||
7 |
17.2 |
11.2 |
3.4 |
3.9 |
122 |
20 |
||
8 |
19.2 |
12.8 |
3.5 |
4.7 |
133 |
30 |
||
9 |
21.2 |
14.2 |
3.9 |
4.7 |
138 |
35 |
||
10 |
23 |
15 |
4.2 |
5.2 |
145 |
40 |
||
11 |
24.5 |
16.9 |
4.6 |
5.5 |
155 |
50 |
||
12 |
27 |
18 |
4.4 |
5.8 |
162 |
60 |
||
13 |
28.7 |
19.3 |
4.8 |
6.1 |
170 |
70 |
||
14 |
31 |
21.1 |
5.7 |
6.4 |
180 |
85 |
||
15 |
32.6 |
22.2 |
5.9 |
6.8 |
185 |
95 |
||
16 |
35.6 |
23.9 |
6.4 |
7.3 |
195 |
115 |
||
17 |
37 |
25.3 |
6.5 |
7.6 |
202 |
130 |
||
18 |
38.7 |
26 |
7.2 |
8.1 |
208 |
150 |
||
19 |
41.2 |
27.8 |
7.2 |
8.3 |
216 |
170 |
||
20 |
43.1 |
29.5 |
6.3 |
8.6 |
224 |
185 |
||
21 |
45.4 |
30.9 |
7.8 |
8.8 |
233 |
205 |
||
22 |
46.9 |
32.3 |
8.3 |
9 |
248 |
230 |
||
23 |
49 |
33.6 |
8.7 |
9.3 |
257 |
255 |
||
24 |
51 |
35 |
8.9 |
9.7 |
267 |
290 |
||
25 |
53 |
36.4 |
9.4 |
9.9 |
274 |
315 |
||
26 |
55.5 |
37.8 |
9.8 |
10.1 |
285 |
345 |
||
27 |
58 |
39.2 |
8.9 |
10.4 |
295 |
375 |
||
28 |
60.7 |
40.6 |
10.6 |
10.7 |
305 |
415 |
||
29 |
63 |
42 |
10.8 |
11.2 |
320 |
475 |
||
30 |
65 |
43.5 |
11.2 |
11.5 |
340 |
530 |
||
32 |
68 |
46.1 |
11.5 |
12.5 |
355 |
640 |
||
33 |
69.8 |
47 |
11.8 |
12.8 |
380 |
715 |
||
34 |
72 |
48.9 |
12.8 |
13 |
390 |
745 |
||
35 |
74.3 |
51 |
12.8 |
13.5 |
430 |
890 |
||
36 |
76 |
53 |
13.2 |
14 |
440 |
945 |
||
38 |
80 |
56 |
14.1 |
15.2 |
450 |
1100 |
||
41 |
85 |
58.3 |
14.7 |
16 |
460 |
1300 |
A (") |
B (mm) |
B1 (mm) |
E (mm) |
E2 (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|---|---|
1/4 |
14.1 |
10 |
3.1 |
3.8 |
115 |
20 |
||
5/16 |
19.2 |
12.8 |
3.5 |
4.7 |
133 |
30 |
||
11/32 |
21.2 |
14.2 |
3.9 |
4.7 |
138 |
35 |
||
3/8 |
23 |
15 |
4.2 |
5.2 |
145 |
45 |
||
7/16 |
24.5 |
16.9 |
4.6 |
5.5 |
155 |
50 |
||
1/2 |
28.7 |
19.3 |
4.8 |
6.1 |
170 |
70 |
||
9/16 |
31 |
21.1 |
5.7 |
6.4 |
180 |
85 |
||
5/8 |
35.6 |
23.9 |
6.4 |
7.3 |
195 |
115 |
||
11/16 |
37 |
25.3 |
6.5 |
7.6 |
202 |
130 |
||
3/4 |
41.2 |
27.8 |
7.2 |
8.3 |
216 |
170 |
||
13/16 |
43.1 |
29.5 |
6.3 |
8.6 |
224 |
185 |
||
7/8 |
46.9 |
32.3 |
8.3 |
9 |
248 |
230 |
||
15/16 |
51 |
35 |
8.9 |
9.7 |
267 |
290 |
||
1 |
53 |
36.4 |
9.4 |
9.9 |
274 |
315 |
||
1 1/16 |
58 |
39.2 |
8.9 |
10.4 |
295 |
375 |
||
1 1/8 |
60.7 |
40.6 |
10.6 |
10.7 |
305 |
415 |
||
1 1/4 |
68 |
46.1 |
11.5 |
12.5 |
355 |
640 |
||
1 5/16 |
69.8 |
47 |
11.8 |
12.8 |
380 |
715 |
||
1 3/8 |
74.3 |
51 |
12.8 |
13.5 |
430 |
890 |
||
1 7/16 |
76 |
53 |
13.2 |
14 |
440 |
945 |
||
1 1/2 |
80 |
56 |
14.1 |
15.2 |
450 |
1100 |
