A (mm) |
Capacity (mm) |
E (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|
3 |
15 - 35 |
5 |
168 |
80 |
||
4 |
35 - 50 |
6 |
202 |
170 |
||
5 |
50 - 80 |
8 |
280 |
380 |
||
5.5 |
80 - 120 |
9 |
345 |
700 |
||
7.5 |
120 - 180 |
11 |
492 |
1500 |
A (mm) |
Capacity (mm) |
E (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|
4 |
10 - 50 |
4 |
213 |
340 |
||
5 |
20 - 100 |
5 |
347 |
800 |
||
7 |
30 - 200 |
7 |
548 |
1900 |

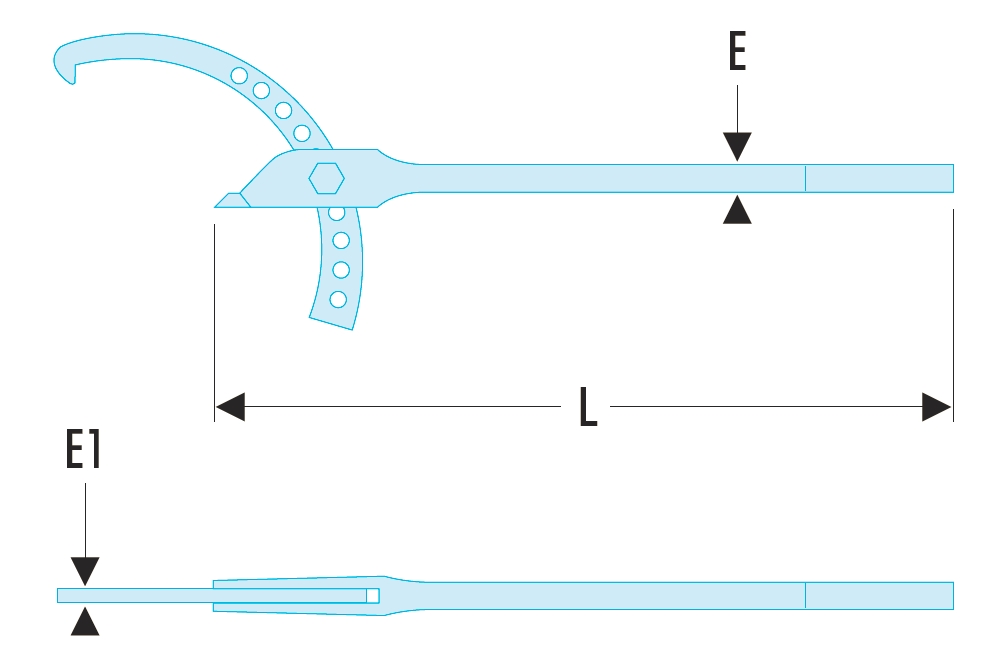

Capacity (mm) |
E (mm) |
E1 (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|
120 - 224 |
26 |
9.5 |
610 |
3160 |
||
220 - 324 |
32 |
20 |
635 |
5900 |
A (mm) |
Capacity (mm) |
E (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|
3 |
15 - 35 |
10 |
168 |
80 |
||
4 |
35 - 50 |
12 |
202 |
170 |
||
5 |
50 - 80 |
14 |
280 |
360 |
||
6 |
80 - 120 |
18 |
345 |
700 |
||
8 |
120 - 180 |
20 |
492 |
1500 |
D (mm) |
Wrench |
Weight (g) |
||
---|---|---|---|---|
3 |
126A.35 |
5 |
||
4 |
126A.50 |
5 |
||
5 |
126A.80 |
10 |
||
6 |
126A.120 |
20 |
||
8 |
126A.180 |
35 |
A (mm) |
D (mm) |
D1 (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|
2.5 - 4 |
0 - 50 |
8 |
213 |
380 |
||
4 - 6 |
0 - 100 |
12 |
345 |
820 |
||
6 - 8 |
35 - 200 |
16 |
546 |
2000 |
D (mm) |
D1 (mm) |
Weight (g) |
||
---|---|---|---|---|
2.5 |
4 |
15 |
||
6 |
8 |
25 |
||
3 |
5 |
20 |
||
7 |
9 |
30 |

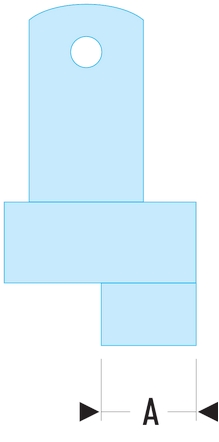

A (mm) |
Weight (g) |
||
---|---|---|---|
4 |
10 |
||
5 |
15 |
||
6 |
15 |
||
8 |
20 |
