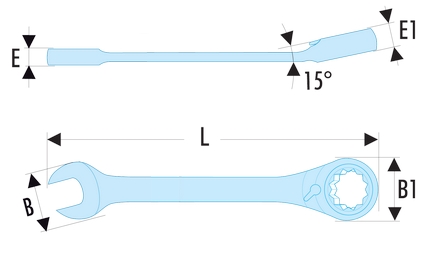

Size (mm) |
B (mm) |
B1 (mm) |
E (mm) |
E1 (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|---|---|
6 |
14.1 |
14.1 |
4 |
6.3 |
128 |
20 |
||
7 |
18.6 |
16.8 |
4.6 |
6.5 |
140 |
34 |
||
8 |
18.6 |
16.8 |
4.6 |
6.5 |
140 |
34 |
||
9 |
21 |
18.6 |
4.6 |
6.9 |
149 |
40 |
||
10 |
22.7 |
20.2 |
5.1 |
7.3 |
158 |
49 |
||
11 |
23.7 |
22 |
5.2 |
7.7 |
165 |
58 |
||
12 |
26.8 |
23.2 |
5.4 |
8.2 |
171 |
69 |
||
13 |
28.4 |
25.3 |
5.7 |
8.6 |
178 |
86 |
||
14 |
30.8 |
27 |
5.9 |
9 |
190 |
100 |
||
15 |
32.3 |
28.3 |
6.1 |
9.4 |
199 |
115 |
||
16 |
34.9 |
30 |
6.6 |
9.9 |
208 |
138 |
||
17 |
36.8 |
31.7 |
6.6 |
10.3 |
225 |
162 |
||
18 |
38.4 |
32.8 |
7.4 |
10.7 |
236 |
183 |
||
19 |
41.2 |
33.9 |
7.4 |
11.2 |
247 |
212 |
||
21 |
46.9 |
39.7 |
8.6 |
13 |
287 |
314 |
||
22 |
46.9 |
39.7 |
8.6 |
13 |
287 |
314 |
||
24 |
51 |
46 |
8.9 |
14.5 |
320 |
414 |
||
27 |
57.9 |
52 |
9.8 |
15.5 |
356 |
567 |
||
30 |
64.9 |
58 |
10.5 |
17 |
400 |
794 |
||
32 |
67.9 |
62.2 |
11 |
17.5 |
422 |
951 |
||
34 |
72 |
62.2 |
11 |
17.5 |
455 |
1026 |
||
36 |
79.9 |
66 |
13 |
18 |
487 |
1343 |
||
38 |
79.9 |
66 |
13 |
18 |
487 |
1343 |
||
41 |
84.7 |
72 |
14 |
19.5 |
565 |
1871 |
Size (") |
B (mm) |
B1 (mm) |
E (mm) |
E1 (mm) |
L (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|---|---|
1/4 |
14.1 |
14.1 |
4 |
6.3 |
128 |
20 |
||
5/16 |
18.6 |
16.8 |
4.6 |
6.5 |
140 |
34 |
||
11/32 |
21 |
18.6 |
4.6 |
6.9 |
149 |
40 |
||
3/8 |
22.7 |
20.2 |
5.1 |
7.3 |
158 |
49 |
||
7/16 |
23.7 |
22 |
5.2 |
7.7 |
165 |
58 |
||
1/2 |
28.4 |
25.3 |
5.7 |
8.6 |
178 |
86 |
||
9/16 |
30.8 |
27 |
5.9 |
9 |
190 |
100 |
||
5/8 |
34.9 |
30 |
6.6 |
9.9 |
208 |
138 |
||
11/16 |
36.8 |
31.7 |
6.6 |
10.3 |
225 |
162 |
||
3/4 |
41.2 |
33.9 |
7.4 |
11.2 |
247 |
212 |
||
7/8 |
46.9 |
39.7 |
8.6 |
13 |
287 |
314 |
||
15/16 |
51 |
46 |
8.9 |
14.5 |
320 |
414 |
