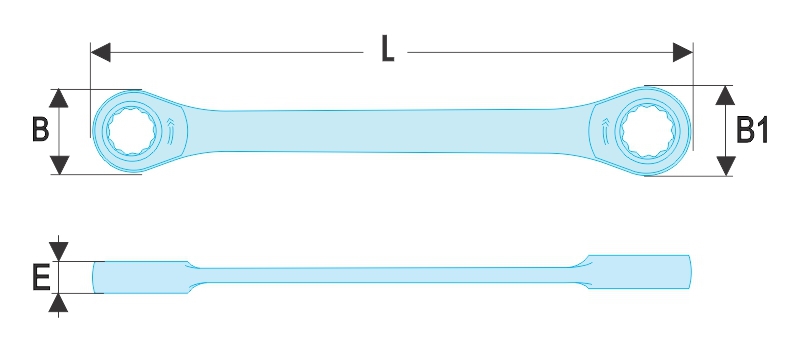

Size (mm) |
B (mm) |
B1 (mm) |
E (mm) |
E1 (mm) |
L (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
6 x 7 |
14.2 |
17.2 |
6.3 |
6.5 |
115 |
35 |
||
8 x 9 |
16.8 |
20.2 |
6.5 |
6.9 |
128 |
45 |
||
10 x 11 |
20.2 |
21.8 |
7.3 |
7.7 |
150 |
60 |
||
12 x 13 |
23 |
24.8 |
8.2 |
8.6 |
170 |
80 |
||
14 x 15 |
26.5 |
29.5 |
9 |
9.4 |
190 |
130 |
||
16 x 18 |
29.5 |
33.5 |
9.9 |
10.7 |
210 |
185 |
||
17 x 19 |
31.5 |
33.5 |
10.3 |
11.2 |
230 |
190 |
||
21 x 23 |
40 |
46 |
13 |
14.5 |
260 |
480 |
||
22 x 24 |
40 |
46 |
13 |
14.5 |
260 |
480 |
|
|
Size (") |
B (mm) |
B1 (mm) |
E (mm) |
E1 (mm) |
L (mm) |
Weight (g) |
|
|---|---|---|---|---|---|---|---|---|
1/4 x 5/16 |
14.2 |
17.2 |
6.3 |
6.5 |
115 |
40 |
||
5/16 x 11/32 |
16.8 |
20.2 |
6.5 |
6.9 |
128 |
45 |
||
3/8 x 7/16 |
20.2 |
21.8 |
7.3 |
7.7 |
150 |
60 |
||
1/2 x 9/16 |
23 |
24.8 |
8.6 |
9 |
180 |
115 |
||
5/8 x 11/16 |
29.5 |
33.5 |
9.9 |
10.7 |
210 |
185 |
||
3/4 x 13/16 |
33.5 |
40 |
11.2 |
13 |
245 |
310 |
||
7/8 x 15/16 |
40 |
46 |
13 |
14.5 |
260 |
480 |
|
|
Sizes (mm) |
Sizes (") |
Case |
Weight (g) |
||
|---|---|---|---|---|---|---|
|

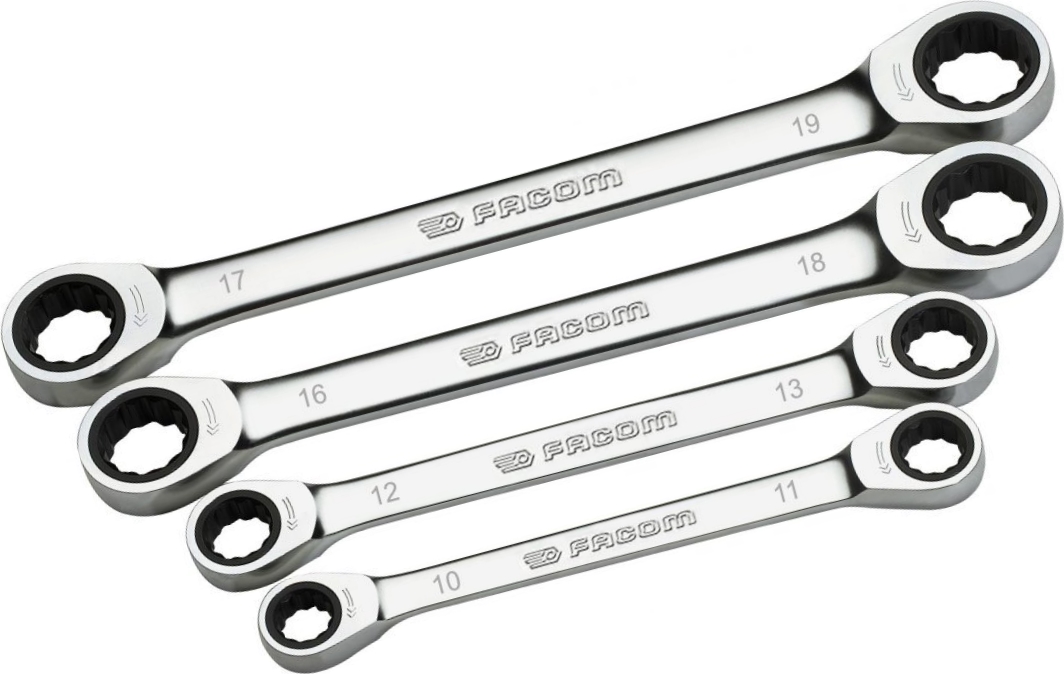

10x11, 12x13, 16x18, 17x19 |
- |
Carton box |
564 |
||
|

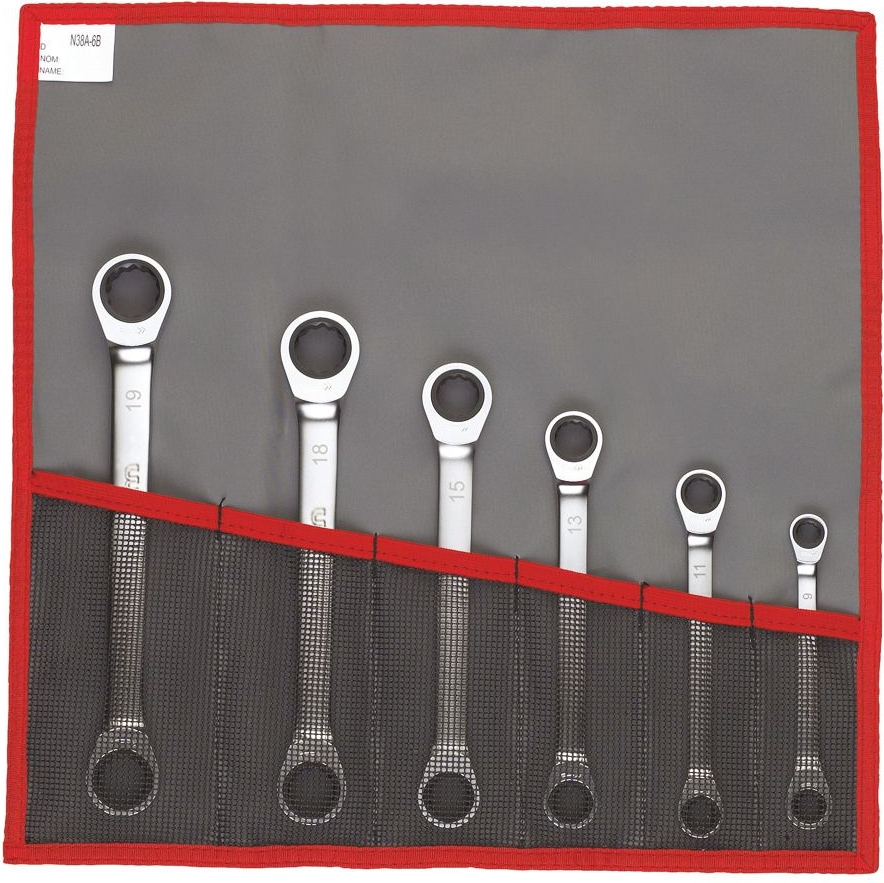

8x9, 10x11, 12x13, 14x15, 16x18, 17x19 |
- |
Roll: N.38A-6B |
825 |
||
|
- |
1/4x5/16, 3/8x7/16, 1/2x9/16, 5/8x11/16, 3/4x13/16, 7/8x15/16 |
Roll: N.38A-6B |
1161 |
||
|
6x7, 8x9, 10x11, 12x13, 14x15, 16x18, 17x19 |
- |
PL.608A |
1153 |
