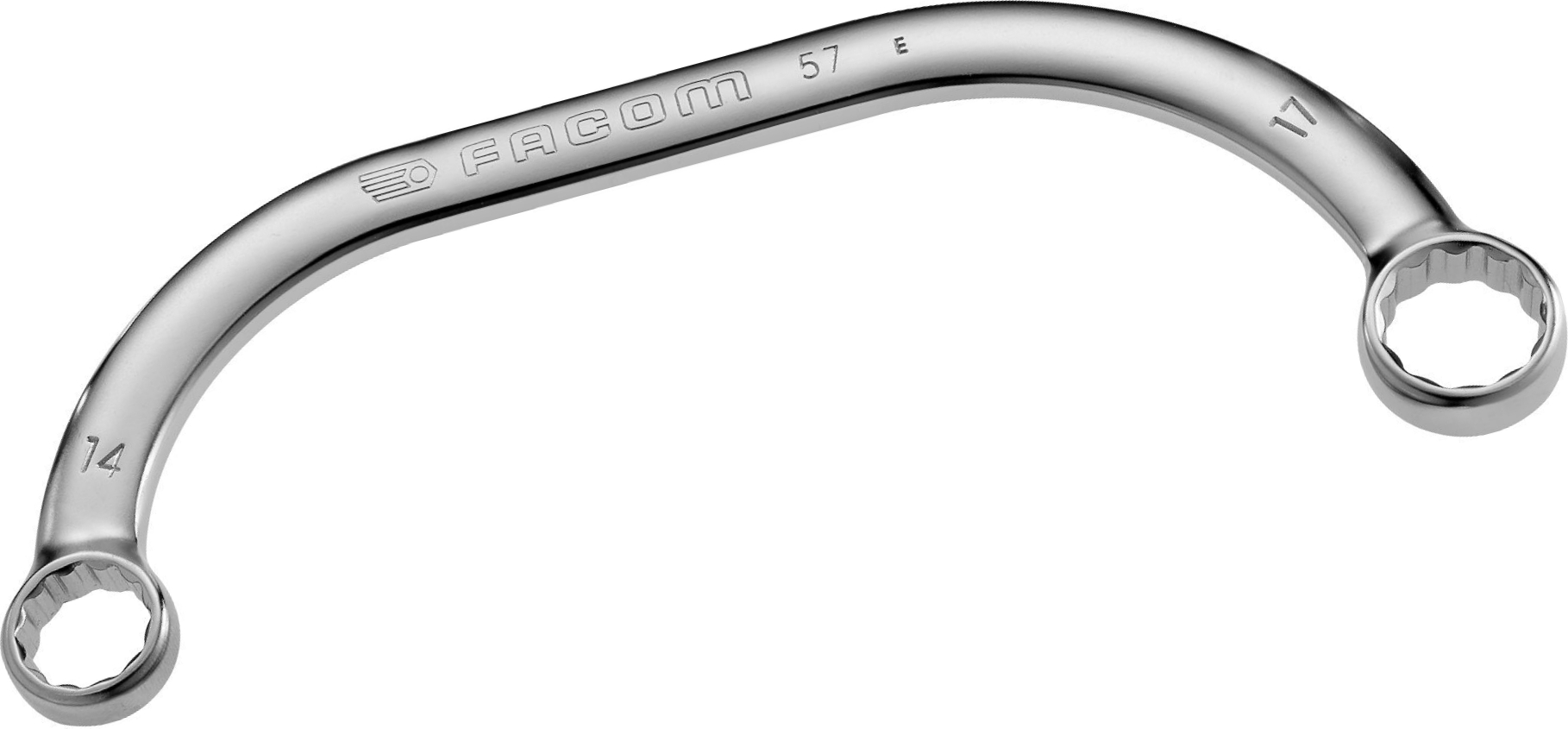

HALF-MOON RING WRENCHES

Learn more

Standards: NF ISO 3318, NF ISO 1711-1, NF ISO 691, ISO 3318, ISO 1711-1, ISO 691, DIN ISO 1711-1, DIN ISO 691
The shape allows to manoeuvre nuts inaccessible with a classical tool.
OGV® profile with 12-point ring for powerful tightening while protecting the nut.
Presentation: satin chrome finish.

References:

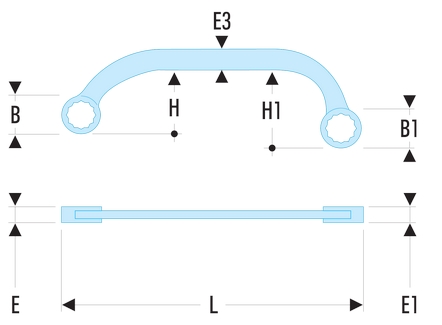

		Size (mm)	B X B1 (mm)	E X E1 (mm)	E3 (mm)	H X H1 (mm)	L (mm)	Weight (g)
FACOM 57.10X12		10X12	15.2 x 18.0	6.4 x 6.7	9.7	33.0 x 44.2	142	85
FACOM 57.11X13		11X13	18.2 x 21.1	7.9 x 8.4	11.3	43.8 x 55.3	165	85
FACOM 57.13X15		13X15	22.0 x 25.0	8.1 x 9.2	13.3	54.5 x 66.0	191	100
FACOM 57.14X16		14X16	22.0 x 25.0	8.1 x 9.2	13.3	54.5 x 66.0	191	180
FACOM 57.14X17		14X17	22.0 x 25.0	8.1 x 9.2	13.3	54.5 x 66.0	191	180
FACOM 57.15X17		15X17	25.2 x 27.8	9.0 x 10.0	13.8	56.0 x 67.2	220	180
FACOM 57.16X18		16X18	25.2 x 27.8	9.0 x 10.0	13.8	56.0 x 67.2	220	215
FACOM 57.19X22		19X22	28.2 x 32.2	9.9 x 11.3	15.5	66.5 x 78.5	255	280

HALF-MOON RING WRENCHES

Learn more

Standards: NF ISO 3318, NF ISO 1711-1, NF ISO 691, ISO 3318, ISO 1711-1, ISO 691, DIN ISO 1711-1, DIN ISO 691
The shape allows to manoeuvre nuts inaccessible with a classical tool.
OGV® profile with 12-point ring for powerful tightening while protecting the nut.
Presentation: satin chrome finish.

References:

			Sizes (mm)	Case	Qty	Weight (g)

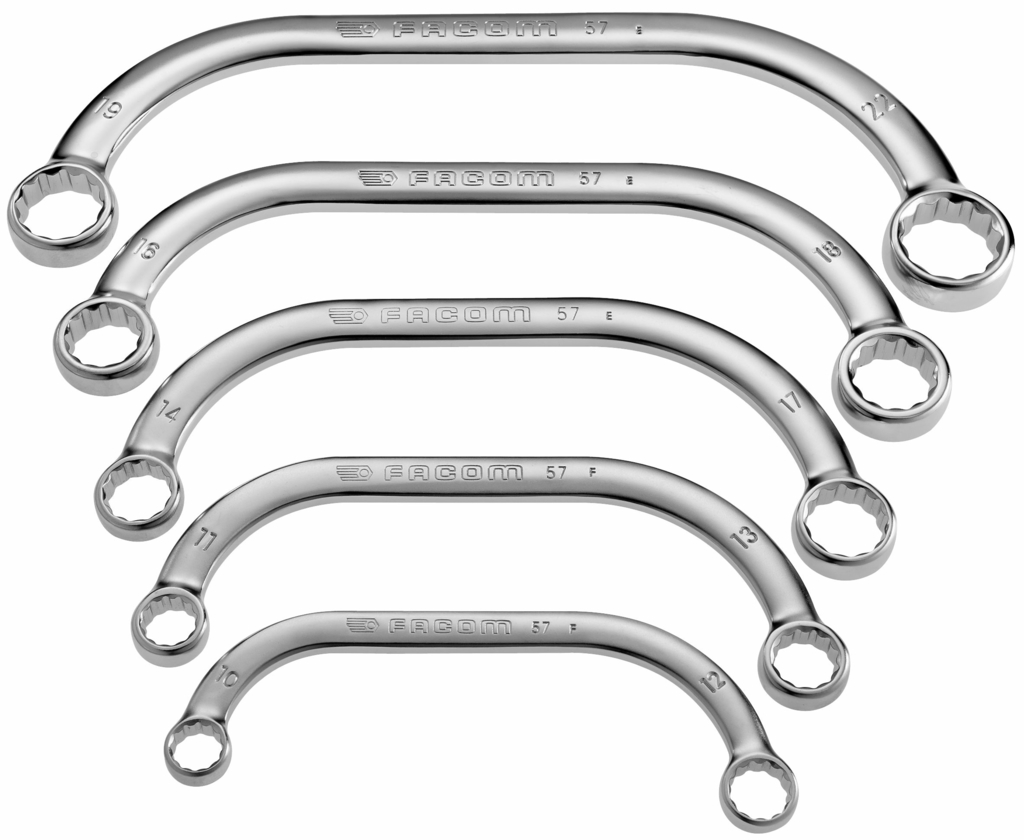

FACOM 57.JE5			10x12, 11x13, 14x17, 16x18, 19x22	Carton box	5	740
