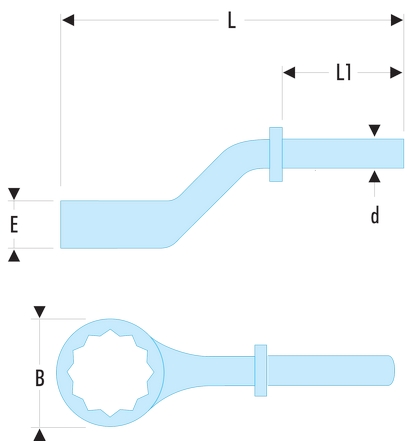

Size (mm) |
B (mm) |
D (mm) |
E (mm) |
L (mm) |
L3 (mm) |
Weight (g) |
||
---|---|---|---|---|---|---|---|---|
24 |
38 |
18.5 |
17 |
180 |
555 |
380 |
||
30 |
48 |
18.5 |
18 |
200 |
565 |
550 |
||
32 |
49 |
21.5 |
18 |
235 |
730 |
700 |
||
36 |
54 |
21.5 |
20 |
245 |
735 |
840 |
||
41 |
62 |
21.5 |
22 |
265 |
748 |
1000 |
||
46 |
69 |
24.5 |
23 |
280 |
910 |
1300 |
||
50 |
76 |
24.5 |
25.5 |
290 |
920 |
1500 |
||
55 |
81 |
24.5 |
28 |
300 |
925 |
1500 |
||
60 |
90 |
29.5 |
30.5 |
345 |
1050 |
2300 |
||
65 |
98 |
29.5 |
33 |
355 |
1060 |
2400 |
||
70 |
105 |
29.5 |
35.5 |
365 |
1065 |
2800 |

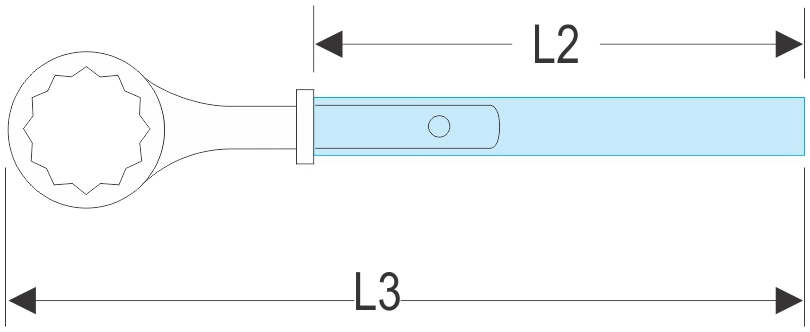

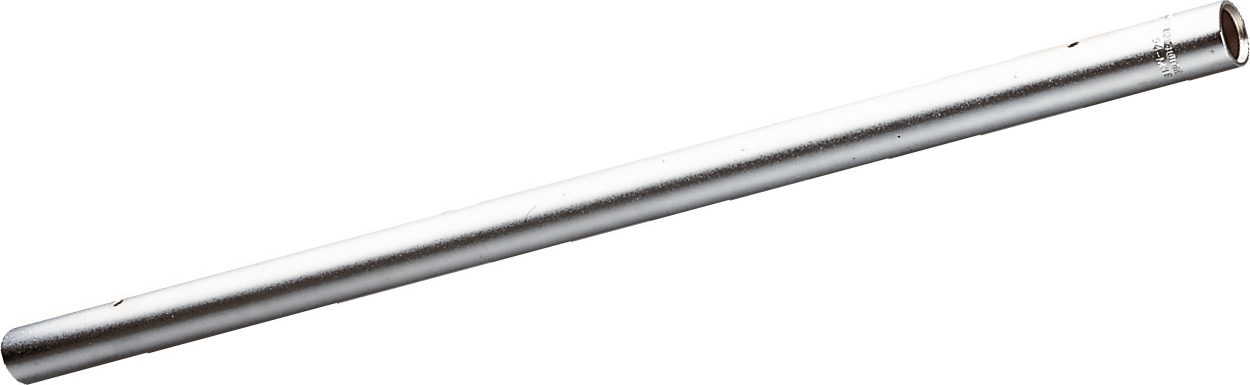

L2 (mm) |
For wrenches |
Weight (g) |
||
---|---|---|---|---|
460 |
54A.24, 54A.30 |
613 |
||
610 |
54A.32, 54A.36, 54A.41 |
1105 |
||
760 |
54A.46, 54A.50, 54A.55 |
2748 |
||
860 |
54A.60, 54A.65, 54A.70 |
2862 |
