Castor Trading - FACOM Straight series

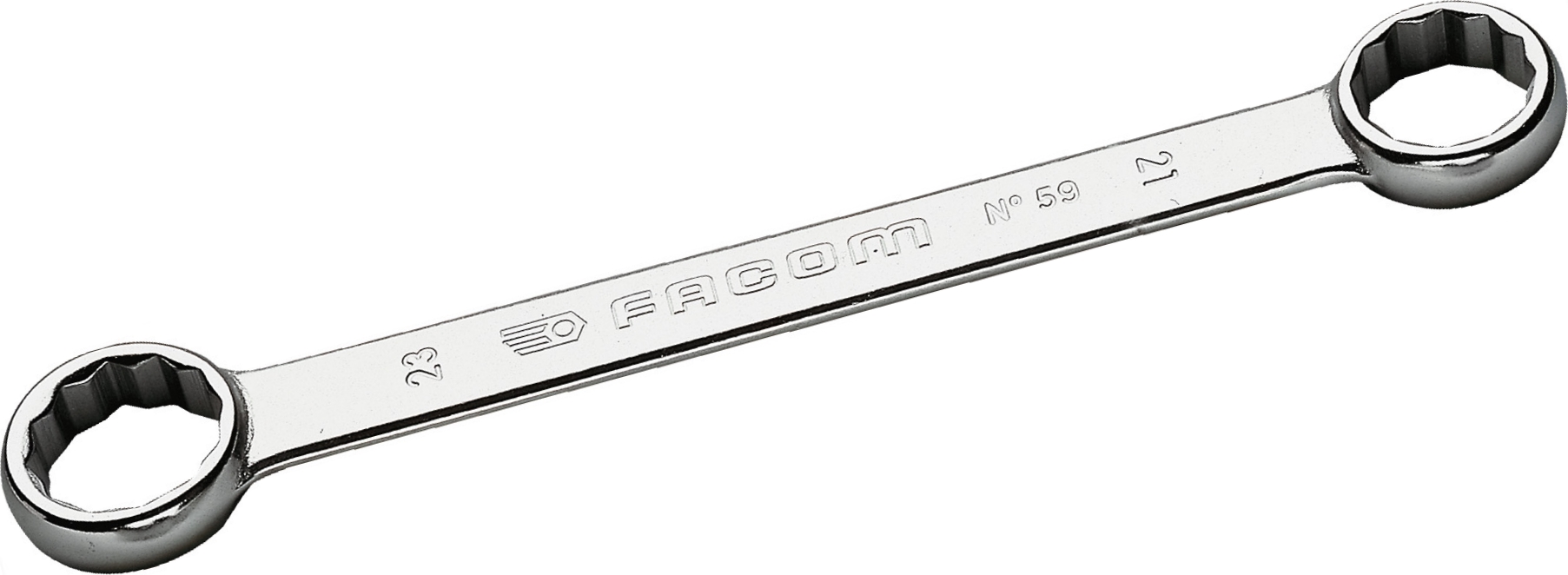

METRIC STRAIGHT RING WRENCHES

Learn more

Standards: NF ISO 10103, NF ISO 1711-1, NF ISO 691, ISO 10103, ISO 1711-1, ISO 691, DIN 837, DIN ISO 1711-1, DIN ISO 691
Slim heads and short shank allows to work in dense mechanical assemblies.
OGV® profile with 12-point ring for powerful tightening while protecting the nut.
Presentation: satin chrome finish.

References:

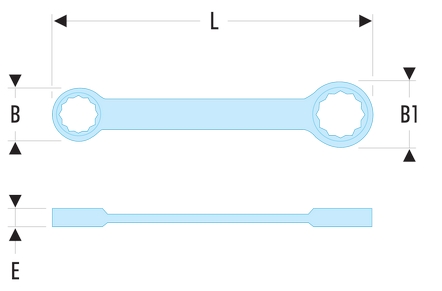

		Size (mm)	B X B1 (mm)	E (mm)	L (mm)	Weight (g)
FACOM 59.6X7		6X7	10.8 x 12.0	5	120	10
FACOM 59.8X9		8X9	13.2 x 14.5	5.5	135	16
FACOM 59.10X11		10X11	15.8 x 17.2	6.4	150	28
FACOM 59.12X13		12X13	19.8 x 21.2	7.2	165	40
FACOM 59.14X15		14X15	21.2 x 24.4	7.9	185	50
FACOM 59.16X17		16X17	24.2 x 26.5	8.5	210	65
FACOM 59.18X19		18X19	27.0 x 28.6	9.2	225	80
FACOM 59.21X23		21X23	30.5 x 33.6	9.9	240	130
FACOM 59.22X24		22X24	32.0 x 35.2	10.6	255	130
FACOM 59.26X28		26X28	36.5 x 39.2	11.3	270	230
FACOM 59.27X29		27X29	39.2 x 43.6	12.6	315	270
FACOM 59.30X32		30X32	45.0 x 48.0	13.8	335	280

METRIC STRAIGHT RING WRENCHES

Learn more

Standards: NF ISO 10103, NF ISO 1711-1, NF ISO 691, ISO 10103, ISO 1711-1, ISO 691, DIN 837, DIN ISO 1711-1, DIN ISO 691
Slim heads and short shank allows to work in dense mechanical assemblies.
OGV® profile with 12-point ring for powerful tightening while protecting the nut.
Presentation: satin chrome finish.

References:

			Sizes (mm)	Case	Qty	Weight (g)

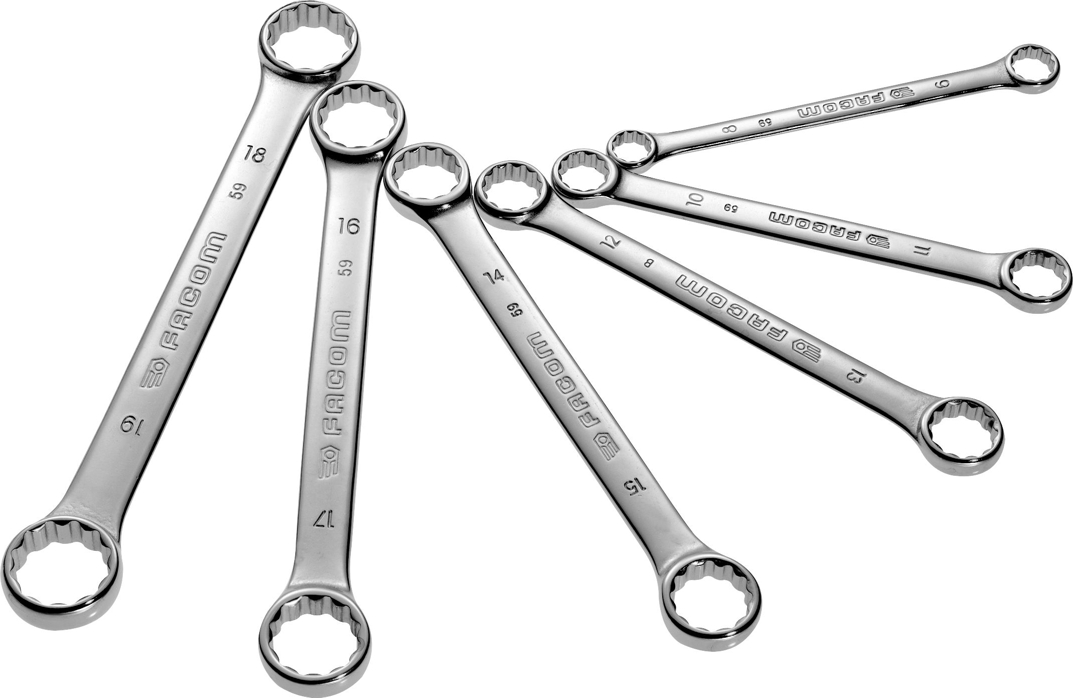

FACOM 59.JN6			8x9, 10x11, 12x13, 14x15, 16x17, 18x19	Carton box	6	508

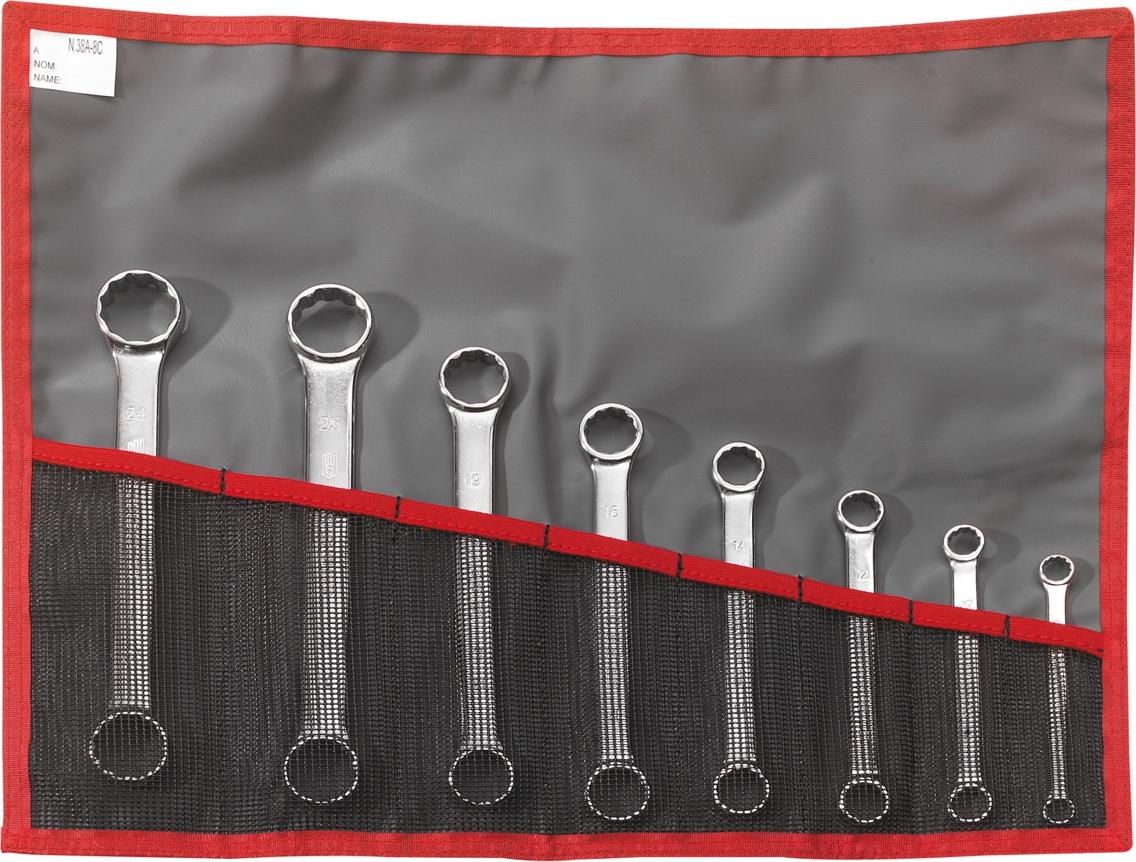

FACOM 59.JN8T			8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 21x23, 22x24	Roll: N.38A-8C	8	1062

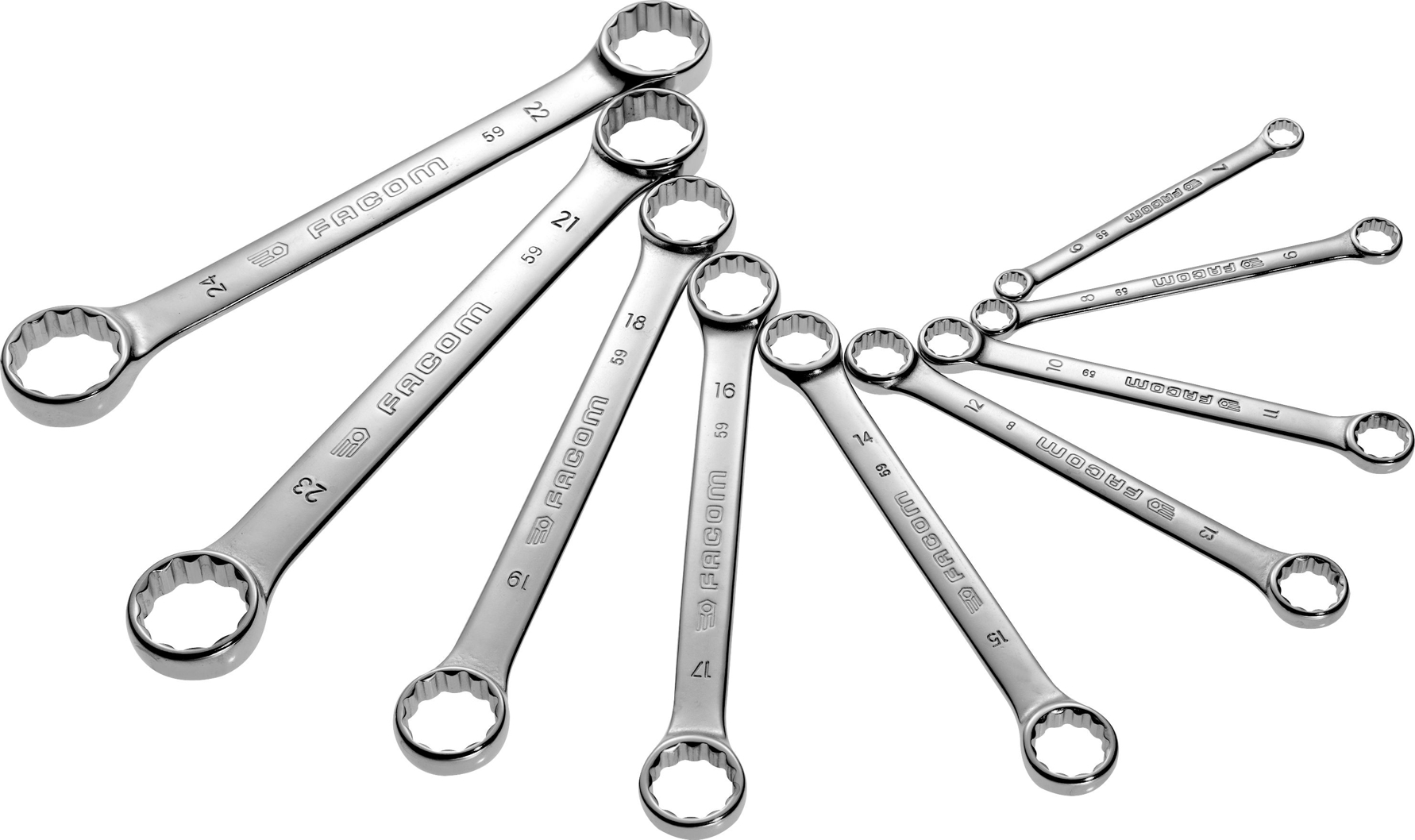

FACOM 59.JE12			6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 21x23, 22x24, 26x28, 27x29, 30x32	Carton box	12	2382

TORX STRAIGHT RING WRENCHES

Learn more

Torx pattern with 30° increments by reversing the tool.
"Tear-drop" profile of ring outer walls ensures even stress distribution and higher strength.
Polished chrome finish.

References:

		Size	B X B1 (mm)	E X E1 (mm)	L (mm)	Weight (g)
FACOM 59TX.6X8		E6 x E8	9.1 x 11.1	5.2 x 6.3	113	15
FACOM 59TX.10X12		E10 x E12	12.7 x 14.8	7.0 x 8.2	141	35
FACOM 59TX.14X18		E14 x E18	17.3 x 21.8	8.0 x 9.5	181	65
FACOM 59TX.20X24		E20 x E24	24.6 x 28.7	11.0 x 13.5	224	190

TORX STRAIGHT RING WRENCHES

Learn more

Torx pattern with 30° increments by reversing the tool.
"Tear-drop" profile of ring outer walls ensures even stress distribution and higher strength.
Polished chrome finish.

References:

			Sizes	Case	Qty	Weight (g)
FACOM 59TX.J4			E6xE8, E10xE12, E14xE18, E20xE24	Carton box	4	368
