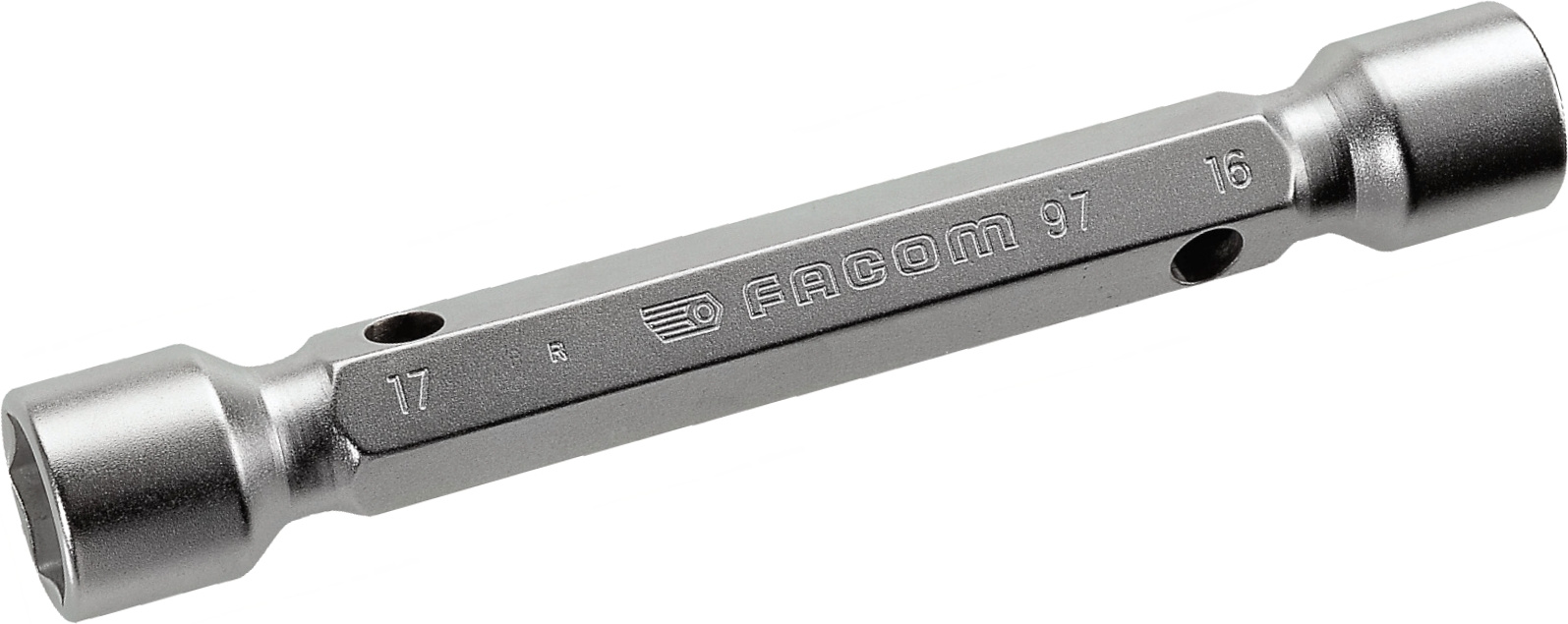

METRIC DOUBLE-ENDED FORGED SOCKET WRENCH

Learn more

Standards: NF ISO 2236, NF ISO 691, ISO 2236, ISO 691, DIN 896, DIN ISO 691
Dual-size tool.
Hollow body allows insertion over long threaded rods.
For use with bars 160A.
6-point sockets, hexagon tubing.

References:

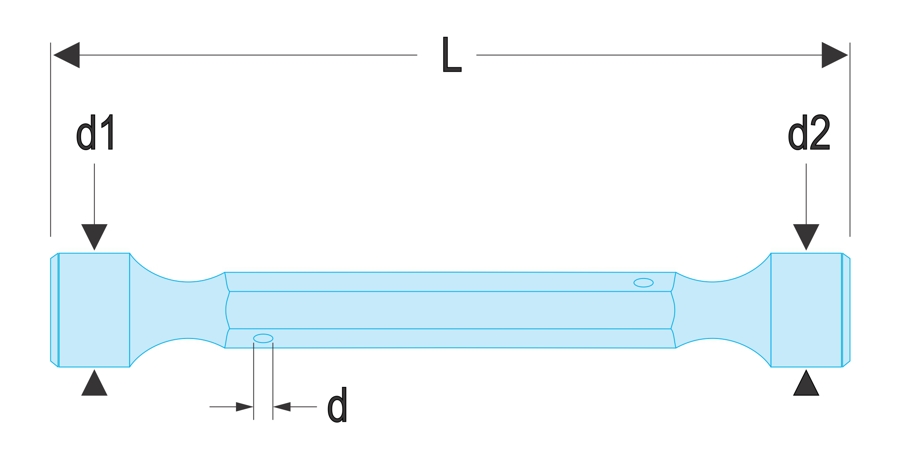

		Size (mm)	D (mm)	D1 (mm)	D2 (mm)	L (mm)	Weight (g)
FACOM 97.6X7		6x7	4	9.5	10.7	110	35
FACOM 97.8X9		8x9	4	12.5	14	120	50
FACOM 97.10X11		10x11	6	15	16	130	65
FACOM 97.12X13		12x13	6	17.5	19	140	110
FACOM 97.14X15		14x15	6.5	20	21.5	150	140
FACOM 97.16X17		16x17	8.2	22.7	24	160	190
FACOM 97.18X19		18x19	8.2	25.2	26.5	170	240
FACOM 97.20X22		20x22	10.2	27.7	30.2	180	260
FACOM 97.21X23		21x23	10.2	29	31.2	185	295
FACOM 97.24X26		24x26	12.5	33	35.5	190	415
FACOM 97.27X29		27x29	12.5	37	39.5	200	505
FACOM 97.30X32		30x32	12.5	40.5	43	200	630

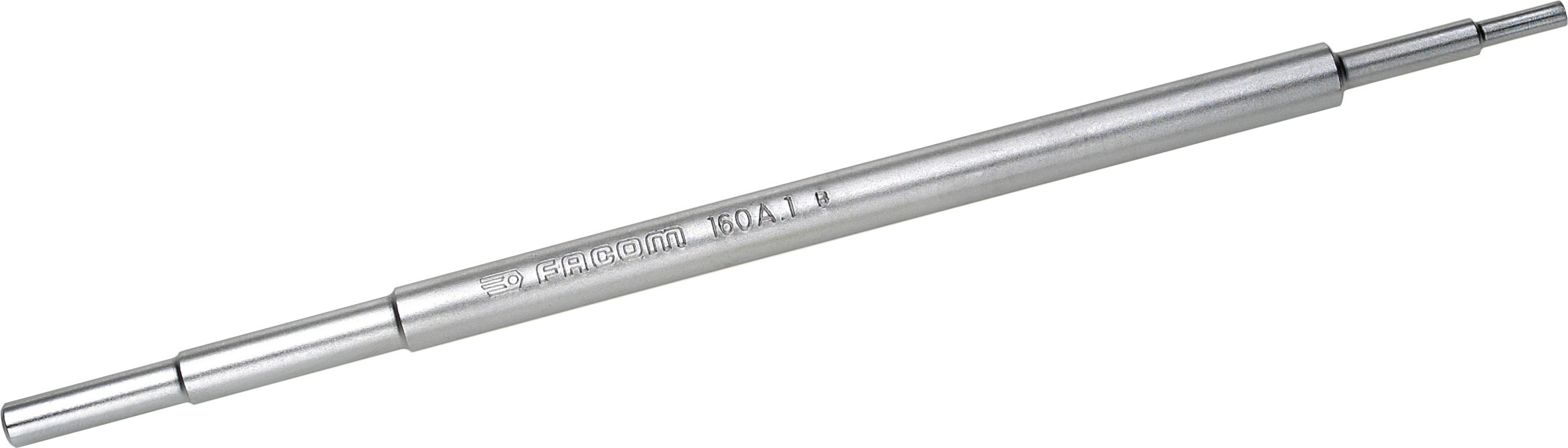

BARS FOR WRENCHES

Learn more

Hardened chrome steel.
Satin chrome finish.

References:

		D1 (mm)	D2 (mm)	D3 (mm)	D4 (mm)	D5 (mm)	Length (mm)	Weight (g)
FACOM 160A.1		3.8	5.25	9	7.4	6.25	220	80
FACOM 160A.2		10.75	12.25	13	-	-	300	280

METRIC DOUBLE-ENDED FORGED SOCKET WRENCH

Learn more

Standards: NF ISO 2236, NF ISO 691, ISO 2236, ISO 691, DIN 896, DIN ISO 691
Dual-size tool.
Hollow body allows insertion over long threaded rods.
For use with bars 160A.
6-point sockets, hexagon tubing.

References:

			Size (mm)	Qty	Case	Weight (g)

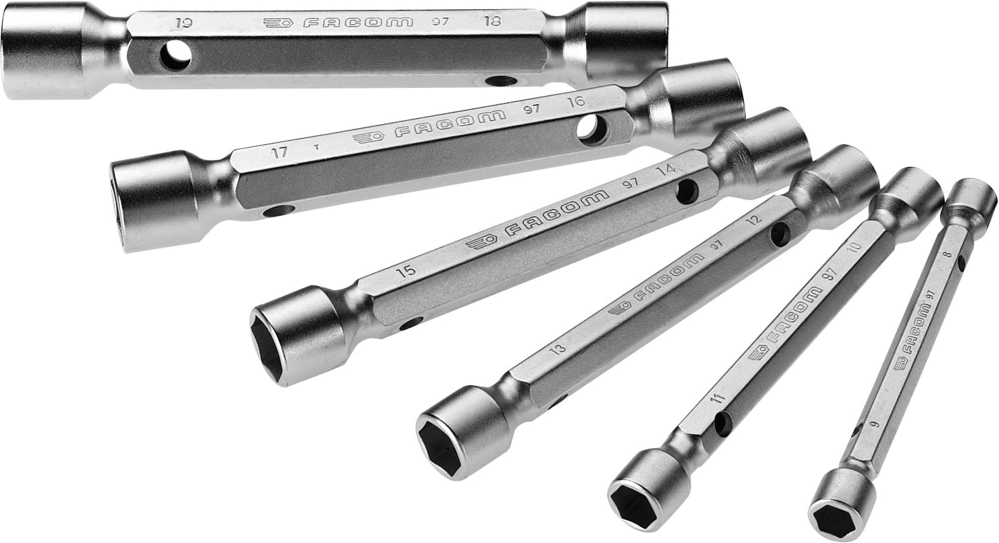

FACOM 97.JE6			8x9, 10x11, 12x13, 14x15, 16x17, 18x19	6	Carton box	808

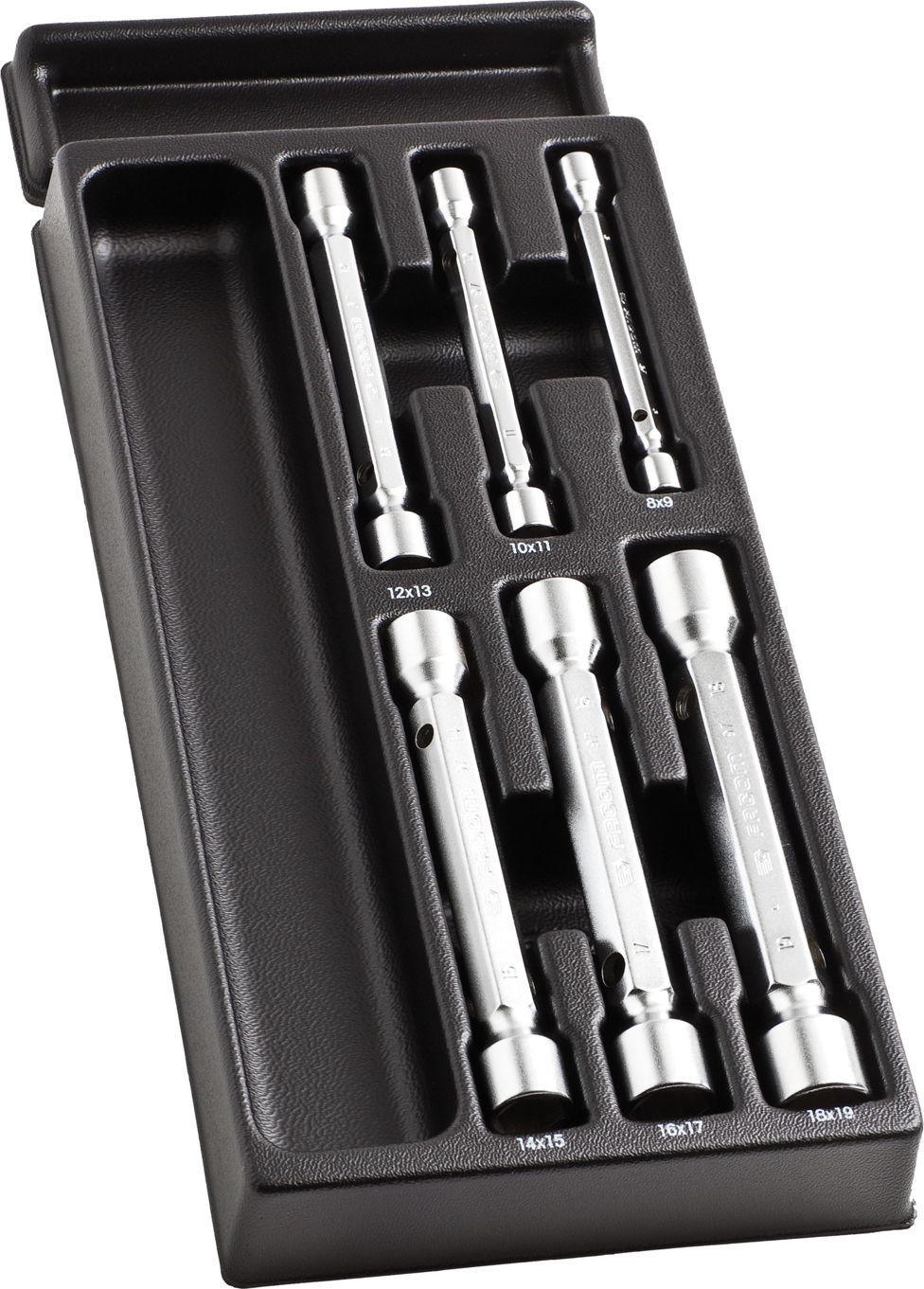

FACOM MOD.97			8x9, 10x11, 12x13, 14x15, 16x17, 18x19	6	Plastic tray: PL.359	1014
