Castor Trading - FACOM Universal joint tee socket wrenches

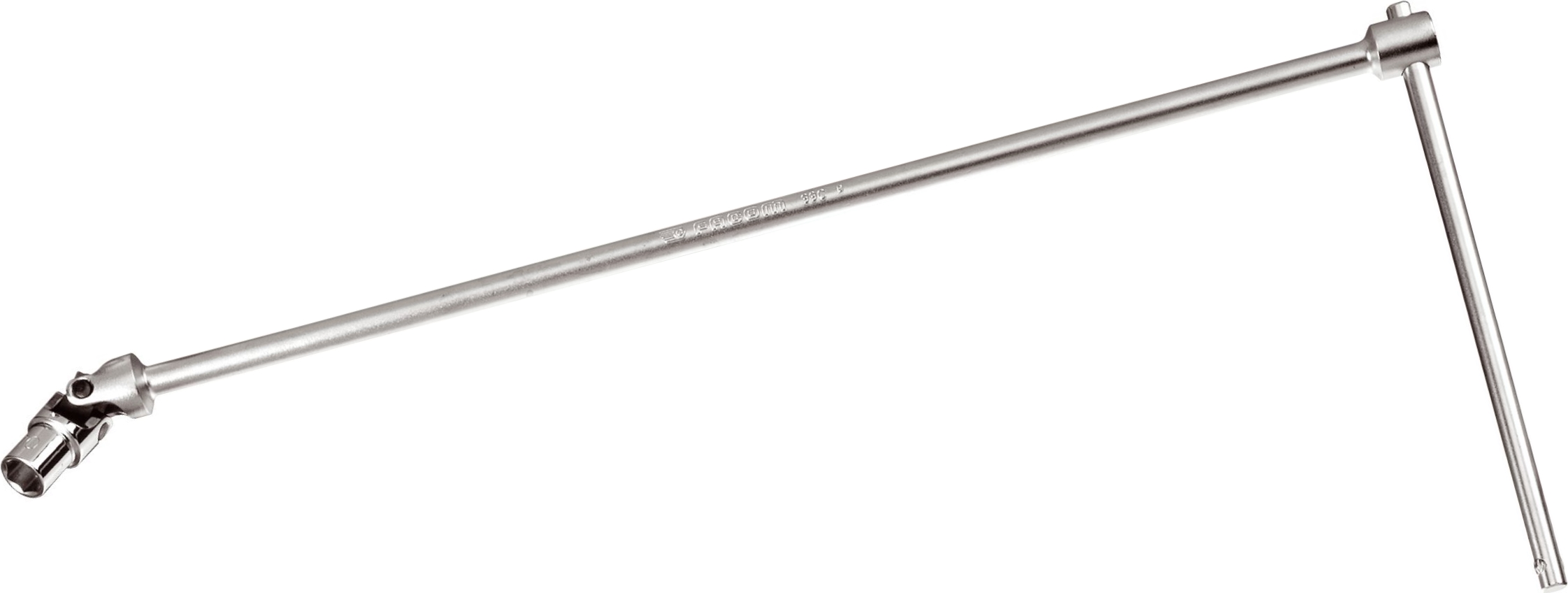

UNIVERSAL JOINT TEE SOCKET WRENCHES

Learn more

Standards: NF ISO 2236, NF ISO 691, ISO 2236, ISO 691, DIN 896, DIN ISO 691
The universal joint allows a working angle allowing better access.
The socket is held in position tanks spring locking.
Presentation: satin chrome and polished chrome for the socket.

References:

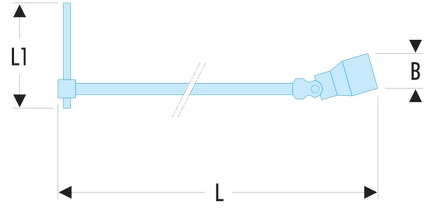

		Size (mm)	B (mm)	L (mm)	L1 (mm)	Weight (g)
FACOM 99C.6		6	10.3	399	165	225
FACOM 99C.7		7	10.3	399	165	225
FACOM 99C.8		8	12.6	399	165	225
FACOM 99C.9		9	13.8	399	175	225
FACOM 99C.10		10	15	431	175	325
FACOM 99C.11		11	16.5	431	175	325
FACOM 99C.12		12	17.5	434	175	335
FACOM 99C.13		13	19	466	175	415
FACOM 99C.14		14	20.5	466	175	430
FACOM 99C.15		15	21.7	498	180	545
FACOM 99C.16		16	23	499	180	560
FACOM 99C.17		17	24	499	180	560
FACOM 99C.18		18	24.7	501	180	570
FACOM 99C.19		19	26	523	220	860

UNIVERSAL JOINT TEE SOCKET WRENCHES

Learn more

Standards: NF ISO 2236, NF ISO 691, ISO 2236, ISO 691, DIN 896, DIN ISO 691
The universal joint allows a working angle allowing better access.
The socket is held in position tanks spring locking.
Presentation: satin chrome and polished chrome for the socket.

References:

			Sizes (mm)	Case	Qty	Weight (g)

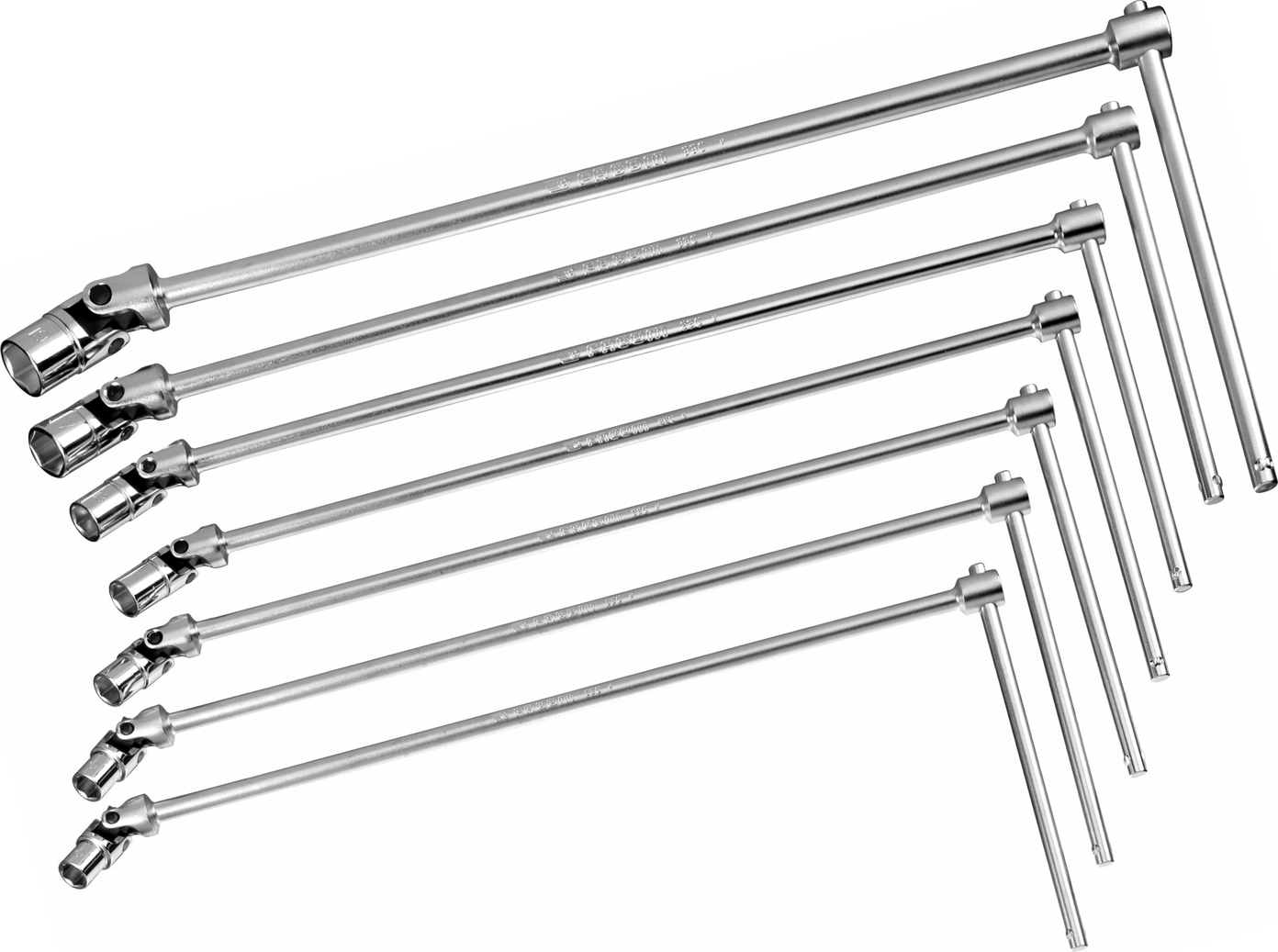

FACOM 99C.JE8			8, 9, 10, 11, 12, 13, 14, 17	Supplied in a carton box	8	3138
FACOM 99C.JE12			7, 8, 9, 10, 11, 12, 13, 14, 16, 17, 18, 19	Supplied in a carton box	12	5293
