- FEATURES:
- Compact and sturdy structure fully made of welded steel.
- Shafts made of specially treated and chromium-plated steel.
- Spring made of steel inside the cylinder for a rapid return of the shaft.
- Two-speed manual pump: fast when approaching and precise when working.
- Complete with oil.
- Knob on the pump to control both speeds.
- Maximum versatility thanks to the height-adjustable table.
- Supplied with a pin-extracting plate and a pair of V-blocks.
- SPECIFICATIONS:

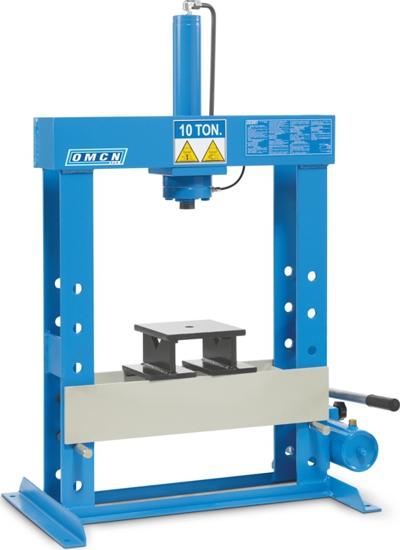

- Capacity: 10 tons.
- Total height: 1210 mm.
- Total width: 895 mm.
- Total depth: 500 mm.
- Working width: 520 mm.
- Working height: 370 mm.
- Weight: 104 kg.
- FEATURES:
- The presses are fitted with a two-approach-speed pump with the automatic return of the ram. By closing the two hand-wheels, one gets the rapid feed. By opening the upper hand-wheel, one gets the high pressure.
- Complete with oil.
- Shafts are in treated and chromium-plated special steel.
- Maximum versatility thanks to the height-adjustable table.
- Supplied with a pin-extracting plate and a pair of V-blocks.
- SPECIFICATIONS:

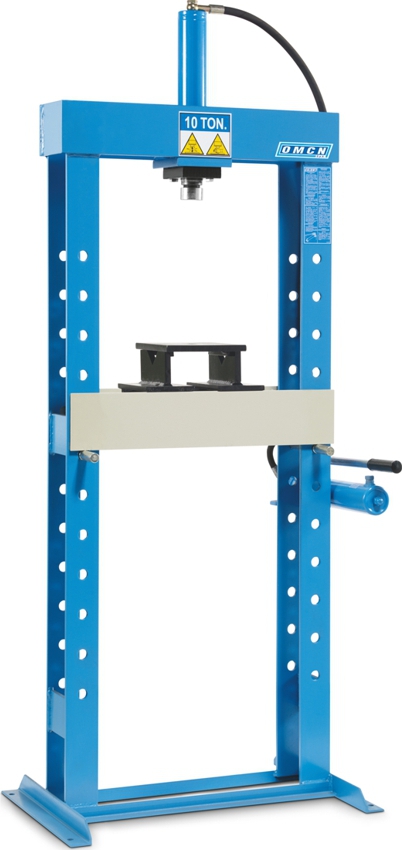

- Capacity: 10 tons.
- Total height: 1900 mm.
- Total width: 910 mm.
- Total depth: 500 mm.
- Working width: 520 mm.
- Working height: 980 mm.
- Weight: 124 kg.
- FEATURES:
- The presses are fitted with a two-approach-speed pump with the automatic return of the ram. By closing the two hand-wheels, one gets the rapid feed. By opening the upper hand-wheel, one gets the high pressure.
- Complete with oil.
- Shafts are in treated and chromium-plated special steel.
- Maximum versatility thanks to the height-adjustable table.
- Complete with plate, V blocks.
- SPECIFICATIONS:

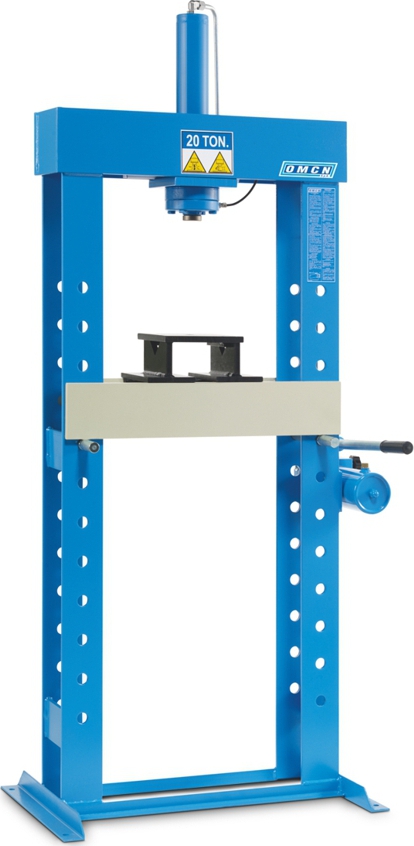

- Capacity: 20 tons.
- Total height: 1920 mm.
- Total width: 930 mm.
- Total depth: 500 mm.
- Working width: 505 mm.
- Working height: 930 mm.
- Weight: 150 kg.
- FEATURES:
- The presses are fitted with a manometer and a two-approach-speed pump with the automatic return of the ram. By closing the two hand-wheels, one gets the rapid feed. By opening the upper hand-wheel one gets the high pressure.
- Complete with oil.
- Equipped with winch for the hoisting of the working-table.
- Shafts are in treated and chromium-plated special steel.
- Supplied with a large diameter manometer.
- Delivered with no punch tools.
- SPECIFICATIONS:

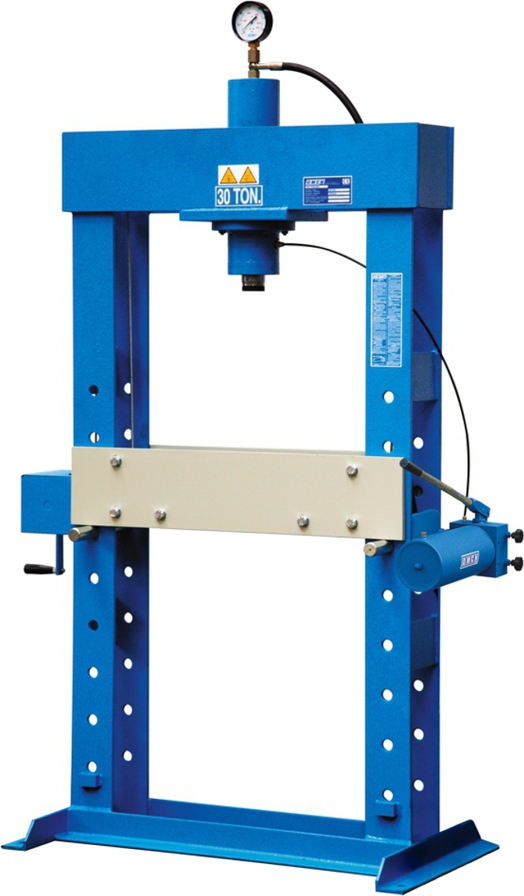

- Capacity: 30 tons.
- Total height: 2000 mm.
- Total width: 1300 mm.
- Total depth: 600 mm.
- Working width: 695 mm.
- Working height: 1000 mm.
- Weight: 280 kg.
- FEATURES:
- Compact and sturdy structure fully made of welded steel.
- Shafts made of specially treated and chromium-plated steel.
- Spring made of steel inside the cylinder for a rapid return of the shaft.
- Two-speed manual pump: fast when approaching and precise when working.
- Complete with oil.
- Knob on the pump to control both speeds.
- Equipped with winch to raise easily and quickly the workbench.
- Supplied with a large diameter manometer.
- SPECIFICATIONS:

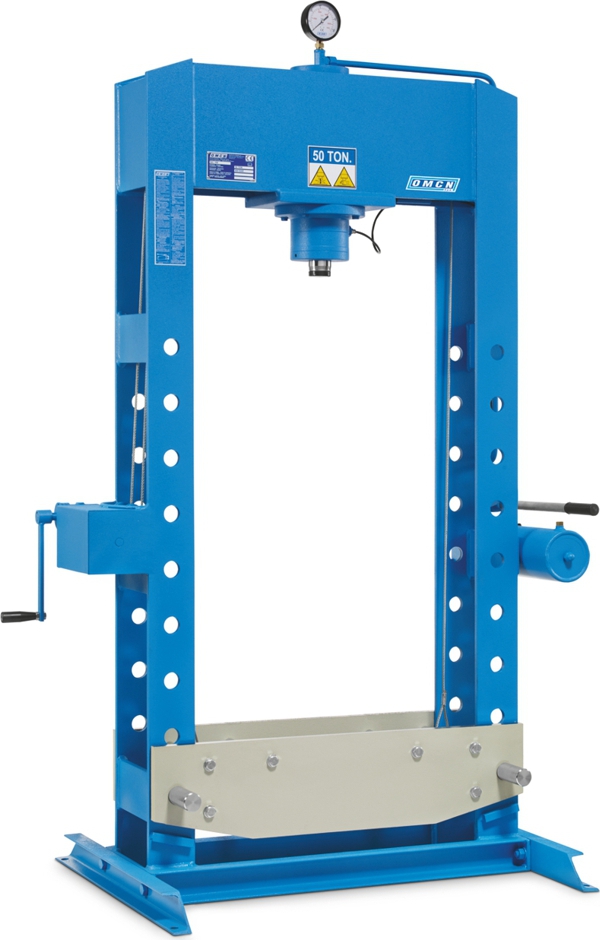

- Capacity: 50 tons.
- Total height: 2110mm.
- Total width: 1420mm.
- Total depth: 850mm.
- Working width: 770mm.
- Working height: 1135mm.
- Weight: 455 kg.
