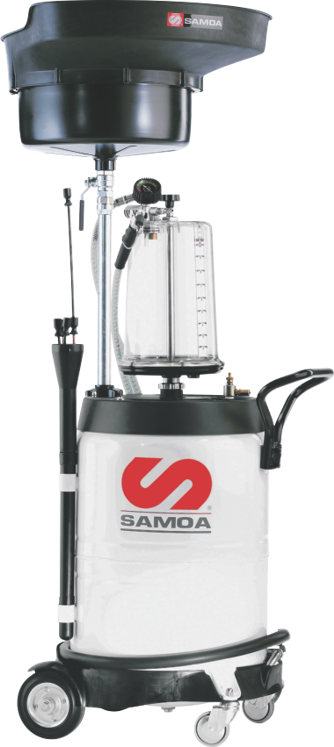

Castor Trading - SAMOA 372000 COMBINED WASTE OIL SUCTION AND GRAVITY UNIT

×

COMBINED WASTE OIL SUCTION AND GRAVITY UNIT

100 LITERS CAPACITY

Mobile units that allow the collection of waste oil by gravity and by suction.
100 l (26 gallons) capacity, with side level gauge.
360 positionable oversized extension for wider reach.
Anti splash grid that can hold used filters for draining.
One piece moulded spoiler for securing the discharge hose.
Large tray for tools, washers, filters, etc. on top of the tank, with special holders for suction connectors.

FEATURES

Composite and steel telescopic 20 liters collection bowl.
The unit can be used as autonomous unit, disconnected from the air supply, once the vacuum inside their tank is created.
The unit is discharged through a discharge hose, pressurizing the unit at 0.5 bar (3.5 psi) with a tyre gauge.
Two reinforced castors and two reinforced wheels.
High performance and low noise vacuum pump.

INCLUDES

2.0 m suction hose with rubber handle and a set of connectors and probes and probe holder 737 972.
Safety valve, for avoiding overpressure.
Includes a 10 l transparent chamber that can be used as a vacuum reservoir and allows an immediate inspection of the waste oil sucked out.

SPECIFICATIONS

Nominal capacity: 100 liters (26 gallons)
Collection method: Gravity and suction
Collection bowl capacity: 20 liters
Suction hose length: 2m
Discharge method: Pressure discharge
Discharge pressure: 0.5 bar
Transparent chamber capacity: 10 liters
