- Capacity: 500 cc
- Universal pumps to be used with 400 gr / 14 oz grease cartridges or with bulk grease.
- Bulk grease loading by suction, or using a filler pump.
- Heavy duty cast iron head with precision fit piston.
- Maximum working pressure above 300 bar.
- Barrel manufactured with heavy gauge precision steel tube.
- Large barrel threads for fast and easy reloading.
- Follower plate fastening by ratchet.
- lever action grease pump
- Includes Filler valve 128 003 and rigid stem with a four jaw hydraulic type connector (710 214).
- High pressure, 60:1 pressure ratio, air operated grease pumps.
- They can be connected to a compressed air line or to an air brake circuit of a comercial vehicle.
- Delivery: 1 cc each time the trigger is pressed.
- Maximum air pressure: 10 bar, Air connection thread 1/4" BSP (F).
- Includes a 500 cc barrel with a spring driven grease follower.
- Three way loading: 400 gr (14 oz) grease cartridges, bulk grease suction or with a grease filler pump.
- Supplied with 400 mm double steel braid reinforced outlet hose and 4 jaw connector and filler nipple.
- High pressure, 60:1 pressure ratio, air operated grease pumps.
- They can be connected to a compressed air line or to the air brake circuit of a commercial vehicle.
- Delivery: 1 cc each time the trigger is pressed.
- Maximum air pressure: 10 bar, Air connection thread 1/4" BSP (F).
- Includes a 1000 cc barrel with an air driven grease follower.
- Recommended for high viscosity grease and low temperatures.
- Supplied with 400 mm double steel braid reinforced outlet hose with 4 jaw connector (PN 141 040) and filler nipple.

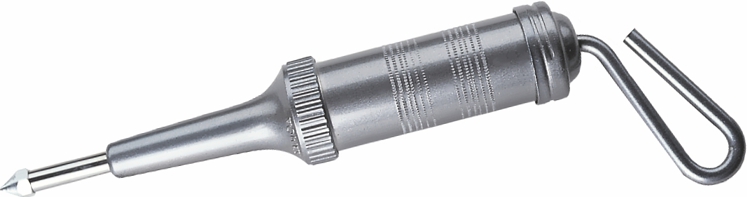

- Bulk grease loading using a grease filler pump.
- Operates when pushed on grease nipples.
- Bulk grease loading, 130 cc barrel.
- Includes Zerk and cupped nozzles.
- Maximum working pressure: 200 bar (2.900 psi).
- Heavy duty high capacity grease pump with 3 alternative lever positions
- Can be used under any operating conditions and with all type of lubricants (winter/summer, high or low viscosity grease, oil).
- Maximum pressure range between 175 to 350 bar (2500 to 5000 psi)
- With a delivery of 20 gr, 15 gr or 10 gr per stroke depending on the position of the lever chosen.
- Steel and leak proof 16 Kg container with oval shape for easy handling and stability.
- Pump includes 1.5 m high pressure hose with a 3-jaw hydraulic connector.

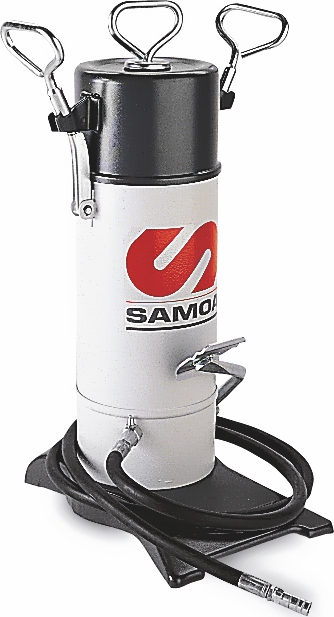

- Pedal action heavy-duty grease pump.
- Spring primed follower plate and cast iron pump mechanism ensures that the pump can be used even with extremely viscous grease.
- Maximum pressure: 500 bar (7,150 psi).
- Delivery per pedal stroke: 2 gr.
- Steel leak proof reservoir, can hold up to 5 kg of grease.
- Includes air bleeder valve and 2 m high pressure grease hose with a four jaw hydraulic connector with check valve.
- For use with greasing units on hydraulic type nipples (DIN 71412).
- Connector head and jaws manufactured in hardened steel.
- Button head connectors
- For use with button head nipples.
- Maximum pressure: 400 bar.
- Recommended with hand equipment at maximum pressure 150 bar.
- For ? 15 - 16 mm nipples.
- Button head connectors
- For use with button head nipples.
- Maximum pressure: 400 bar.
- Recommended with hand equipment at maximum pressure 150 bar.
- For ? 22 mm nipples.
- For concave type nipples DIN 3405
- Length: 43 mm
- For concave type nipples DIN 3405.
- For Zerk grease nipples DIN 3402
- Length: 16.60mm
- With retractable safety sleeve
- Length: 96 mm
- For lubrication holes, spindles, U joints
- Length: 49 mm
- For hard to reach greasing points
- Length: 37 mm
- For use with hand operated greasing equipment.
References:
|
|
Maximum working pressure
(bar)
|
Minimum burst pressure
(bar)
|
Threads
(" NPT)
|
Length
(mm)
|
|
|
|
400 |
1000 |
1/8 (M) |
290 |
|
|
|
400 |
1000 |
1/8 (M) |
450 |
