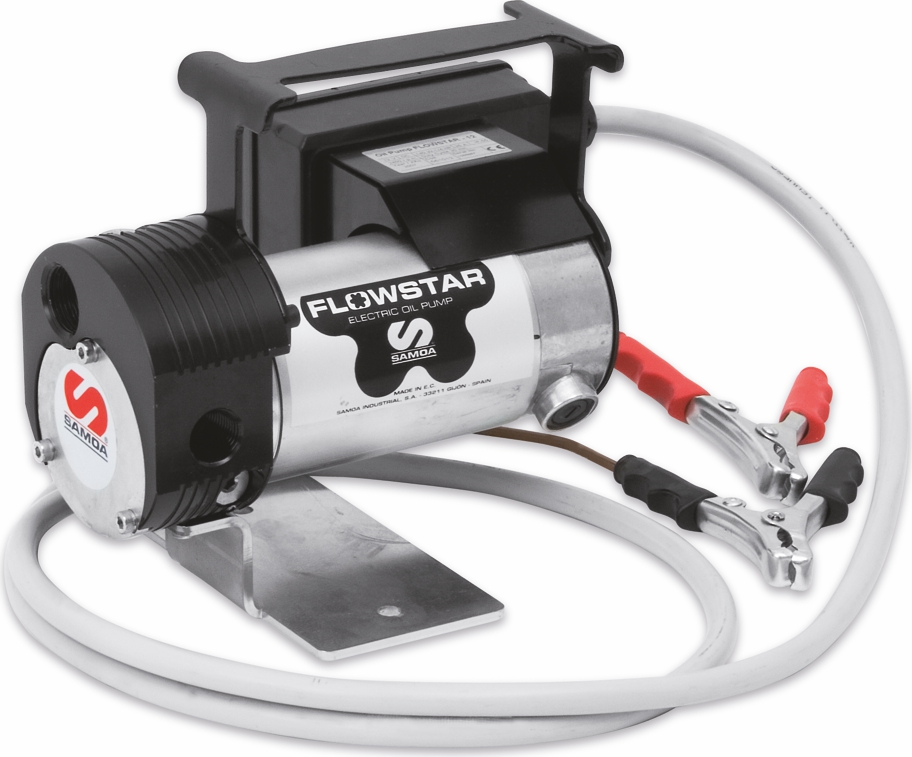

FEATURES:
- Gear pumps for oil up to ISO VG 320 viscosity with DC IP-55 motor.
- Pump gears are manufactured in sintered steel.
- Pump includes carrying handle.
References:
|
|
Voltage
|
Maximum delivery
|
Maximum pressure
|
|
|
|
12V |
5.2 l/min |
11.5 bar |
|
|
|
24V |
5.6 l/min |
12.5 bar |

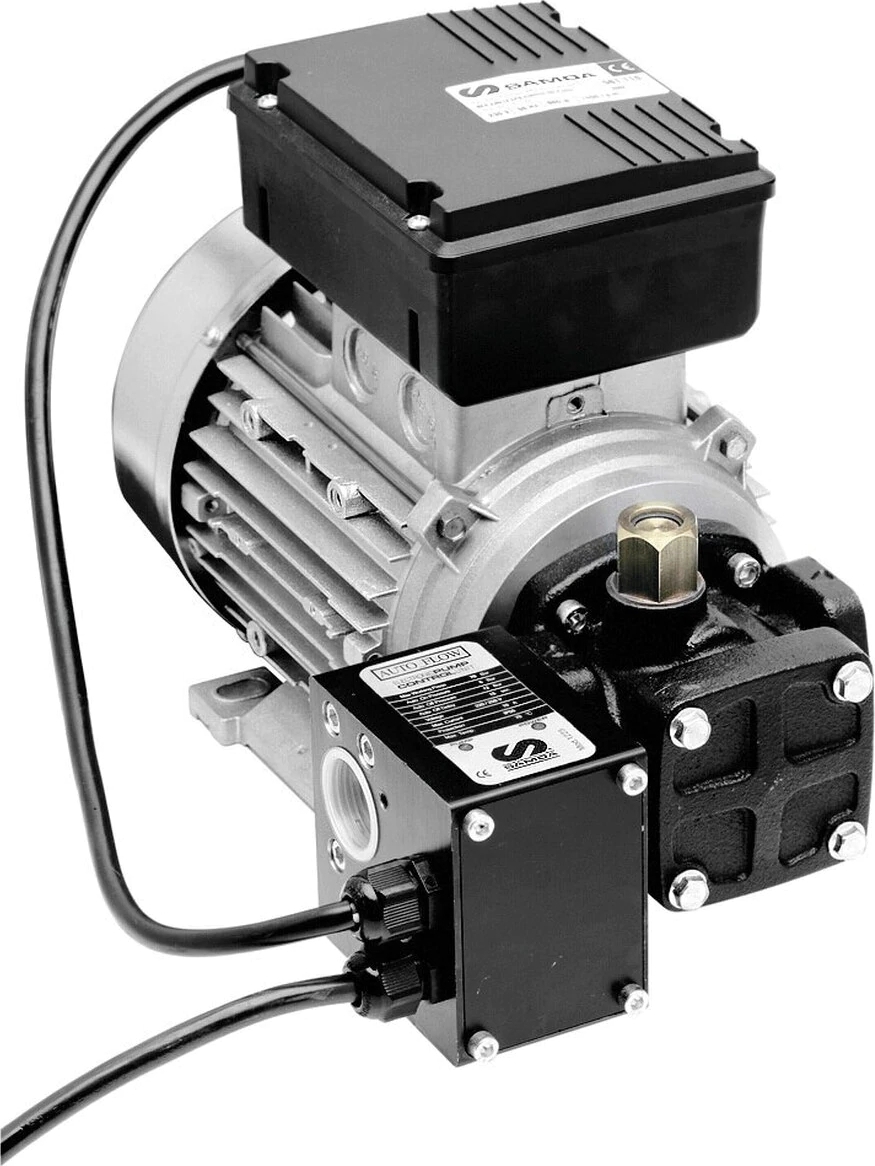

FEATURES:
- Internal gear electric pumps for lubricants.
- 230 V - 50 Hz, IP-55 protection motor with on / off switch.
- Cast iron pump body, sintered steel gears and by-pass valve.
- Motor with mounting feet, the pump can be mounted horizontally on a flat surface or vertically on a wall.
- Pumps include an electric pressure switch that automatically starts the pump once a delivery gun is opened.
- Once the gun is closed and the pressure builds up again in the line, then the pressure switch automatically stops the pump.
- Includes:
- DC gear pump.
- 367012: 3m suction tube with foot valve.
- 362103: Oil hose 3 m., int. 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP).
- 363113: Oil control valve.
References:
|
|
|
Voltage
|
Maximum delivery
|
Maximum pressure
|
|
|
|
12V |
5.2 l/min |
11.5 bar |
|
|
|
24V |
5.6 l/min |
12.5 bar |

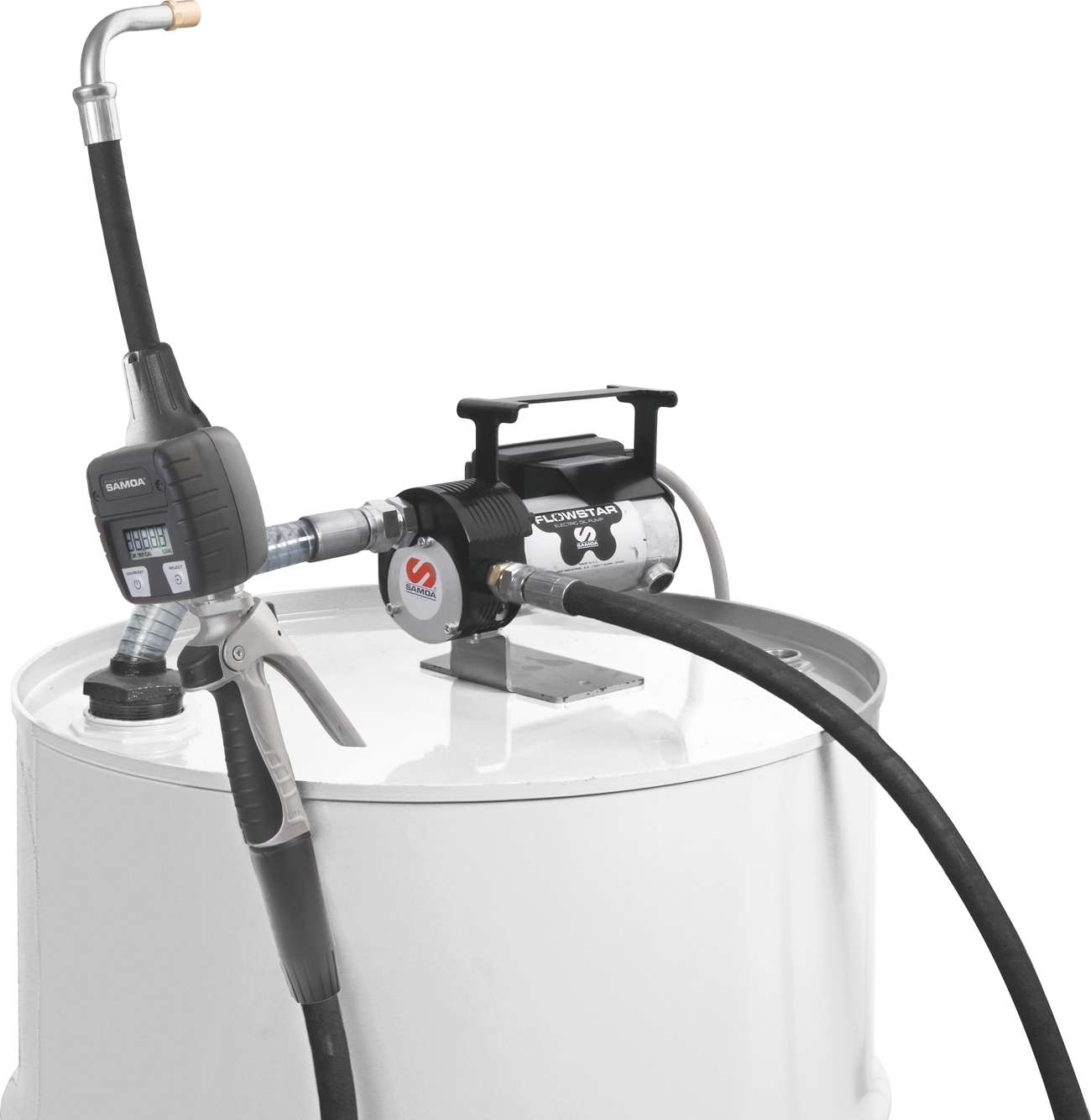

- Includes:
- DC gear pump.
- 367012: 3m suction tube with foot valve.
- 362103: Oil hose 3 m., int. 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP).
- 365535: Electronic-metered oil control gun.
References:
|
|
|
Voltage
|
Maximum delivery
|
Maximum pressure
|
|
|
|
12V |
5.2 l/min |
11.5 bar |
|
|
|
24V |
5.6 l/min |
12.5 bar |

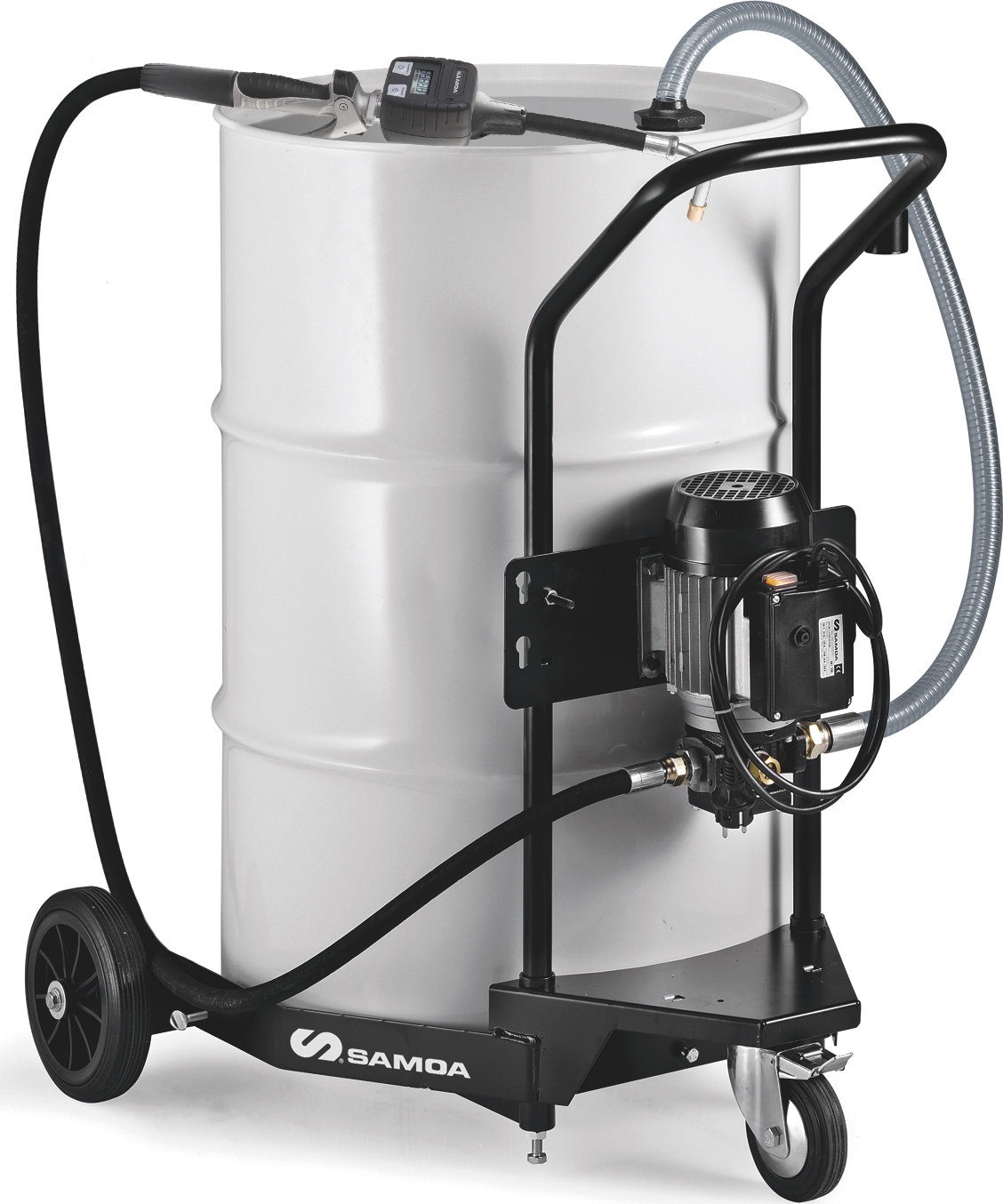

- Includes:
- 561210: Electric oil pump with pressure switch
- 367012: 3m suction tube with foot valve.
- 362103: Oil hose 3 m., int. 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP).
- 365535: Electronic-metered oil control gun.
- 432000: Trolley with two solid rubber wheels and one rubber swivelling wheel with brake.
- A hose reel or a pump can be mounted using optional brackets.

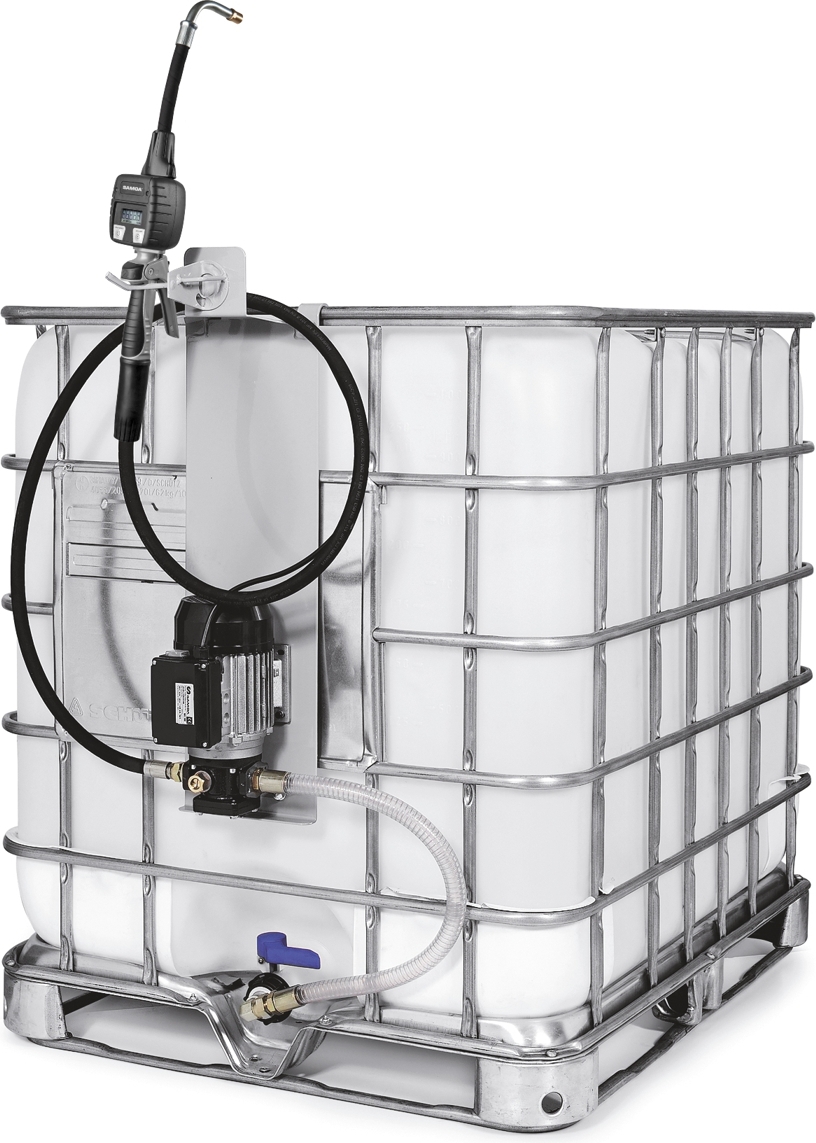

- For 1000 liters IBC.
- Includes:
- 561210: Electric oil pump with pressure switch.
- 365535: Electronic-metered oil control gun.
- 360108: Pump and control gun holder for IBC.
- 745304: Suction hose.
- 362106: Oil hose 6 m., internal diamter 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP)

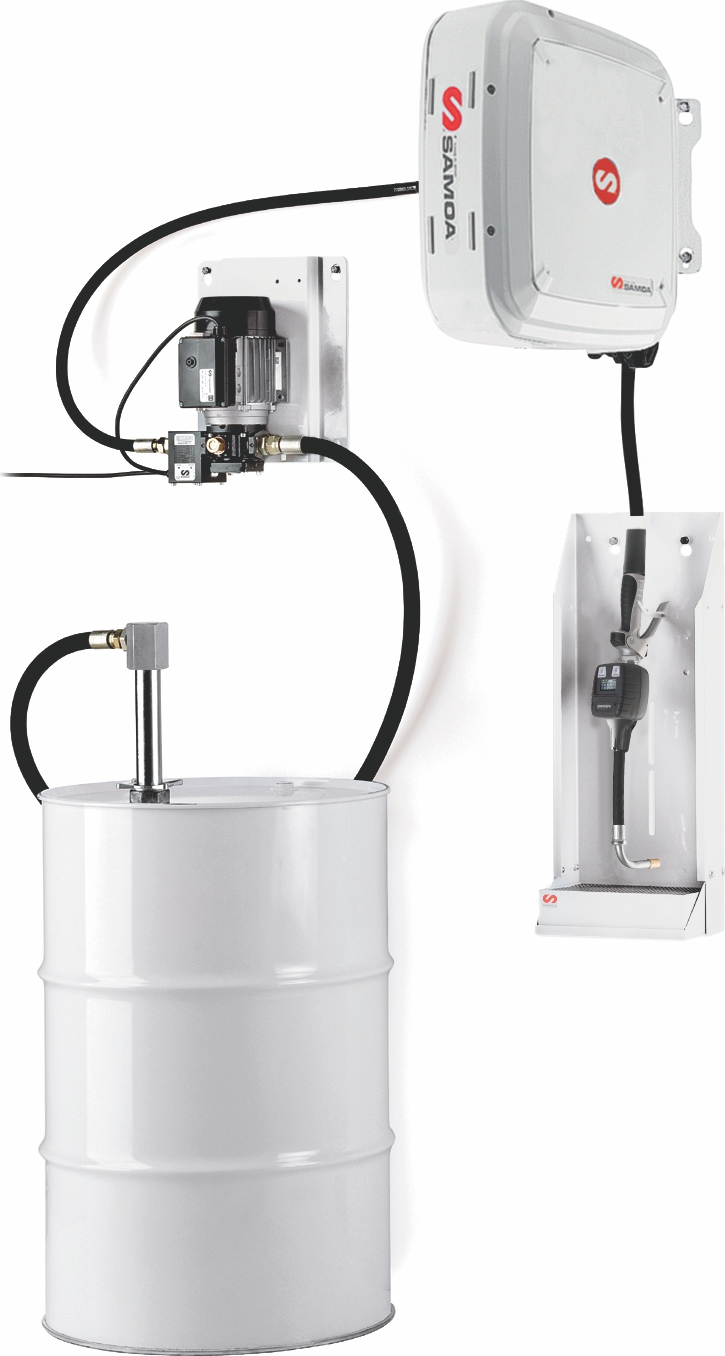

- For 200 liters drum and 1000 liters IBC.
- Includes:
- 561210: Electric oil pump with pressure switch.
- 756201: Wall bracket for pump.
- 365535: Electronic-metered oil control gun.
- 362101: Oil hose 1.5 m., internal diameter 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP)
- 367000: Suction assembly 1060 mm tube.
- 362103: Individually enclosed hose reel 1/2" x 10m.
- 360127 Control gun holder and drip holster.
