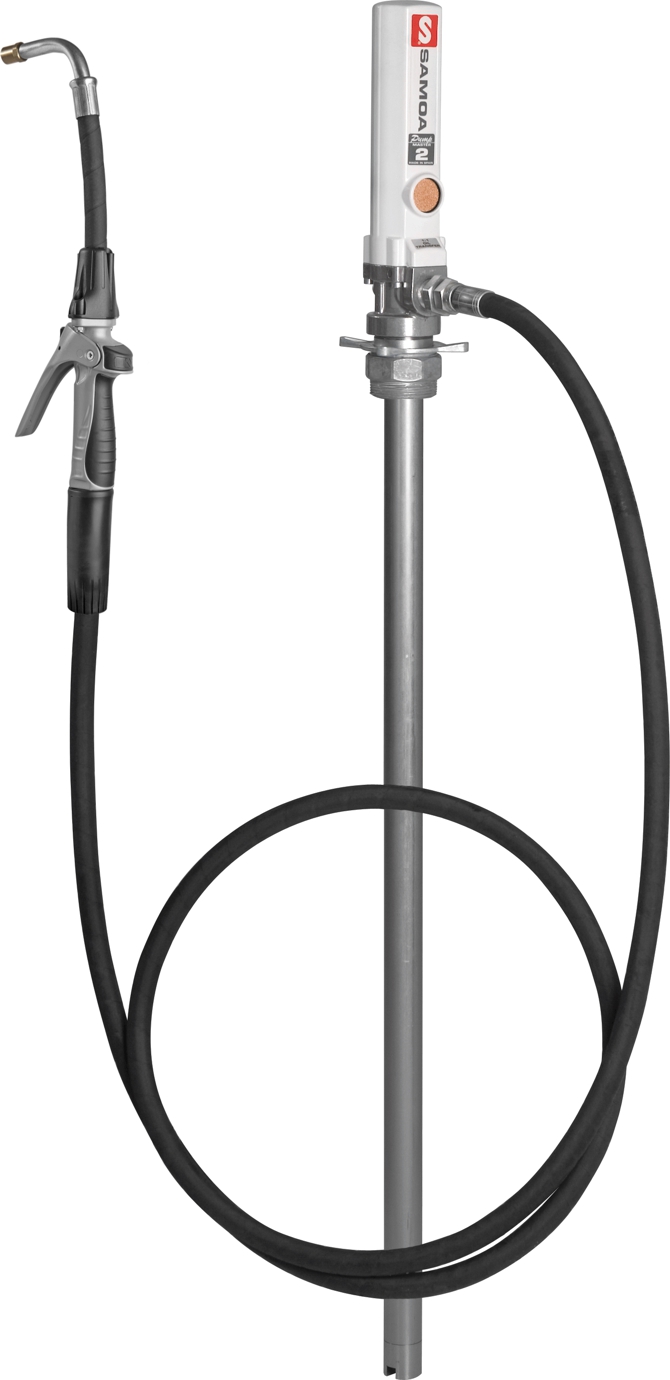

- Includes:
- 354120: 3:1 oil pump for 200 l drums.
- 362106: 6 m x ? 1/2 oil hose.
- 365535: Hose end meter with semiautomatic non drip nozzle.
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.

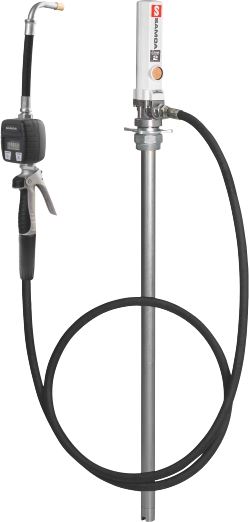

- Includes:
- 354120: Air operated oil pump for 205 litre drum
- 362106: Oil hose 6 m., internal diameter 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP)
- 365535: Oil control gun
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.

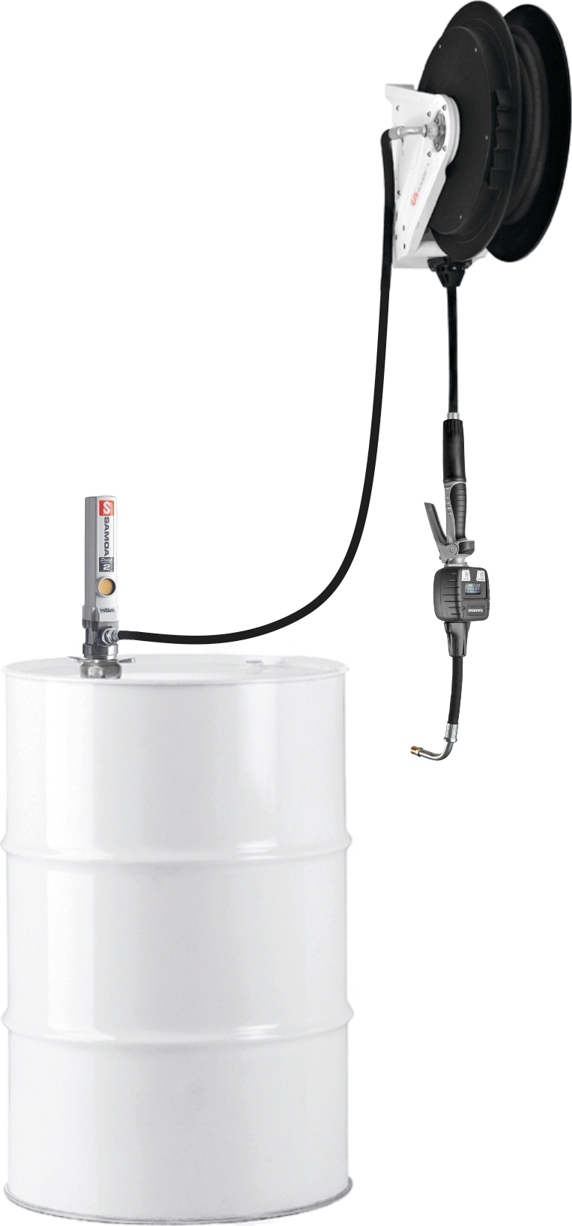

- Includes:
- 354120: Air operated oil pump for 205 litre drum
- 506202: Open type hose reel with 10 m x 1/2" hose
- 365535: Electronic-metered oil control gun
Outlet: Flexible with 90° tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
- 362101: 1.5 m x 1/2" oil hose
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.

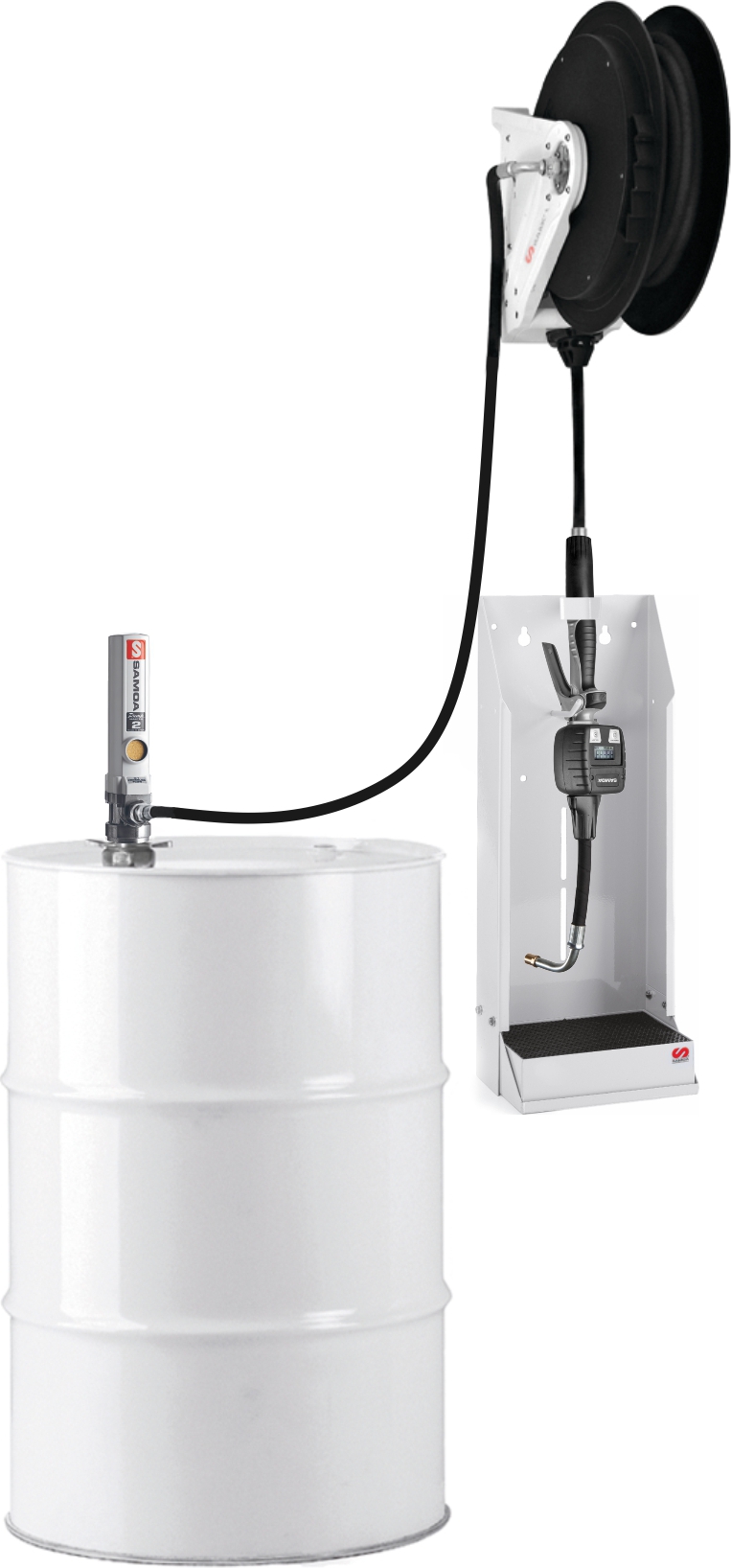

- Includes:
- 354120: Air operated oil pump for 205 litre drum
- 506202: Open type hose reel with 10 m x 1/2" hose
- 365535: Electronic-metered oil control gun
Outlet: Flexible with 90° tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
- 362101: 1.5 m x 1/2" oil hose
- 360127: Control gun holder and drip holster.
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.
- Includes:
- 354120: Air operated oil pump for 205 litre drum
- 507202: Open type hose reel with 10 m x 1/2" hose
- 365535: Electronic-metered oil control gun
Outlet: Flexible with 90° tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
- 362101: 1.5 m x 1/2" oil hose
- 360127: Control gun holder and drip holster.
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.

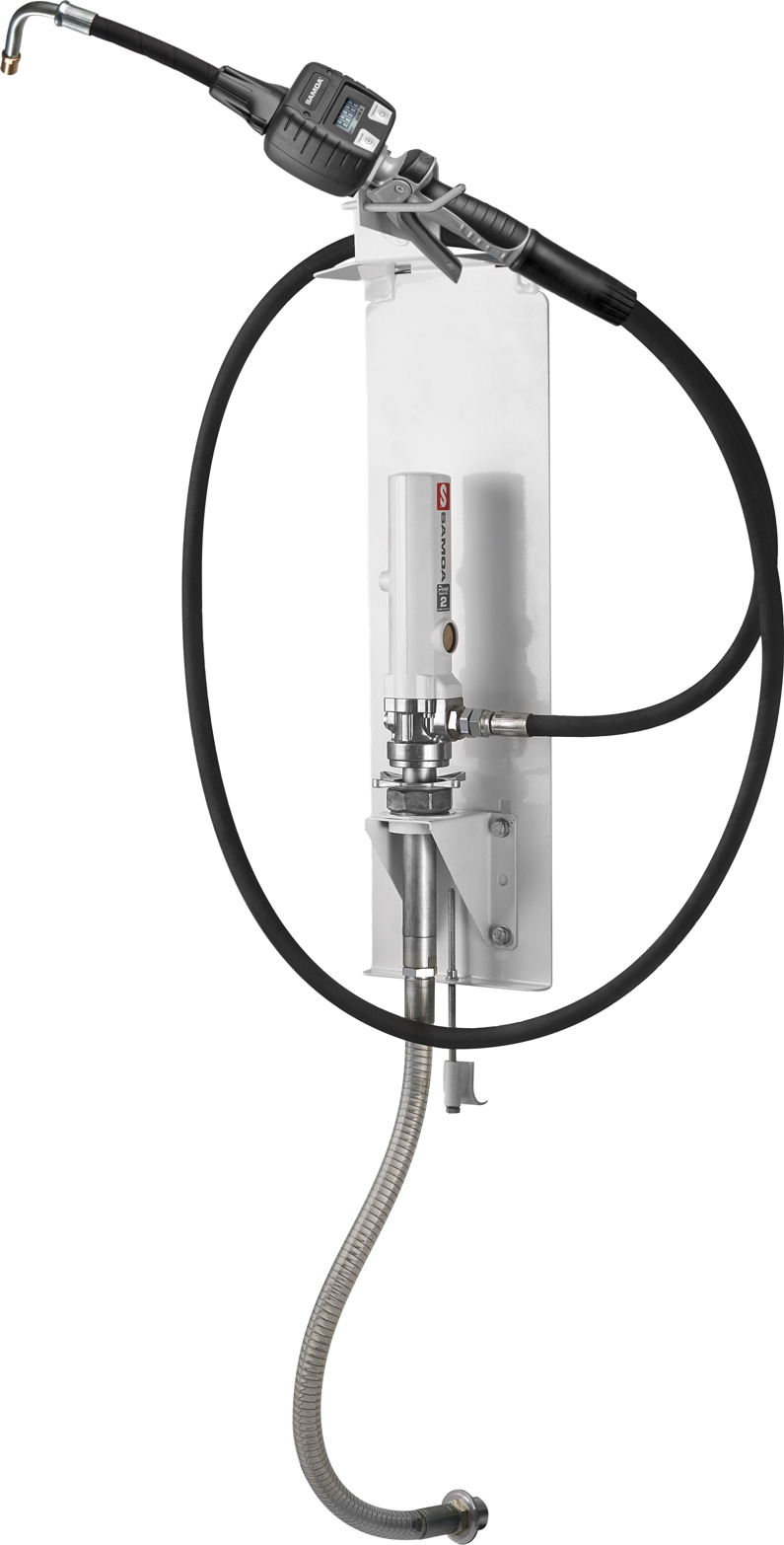

- Includes:
- 353120: wall mounted 3:1 pump.
- 360102: Wall bracket.
- 367000: Suction assembly 1060 mm suction tube.
- 507202: Hose reel 10m, 1/2".
- 365535: Metered oil control gun.
- 360127: Control gun holder and drip holster.
- Flow rate can be easily adjusted by regulating the air inlet flow with an optional air valve and the pressure output can be adjusted using an optional air pressure regulator.
- Includes:
- 365535: Electronic-metered oil control gun
Outlet: Flexible with 90° tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
- 360102: Wall bracket.

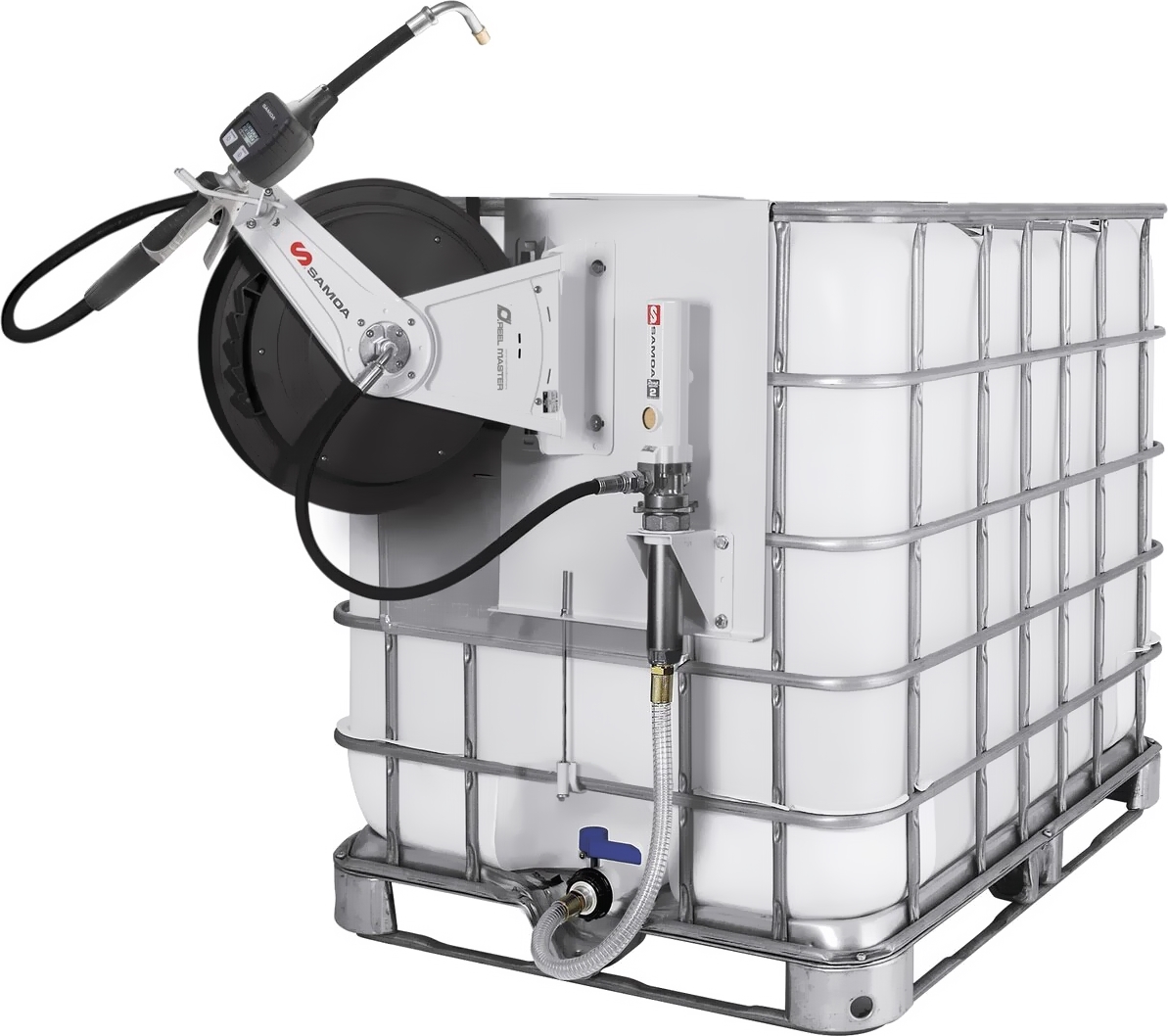

- 360108: Pump and control gun holder for IBC.
- 745304: Suction hose.
- 362106: Oil hose 6 m., internal diameter 1/2" M 1/2" G (BSPT) - M 1/2" G (BSP)
- Includes:
- 365535: Electronic-metered oil control gun
Outlet: Flexible with 90° tube
Units of measure Batch: Liters, quarts, pints, gallons
Accuracy: +/- 0,5% of reading
Flow range: 1-30 l/min (0,26-8 gal/min)
- 360102: Pump wall bracket.
- 360107: Pump and hose reel bracket for IBC.
- Suction kit.
- 506202: Open type hose reel with 10 m x 1/2" hose.
