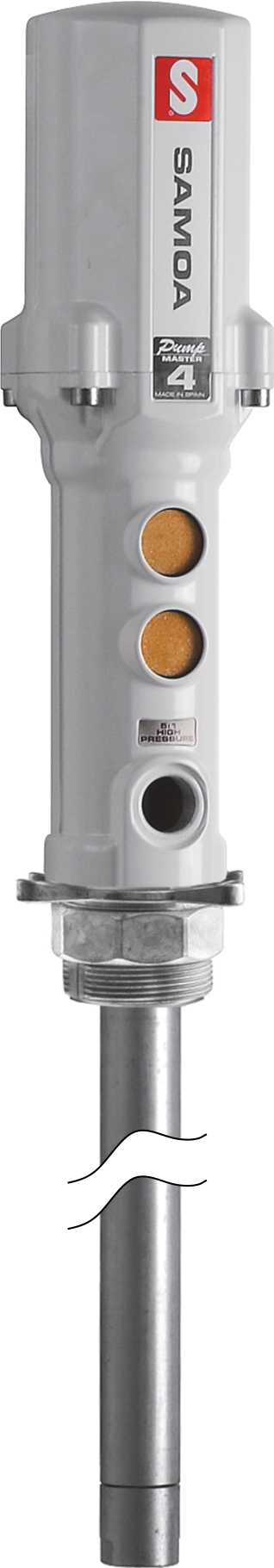

SAMOA 348120 |
|---|---|
| Pressure ratio | 5:1 |
| Air piston diameter (mm) | 88 |
| Air piston stroke (mm) | 100 |
| Maximum free flow capacity (l/min) | 30 |
| Air pressure range (bar) | 3 - 10 |
| Maximum fluid pressure (bar) | 30 |
| Air inlet (F) (BSPT) | 3/8 |
| Fluid outlet (F) (BSP) | 3/4 |
| Noise level (dB) | 95 |
| Application | 205 l (55 gal) drum bung mounted |
| Total height (A) (mm) | 1,300 |
| Pump tube height (D) (mm) | 915 |
| Pump tube diameter (C) (mm) | 42 |
| Weight (kg) | 7.4 |
