Single point waste oil suction unit for collecting waste oil directly from the vehicle's engine using a suction wand inserted into the engine oil dipstick tube.
The unit is installed alongside the service bay and provides the cleanest method for waste oil collection.
Direct extraction from engine to storage tank eliminates operator contact with waste oil and eliminates spills.
FEATURES
It also eliminates the use of mobile units and all leaking drain plug issues.

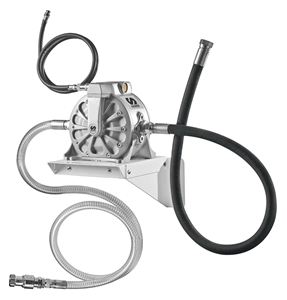

An air operated pump, specially designed for suction applications, extracts the waste oil and pumps it to a remote storage tank.
The unit can be used together with a waste oil hose reel (506 503 or 507 503) for extended reach.
Pedestal mounted model.
INCLUDES
Special piston pump for waste oil suction
on/off valve
air filter with pressure regulator
vacuum gauge for monitoring the unit performance
extra large capacity suction filter
3m suction hose
complete kit of suction canes and adaptors

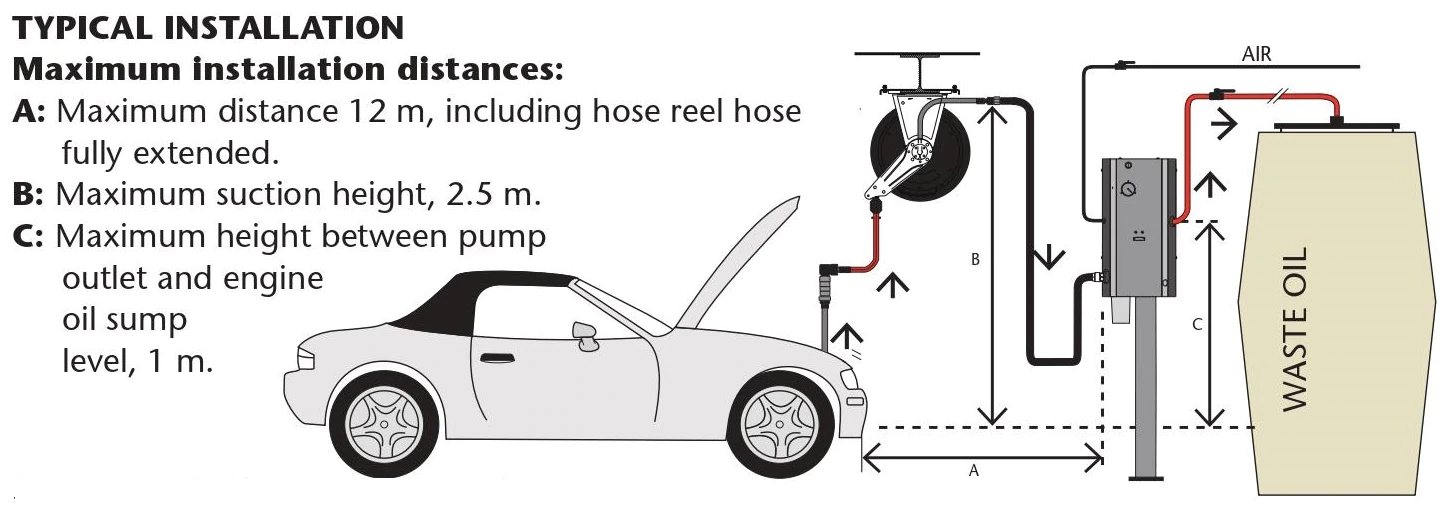

DISTANCES
Maximum suction distance 36' (12 m), including hose reel hose fully extended.
Maximum suction height, 8' (2.5 m).
Maximum height between pump outlet and engine oil sump level, 3' (1 m).
