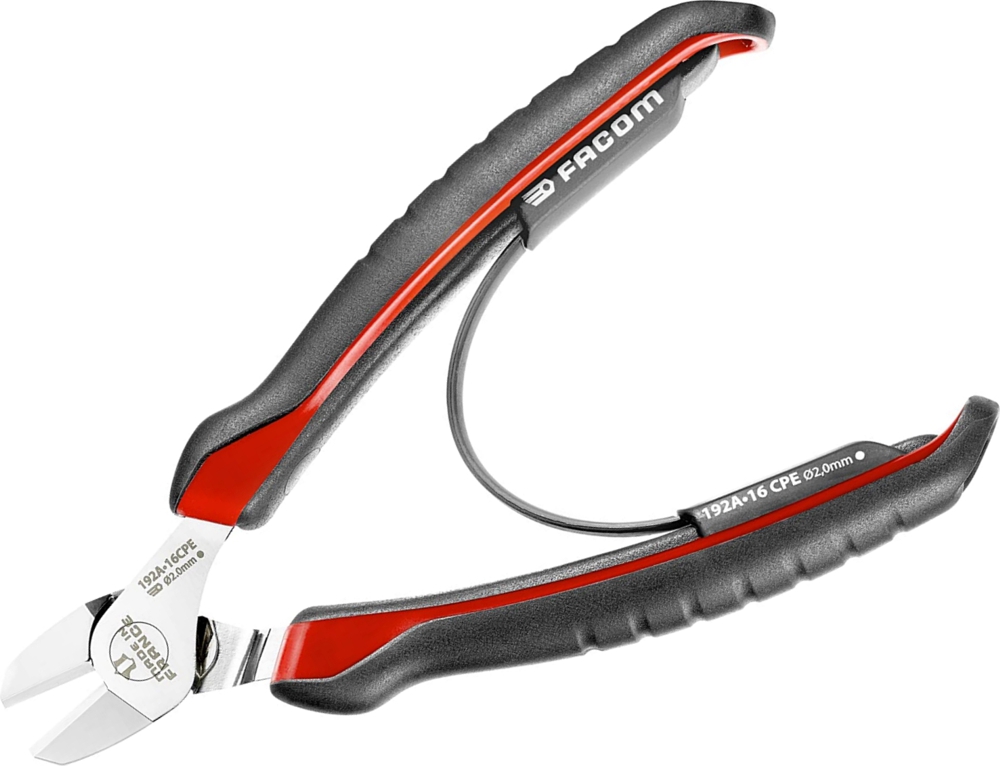

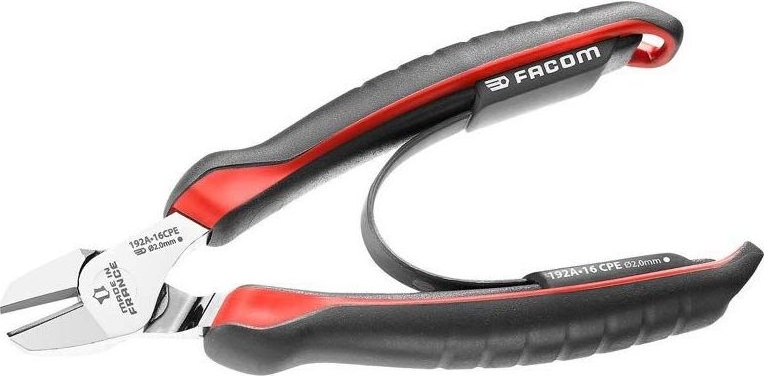

HIGH-PERFORMANCE DIAGONAL CUTTERS

NF ISO 5749, ISO 5749, DIN ISO 5749, ASME B107.500
New head design to increase durability and cutting capacity
Cutting edges designed to cleanly cut all types of wire: soft wires and modern materials to a maximum piano wire specifications

192A.16CPE: 2.0mm 210 kg/mm�
192A.18CPE: 2.2mm 205 kg/mm�
192A.20CPE: 2.5mm 200 kg/mm�

High Mechanical advantage due to off-set rivet and cutting edge geometry reducing effort.
High durability Carbon alloy steel, with induction hardened cutting edges.
Bi-Material ergonomic grips resistant to chemical agents featuring:
- Return spring
- Tether ready point
  (Tether point adds 10mm to nominal lenght)
Chrome finish for corrosion resistance.

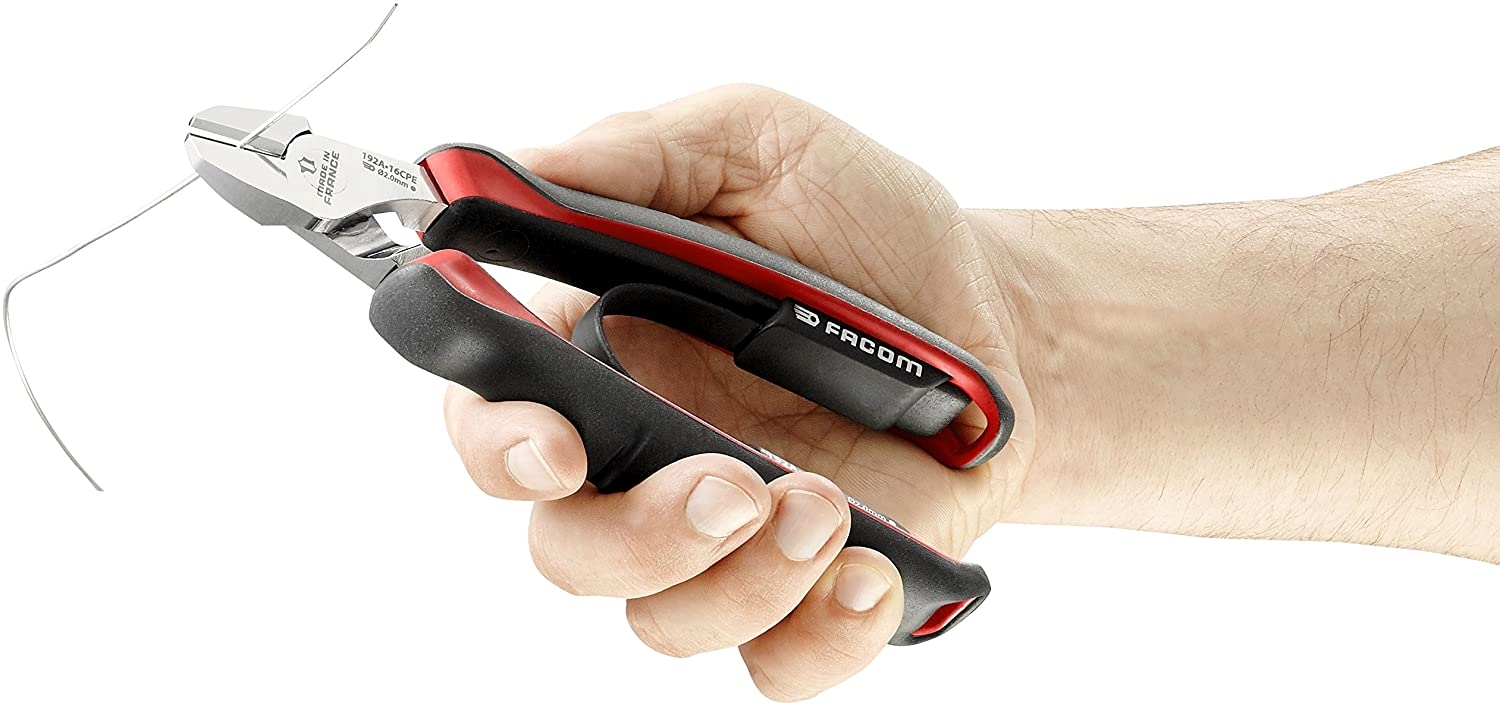

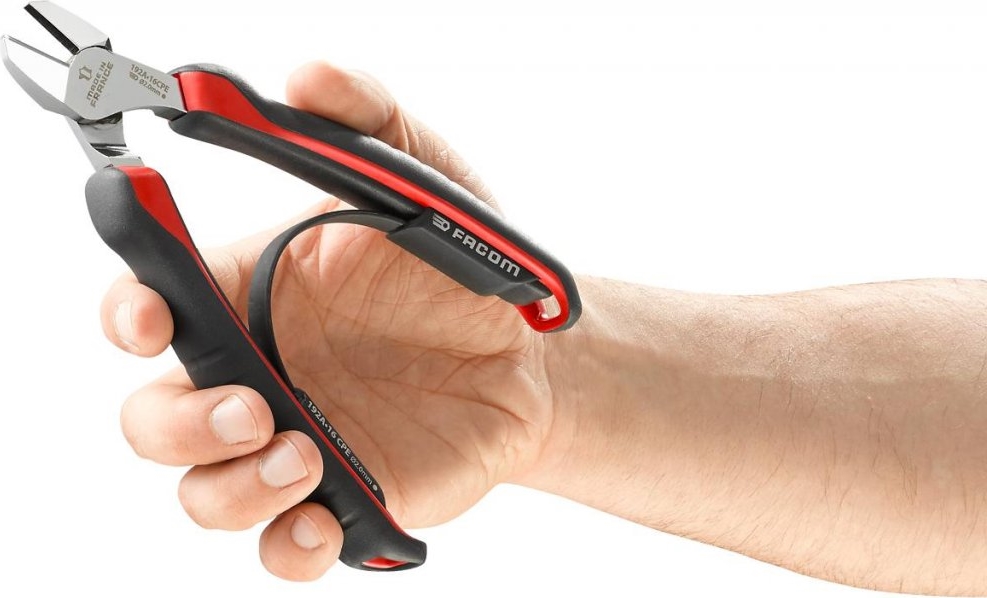

Sculptured upper section with fingerguard provides a natural fit aid grip
Wide lower section to increase contact with the plier aiding both grip and comfort
Return spring reduces total user effort and strain
Chrome plating provides maximum corrosion resistance
Hanging hole

Specifications:

	FACOM 192A.16CPE
B (mm)	24
C (mm)	180
Max cutting (mm)	2
E (mm)	10
L (mm)	160
Weight (g)	200

Products in the same category

FACOM 192A.18CPE

HIGH-PERFORMANCE DIAGONAL CUTTERS

Length: 185mm

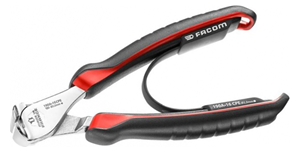

FACOM 190A.16CPE

HIGH-PERFORMANCE END CUTTERS

FACOM 190A.20CPE

HIGH-PERFORMANCE END CUTTERS

Piano wire cutting: 2.5mm 200 kg/mm�

Length: 200mm

FACOM 183A.20CPE

HALF-ROUND LONG BENT SNIPE-NOSE PLIERS

Standards: NF ISO 5745, ISO 5745, DIN ISO 5745, ASME B107.500

Extra Narrow, finely serrated tips 40� angled and side cutting edges.

FACOM 187A.18CPE

COMBINATION PLIERS

Length: 185mm

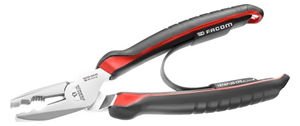

FACOM 187AP.20CPE
