THE NANO CONCEPT
ULTRA COMPLETE
Up to 38 tools.
ULTRA COMPACT
50% more compact than regular 1/4" sets.
PRACTICAL
Easy set and tool selection.

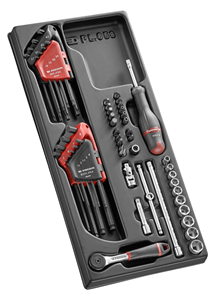

52 pcs comprising:
Sockets 6 point:
5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14mm.
Accessories:
Sliding T-handle,
Palm-control ratchet,
2 extensions,
Spinner,
Universal joint,
Bit holder socket.
18 x bits:
Flat: 6.5, 8mm.
Pozidriv: 1, 2.
Phillips: 1, 2, 3.
Hexagon: 3, 4, 5, 6, 7mm.
Resistorx: 10, 15, 20, 25, 30, 40.
Long Hexagon keys:
1.5, 2, 2.5, 3, 4, 5, 6, 7, 8, 10mm.
Long Torx keys:
10, 15, 20, 25, 27, 30, 40.
Plastic tray PL.658.
Weight: 1,413g.
NF ISO 3315, ISO 3315, DIN 3122, ASME B107.10

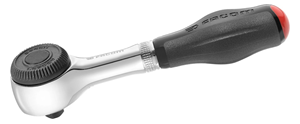

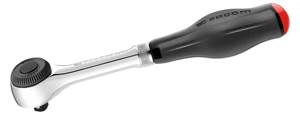

Rotating handle jack: work twice as fast in confined spaces.
6� increments for final tightening.
Socket safety locking: no more lost sockets.
Palm control system - allows the operator to press down on the head avoiding risk of accidental reverse.
ISO 3315, DIN 3122, NF ISO 3315
Ergonomic, high-strength bi-material handle resistant to common chemicals.
Chrome finish.
Length 158mm.
Detection box concept insures instant availability check even when the box is closed
Sockets locked securely in their slots and stay in place even when set is tipped over.

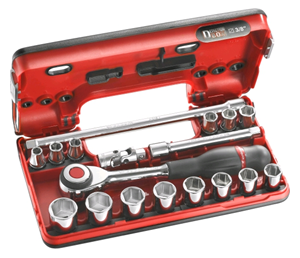

22 pcs comprising:
Sockets 6 point:
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22mm.
Accessories:
Fast ratchet with rotating handle,
Universal joint,
Extensions 125 and 250mm.
Plastic case BV.J1NANO: 50 x 124 x 280mm.
Weight 1.920 kg.

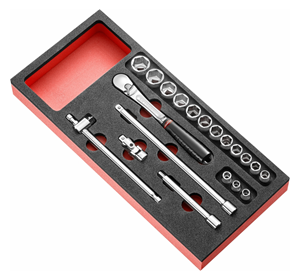

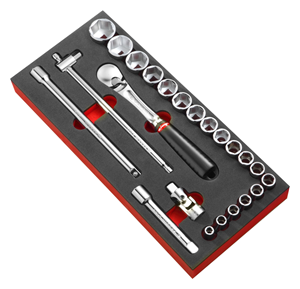

20 pcs comprising:
6-point sockets:
7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22mm.
Accessories:
High preformance sealed ratchet,
Universal joint,
Extensions 125 and 250mm,
Sliding T handle.
Foam tray PM.MODJ161-3
Standards : NF ISO 3315, ISO 3315, DIN 3122, ASME B107.10
Rotating handle jack: work twice as fast in confined spaces.
6� increments for final tightening.
Socket safety locking = no sockets lost in your machines.
Palm control system - allows the operator to press down on the head avoiding risk of accidental reverse.
Available in 1/4" and 1/2" drive.

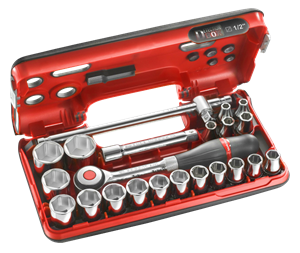

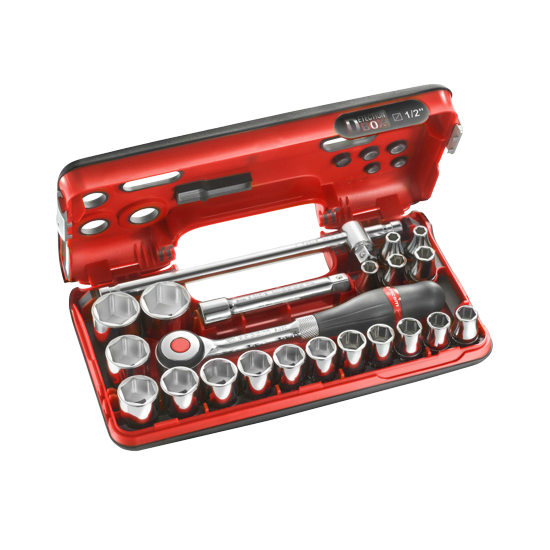

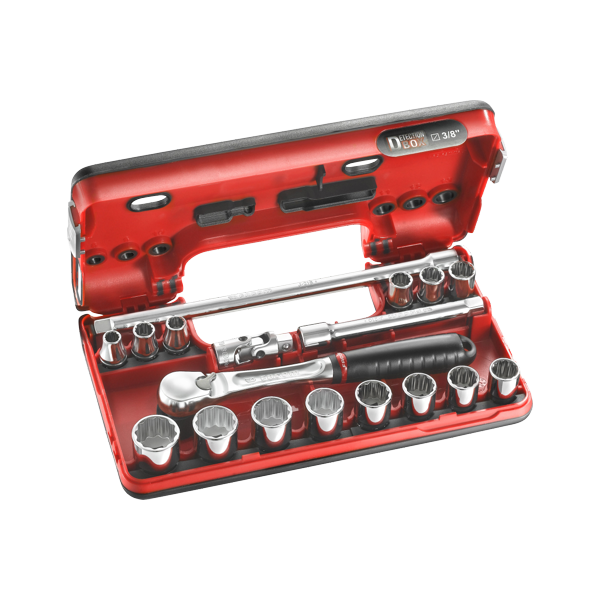

DETECTION BOX CONCEPT
REINFORCED SAFETY
The "Detection Box" concept ensures instant availability check even when the box is closed.
EASY TO STORE
Easy storage in all roller cabinet drawers.
Adapt to 1/3 width of a roller cabinet module.
Holds vertically.
EASY TO CARRY
With the extension used as a handle.
PRACTICAL
Sockets locked securely in their slots and stay in place even when set is tipped over.
30 pieces comprising:
Sockets 6 point:
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 29, 30, 32, 34 mm.
Accessories:
High performance sealed 1/2" ratchet S.161B.
Extensions: 130 mm (S.210), 250 mm (S.215).
Universal joint: S.240A.
Sliding handle: S.120A.
Speed brace: S.110.
Supplied with a set of pictograms to customize your box.
Empty case: BP.MBOXL.
Thermoformed tray (420 x 188 mm): PL.L03.
Weight: 5.755 kg.
Compatible with the FACOM modular storage system.
Suitable for roller cabinets.

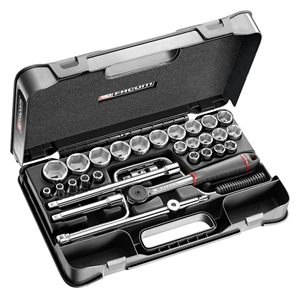

46 pieces comprising:
Sockets:
8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 23, 24, 27, 28, 29, 30, 32 mm.
Accessories:
High performance sealed ratchet,
Universal joint,
Extensions 130 and 250mm.
Sliding t-handle.
Foam tray: PM.MOD.S1A.
Weight: 3.720 kg.
Standards: NF ISO 3315, ISO 3315, DIN 3122, ASME B107.10

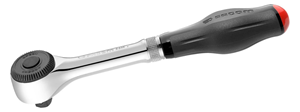

Rotating handle jack: work twice as fast in confined spaces.
6� increments for final tightening.
Socket safety locking = no sockets lost in your machines.
Palm control system - allows the operator to press down on the head avoiding risk of accidental reverse.
Standards: NF ISO 3315, ISO 3315, DIN 3122, ASME B107.10
Very long durability regardless of working conditions. Mechanism sealed to industrial dust.
72 tooth mechanism for 5� increments.
Reversing by rotating cap.
Ultra-compact head.
Bi-material elastomer grip: high resistance to abrasion and the most severe workshop solvents: SP95, SP98, diesel fuel, acetone, brake fluid, Skydrol, Jet Oil, kerosene.
Hole in the handle for strapping when working in high places.
Easy maintenance: spare parts kit S.161B-KIT.
Length: 260 mm.
Weight: 410 g.
Set of 9 pieces
Sizes: 5, 6, 7, 8, 10, 12, 14, 17, 19mm.
Tray: PL.S02.
Plastic Box: BP.MBOXS.
Weight: 865 g.

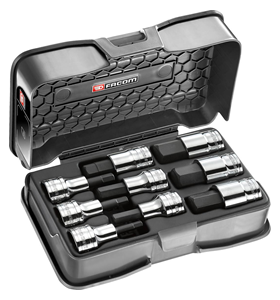

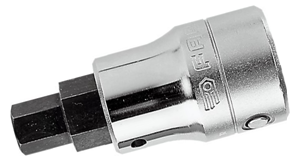

SET OF 7 PIECES
Sizes: M6, M8, M10, M12, M14, M16, M18.
Length: 60 mm.
Empty case: BP.MBOXS.
Thermoformed tray S (188 x 105 mm): PL.S03.
Standards : NF ISO 3315, ISO 3315, DIN 3122, ASME B107.10
180� hinged and secured head to maintain the position even with a socket engaged.
Metal handle with knurled handle.
Length: 410 mm.
Weight: 740 g.

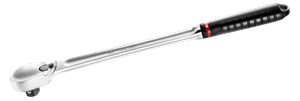

Norm NF ISO 3315, ISO 3315, DIN 3122, ASME B107.10
Very long durability regardless of working conditions. Maintenance-free. Mechanism sealed to industrial dust.
120 tooth mechanism for 3� increments.
Lever reversing: easy even when wearing gloves. Visible rotation direction.
"Palm control" system, to press the ratchet head when tightening or loosening without risk of accidental reversing of the rotation direction.
Ultra-compact head.
Bi-material elastomer grip: high resistance to abrasion and the most severe workshop solvents: SP95, SP98, diesel fuel, acetone, brake fluid, Skydrol, Jet Oil, kerosene.
Hole in the handle for strapping when working in high places.
Length: 512mm.
Weight: 1470g.

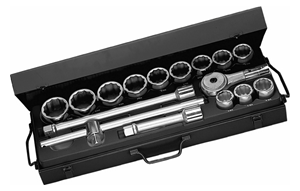

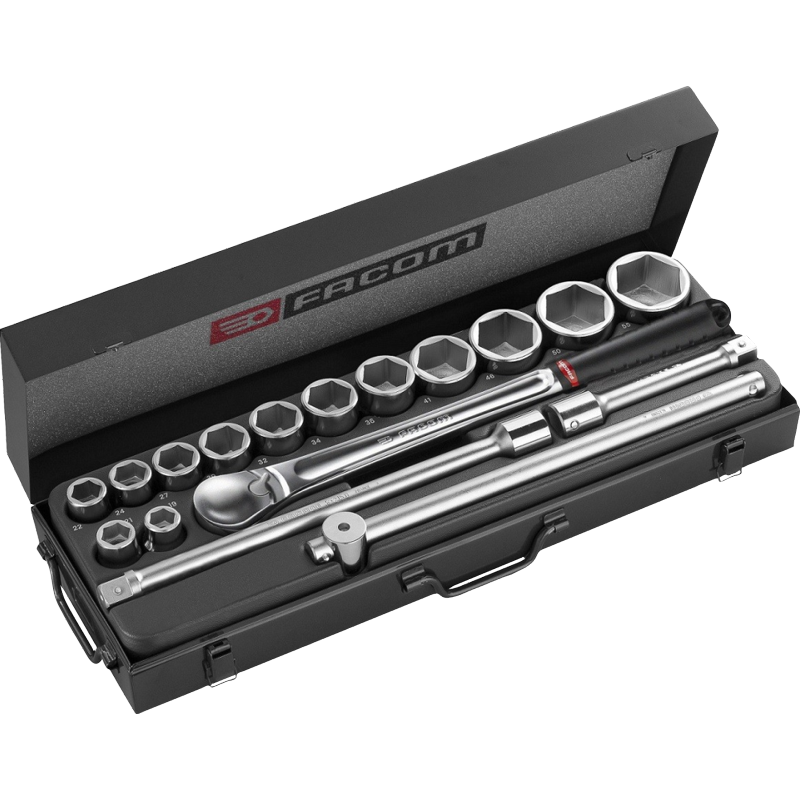

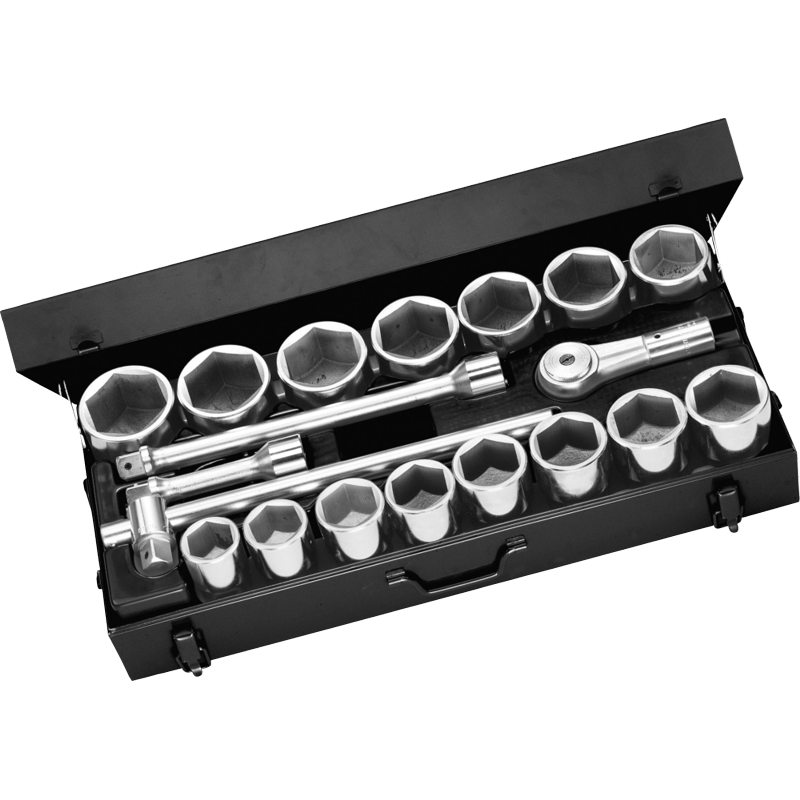

16 pieces comprising:
Sockets:
30, 32, 33, 34, 36, 38, 41, 42, 46, 50, 55mm.
Accessories 3/4":
Ratchet without grip,
Sliding T handle,
Extensions 200 and 400mm.
Anthracite grey metal box - BT.103G.
Tray for K.432E K.433E - PL.40.
Dimensions: 685 x 260 x 120mm.
Weight: 16.30 kg.
Standards: NF ISO 3315, ISO 3315, DIN 3122

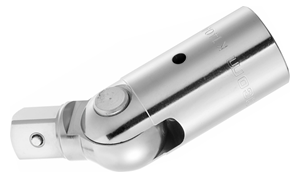

For use with bars K.125 or K.126.
Fastener rotation from any angle over 180�.
Joint 180�.
Spring-steadied in any position.
Finish: satin chrome.
Weight: 760 g.
5� increments.
For use with bars M.125 and M.126, or with sliding tee M.120.
Exceptionally smooth operation and high strength.
Chrome finish.
Weight 2.1kg.
Standards: NF ISO 3315, ISO 3315, DIN 3122, ASME B107.10
Friction-head allows bar to form a T or L-handle.
Fitted with a lock by plunger.
Finish: satin chrome.
Length: 500 mm.
Weight: 2.4kg.
