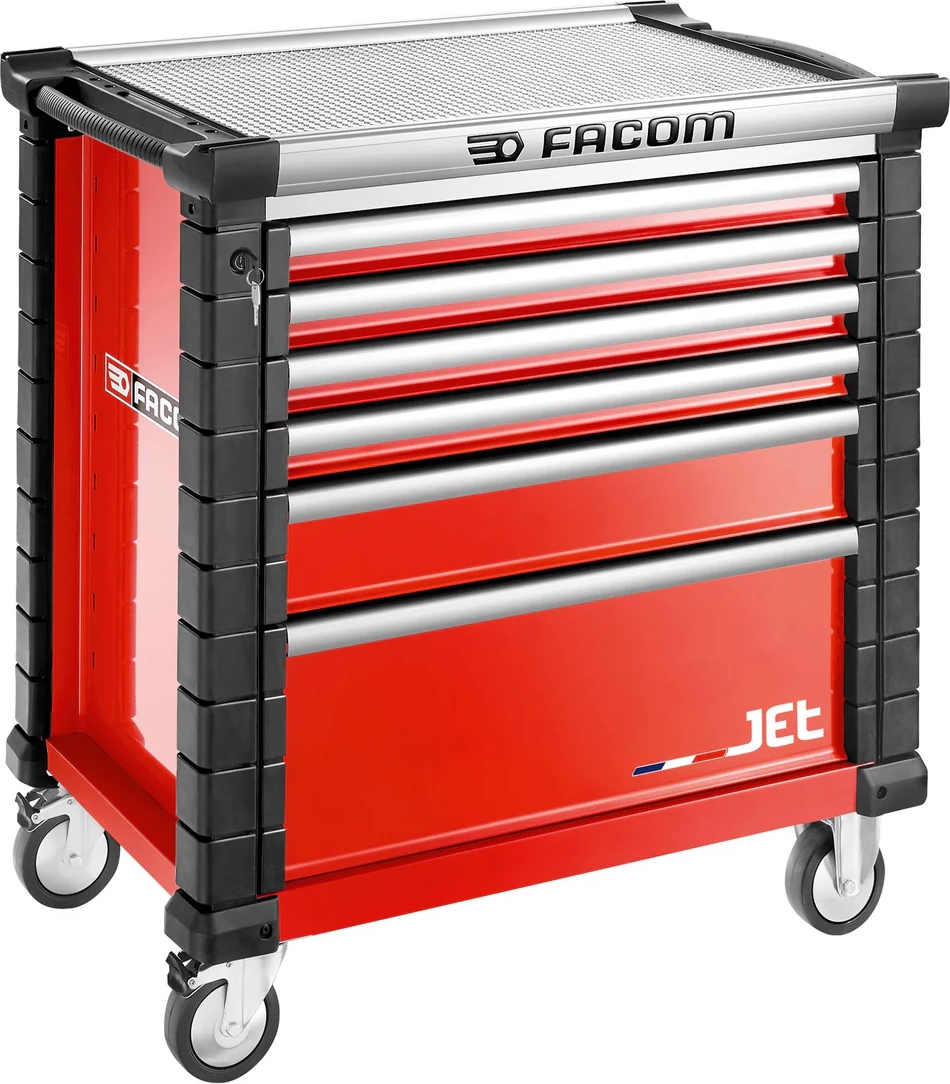

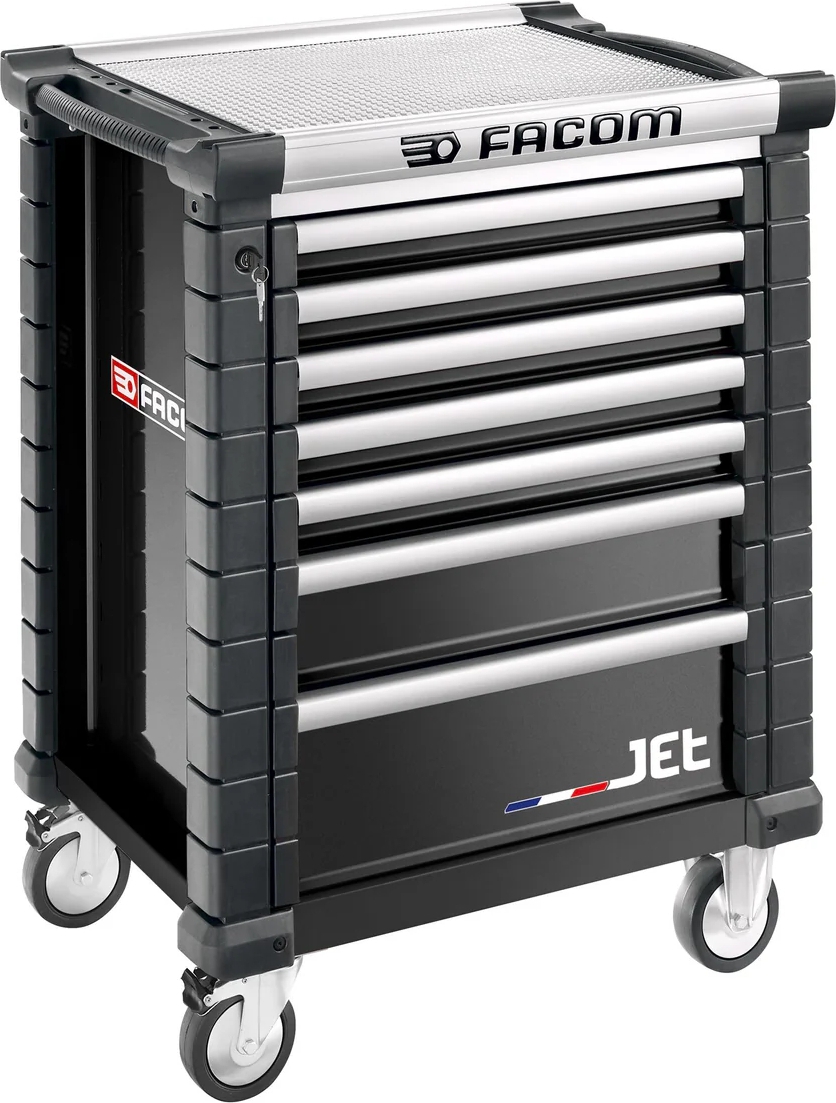

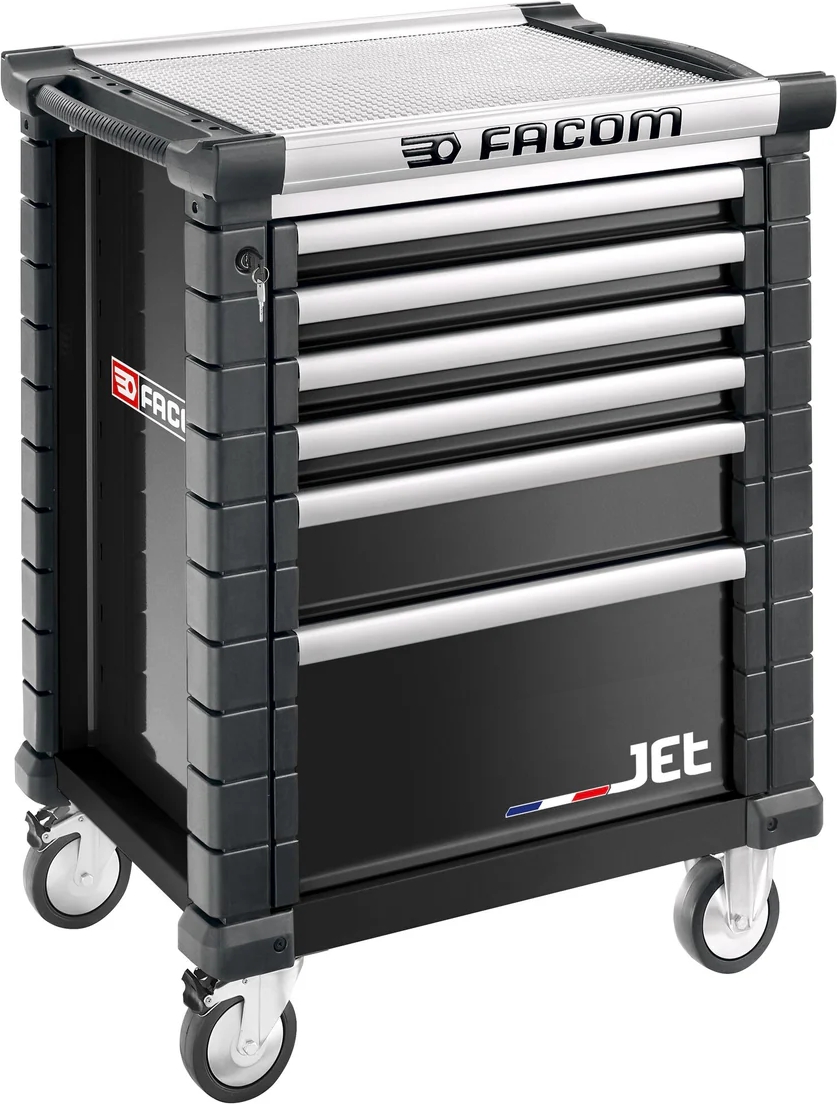

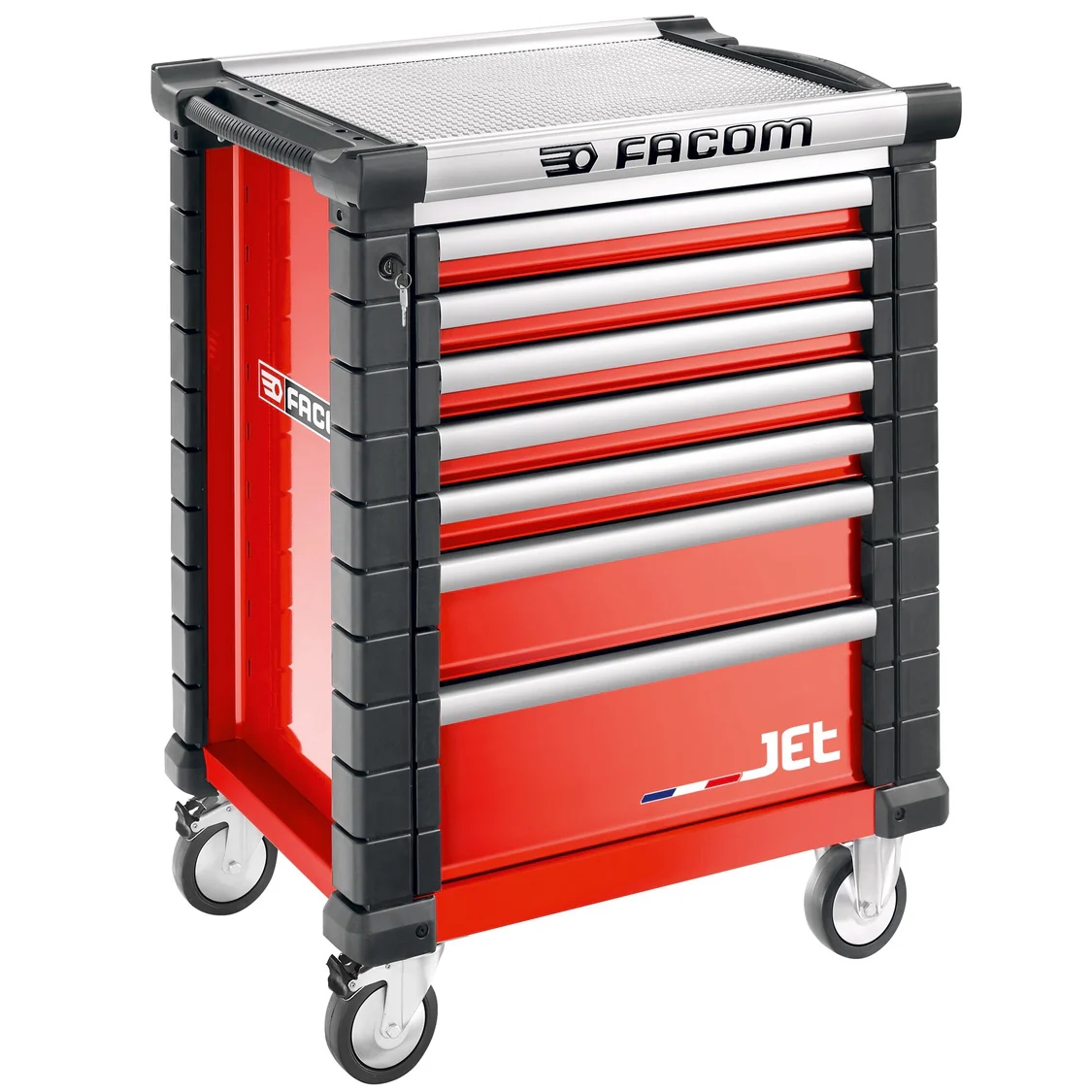

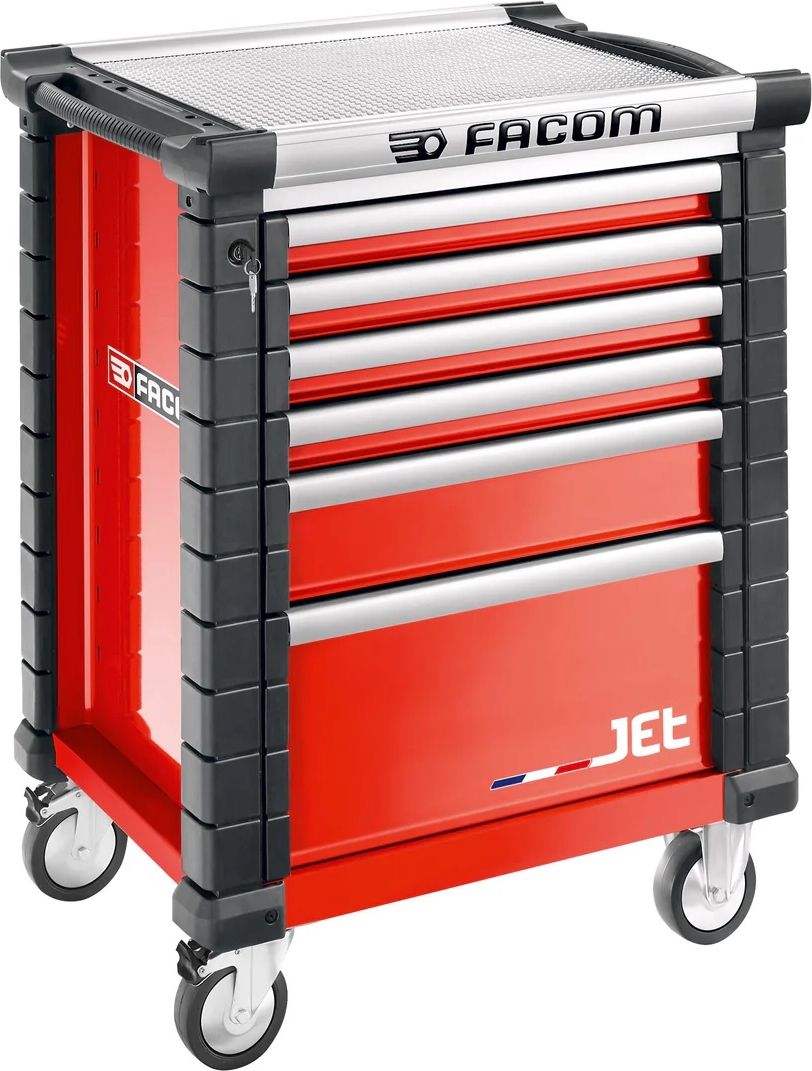

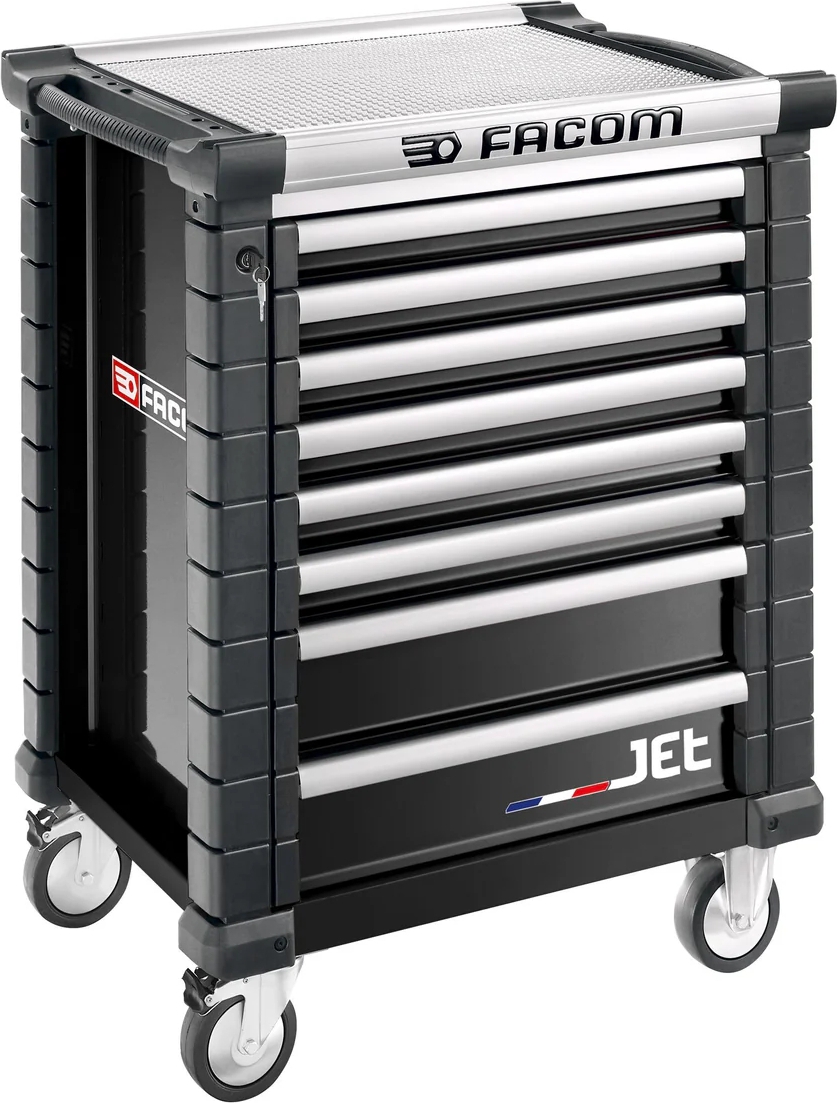

- A new generation of ultimate tool storage solution.
- Design and quality for high performance.
- Reinforced protection.
- Performance at its best.
- Total load capacity of the drawers: 155 kg
- Worktop: Extra large work surface.
- High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board.
- The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 900 kg.
- Warranty: The FACOM JET series is manufactured in France to the highest specifications and standards.
- Capacity of modules per drawer: 3
References:
|
|
Number of drawers
|
Drawer dimensions (mm)
|
Drawers height (mm)
|
Total dimensions (mm)
|
Drawers total weight capacity (kg)
|
Maximum worktop load (kg)
|
Wheels with brake
|
Weight (kg)
|
|
|
6 |
569 x 421 x 60/130/270 |
4x60, 1x130, 1x270 |
971 x 774 x 575 |
140 |
900 |
yes |
75.5 |
|
|
7 |
569 x 421 x 60/130/200 |
5x60, 1x130, 1x200 |
971 x 774 x 575 |
155 |
900 |
yes |
77.5 |
|
|
8 |
569 x 421 x 60/130 |
6x60, 2x130 |
971 x 774 x 575 |
170 |
900 |
yes |
79.5 |

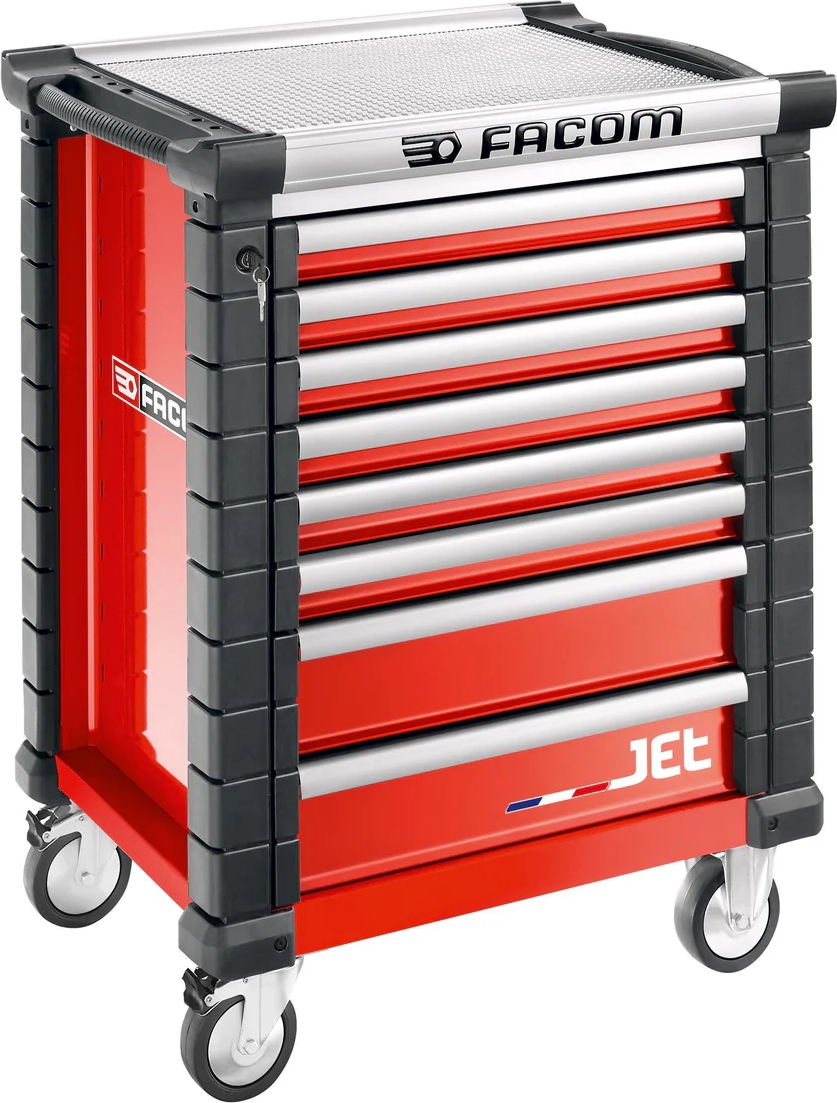

- A new generation of ultimate tool storage solution.
- Design and quality for high performance.
- Reinforced protection.
- Performance at its best.
- Total load capacity of the drawers: 155 kg
- Worktop: Extra large work surface.
- High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board.
- The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 900 kg.
- Warranty: The FACOM JET series is manufactured in France to the highest specifications and standards.
- Capacity of modules per drawer: 3
References:
|
|
Number of drawers
|
Drawer dimensions (mm)
|
Drawers height (mm)
|
Total dimensions (mm)
|
Drawers total weight capacity (kg)
|
Maximum worktop load (kg)
|
Wheels with brake
|
Weight (kg)
|
|
|
6 |
569 x 421 x 60/130/270 |
4x60, 1x130, 1x270 |
971 x 774 x 575 |
140 |
900 |
yes |
75.5 |
|
|
7 |
569 x 421 x 60/130/200 |
5x60, 1x130, 1x200 |
971 x 774 x 575 |
155 |
900 |
yes |
77.5 |
|
|
8 |
569 x 421 x 60/130 |
6x60, 2x130 |
971 x 774 x 575 |
170 |
900 |
yes |
79.5 |

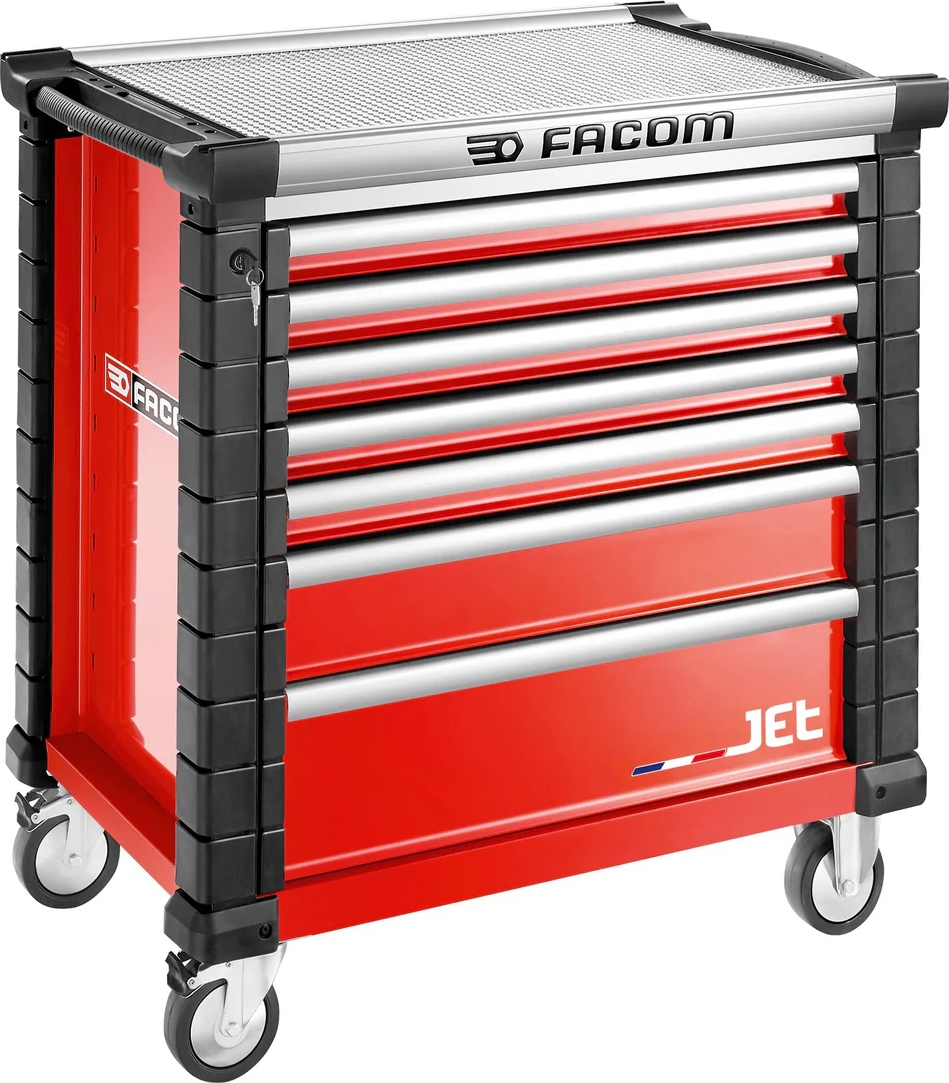

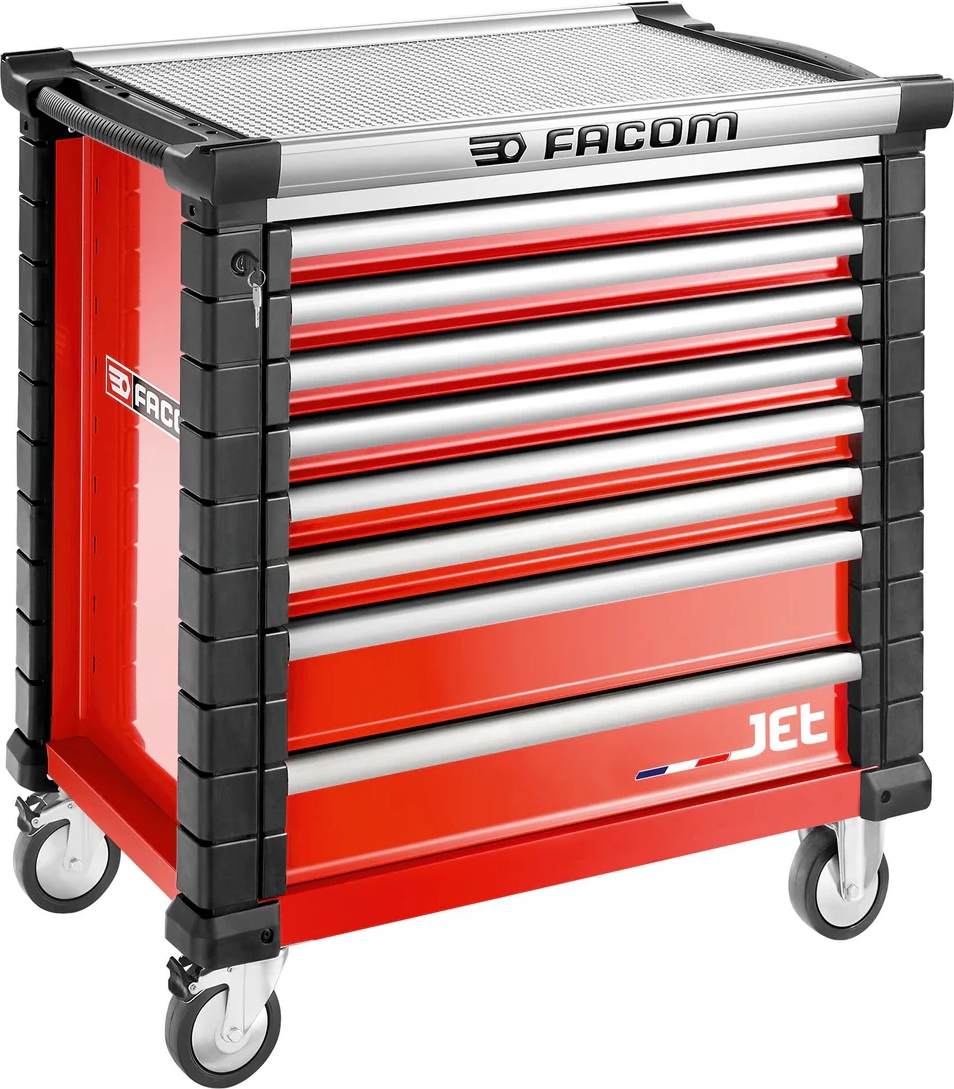

- A new generation of ultimate tool storage solution.
- Design and quality for high performance.
- Reinforced protection.
- Performance at its best.
- Total load capacity of the drawers: 155 kg
- Worktop: Extra large work surface.
- High resistance: 2 mm thick aluminium plate covers a 15 mm thick wooden board.
- The tray can be fitted with a vice, is resistant to impacts and hydrocarbons and to a static load of 1000 kg.
- Warranty: The FACOM JET series is manufactured in France to the highest specifications and standards.
- Capacity of modules per drawer: 4
References:
|
|
Number of drawers
|
Drawer dimensions (mm)
|
Drawers height (mm)
|
Total dimensions (mm)
|
Drawers total weight capacity (kg)
|
Maximum worktop load (kg)
|
Wheels with brake
|
Weight (kg)
|
|
|
6 |
759 x 421 x 60/130/270 |
4x60, 1x130, 1x270 |
1005 x 1004 x 575 |
175 |
1000 |
yes |
90 |
|
|
7 |
759 x 421 x 60/130/200 |
5x60, 1x130, 1x200 |
1005 x 1004 x 575 |
195 |
1000 |
yes |
92.5 |
|
|
8 |
759 x 421 x 60/130 |
6x60, 2x130 |
1005 x 1004 x 575 |
210 |
1000 |
yes |
95 |

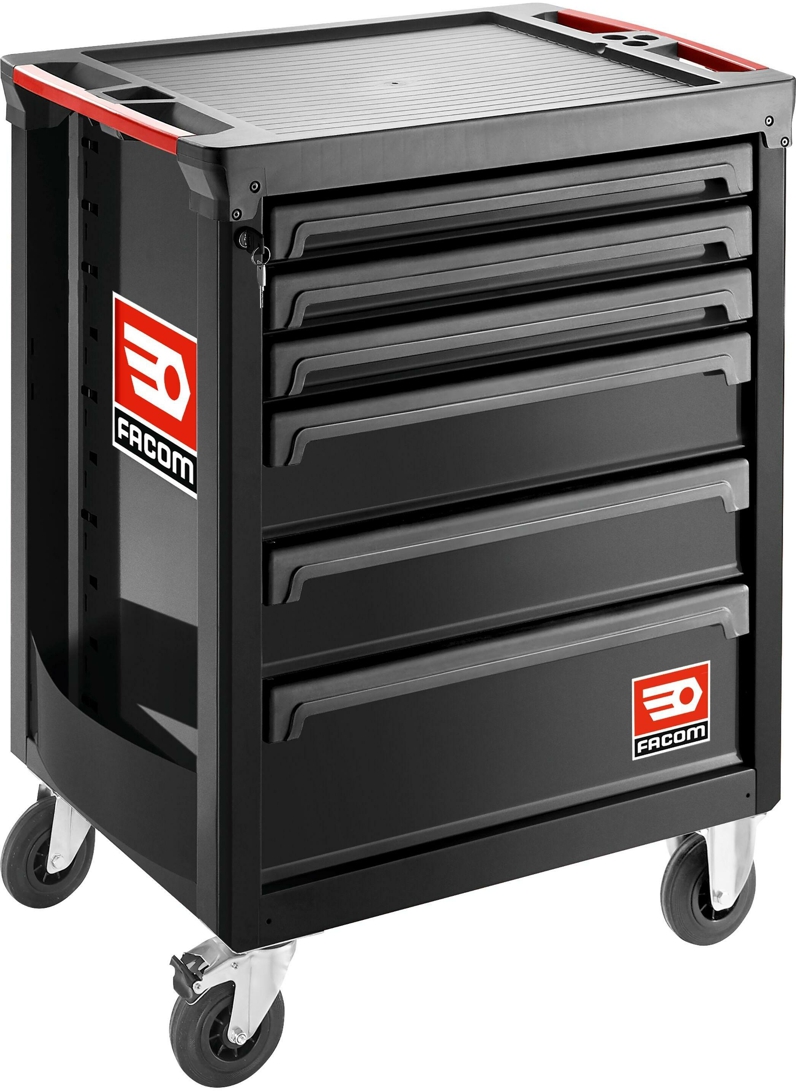

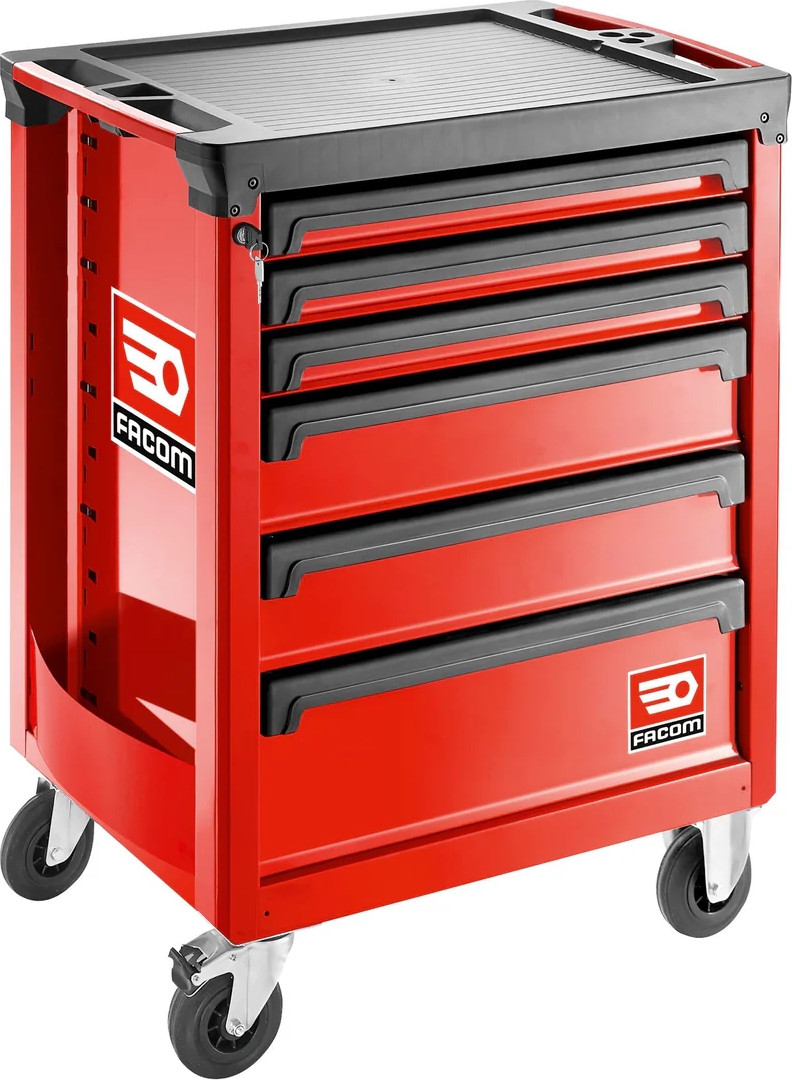

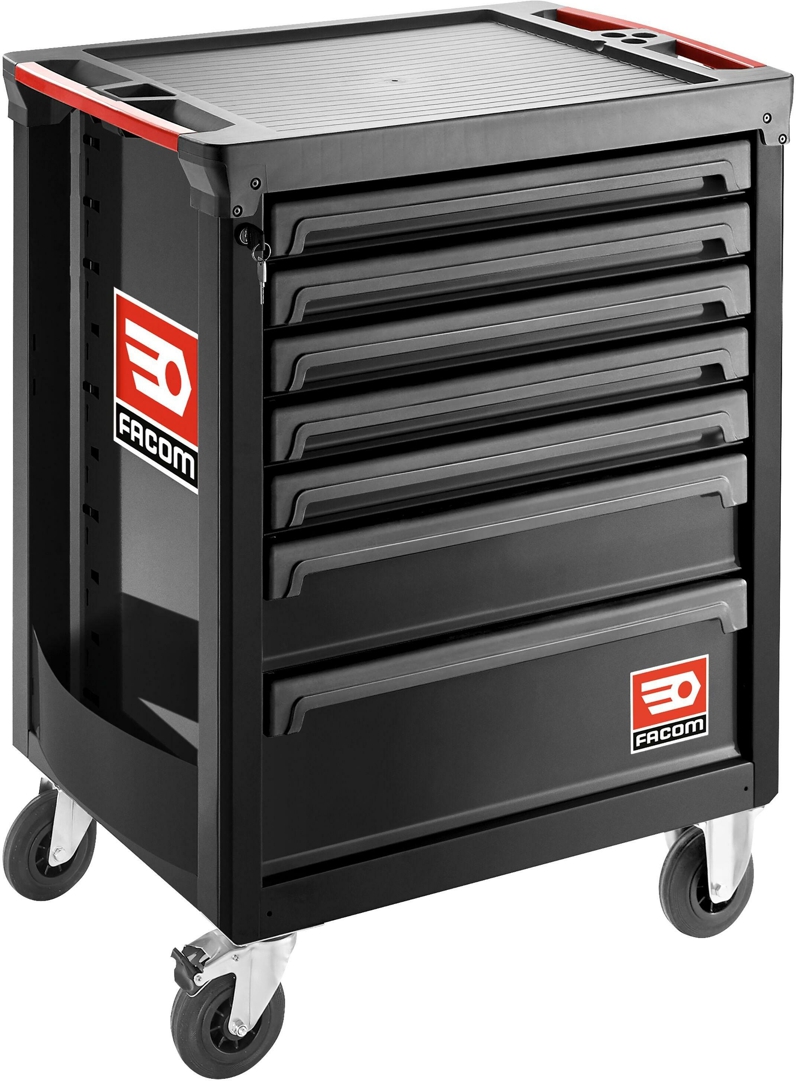

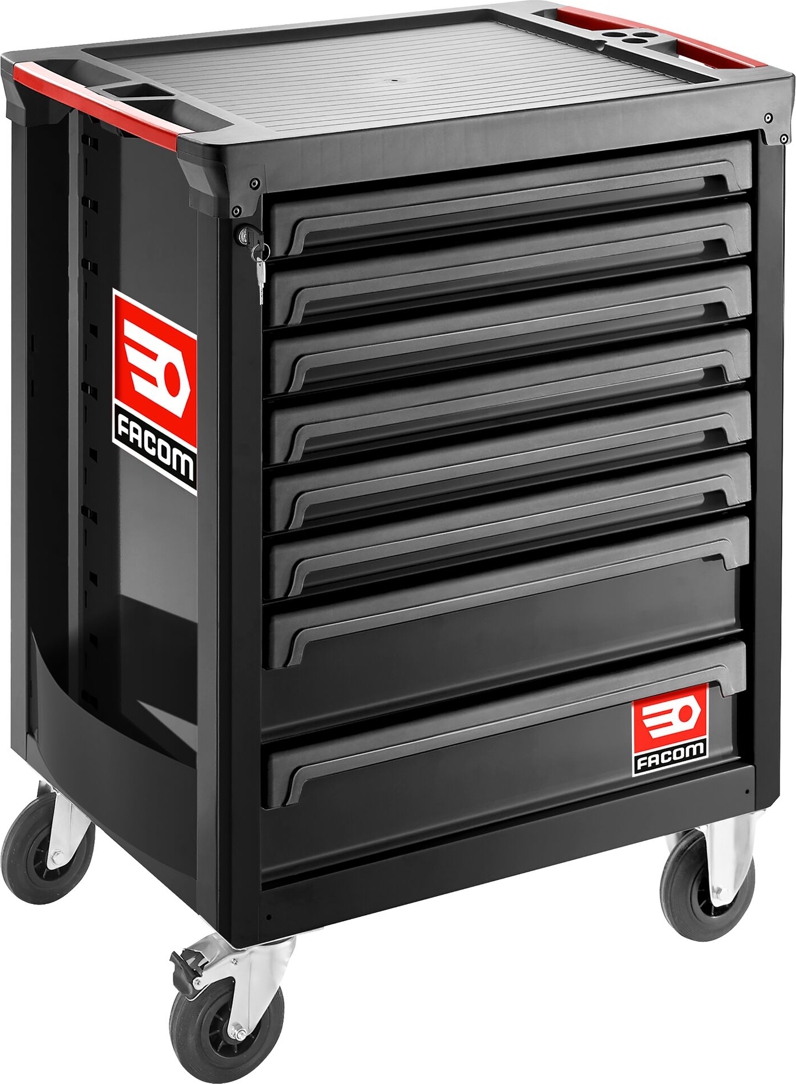

- Workshop roller cabinet solution for the organisation and storage of a multitude of tools, accessories, supplies and consumables, putting the essential items required for a particular job at hand in one easy-to-access, mobile unit.
- The spacious FACOM ROLL comes at not even 60kg, is lightweight and easy to manoeuvre for ultimate mobility in the workshop.
- Drawers can be fitted With thermoshaped or foam modules from FACOM Modular system program
- Drawers useful dimensions: L 569 x D 421 x H 60/130/200 mm
- Load resistance per drawer: 20/25/30 kg
- Worktop: Large worktop (560 x 460 mm) made of polypropylene With fiber impact and chemical resistant, static load resistance 800 kg
- Even more functional: Integrated bi-material handle With soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
- Ergonomic and secure drawers: Polypropylene drawer drawer handles With safety hooks. No risk of opening while in motion
- Central locking system With key lock, supplied With 2 keys, 1 of which is hinged
- Manoeuvrability: Low starting effort, long life, high resistance to heavy loads
- 4 Wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped With a brake for more stability when working at a standstill
References:
|
|
Number of drawers
|
Drawer dimensions (mm)
|
Drawers height (mm)
|
Total dimensions (mm)
|
Drawers total weight capacity (kg)
|
Maximum worktop load (kg)
|
Wheels with brake
|
Weight (kg)
|
|
|
6 |
569 x 421 x 60/130/200 |
3x60, 1x130, 1x200 |
972 x 779 x 515 |
140 |
800 |
yes |
55 |
|
|
7 |
569 x 421 x 60/130/200 |
5x60, 1x130, 1x200 |
972 x 779 x 515 |
155 |
800 |
yes |
56.5 |
|
|
8 |
569 x 421 x 60/130 |
6x60, 2x130 |
972 x 779 x 515 |
170 |
800 |
yes |
58 |

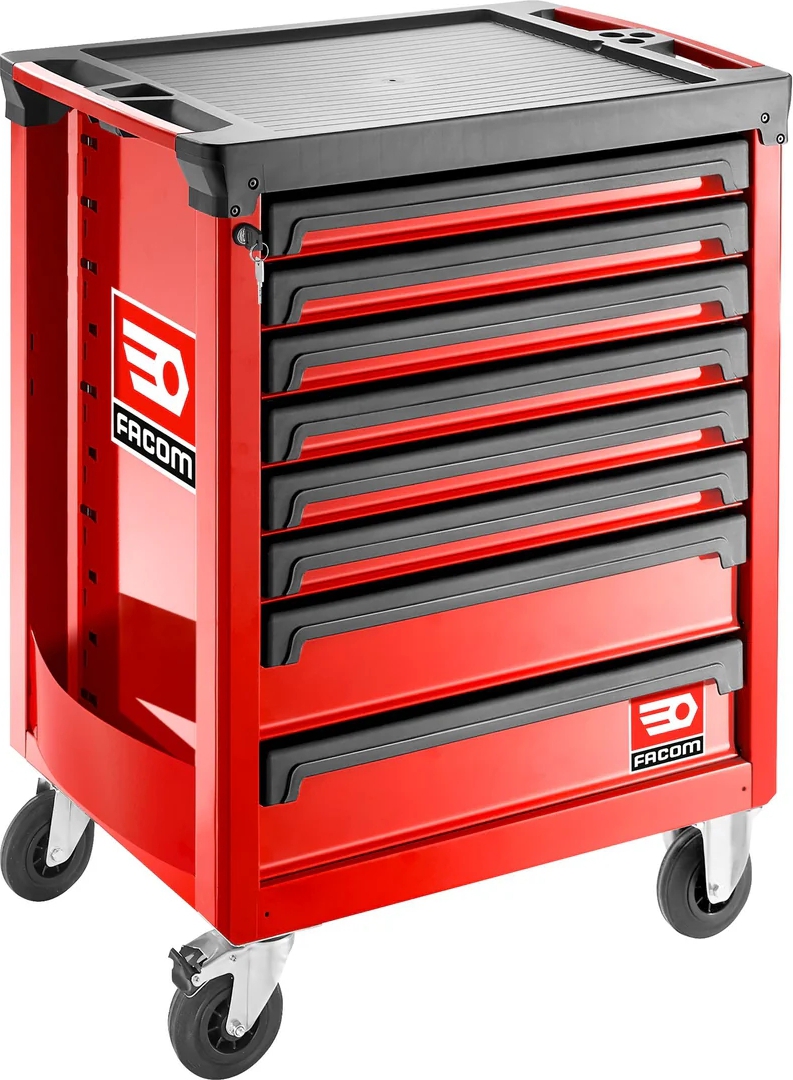

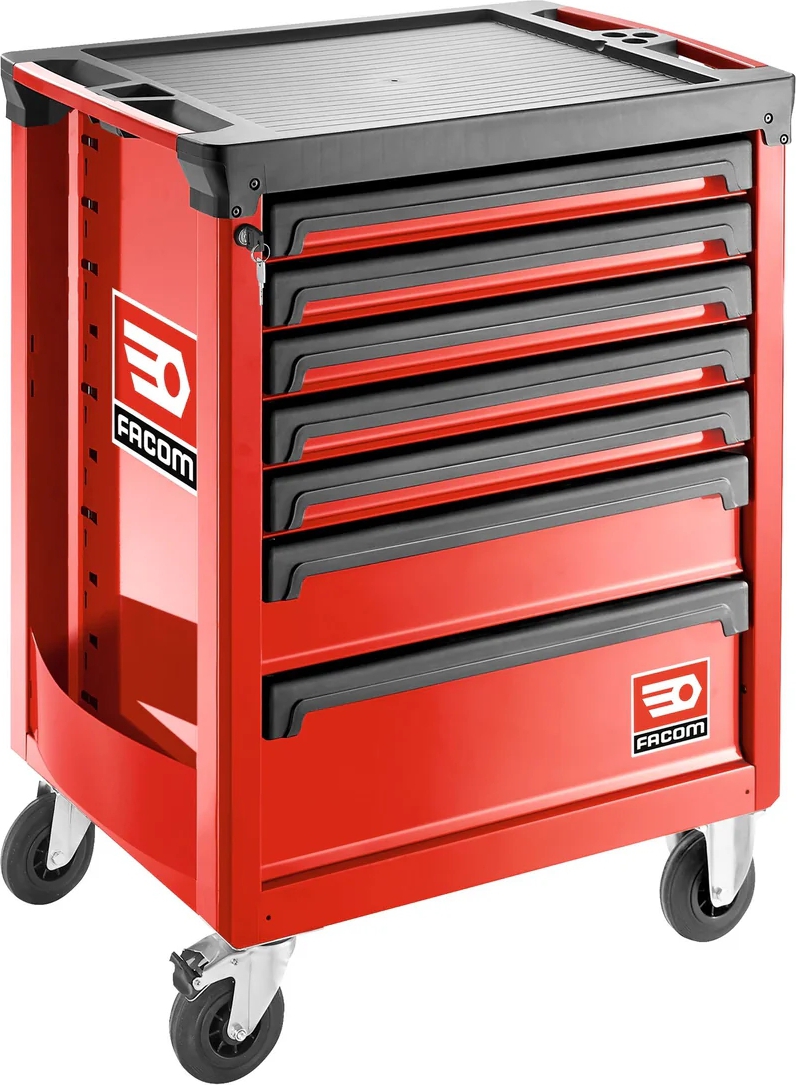

ROLL STORAGE CABINETS FOR WORKSHOP PROFESSIONALS!
- Workshop roller cabinet solution for the organisation and storage of a multitude of tools, accessories, supplies and consumables, putting the essential items required for a particular job at hand in one easy-to-access, mobile unit.
- The spacious FACOM ROLL comes at not even 60kg, is lightweight and easy to manoeuvre for ultimate mobility in the workshop.
- Drawers can be fitted With thermoshaped or foam modules from FACOM Modular system program
- Drawers useful dimensions: L 569 x D 421 x H 60/130/200 mm
- Load resistance per drawer: 20/25/30 kg
- Worktop: Large worktop (560 x 460 mm) made of polypropylene With fiber impact and chemical resistant, static load resistance 800 kg
- Even more functional: Integrated bi-material handle With soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
- Ergonomic and secure drawers: Polypropylene drawer drawer handles With safety hooks. No risk of opening while in motion
- Central locking system With key lock, supplied With 2 keys, 1 of which is hinged
- Manoeuvrability: Low starting effort, long life, high resistance to heavy loads
- 4 Wheels diameter 125 mm, 2 fixed and 2 swivel, each equipped With a brake for more stability when working at a standstill
References:
|
|
Number of drawers
|
Drawer dimensions (mm)
|
Drawers height (mm)
|
Total dimensions (mm)
|
Drawers total weight capacity (kg)
|
Maximum worktop load (kg)
|
Wheels with brake
|
Weight (kg)
|
|
|
6 |
569 x 421 x 60/130/200 |
3x60, 1x130, 1x200 |
972 x 779 x 515 |
140 |
800 |
yes |
55 |
|
|
7 |
569 x 421 x 60/130/200 |
5x60, 1x130, 1x200 |
972 x 779 x 515 |
155 |
800 |
yes |
56.5 |
|
|
8 |
569 x 421 x 60/130 |
6x60, 2x130 |
972 x 779 x 515 |
170 |
800 |
yes |
58 |

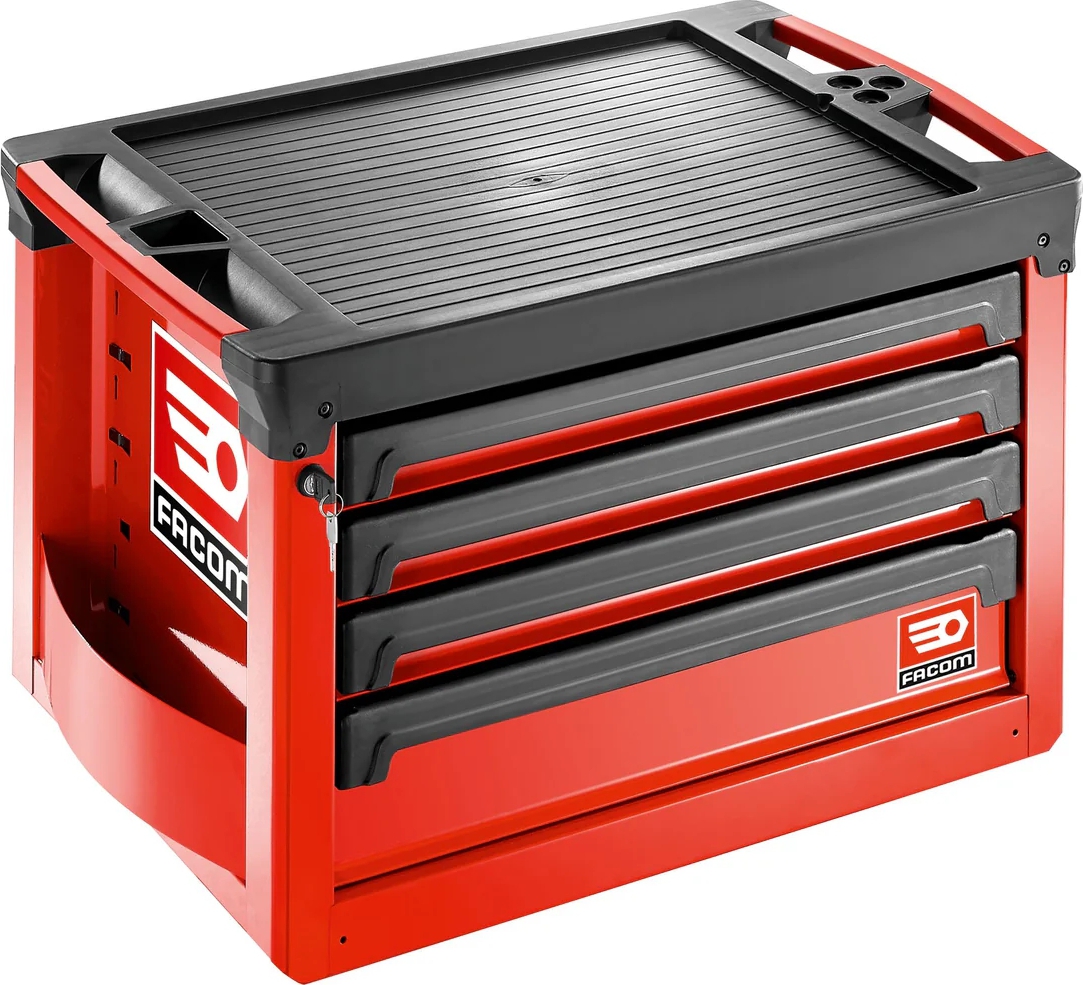

- Can be used alone or together with a ROLL.6M3A rolling cabinet.
- Supplied with the link kit for easy and secured mounting of the assembly.
- 3 drawers 60 mm high + 1 drawer 130 mm high.
- Max load per drawer: 20/25 kg.
- Bottle holder included (fits on the right or left).
- CHRONO.C4K2 rolling kit in option (moving handle + 4 wheels).

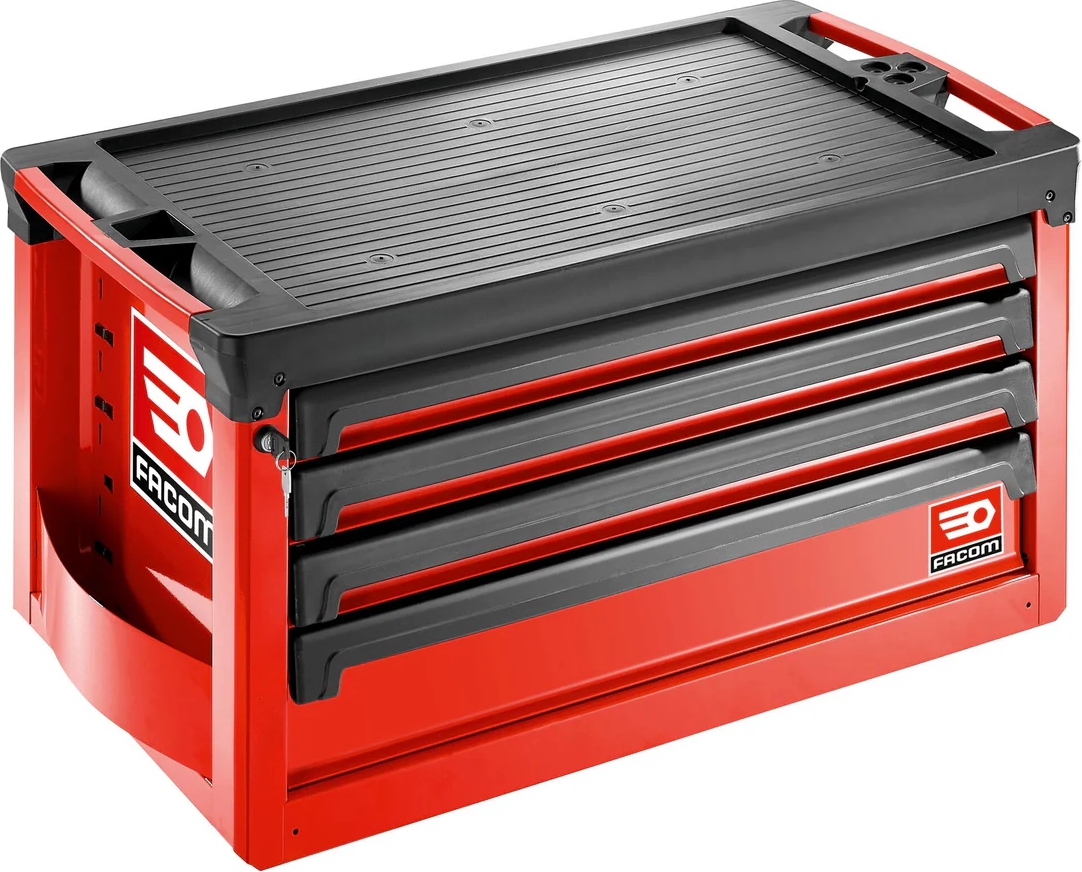

- Can be used alone or together with a ROLL.6M4A rolling cabinet.
- Supplied with the link kit for easy and secured mounting of the assembly.
- 3 drawers 60 mm high + 1 drawer 130 mm high.
- Max load per drawer: 20/25 kg.
- Bottle holder included (fits on the right or left).
- CHRONO.C4K2 rolling kit in option (moving handle + 4 wheels).

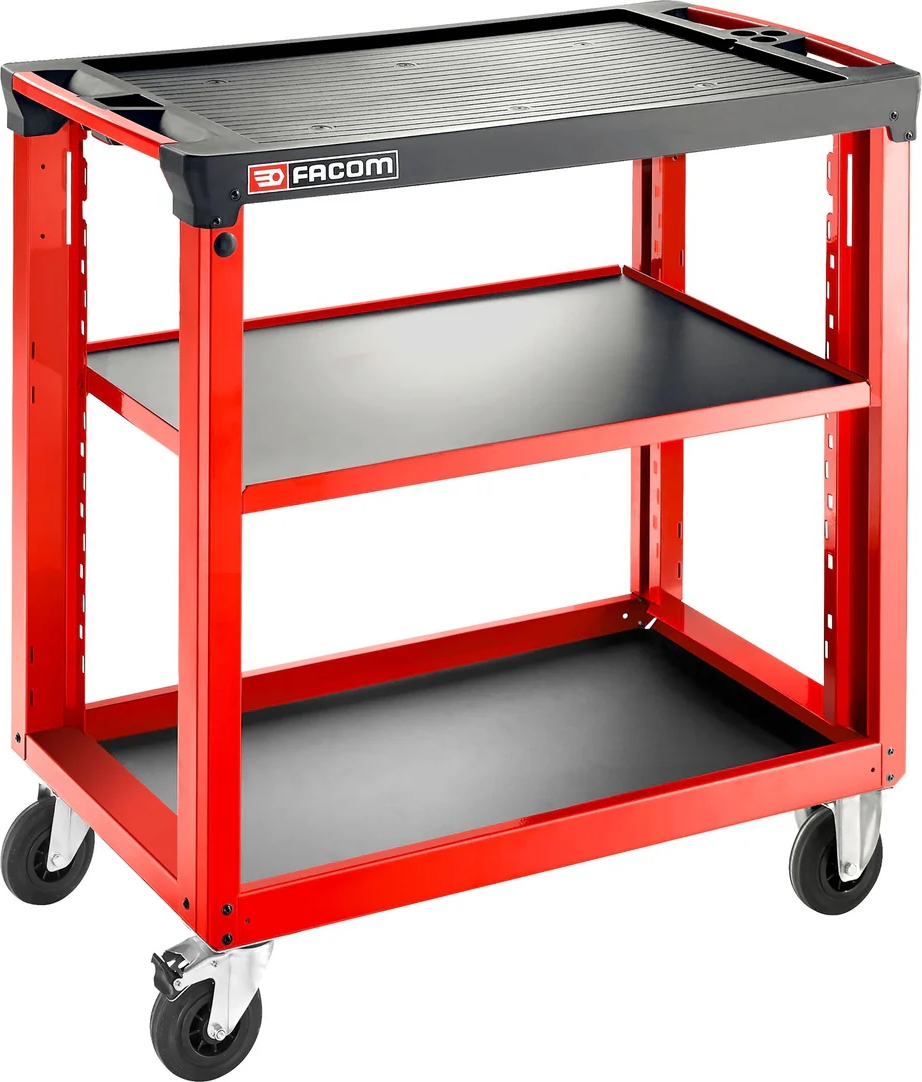

- 3-level utility cart M3
- High durability worktop: Large 560 x 460 mm fibre-filled polypropylene surface, resistant to impacts and hydrocarbons, load resistance 200 kg
- Even more functional: Integrated bi-material handle With soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
- Dedicated space for 8 screwdrivers
- Integrated edges prevent tools from falling while moving
- 2 metal shelves With removable black ABS panels for protection and easy maintenance
- 2 possible positions for the central shelf
- Shelves dimensions: L 595 x D 500 x H 28 mm
- Maneuverability: 4 Wheels diameter 125 mm, 2 fixed and 2 swivel
- Delivered unassembled: Quick and easy assembly using screws and nuts
- 3-level utility cart M3
- High durability worktop: Large 750 x 460 mm fibre-filled polypropylene surface, resistant to impacts and hydrocarbons, load resistance 200 kg
- Even more functional: Integrated bi-material handle With soft grip on each side of the trolley. One for moving and one for lifting the trolley over obstacles
- Dedicated space for 8 screwdrivers
- Integrated edges prevent tools from falling while moving
- 2 metal shelves With removable black ABS panels for protection and easy maintenance
- 2 possible positions for the central shelf
- Shelves dimensions: L 785 x D 500 x H 28 mm
- Maneuverability: 4 Wheels diameter 125 mm, 2 fixed and 2 swivel
- Delivered unassembled: Quick and easy assembly using screws and nuts
