SNAP-ON (John Bean) CAR WHEEL BALANCER

CAR WHEEL BALANCER

With PROtouchH�

The wheel balancer with Power Clamp Device and easyWEIGHT� pinpoint laser light indicator for tyre shops, car dealerships and garages. With PROtouchH� - the touch-screen graphical display � the B340 is as intuitive as a video balancer.

MAIN FEATURES

easyWEIGHT and torque-controlled Power clamp device instead of quick nut.
With electromechanical main shaft lock and with the Stop-in-Position feature where the operator only has to touch the amount of unbalance on the display and the wheel is automatically indexed to correction position
PROtouch� - the touchscreen graphical display, 10� wide, with DIAMOND user interface � makes the B340 as intuitive as a video balancer
Semi-automatic input of offset and rim diameter via 2D SAPE and automatic rim width acquisition via Smart Sonar � fast and easy
Semi-automatic pre-selection of balancing mode via easyALU�
Split weight mode
Weight minimisation and optimisation
Two users with rapid switch function
Network printing capability � Compatible with asanetwork
WI-FI connectivity
VPM imaging technique for uncompromised accuracy
QuickBAL� for reduced measurement time:
Short start-stop cycle time: 4.5 seconds (15� rim)
Clamping of wheel on integrated flange with quick nut
Mechanical main shaft lock

INNOVATIVE FEATURES

PROtouch�

PROTOUCH� TECHNOLOGY: THE NEXT MILESTONE FOR DIGITAL BALANCERS

Makes a digital balancer as intuitive and easy to operate as a video balancer. Intuitive operation given by the wide screen, large digits for the amount of the balance weight and bright indicators for the weight position. Ergonomics and ease of use with touchscreen user interface.

Wide touchscreen display
Clear and intuitive
Large digits, bright indicators

VPM TECHNIQUE

Measurement system for high precision and repeatability. Ensures most accurate balance results and is insensitive to ambient conditions.

easyWEIGHT�

Pinpoint laser identifies exact weight placement location for increased accuracy and efficiency.

POWER CLAMP�

The patented electro-mechanical Power Clamp� device clamps the wheel accurately with a constant force, which is most important for every balancing operation.

SPLIT WEIGHT MODE

Hides adhesive weights behind two adjacent spokes so they cannot be seen from the outside.

easyALU�

Touch the rim with the gauge arm to enter the rim dimensions and automatically select the weight balancing mode.

QuickBAL�

30% reduced cycle time, less than 4.5 seconds, maintaining the same high accuracy.

STOP IN POSITION

Touch the screen to automatically rotate the wheel to weight application position.

Smart Sonar�

Automatic, non-contact rim width acquisition delivers greater accuracy and ease of use for a 30% savings in complete process when compared to manual operation.

Videos:

Documents:

B340

The game changer

Specifications:


Vehicles supported	Cars / Light trucks / SUVs
Measuring speed	< 200 rpm
Balancing accuracy	1 g
Angular resolution	� 0.35�
Start/Stop balance time - Check spin	4.5 s
Diametre of shaft	40 mm
Lenght of shaft	225 mm
Dimensions LxWxH	1330 x 870 x 1880 mm
Net weight	115 kg
Input power (VAC)	230 VAC 1ph 50/60 Hz
MAXIMUM WHEEL DIMENSIONS
Max. wheel diameter	1050 mm
Wheel width	76 - 508 mm
Max. wheel weight	70 kg
SEMI-AUTOMATIC DATA ENTRY (SAPE)
Rim diameter	8 - 25"
Rim width	3 - 15"
MANUAL DATA ENTRY
Rim diameter	8 - 32"
Offset	1 - 20"
Rim width	1 - 20"

References:

		Wheel clamping
SNAP-ON (John Bean) B340L		QUICK NUT
SNAP-ON (John Bean) B340P		POWER CLAMP�

Products in the same category

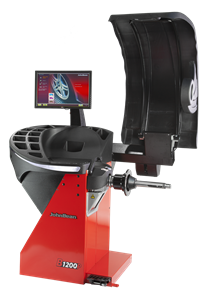

SNAP-ON (John Bean) B1200P
