Castor Trading - OMCN 243 GEARBOX TROLLEY JACK 1ton

×

GEARBOX TROLLEY JACK 1ton

FEATURES:

Hydraulic jack to mount and dismount gearboxes and differential gears.
Adjustable platform through a screw.
Compact structure made of welded steel.
"Man standing-by" descent control device.
Safety valve to avoid any possible overload.
Four turning wheels to guarantee a precise positioning.
Wheels made of polyurethane

SPECIFICATIONS:

Capacity: 1 ton.
Min Height: 260mm.
Max Height: 960mm.
Length: 1080mm.
Width: 650mm.

Products in the same category

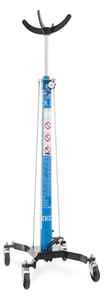

OMCN SIF1/A/73

HYDRAULIC TRANSMISSION JACK 0.4TON

FEATURES:

Shafts are made of special chrome-plated ground steel.

Wheels of big dimensions mounted on bearings to guarantee maximum manoeuvrability.

Safety valve to avoid any possible overload.

"Man standing-by" descent control device with a controlled speed.

SPECIFICATIONS:

Load capacity: 0.4 ton.

Minimum height: 1240mm.

Stroke: 850mm.

Base width: 410mm.

Base length: 585mm.

Weight: 27 kg

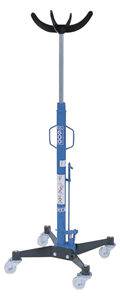

OMCN SIF2/A/73

HYDRAULIC TRANSMISSION JACK 0.6TON

FEATURES:

Shafts are made of special chrome-plated ground steel.

Wheels of big dimensions mounted on bearings to guarantee maximum manoeuvrability.

Safety valve to avoid any possible overload.

"Man standing-by" descent control device with a controlled speed.

SPECIFICATIONS:

Load capacity: 0.6 ton.

Minimum height: 1180mm.

Stroke: 780mm.

Base width: 520mm.

Base length: 520mm.

Weight: 37 kg

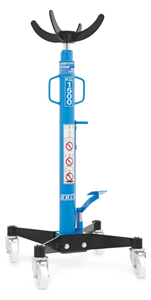

OMCN SIF3/73

HYDRAULIC TRANSMISSION JACK 1.5TON

FEATURES:

Shafts are made of special chrome-plated ground steel.

Wheels of big dimensions mounted on bearings to guarantee maximum manoeuvrability.

Safety valve to avoid any possible overload.

"Man standing-by" descent control device with a controlled speed.

SPECIFICATIONS:

Load capacity 1.5 ton.

Minimum height: 1220mm.

Stroke: 800mm.

Base width: 540mm.

Base length: 540mm.

Weight: 60 kg.
