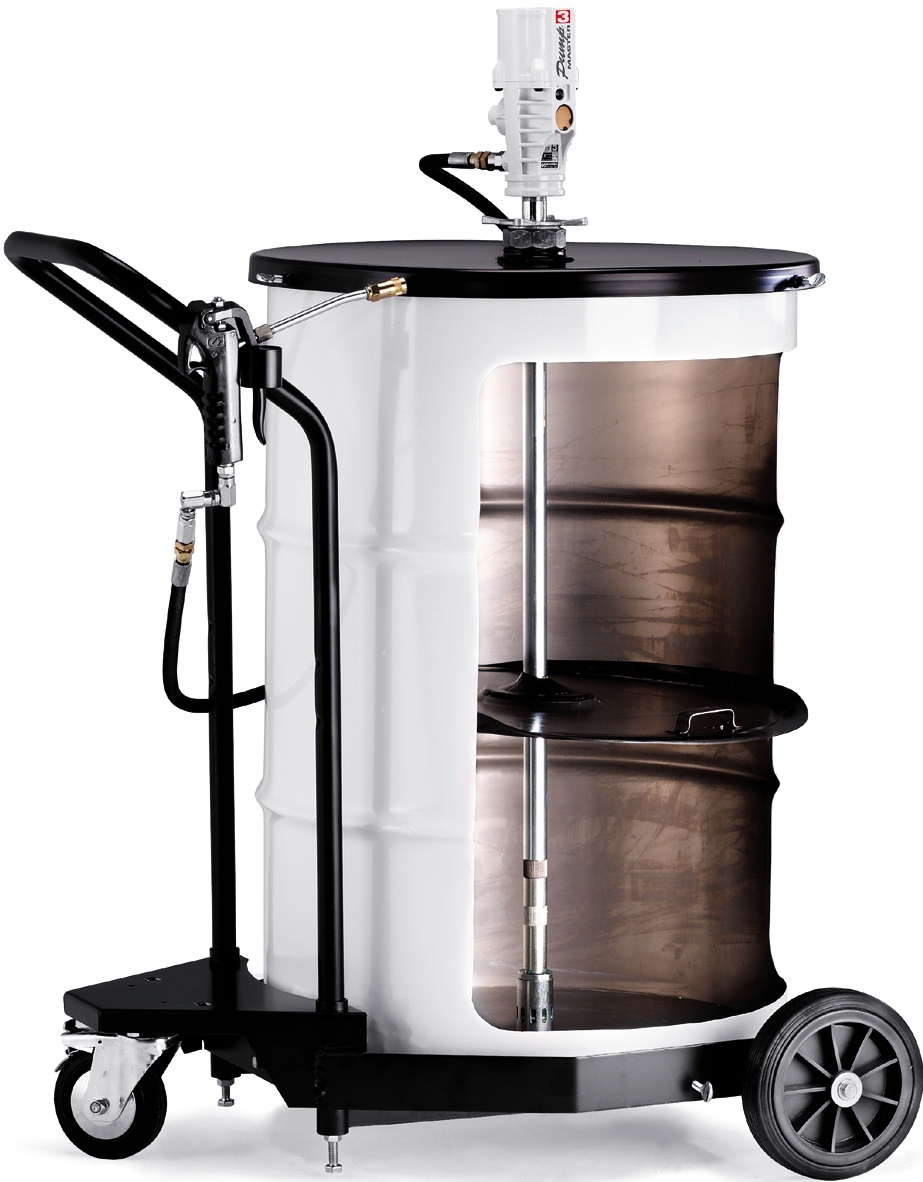

SAMOA 428243 |
|---|---|
| Pump tube height | 920mm |
| Weight | 4.8kg |
| Pressure ratio | 55:1 |
| Free flow | 540 gr/min |
| Air pressure | 1.5-10 bar (20-140 psi) |
| Air inlet | 1/4" BSPT (F) |
| Fluid outlet | 1/4" BSP (F) |
|
|
||
|---|---|---|
|

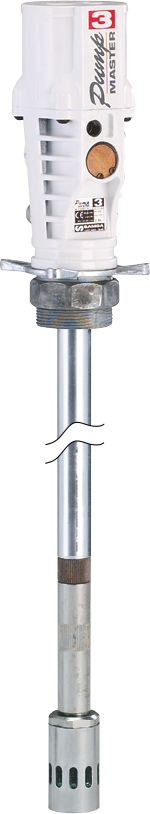

PumpMaster 3 - 55:1 grease pump with bung adaptor | |
|

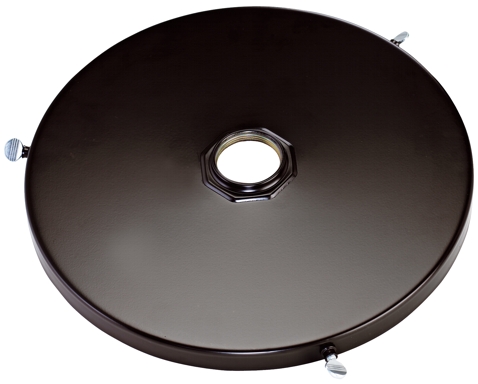

610 mm drum cover for 180 kg drums | |
|
590-550 mm follower plate for 180 kg drums | |
|

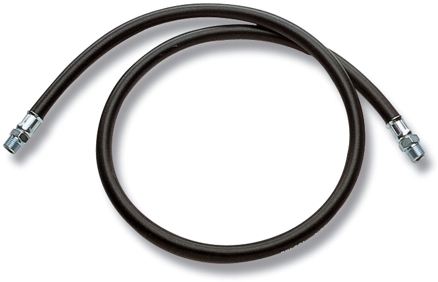

4m x �" high pressure hose | |
|

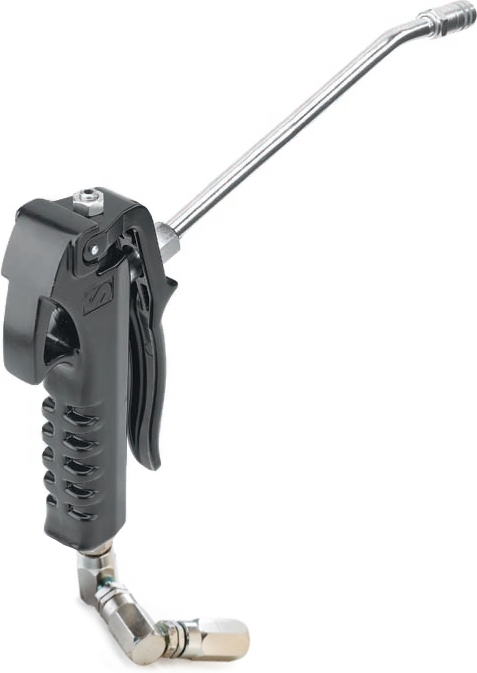

PG77 GREASE GUN WITH "Z" SWIVEL | |
|
180 kg drum trolley |
Includes:
404100: PumpMaster 3 - 55:1 grease pump with bung adaptor.
418013: 310 mm drum cover for 20 kg grease containers.
741602: Carrying handle
412102: 2 m x 1/4" high pressure grease hose.
413080: High pressure grease control gun with z swivel.
431001: Two wheel trolley with base.
Not included options:

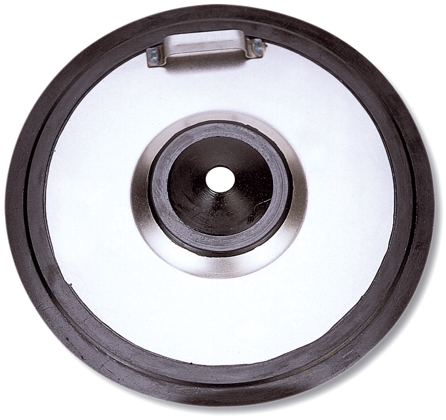

417001: Follower plate

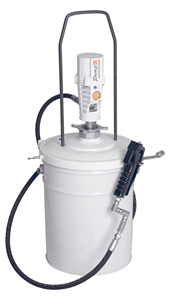

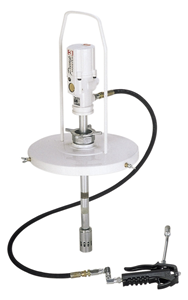

Includes:
404100: PumpMaster 3 - 55:1 grease pump with bung adaptor.
418013: 310 mm drum cover for 20 kg grease containers.
741602: Carrying handle
412102: 2 m x 1/4" high pressure grease hose.
413080: High pressure grease control gun with z swivel.
Not included options:
417001: Follower plate.
431001: Two wheel trolley with base.
Includes:
404100: PumpMaster 3 - 55:1 grease pump with bung adaptor.
418002: 330 mm drum cover for 20 kg pails.
741602: Carrying handle.
412102: 2 m x 1/4" high pressure hose.
413080: High pressure grease control gun with "Z" swivel.
Not included options:
417005: Follower plate diameter 300 - 330 mm.
431001: Two wheel trolley with base.

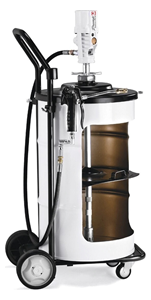

Includes:
407200: PumpMaster 3 - 55:1 grease pump with bung adaptor.
418004: 405 mm drum cover for 50 Kg pails.
412103: 3 m x 1/4" high pressure hose.
413080: High pressure grease control gun with "Z" swivel.

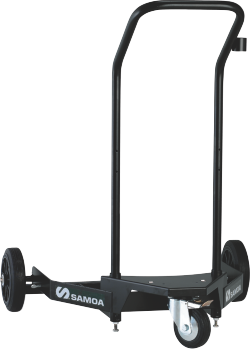

431000: Four wheeled trolley.
Not included options:
417002: Follower plate.
Includes:
407200: PumpMaster 3 - 55:1 grease pump with bung adaptor.
418004: 405 mm drum cover for 50 Kg pails.
412103: 3 m x 1/4" high pressure hose.
413080: High pressure grease control gun with "Z" swivel.
431000: Four wheeled trolley.
417002: Follower plate.

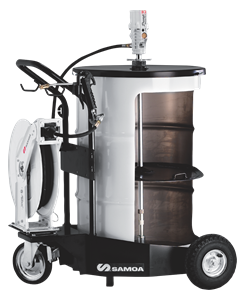

Assembly for high pressure greasing with a PumpMaster 3 - 55:1 pressure ratio pump for 185 Kg drums.
Includes:
409200: PumpMaster 3 - 55:1 grease pump with bung adaptor.
418006: 610 mm drum cover for 180 Kg drums.
417004: 590 - 550 mm follower plate for 180 kg drums.
412101: 1.5 m x 1/4" high pressure hose.
501300: Open type hose reel with 10 m x ? 1/4" hose.
413080: High pressure grease control gun with "Z" swivel.
432814: 180 kg heavy duty drum trolley.
360113: hose reel bracket for trolley
