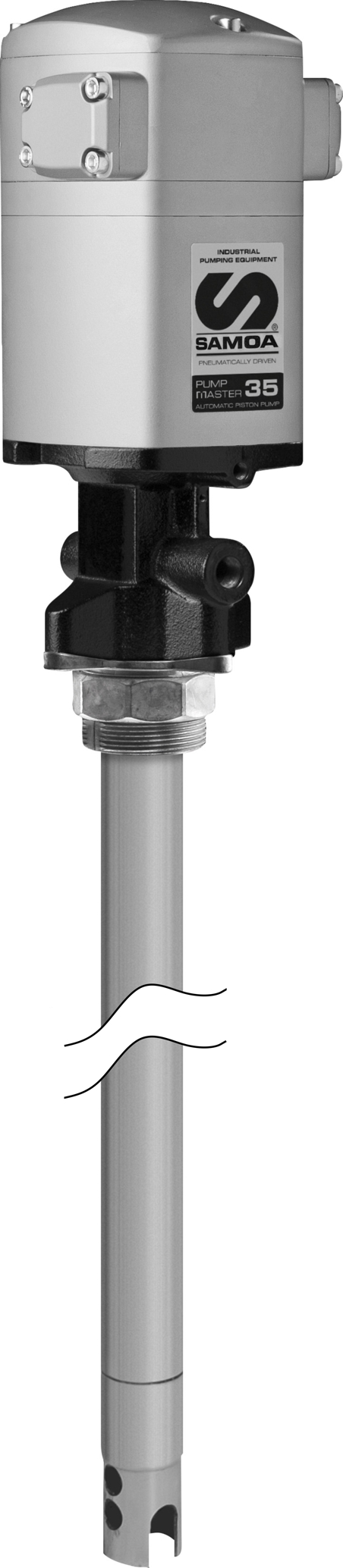

SAMOA 530610 |
|---|---|
| Pressure ratio | 60:1 |
| Pump tube diameter | 35 mm |
| Air piston diameter | 80 mm |
| Air piston stroke | 80 mm |
| Maximum free flow capacity | 900 gr/min (NLGI-2) 2000 gr/min (NLGI-1) |
| Air pressure range | 2-10 bar (20-145 psi) |
| Maximum air pressure | 10 bar (145 psi) |
| Maximum fluid pressure | 600 bar (8,700 psi) |
| Air inlet | 3/8" BSPT (F) |
| Fluid outlet | 3/8" BSP (F) |
| Drum application | 50 - 185 Kg |
| Suction tube height | 925 mm |
| Total height | 1,212 mm |
| Weight | 11 kg |
FEATURES:
Heavy Duty high pressure and high delivery pump.
Long stroke pump, requires a small number of cycles to deliver enough volume of grease required in most applications.
Recommend use in large systems that include pipe lines, hose reels, etc.
Very reliable double acting pump, includes a removable screen filter at the grease intake area for eliminating dirt and impurities that could damage the pump.
Typically used in high pressure, high volume grease dispense systems, fleet service, general industry, heavy duty and comercial vehicles service, minig, construction, trains, etc.
