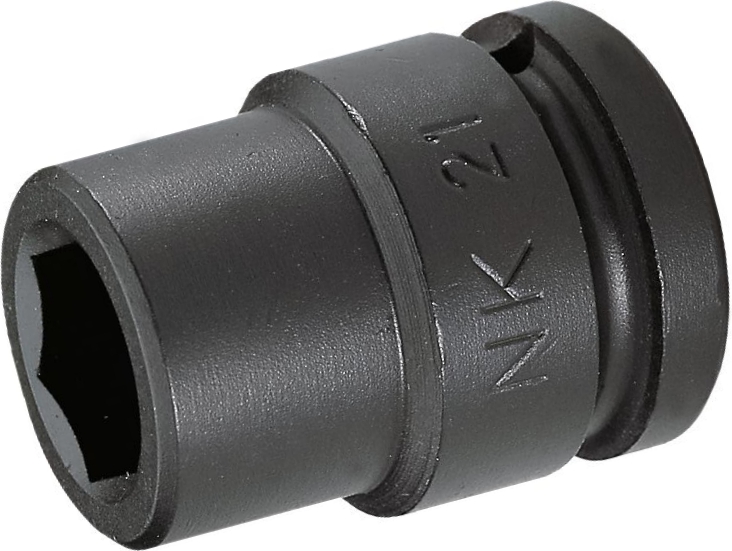

3/4" DRIVE METRIC 6-POINT IMPACT SOCKETS

Learn more

Standards: NF ISO 2725-2, NF ISO 1711-2, ISO 2725-2, ISO 1711-2, DIN 3129, ASME B107.33
For your safety, use impact sockets and accessories with the appropriate rings and pins.

References:

	Size (mm)	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NK.17A	17	38	28.5	50	14	BA.30B	GA.31B	300
FACOM NK.18A	18	38	29.0	50	14	BA.30B	GA.31B	310
FACOM NK.19A	19	38	29.5	50	14	BA.30B	GA.31B	315
FACOM NK.21A	21	38	32.0	50	14	BA.30B	GA.31B	330
FACOM NK.22A	22	38	34.0	50	14	BA.30B	GA.31B	345
FACOM NK.23A	23	38	35.0	50	17	BA.30B	GA.31B	350
FACOM NK.24A	24	38	36.0	50	17	BA.30B	GA.31B	350
FACOM NK.26A	26	38	38.0	52	18	BA.30B	GA.31B	480
FACOM NK.27A	27	38	42.0	52	18	BA.30B	GA.31B	480
FACOM NK.28A	28	38	42.0	52	18	BA.30B	GA.31B	520
FACOM NK.29A	29	38	42.0	52	18	BA.30B	GA.31B	520
FACOM NK.30A	30	38	42.0	52	20	BA.30B	GA.31B	545
FACOM NK.32A	32	38	46.0	55	22	BA.30B	GA.31B	620
FACOM NK.33A	33	44	48.0	57	22	BA.30B	GA.31B	650
FACOM NK.34A	34	44	48.0	57	22	BA.30B	GA.31B	680
FACOM NK.35A	35	44	50.0	57	24	BA.30B	GA.31B	680
FACOM NK.36A	36	44	52.0	57	24	BA.30B	GA.31B	705
FACOM NK.38A	38	44	56.0	57	26	BA.30B	GA.31B	890
FACOM NK.41A	41	44	58.0	63	27	BA.30B	GA.31B	890
FACOM NK.42A	42	44	62.0	63	27	BA.30B	GA.31B	925
FACOM NK.46A	46	44	65.0	68	30	BA.30B	GA.31B	1000

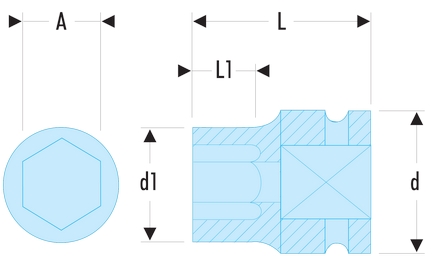

3/4" DRIVE INCH 6-POINT IMPACT SOCKETS

Learn more

Standards: NF ISO 2725-2, NF ISO 1711-2, ISO 2725-2, ISO 1711-2, DIN 3129, ASME B107.33
For your safety, use impact sockets and accessories with the appropriate rings and pins.

References:

	Size (")	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NK.3/4A	3/4	38	29.5	50	14	BA.30B	GA.31B	315
FACOM NK.13/16A	13/16	38	32	50	14	BA.30B	GA.31B	330
FACOM NK.7/8A	7/8	38	34	50	14	BA.30B	GA.31B	345
FACOM NK.15/16A	15/16	38	36	50	17	BA.30B	GA.31B	350
FACOM NK.1PA	1	44	41	50	18	BA.38A	GA.37A	480
FACOM NK.1P1/16A	1 1/16	44	43	54	23	BA.30B	GA.31B	480
FACOM NK.1P1/8A	1 1/8	44	44	54	23	BA.38A	GA.37A	520
FACOM NK.1P1/4A	1 1/4	44	49	56	23	BA.38A	GA.37A	620
FACOM NK.1P5/16A	1 5/16	44	53	56	23	BA.38A	GA.37A	680
FACOM NK.1P7/16A	1 7/16	44	55	56	24	BA.38A	GA.37A	515
FACOM NK.1P1/2A	1 1/2	44	57	58	26	BA.38A	GA.37A	890
FACOM NK.1P5/8A	1 5/8	44	60	58	28	BA.38A	GA.37A	890

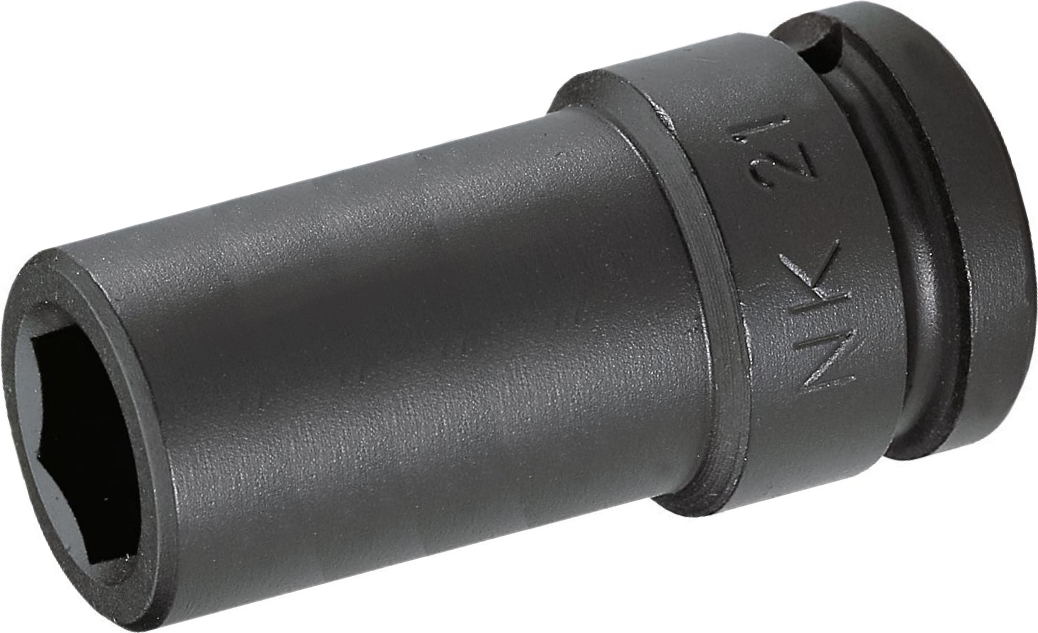

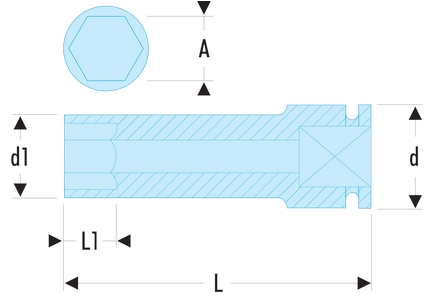

3/4" DRIVE METRIC LONG-REACH METRIC 6-POINT IMPACT SOCKETS

Learn more

Standards : NF ISO 2725-2, NF ISO 1711-2, ISO 2725-2, ISO 1711-2, DIN 3129, ASME B107.33
For your safety, use impact sockets and accessories with the appropriate rings and pins.

References:

	Size (mm)	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NK.17LA	17	44	31	90	20	BA.30B	GA.31B	550
FACOM NK.19LA	19	44	33	90	24	BA.30B	GA.31B	620
FACOM NK.21LA	21	44	35	90	24	BA.30B	GA.31B	600
FACOM NK.22LA	22	44	37	90	24	BA.30B	GA.31B	780
FACOM NK.23LA	23	44	38	90	24	BA.30B	GA.31B	780
FACOM NK.24LA	24	44	39	90	40	BA.30B	GA.31B	820
FACOM NK.26LA	26	44	41	90	40	BA.30B	GA.31B	800
FACOM NK.27LA	27	44	43	90	40	BA.30B	GA.31B	810
FACOM NK.29LA	29	44	45	90	40	BA.30B	GA.31B	890
FACOM NK.30LA	30	44	47	90	40	BA.30B	GA.31B	900
FACOM NK.32LA	32	44	48	90	45	BA.30B	GA.31B	930
FACOM NK.33LA	33	44	48	90	45	BA.30B	GA.31B	980
FACOM NK.34LA	34	44	48	90	45	BA.30B	GA.31B	1100
FACOM NK.35LA	35	44	50	90	45	BA.30B	GA.31B	1240
FACOM NK.36LA	36	44	52	90	45	BA.30B	GA.31B	1240
FACOM NK.38LA	38	44	56	90	45	BA.30B	GA.31B	1220
FACOM NK.41LA	41	44	58	90	48	BA.30B	GA.31B	1470
FACOM NK.42LA	42	44	62	90	48	BA.30B	GA.31B	1450
FACOM NK.46LA	46	44	65	100	48	BA.30B	GA.31B	1500

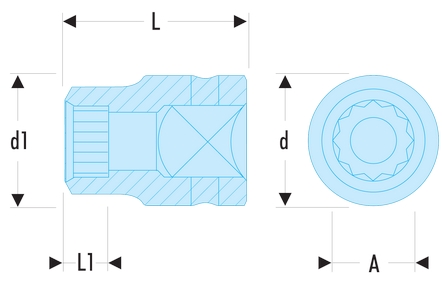

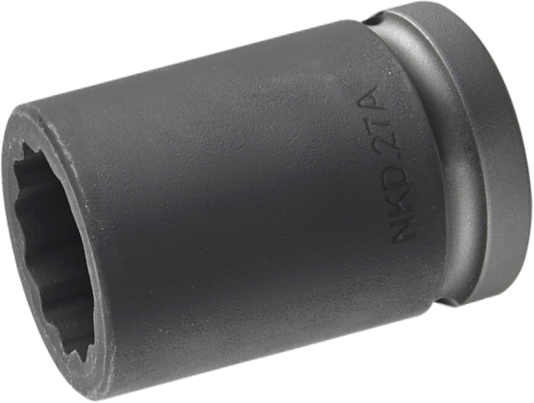

3/4" DRIVE METRIC 12-POINT IMPACT SOCKETS

Learn more

Standards: NF ISO 2725-2, NF ISO 1711-2, ISO 2725-2, ISO 1711-2, DIN 3129, ASME B107.33
For your safety, use impact sockets and accessories with the appropriate rings and pins.

References:

	Size (mm)	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NKD.16A	16	38	38	50	14	BA.30B	GA.31B	185
FACOM NKD.17A	17	38	30.0	50	14	BA.30B	GA.31B	190
FACOM NKD.18A	18	38	38	50	14	BA.30B	GA.31B	215
FACOM NKD.19A	19	38	32.5	50	14	BA.30B	GA.31B	220
FACOM NKD.21A	22	38	36.5	50	14	BA.30B	GA.31B	230
FACOM NKD.22A	21	38	50	50	14	BA.30B	GA.31B	230
FACOM NKD.23A	23	39.9	50	50	12.7	BA.30B	GA.31B	248
FACOM NKD.24A	24	39.9	50	50	13.9	BA.30B	GA.31B	249
FACOM NKD.26A	26	40.9	50	50	14.6	BA.30B	GA.31B	297
FACOM NKD.27A	27	40.9	50	50	15.8	BA.30B	GA.31B	297
FACOM NKD.28A	28	43.9	50	50	16.3	BA.30B	GA.31B	330
FACOM NKD.29A	29	44	50	50	16.7	BA.30B	GA.31B	410
FACOM NKD.30A	30	44	50	50	16.7	BA.30B	GA.31B	410
FACOM NKD.32A	32	44	50	50	18.3	BA.30B	GA.31B	410
FACOM NKD.33A	33	44	56	56	19.1	BA.30B	GA.31B	500
FACOM NKD.34A	34	44	56	56	20.0	BA.30B	GA.31B	500
FACOM NKD.35A	35	44	56	56	20.1	BA.30B	GA.31B	520
FACOM NKD.36A	36	44	56	56	21.5	BA.30B	GA.31B	540
FACOM NKD.38A	38	44	56	56	22.3	BA.30B	GA.31B	540
FACOM NKD.41A	41	45	62	62	24.9	BA.30B	GA.31B	618
FACOM NKD.42A	42	45	62	62	25.4	BA.30B	GA.31B	679
FACOM NKD.46A	46	45	63	63	28.6	BA.30B	GA.31B	814

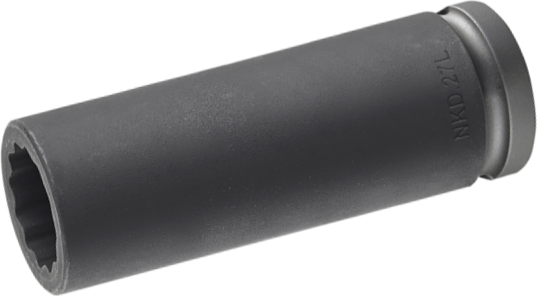

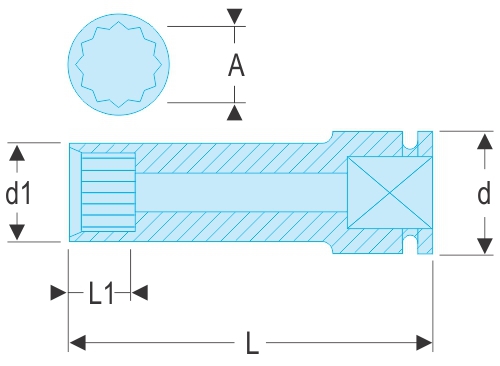

3/4" DRIVE METRIC LONG-REACH METRIC 12-POINT IMPACT SOCKETS

Learn more

For your safety, use impact sockets and accessories with the appropriate rings and pins.

References:

	Size (mm)	D (mm)	D1 (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NKD.17L	17	40	28.6	85	9.3	BA.30B	GA.31B	450
FACOM NKD.19L	19	30.5	30	85	11.1	BA.30B	GA.31B	450
FACOM NKD.21L	21	40	34.5	85	11.7	BA.30B	GA.31B	450
FACOM NKD.22L	22	40	35	85	12.5	BA.30B	GA.31B	470
FACOM NKD.23L	23	40	38	85	12.7	BA.30B	GA.31B	490
FACOM NKD.24L	24	40	38	85	13.9	BA.30B	GA.31B	490
FACOM NKD.26L	26	40	40.9	85	14.6	BA.30B	GA.31B	500
FACOM NKD.27L	27	40	40.9	85	15.8	BA.30B	GA.31B	500
FACOM NKD.29L	29	44	43.9	85	16.7	BA.30B	GA.31B	570
FACOM NKD.30L	30	44	45.7	85	16.7	BA.30B	GA.31B	640
FACOM NKD.32L	32	44	48	85	18.3	BA.30B	GA.31B	640
FACOM NKD.33L	33	44	50.7	85	19.1	BA.30B	GA.31B	750
FACOM NKD.34L	34	44	50.7	85	20	BA.30B	GA.31B	750
FACOM NKD.35L	35	44	51.7	85	20.1	BA.30B	GA.31B	750
FACOM NKD.36L	36	44	53.7	85	21.5	BA.30B	GA.31B	780
FACOM NKD.38L	38	44	53.7	85	22.3	BA.30B	GA.31B	820
FACOM NKD.41L	41	45	60	85	24.9	BA.30B	GA.31B	910
FACOM NKD.42L	42	45	62	85	25.4	BA.30B	GA.31B	950
FACOM NKD.46L	46	45	67	85	28.6	BA.30B	GA.31B	1260

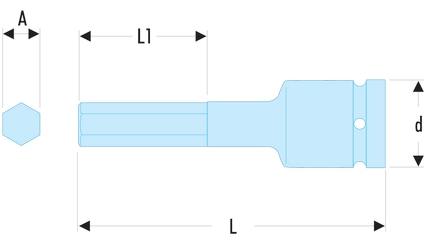

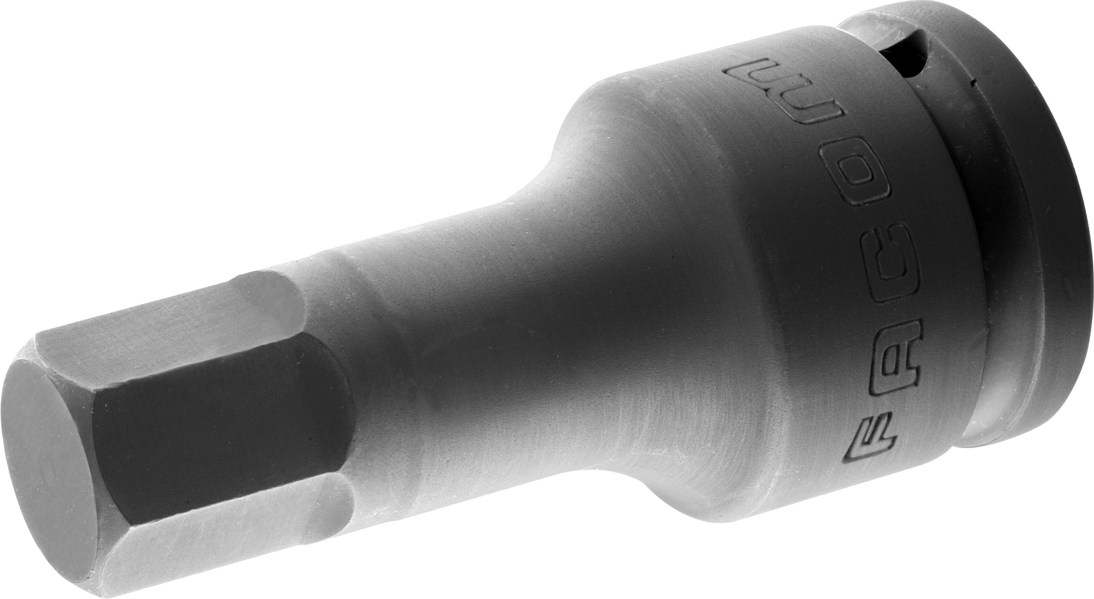

3/4" DRIVE IMPACT BITS FOR HEXAGON SOCKET HEADS

Learn more

For your safety, use with ring GA.37A and pin BA.38A.
Non-removable bits.

References:

	Size (mm)	D (mm)	L (mm)	L1 (mm)	Ring	Pin	Weight (g)
FACOM NKHM.17	17	44	100	21	BA.36B	GA.35B	600
FACOM NKHM.19	19	44	100	21	BA.36B	GA.35B	600
FACOM NKHM.22	22	44	100	21	BA.36B	GA.35B	600
FACOM NKHM.24	24	44	100	21	BA.36B	GA.35B	600

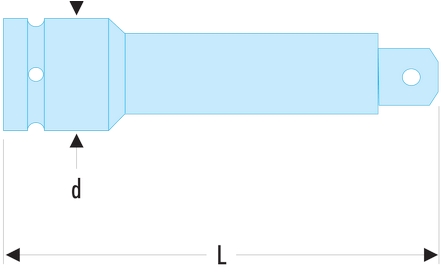

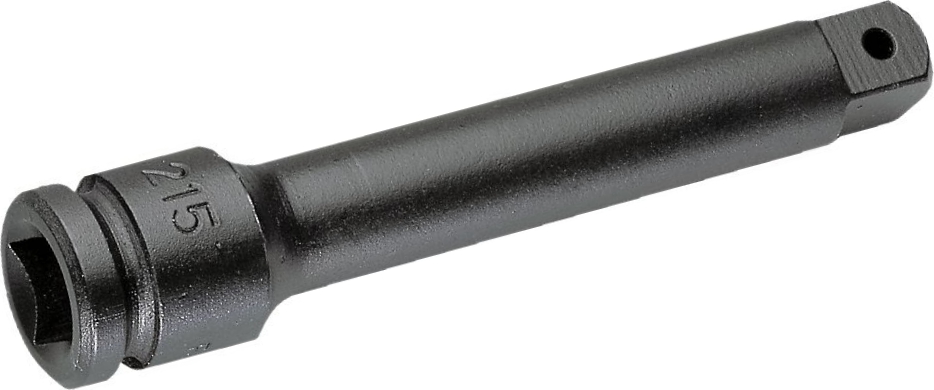

3/4" DRIVE IMPACT EXTENSION

Learn more

For your safety, use impact sockets and accessories with the appropriate rings and pins.

References:

	L (mm)	D (mm)	Ring	Pin	Weight (g)
FACOM NK.209A	100	38	BA.30B	GA.31B	600
FACOM NK.210A	175	38	BA.30B	GA.31B	1050
FACOM NK.215A	252	38	BA.30B	GA.31B	1170
FACOM NK.218A	330	38	BA.30B	GA.31B	1510

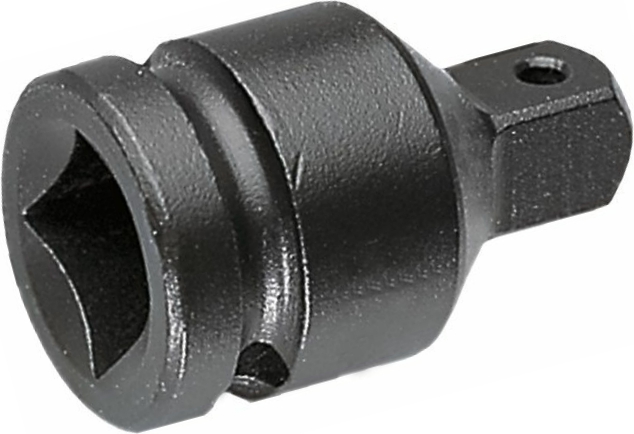

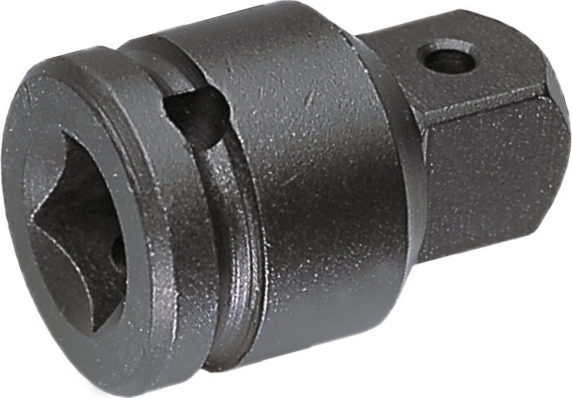

3/4" DRIVE TO 1/2" IMPACT COUPLER

Learn more

Standards: ASME B107.2
For your safety, use impact couplers with the appropriate rings and pins.

3/4" DRIVE TO 1" IMPACT COUPLER

Learn more

Standards: ASME B107.2
For your safety, use impact sockets and accessories with the appropriate rings and pins.

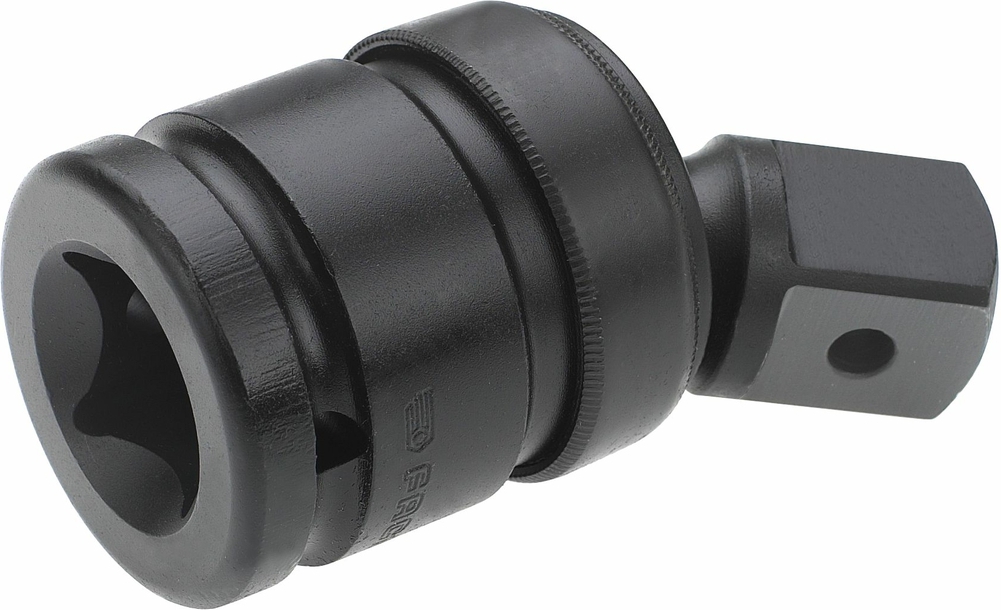

3/4" DRIVE IMPACT UNIVERSAL JOINT

Learn more

Standards: ASME B107.2
For your safety, use impact universal joints with the appropriate rings and pins.

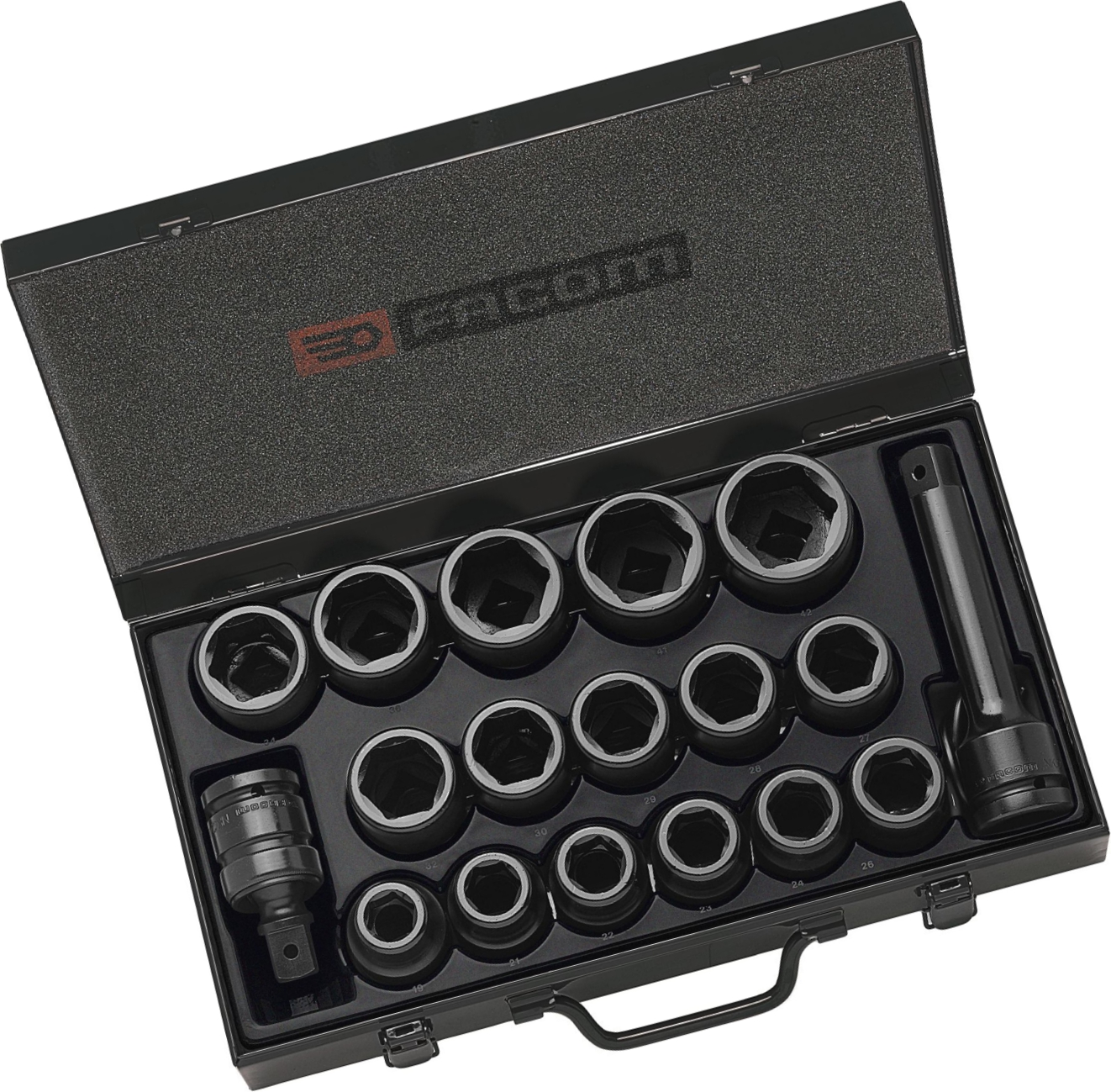

SET OF 3/4" DRIVE 6 POINT IMPACT SOCKETS AND ACCESSORIES

Learn more

Comprising:

Sockets: 19, 21, 22, 23, 24, 26, 27, 28, 29, 30, 32, 34, 36, 38, 41, 42mm.
Extension: 175mm, NK.210A.
Universal joint: NK.240A.

Metal case BT.111 (396x224x82 mm)
Tray PL.79A.
Weight: 11.01 kg.
