SNAP-ON (John Bean) V2380-L-AC400 NEXTGEN 3D IMAGING WHEEL ALIGNMENT SYSTEM

NEXTGEN 3D IMAGING WHEEL ALIGNMENT SYSTEM

Now there's an advanced imaging alignment system that doesn't require lots of training or experience to operate. With the latest XD target and camera system, the V2380 features advanced technology, combined with the simplest, most intuitive software we've ever offered providing the essential tools for any alignment tech. It's the best of both worlds.

FEATURES

High resolution cameras produce accurate, live alignment readings and diagnostic data
The camera beam automatically follows as the vehicle is raised by tracking the targets
Video speed cameras constantly monitor the alignment and provide critical information to get the job done right
Our new user interface streamlines workflow for enhanced productivity and ensures that alignment repair information from online repair information is always one click away
Touchless AC400 wheel clamping system
Patented Cross-Diagonal and Rolling Radius
EZ-Toe eliminates the need for steering wheel holder
Guided adjustments of single tie rod, A-Arm, drag link and cradle
Wheels off mode eases hard to reach adjustments
Maximize profitability with integrated, fast audit check

FAST TO USE

AC400 rim touchless clamps
High speed video camera system
Intelligent software workflow
Compensate – Warn – Alert
Automatic vehicle height tracking

FLEXIBLE

Audit mode
Mobility kit
Short bay
Remote screen supported
Remote printing
Online specs updates

FOR THE SPECIALIST

Ride height measurement
Advanced dimensions
ADAS info
EZ-Toe
EZ-Access (Wheels off)

Two machines in one

Audit and adjust with the same unit!

Audit mode quickly identifies if a car needs adjustment
In less than a minute a simple printout is showing Camber, Total Toe, and Thrust angles
Improve alignment sales with Audit mode!

Interactive software

Intelligent and predictive alignment workflow

Avoid guessing by using this rapid and reliable system for detecting problems and damage:

Compensate: measurement ok and compensated with no notification
Warn: wheel imperfections are compensated and user is warned
Alert: critical errors are detected and corrective actions are displayed

AUTOMATIC LIFT TRACKING

We use the most advanced camera system

Cameras follow the height of the vehicle avoiding the need of adjusting the aligner while moving the lift. Alignment readings are ready in less than two minutes!

AC400

Clamp made fast, safe and easy

Fits a full range of tyres with no adaptors
Grab the tyre not the rim
Single fast-action knob for easy clamping

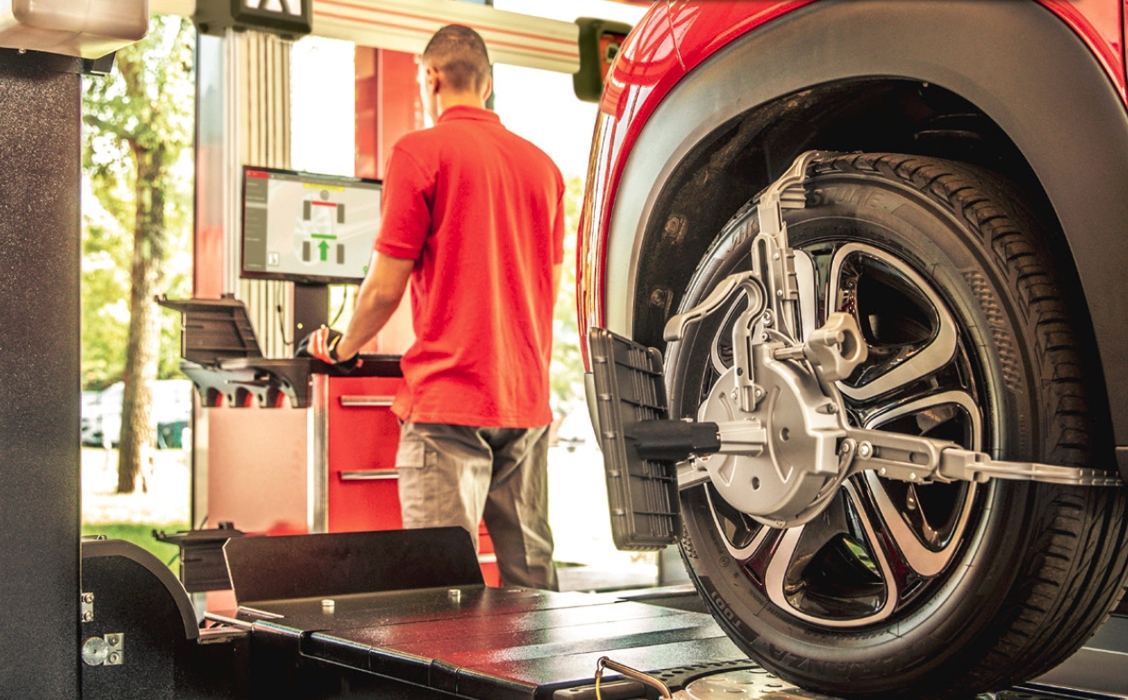

AC400 Touchless Wheel Clamping System

Fast and easy to use, the AC400 clamping system provides secure clamping without touching the rim. This patented technology allows accurate and repeatable results coupled with ease of use and durability. No accessories needed to accommodate the full range of tire sizes.

Automatic Lift Tracking

We use the world's most advanced camera system

The V2280 cameras follow the height of the vehicle avoiding the need to adjust the aligner while moving the lift. Alignment readings are ready in less than two minutes!

Advanced dimensions

Rolling Radius and Cross Diagonals

Chassis data as diagonals, track width and wheelbase indicate collision damage. Rolling Radius measurement and tyre size mismatch are common contributors to pull problems.

Short Bay

Only 1.70 m between cameras and turntables

The smallest footprint for a 3D aligner
Accomodates 6 m overall length service bays and work area
The cabinet can be moved as needed
Optimize your workshop space
Save 1 meter of space without compromising accuracy and speed

VODI™

Our Vehicle Orientation Directional Indicator guides and speeds up your technician operations throughout the entire measurement procedure.

Connect it and get more

Online connectivity automatically downloads specifications and software updates
With our favourable specs subscription plans you are always updated with the latest vehicle models
Cloud based printing option: retrieve and print your reports from any internet connected PC or mobile device
Wireless remote display (tablet) supported

Ride Height

Many of today’s vehicles have Toe, Camber, and even Caster specs that are calculated with respect to the vehicle’s ride height. With our optional TIP target the aligner is able to measure these values faster and more accurately than a manual measurement.

OEM Procedures

Procedures defined by the main manufacturers
Always operate with the correct workflow
Updated vehicle specification database

Help videos

View detailed videos of how to make needed adjustments to complete even the most complex tasks.

EZ TOE

Turn the front wheels and access difficult adjustment points while still displaying centred toe readings

Catalogs:

AC400

Touchless wheel clamp

Aligners Range

V2380

A combination of technology and simplicity

Specifications:

	SNAP-ON (John Bean) V2380-L-AC400
Power supply	230 VAC 1ph 50/60 Hz
Track width	1219 - 2438 mm
Wheel base	2007 - 4572 mm
Communication	Bluetooth
Measuring System	3D
Shipping weight	227 kg
Tyre diameter	48.3 cm – 99.1 cm
Standard Accessories
Steering Wheel Holder	*
Brake Pedal Depressor	*
Colour Inkjet Printer	*

Rolling Radius and Cross Diagonals
