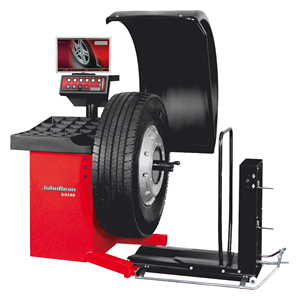

SNAP-ON (John Bean) B9250 TRUCK WHEEL BALANCER

TRUCK WHEEL BALANCER

The b9250 is an easy-to-operate truck wheel balancer with pneumatic loading device and low space requirements. Consequently, it is particularly suited for workshops and tyre shops which handle heavy truck wheels.

MAIN FEATURES

Automatic input of offset and rim diameter (2D SAPE)
Input of width via keys
Including pneumatic loading device
Gauge arm with weight clamp
5 alloy modes
Spoke mode
Electronic friction brake for braking after measurement
Virtual plane imaging (VPM) technique
Spacious weight tray with 16 weight compartments
Conspicuous display
Truck cone adaptor with spacer, cone for light truck wheels and 2 truck cones, weight pliers, truck rim width callipers, wheel guard

GAUGE ARM

Measuring arm with integrated weight holder for easy application of adhesive wheel weights.

VPM TECHNIQUE

Measurement system for high precision and repeatability. Ensures most accurate balance results and is insensitive to ambient conditions.

QuickBAL™

30% reduced cycle time, less than 4.5 seconds, maintaining the same high accuracy.

Catalogs:

Truck Wheel Balancers

The complete series

Specifications:

	SNAP-ON (John Bean) B9250
Diametre of shaft	40 mm
Measuring speed	< 100 rpm
Balancing accuracy	1 g
Lenght of shaft	40 mm
Rim diameter range	8 - 26"
Rim width range	2 - 20"
Max. wheel diameter	1300 mm
Max. wheel weight	250 kg
Input power	230 VAC 1ph 50/60 Hz
Dimensions LxWxH	1370 x 1455 x 2005mm
Net weight	238 kg
