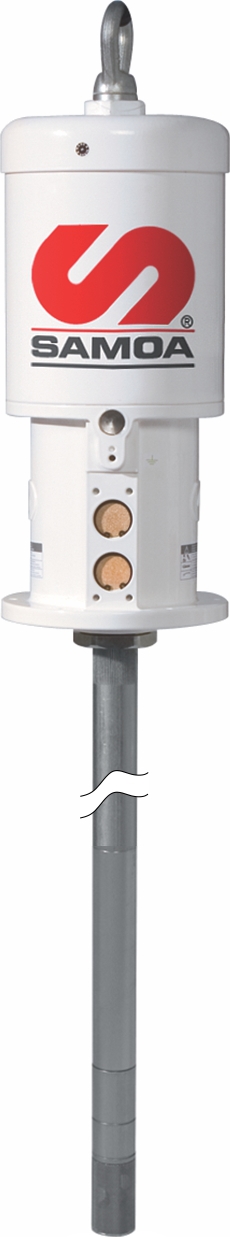

SAMOA 401025 | |
---|---|
Pressure ratio | 55:1 |
Pump tube diameter | 35 mm |
Air piston diameter | 160 mm |
Air piston stroke | 110 mm |
Maximum free flow capacity | 3000 gr/min |
Minimum air pressure | 3 bar |
Maximum air pressure | 10 bar |
Maximum fluid pressure | 550 bar |
Air inlet | 1/2" BSPT (F) |
Fluid outlet | 3/8" BSP (F) |
Drum application | 185 Kg (400 lb) |
Pump tube height | 850 mm |
Total height | 1330 mm |
Weight | 16.8 kg |
