Castor Trading - SAMOA Enclosed hose reels

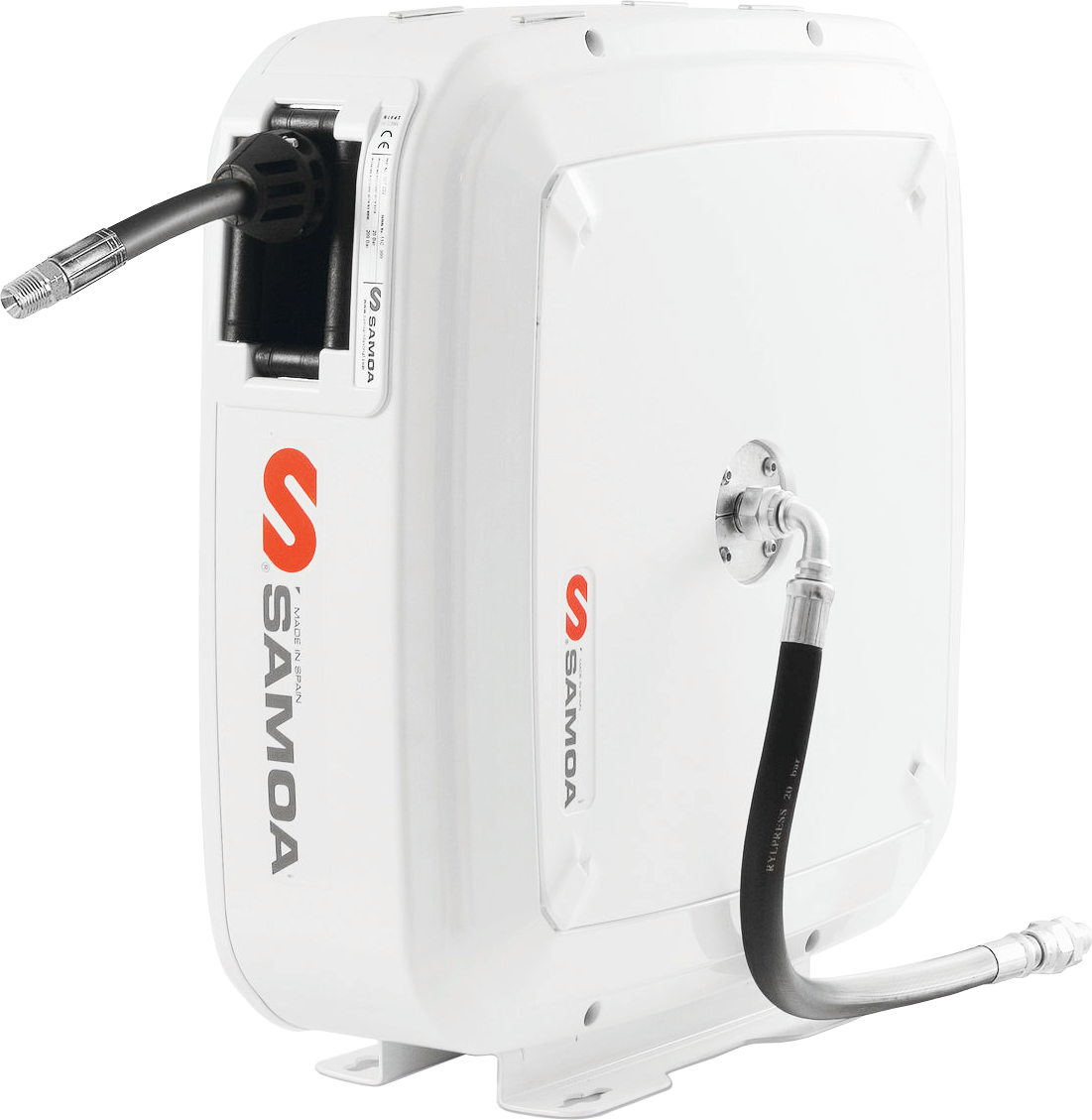

ENCLOSED HOSE REEL

LEARN MORE

Corrosion resistant aluminium enclosure form a very rigid and stable structure, with light weight and attractive design.
Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
Full port shaft and swivel for no restrictions.
Spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
Large effective radial latching area for easier operation.
Positionable mounting brackets to accommodate any method of mounting.
Two large lateral service windows facilitate common maintenance operations.
Hose reels with hose include 0.8 m inlet hose.
Can handle up to 15m x 1/2" hose.

	Usage	Hose diameter (")	Length (m)	Inlet thread ("BSP)	Outlet thread ("BSP)	Maximum pressure (bar)	Weight (kg)
SAMOA 507101	Air and water	3/8	10	3/8	3/8	20	18.4
SAMOA 507121	Air and water	3/8	15	3/8	3/8	20	20.7
SAMOA 507122	Air and water	1/2	15	1/2	1/2	20	21.4
SAMOA 507202	Oil	1/2	10	1/2	1/2	160	18.9
SAMOA 507222	Oil	1/2	15	1/2	1/2	160	21.4
SAMOA 507212	Oil	1/2	15 + 3	1/2	1/2	160	22.2
SAMOA 507300	Grease	1/4	10	1/4	1/4	400	18.8
SAMOA 507301	Grease	3/8	10	3/8	1/4	400	19.5
SAMOA 507321	Grease	3/8	15	3/8	1/4	400	22.6
SAMOA 507311	Grease	3/8	15 + 3	3/8	1/4	400	23.6
SAMOA 507421	High pressure hot water	3/8	15	3/8	1/4	170	22.2
SAMOA 507503	Waste oil suction	5/8	6	1/2	1/2	Vacuum	19.1
