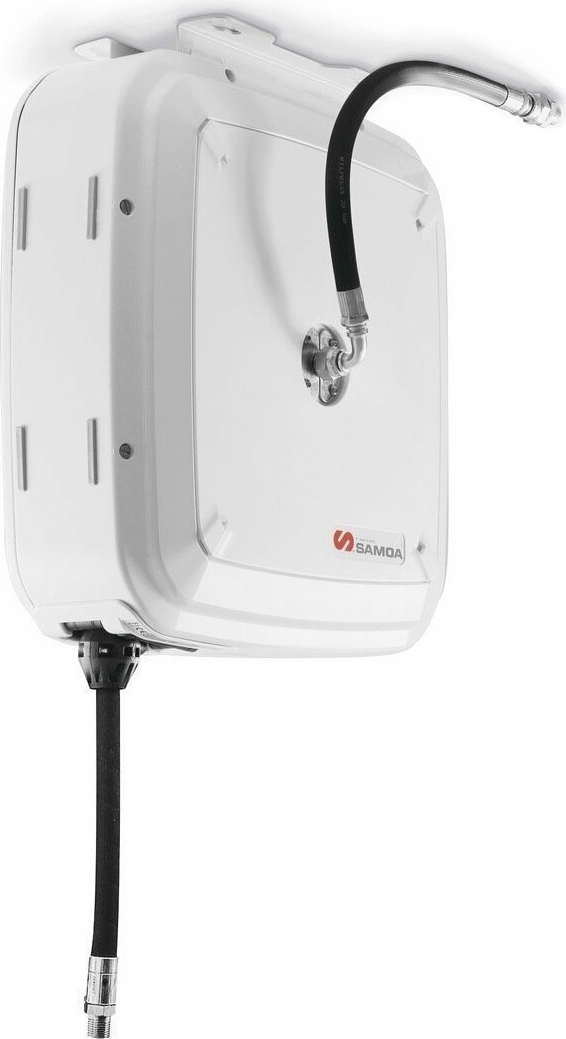

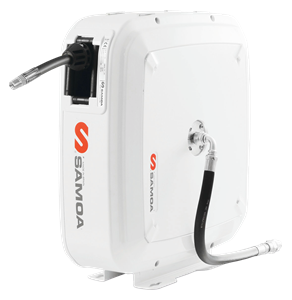

SAMOA 507222 ENCLOSED HOSE REEL

ENCLOSED HOSE REEL

FEATURES

Corrosion resistant aluminium enclosure form a very rigid and stable structure, with light weight and attractive design.
Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
Full port shaft and swivel for no restrictions.
Spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
Large effective radial latching area for easier operation.
Positionable mounting brackets to accommodate any method of mounting.
Two large lateral service windows facilitate common maintenance operations.
Hose reels with hose include 0.8 m inlet hose.
Can handle up to 15m x 1/2" hose.

Specifications:

	SAMOA 507222
Usage	Oil
Hose diameter (")	1/2
Length (m)	15
Inlet thread ("BSP)	1/2
Outlet thread ("BSP)	1/2
Maximum pressure (bar)	160
Weight (kg)	21.4

Products in the same category

SAMOA 507121

ENCLOSED HOSE REEL

For air and water

Diameter: 3/8"

Length: 15m

Maximum pressure: 20 Bar

Inlet thread: 3/8" BSP

Outlet thread: 3/8" BSP

Weight: 20.7 kg

SAMOA 507122

ENCLOSED HOSE REEL

For air and water

Diameter: 1/2"

Length: 15m

Maximum pressure: 20 Bar

Inlet thread: 1/2" BSP

Outlet thread: 1/2" BSP

Weight: 21.4 kg

SAMOA 507202

ENCLOSED HOSE REEL

For oil

Diameter: 1/2"

Length: 10m

Maximum pressure: 160 Bar

Inlet/outlet thread: 1/2" BSP

Weight: 18.9 kg

SAMOA 507222

ENCLOSED HOSE REEL

For oil

Diameter: 1/2"

Length: 15m

Maximum pressure: 160 Bar

Inlet thread: 1/2" BSP

Outlet thread: 1/2" BSP

Weight: 21.4 kg

SAMOA 507212

ENCLOSED HOSE REEL

For oil

Diameter: 1/2"

Length: 15+3m

Maximum pressure: 160 Bar

Inlet thread: 1/2" BSP

Outlet thread: 1/2" BSP

Weight: 22.2 kg

SAMOA 507300

ENCLOSED HOSE REEL

For grease

Diameter: 1/4"

Length: 10m

Maximum pressure: 400 Bar

Inlet thread: 1/4" BSP

Outlet thread: 1/4" BSP

Weight: 18.8 kg
