SAMOA 331120 |
|---|---|
| Pump type | Universal stub pump; divorced |
| Pump pressure ratio | 1:1 |
| Effective air piston diameter | 35 mm (1 1/2" ) |
| Piston stroke | 75 mm (3" ) |
| Air pressure operating range | 1.5 to 10 bar (20 to 145 psi) |
| Air inlet | 1/4" BSP (F) |
| Fluid inlet | 1" BSP (F) |
| Fluid outlet | 3/4" BSP (F) |
| Delivery at 100 cycles per minute | 25 l/min - 6.6 gal/min |
| Maximum free delivery | 38 l/min - 10 gal/min |
| Wetted materials | PTFE, Viton�, stainless steel |
| Height adjustable bung adaptor | Included |
FEATURES
Metal pump adequate for indoor and outdoor use and can handle a wide range of fluids used for vehicle service.
Pump air valve module and lateral pump covers are manufactured in aluminium.
Pump body: Aluminum.
Diaphragm: NBR.
Other wetted parts: PTFE, Stainless steel.
Applications: Lubricants, gear oil, waste oil and diesel evacuation.
Suitable for antifreeze solutions, lubricants, diesel, and waste oil

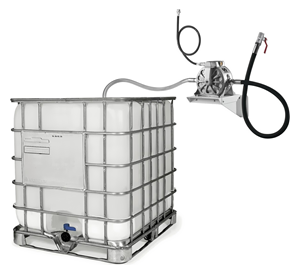

Includes:

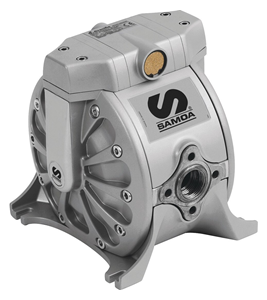

551030: DF100 diaphragm pump
360101: Wall bracket
855491: Suction hose 1"
945599: Adaptor 1" BSP(M) x 3/4" BSP(M)
950318: Air valve 3/8" BSP (F)
239002: Adaptor 3/8" BSP (MM)
247710: Air hose 1m 3/8" BSP
362303: Fluid hose 3m 3/4" BSP
950303: Hose valve 3/4" BSP(H)
251438: Air quick coupling
255338: Air nipple
Double acting air operated low pressure pump with corrosion protected wetted parts.
For transferring all types of lubricants and glycol or windshield washer water based solutions.
Pump includes height adjustable 2" BSP (M) bung adaptor for tank or drum bung mounting.
Double acting air operated medium pressure pump for dispensing fluids such as paint solvents, cleaning fluids, anti-freeze and windshield washer fluids, detergents, anti-corrosive fluids, light inks, etc.
Can be used in mobile units, fluid distribution packages and small systems.
Pump includes height adjustable 2" BSP (M) bung adaptor for tank or drum bung mounting.
