SAMOA 551030 |
|---|---|
| Pressure Ratio | 1:1 |
| Maximum free delivery (l/min) | 100 |
| Delivery per stroke (l) | 0.25 |
| Air pressure operating range (bar) | 1.5 to 8 |
| Solids in suspension max size (mm) | 4 |
| Max dry suction head (m) | 4.5 |
| Max wet suction head (m) | 7 |
| Weight (kg) | 7.2 |
| Fluid inlet (" BSP) | 1 |
| Fluid outlet (" BSP) | 1 |
| Air inlet (" NPSM) | 3/8 |
Suitable for antifreeze solutions, lubricants, diesel, and waste oil

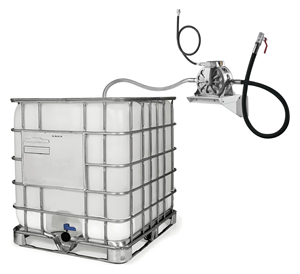

Includes:
551030: DF100 diaphragm pump
360101: Wall bracket
855491: Suction hose 1"
945599: Adaptor 1" BSP(M) x 3/4" BSP(M)
950318: Air valve 3/8" BSP (F)
239002: Adaptor 3/8" BSP (MM)
247710: Air hose 1m 3/8" BSP
362303: Fluid hose 3m 3/4" BSP
950303: Hose valve 3/4" BSP(H)
251438: Air quick coupling
255338: Air nipple
Double acting air operated low pressure pump with corrosion protected wetted parts.
For transferring all types of lubricants and glycol or windshield washer water based solutions.
Pump includes height adjustable 2" BSP (M) bung adaptor for tank or drum bung mounting.
Double acting air operated low pressure pump.
For transferring fluids such as paint solvents, cleaning fluids, anti-freeze and windshield washer fluids, detergents, anti-corrosive fluids, light inks, etc.
Pump includes height adjustable 2" BSP (M) bung adaptor for tank or drum bung mounting.
Double acting air operated medium pressure pump for dispensing fluids such as paint solvents, cleaning fluids, anti-freeze and windshield washer fluids, detergents, anti-corrosive fluids, light inks, etc.
Can be used in mobile units, fluid distribution packages and small systems.
Pump includes height adjustable 2" BSP (M) bung adaptor for tank or drum bung mounting.
