Castor Trading - FACOM 1/2" drive bit sockets

LEARN MORE

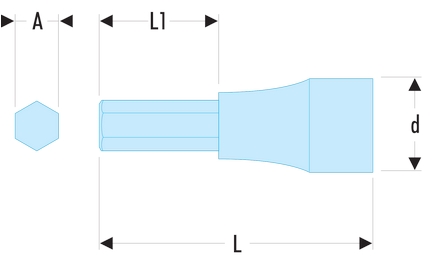

Standard length series.
For hexagon socket heads.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

References:

	Size (mm)	D (mm)	L (mm)	L1 (mm)	Weight (g)
FACOM STM.4	4	22.8	60	24	60
FACOM STM.5	5	22.8	60	24	60
FACOM STM.6	6	22.8	60	24	60
FACOM STM.7	7	22.8	60	24	65
FACOM STM.8	8	22.8	60	24	70
FACOM STM.10	10	22.8	60	24	80
FACOM STM.12	12	23.1	60	24	100
FACOM STM.14	14	23.1	60	24	120
FACOM STM.17	17	23.4	60	24	140
FACOM STM.19	19	23.4	60	24	160

1/2" DRIVE METRIC HEXAGON BIT SOCKETS

LEARN MORE

SET OF 9 PIECES

LEARN MORE

Standard length series.
For hexagon socket heads.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

Sizes: 5, 6, 7, 8, 10, 12, 14, 17, 19mm.
Tray: PL.S02.
Plastic Box: BP.MBOXS.
Weight: 865 g.

1/2" DRIVE INCH HEXAGON BIT SOCKETS

LEARN MORE

Standard length series.
For hexagon socket heads.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

References:

	Size (")	D (mm)	L (mm)	L1 (mm)	Holder	Bit	Weight (g)
FACOM ST.1/4	1/4	23	54	17	S.236	EH.201/4	70
FACOM ST.5/16	5/16	23	54	17	S.236	EH.205/16	70
FACOM ST.3/8	3/8	23	54	17	S.236	EH.203/8	75
FACOM ST.7/16	7/16	23	70	31	S.237	ENH.307/16	110
FACOM ST.1/2	1/2	23	70	31	S.237	ENH.301/2	120
FACOM ST.9/16	9/16	23	70	31	S.237	ENH.309/16	125
FACOM ST.5/8	5/8	23	70	31	S.237	ENH.305/8	145
FACOM ST.3/4	3/4	23	70	31	S.237	ENH.303/4	165

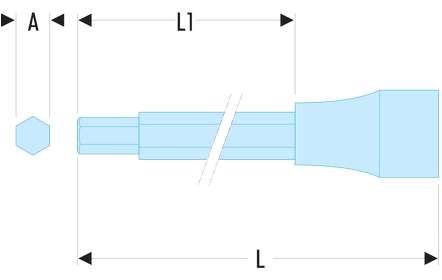

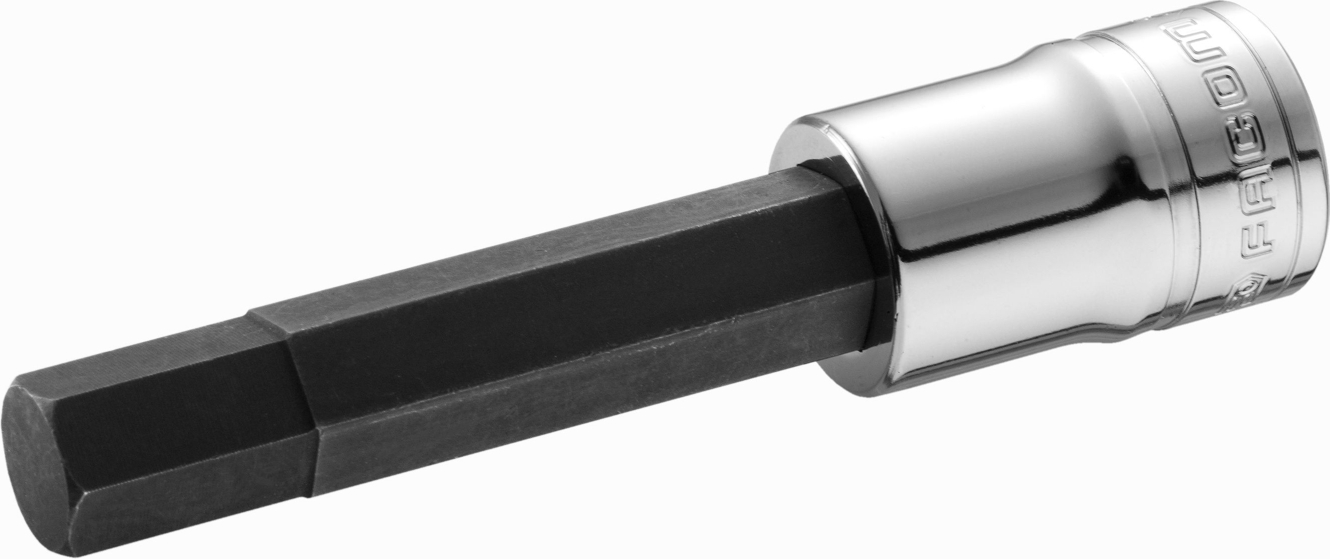

1/2" DRIVE LONG METRIC HEXAGON BIT SOCKETS

LEARN MORE

Long and extra long reach series
For hexagon socket heads.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

References:

	Size (mm)	L (mm)	L1 (mm)	Weight (g)
FACOM SHP.5ELA	5	180	144	110
FACOM SHP.6EL1A	6	140	104	95
FACOM SHP.6EL2A	6	220	184	130
FACOM SHP.6LA	6	100	64	80
FACOM SHP.7LA	7	100	64	80
FACOM SHP.8LA	8	100	64	80
FACOM SHP.10LA	10	140	104	135
FACOM SHP.12LA	12	100	64	145

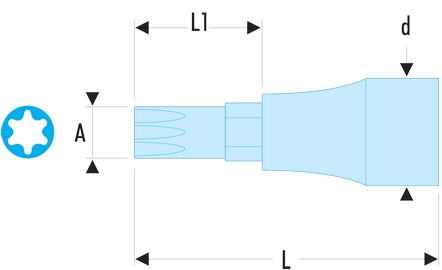

1/2" DRIVE TORX� BIT SOCKETS

LEARN MORE

Standard length series.
For Torx� female drive fasteners.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

References:

	Size	A (mm)	D (mm)	L (mm)	L1 (mm)	Weight (g)
FACOM SXM.20	T20	3.84	22.8	60	24	60
FACOM SXM.25	T25	4.4	22.8	60	24	60
FACOM SXM.27	T27	4.96	22.8	60	24	60
FACOM SXM.30	T30	5.49	22.8	60	24	60
FACOM SXM.40	T40	6.6	22.8	60	24	65
FACOM SXM.45	T45	7.77	22.8	60	24	65
FACOM SXM.50	T50	8.79	22.8	60	24	75
FACOM SXM.55	T55	11.17	22.8	60	24	95
FACOM SXM.60	T60	13.17	23.1	60	24	115

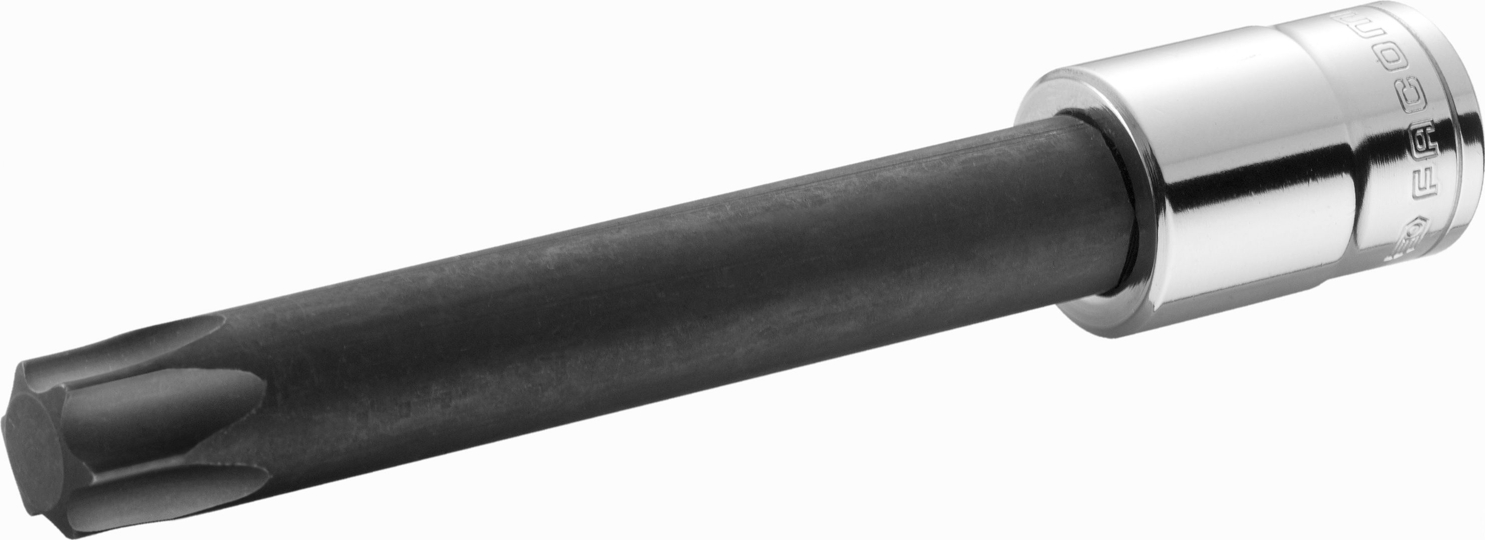

1/2" DRIVE LONG TORX� BIT SOCKETS

LEARN MORE

Long-reach series.
For Torx� female drive fasteners.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

References:

	Size	A (mm)	D (mm)	L (mm)	L1 (mm)	Weight (g)
FACOM SX.40LA	T40	6.6	22.8	120	84	95
FACOM SX.45LA	T45	7.77	22.8	120	84	95
FACOM SX.55LA	T55	11.17	22.8	140	104	220
FACOM SX.70LA	T70	15.49	23.1	140	104	280

1/2" DRIVE SPLINE BIT SOCKETS

LEARN MORE

Standard length series.
For spline female drive fasteners.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

References:

	Size (mm)	L (mm)	L1 (mm)	Weight (g)
FACOM D.34B7	7	60	15	70
FACOM D.34B7L	7	100	63	120
FACOM D.34B9L	9	100	63	130
FACOM D.34B10	10	60	15	75
FACOM D.34B12L	12	100	63	140
FACOM D.34B14L	14	100	63	150
FACOM D.34B16L	16	100	63	160

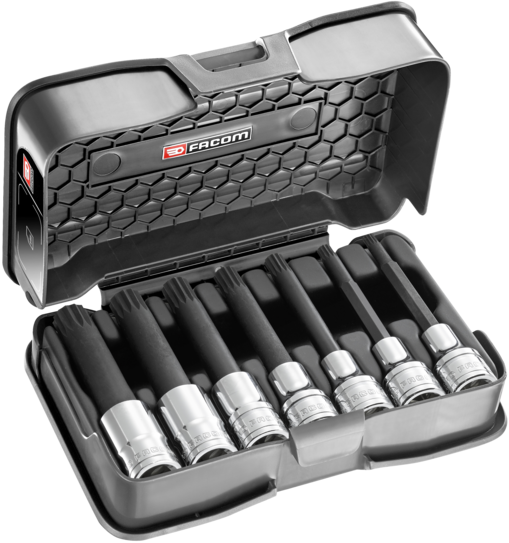

1/2" DRIVE SPLINE BIT SOCKETS

LEARN MORE

SET OF 7 PIECES

LEARN MORE

Standard length series.
For spline female drive fasteners.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

Comprising: D.34B7 - D.34B7L - D.34B9L - D.34B10 - D.34B12L - D.34B14L - D.34B16L.
Supplied on a rack.

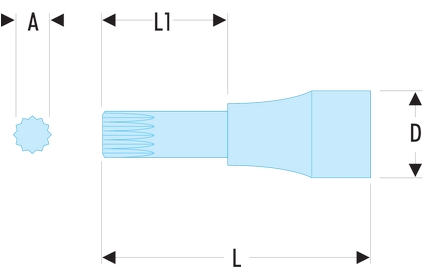

1/2" DRIVE XZN� SPLINE BIT SOCKETS

LEARN MORE

Standard length series.
For XZN� female drive fasteners.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

References:

	Size	D (mm)	L (mm)	L1 (mm)	Weight (g)
FACOM SV.6B	M6	22.8	60	24	60
FACOM SV.8B	M8	22.8	60	24	60
FACOM SV.10B	M10	22.8	60	24	70
FACOM SV.12B	M12	22.8	60	24	80
FACOM SV.14B	M14	22.8	60	24	100
FACOM SV.16B	M16	23.1	60	24	110
FACOM SV.18B	M18	21.8	60	24	170

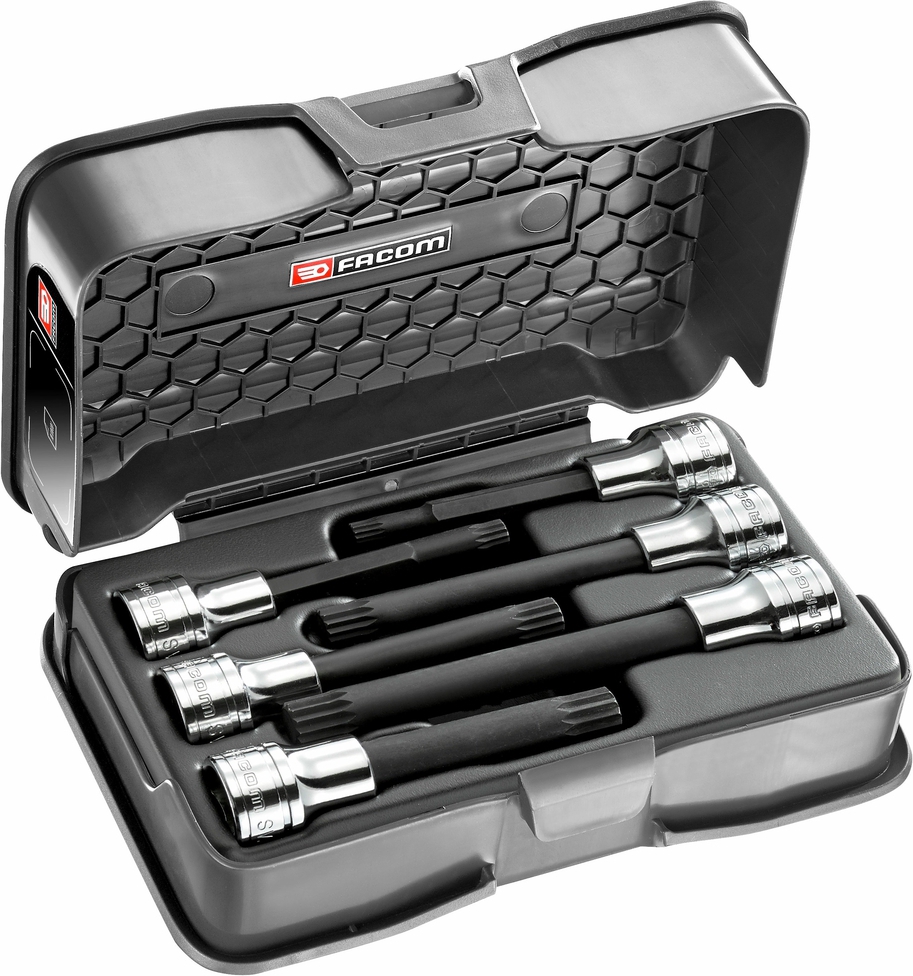

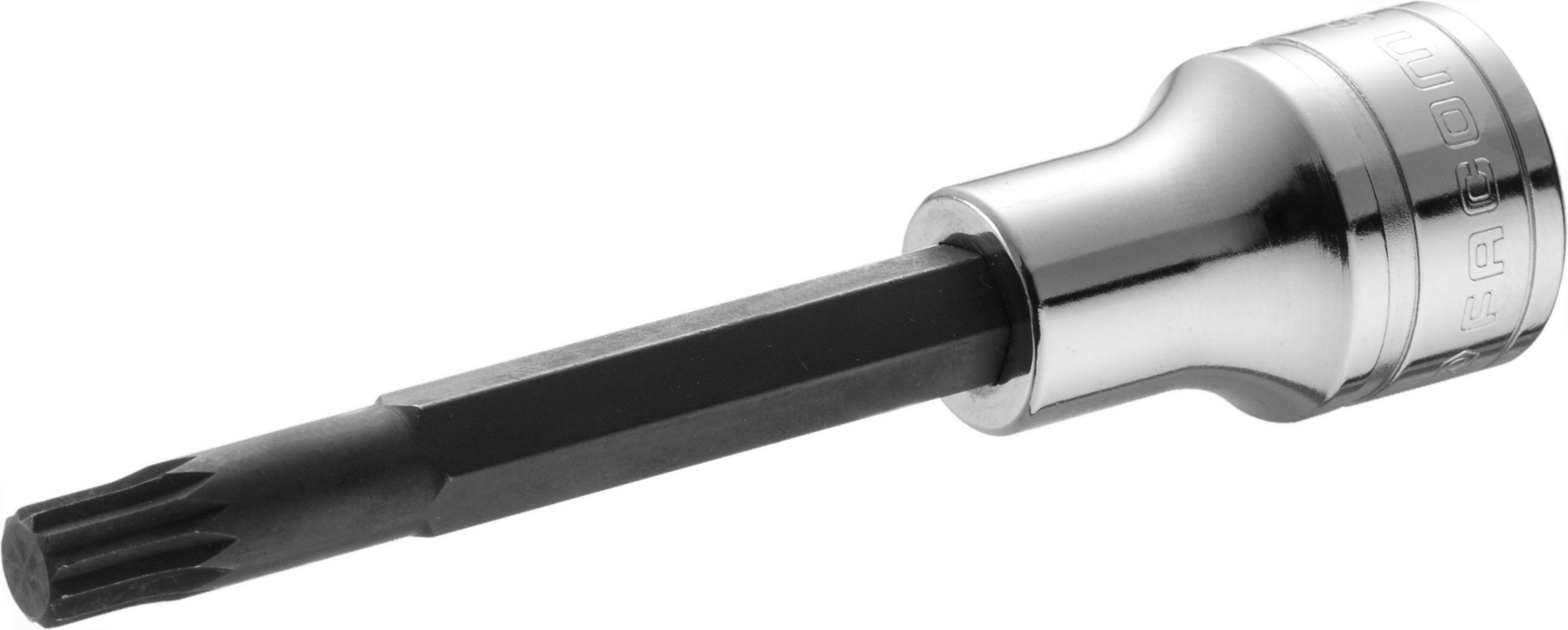

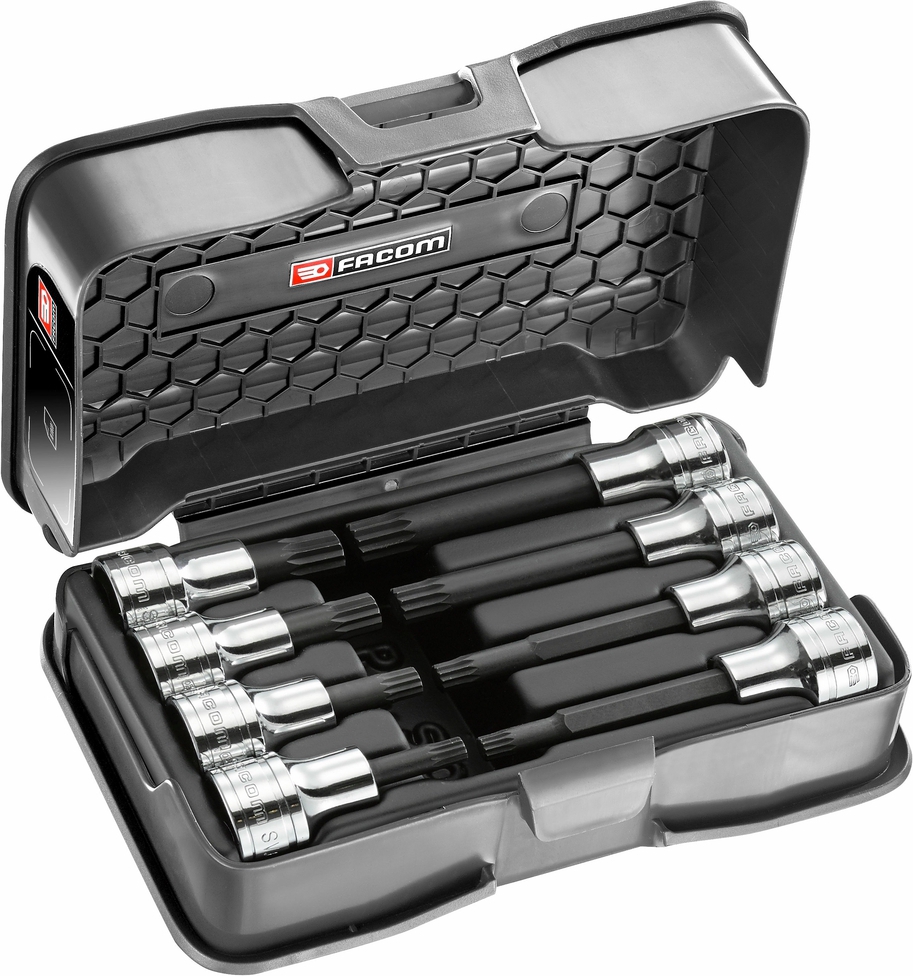

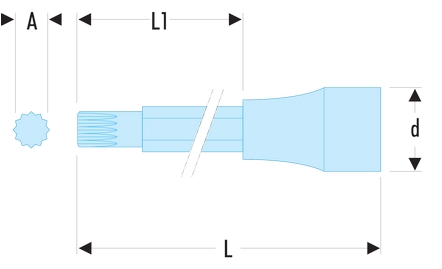

1/2" DRIVE LONG-REACH XZN� SPLINE BIT SOCKETS

LEARN MORE

Long and extra long reach series
For XZN� female drive fasteners.
Non-removable bit.
Finish: bright chrome with phosphate-hardened tip.

References:

	Size	D (mm)	L (mm)	L1 (mm)	Weight (g)
FACOM SV.6LB	M6	22.8	100	64	80
FACOM SV.8LB	M8	22.8	100	64	80
FACOM SV.10LB	M10	22.8	100	64	90
FACOM SV.10ELB	M10	22.8	120	120	110
FACOM SV.12LB	M12	22.8	100	64	120
FACOM SV.12ELB	M12	22.8	140	104	150
FACOM SV.14LB	M14	22.8	100	64	150
FACOM SV.16LB	M16	22.8	100	64	160
FACOM SV.18LB	M18	22.8	100	64	180
